Okaia 3 Details

Property	Value
Rupture Count	5
Ruptures Above Sect Min Mag	4
Ruptures w/ Nonzero Rates	2
Magnitude Range	[6.61, 7.38]
Length Range	[10, 60] km
Total Rate	1.7744333E-4 /yr
Multi-Fault Rate	1.7744333E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	2

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

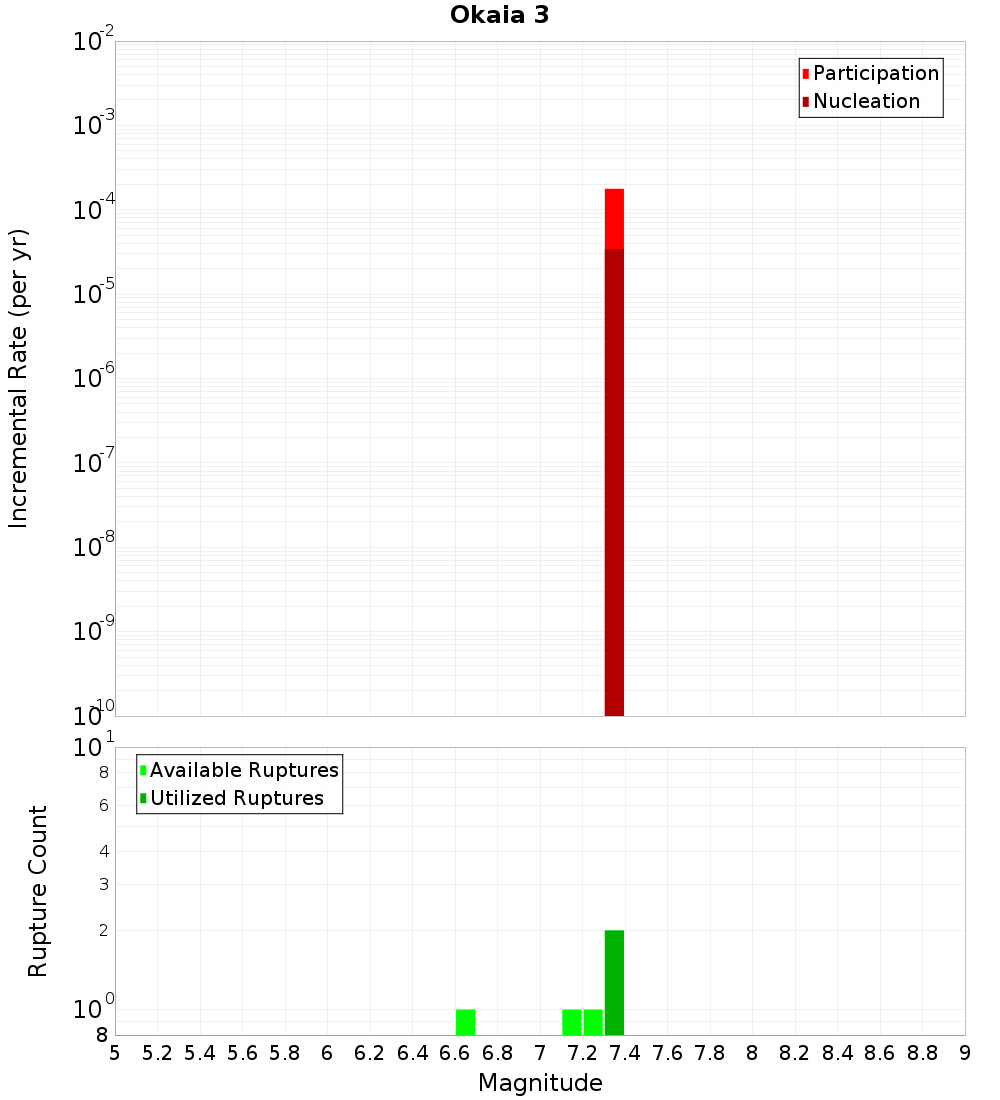

Magnitude-Frequency Distribution

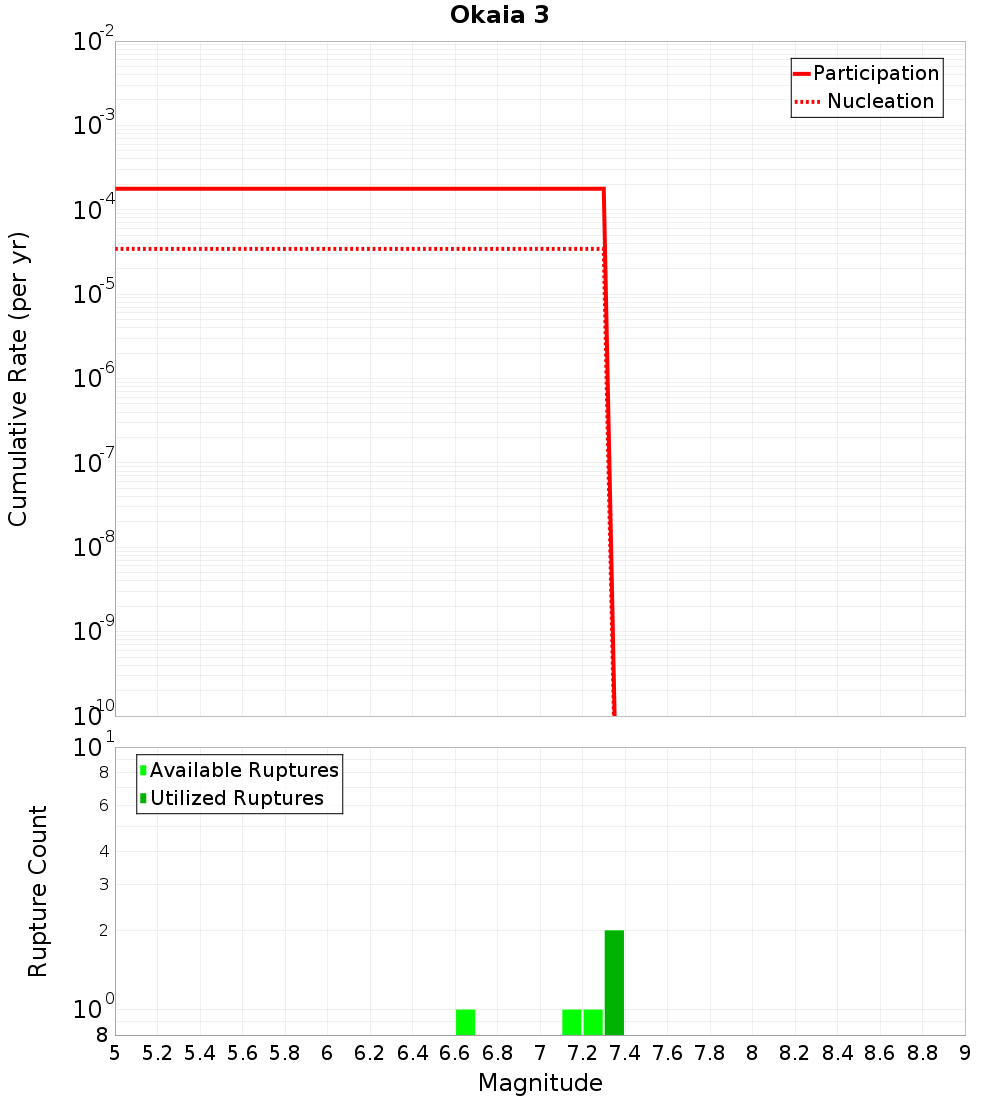

Incremental	Cumulative

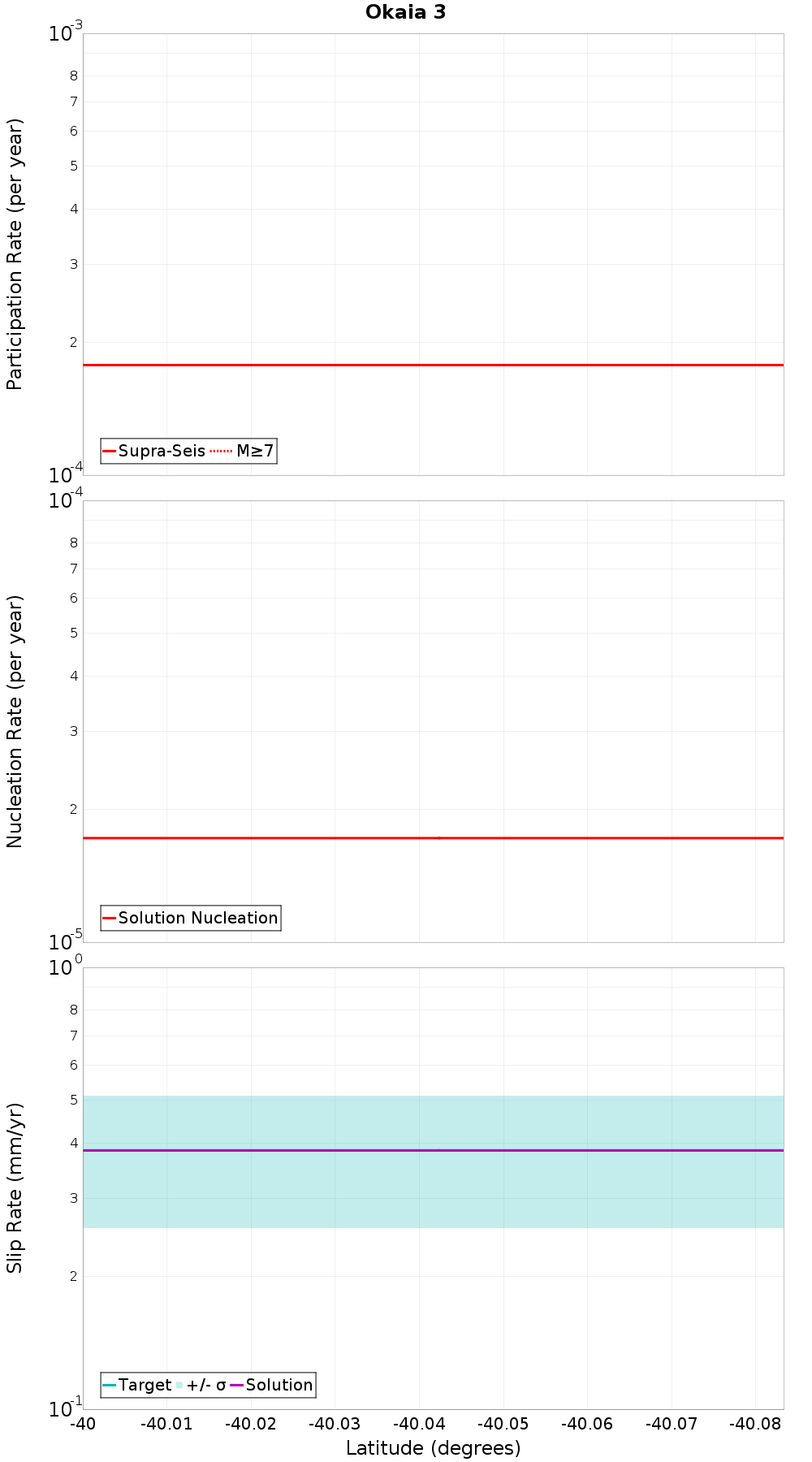

Along-Strike Values

Moment-Rates and b-Values

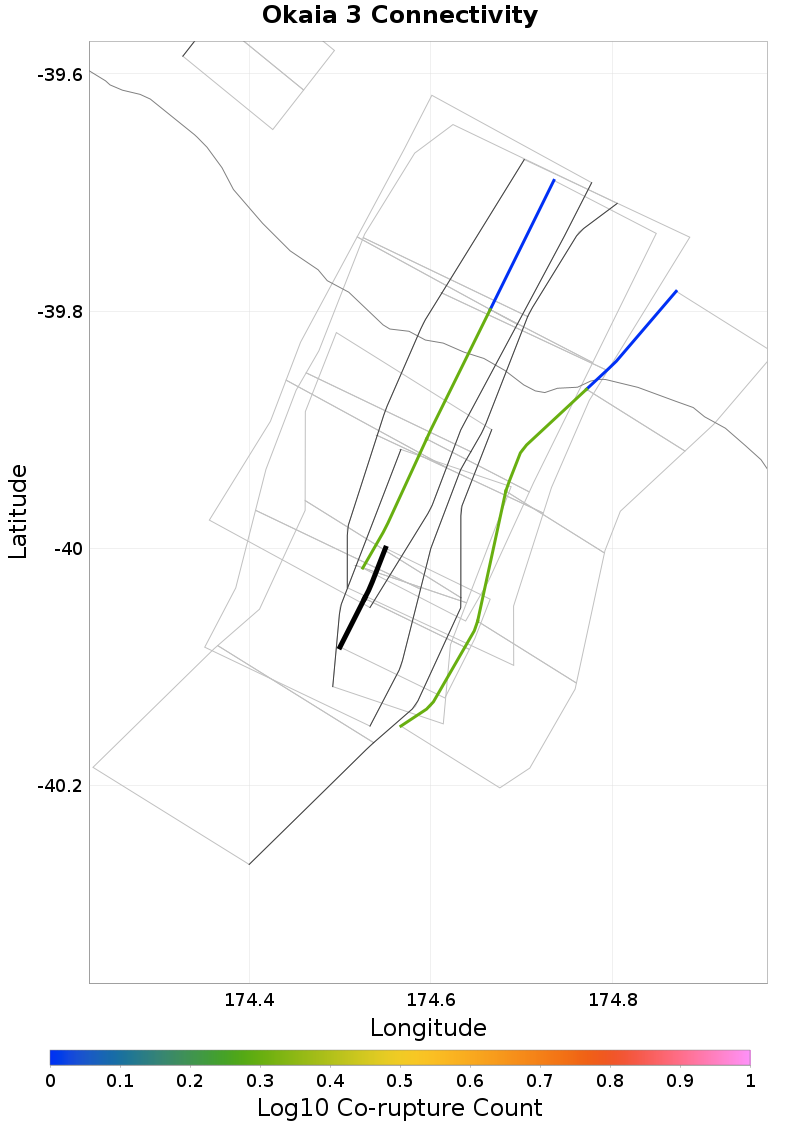

Connectivity

Nearby Sections

Fault Section
Okaia 5, 0.08 km away
Ridge Road - Okaia 2, 0.18 km away
Waitotara 8 & 9, 0.18 km away
Waverley - Okaia 1, 0.29 km away
Waitotara 10 & 11, 0.34 km away
Moumahaki - Okaia 4, 0.95 km away
Nukumuru - Waitotara 1-6, 8.9 km away

Okaia 5, 0.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ridge Road - Okaia 2, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitotara 8 & 9, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waverley - Okaia 1, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitotara 10 & 11, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Moumahaki - Okaia 4, 0.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	1.3223191E-4

Nukumuru - Waitotara 1-6, 8.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	4.521141E-5
