Rangitaiki 2 Details

PropertyValue
Rupture Count3,684
Ruptures Above Sect Min Mag3,677
Ruptures w/ Nonzero Rates87
Magnitude Range[6.56, 8.21]
Length Range[13, 575] km
Total Rate2.6717535E-4 /yr
Multi-Fault Rate2.6717535E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults52

Table Of Contents

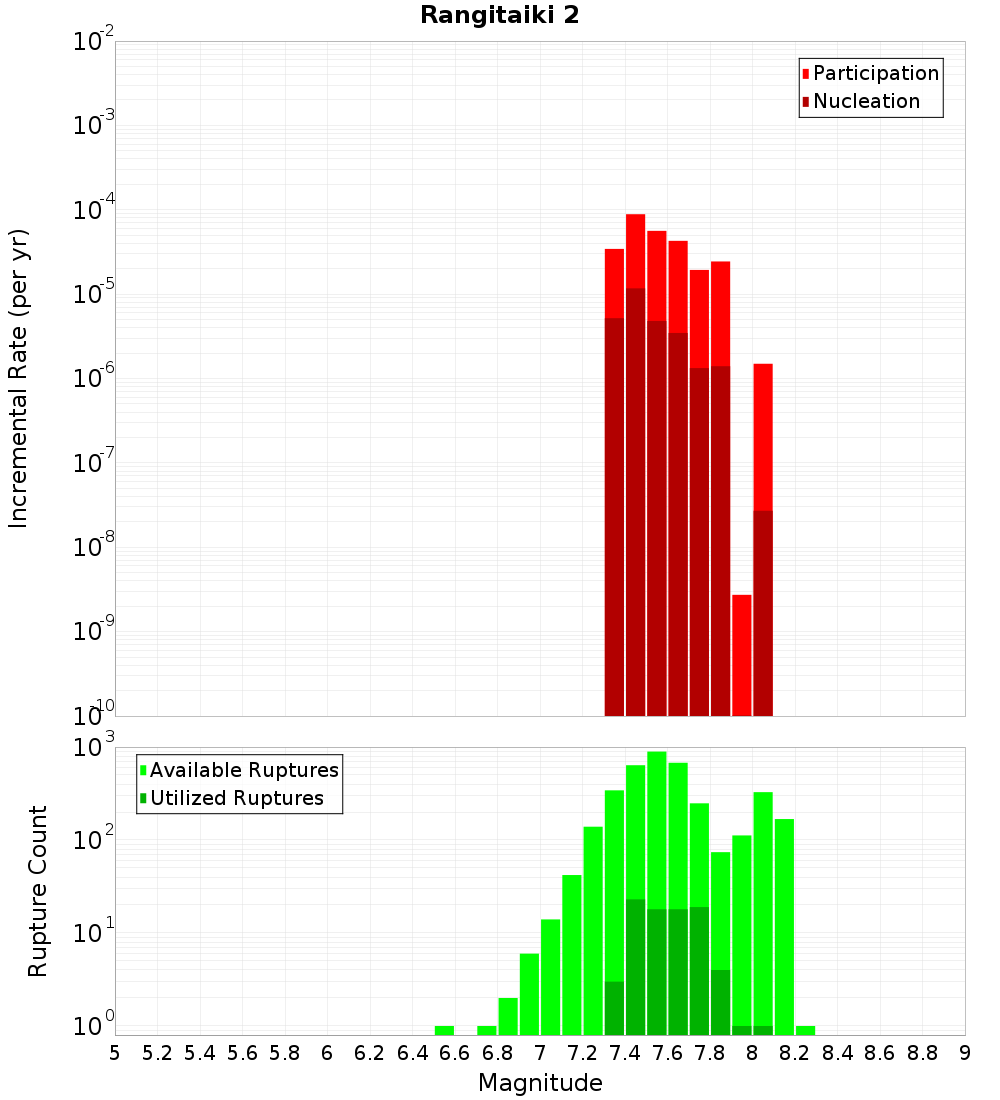

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ohiwa 1, 0.42 km away
Whakaari 4, 0.45 km away
Rangitaiki 1, 0.74 km away
White Island 1, 0.77 km away
White Island 2, 2.66 km away
Waimanawa - Waikaremoana, 6.46 km away
Keepa, 7.48 km away
Calypso 2, 8.01 km away
Waimana: North, 9.39 km away
Edgecumbe Coastal, 14.83 km away
Waiotahi: North, 14.86 km away
Ohae 1, 14.97 km away

Ohiwa 1, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?true
Co-rupture Count890
Co-rupture Rate1.0576878E-4

Whakaari 4, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?true
Co-rupture Count1,965
Co-rupture Rate1.5480556E-4

Rangitaiki 1, 0.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?true
Co-rupture Count3,163
Co-rupture Rate1.9133391E-4

White Island 1, 0.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?false
Co-rupture Count3,540
Co-rupture Rate2.6717535E-4

White Island 2, 2.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?true
Co-rupture Count1,043
Co-rupture Rate9.897333E-8

Waimanawa - Waikaremoana, 6.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Keepa, 7.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate0.0

Calypso 2, 8.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?true
Co-rupture Count214
Co-rupture Rate9.913744E-5

Waimana: North, 9.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Edgecumbe Coastal, 14.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?true
Directly Connected?false
Co-rupture Count1,719
Co-rupture Rate7.573626E-5

Waiotahi: North, 14.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 1, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTAuMHM3YmV4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
