Doctors Details

PropertyValue
Rupture Count16,096
Ruptures Above Sect Min Mag16,093
Ruptures w/ Nonzero Rates175
Magnitude Range[6.86, 8.54]
Length Range[17, 738] km
Total Rate9.637735E-4 /yr
Multi-Fault Rate9.637735E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults102

Table Of Contents

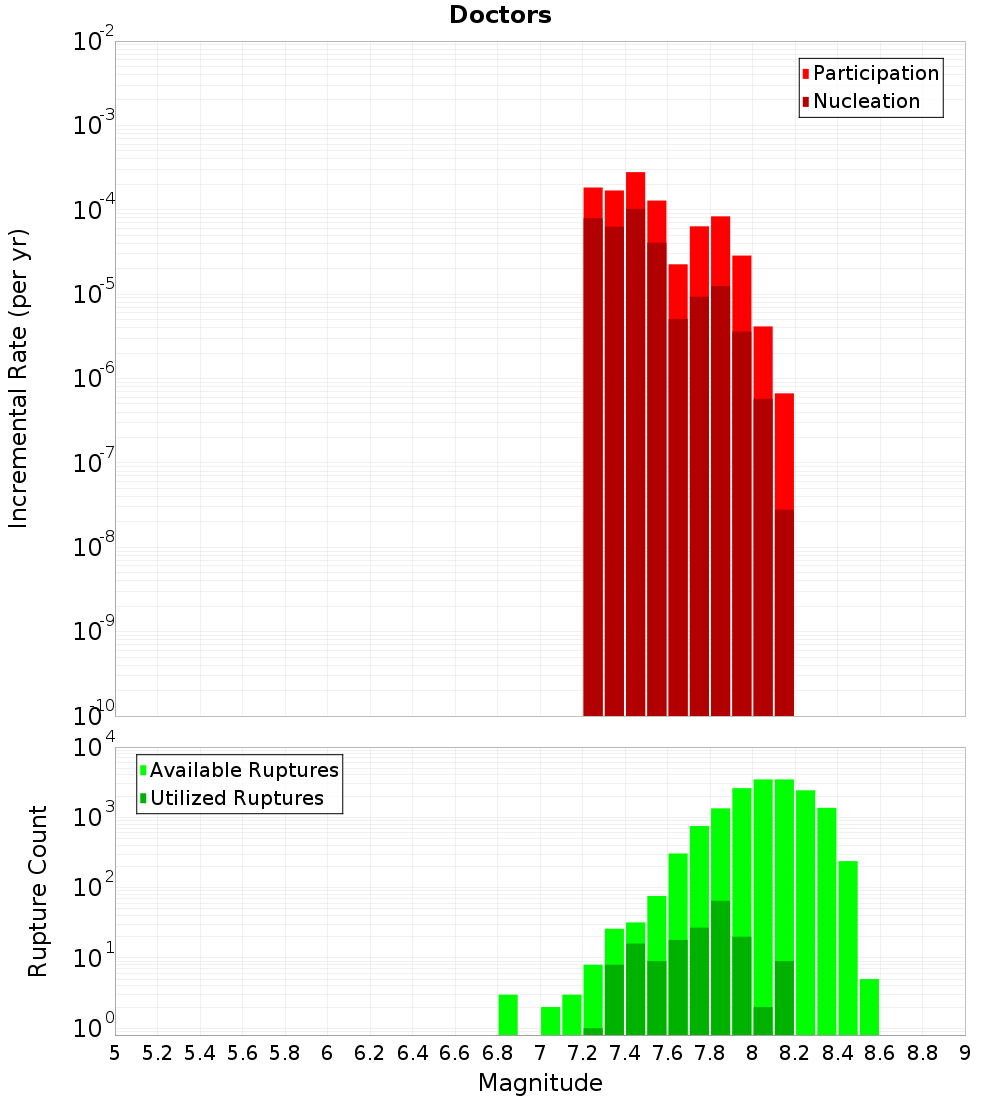

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

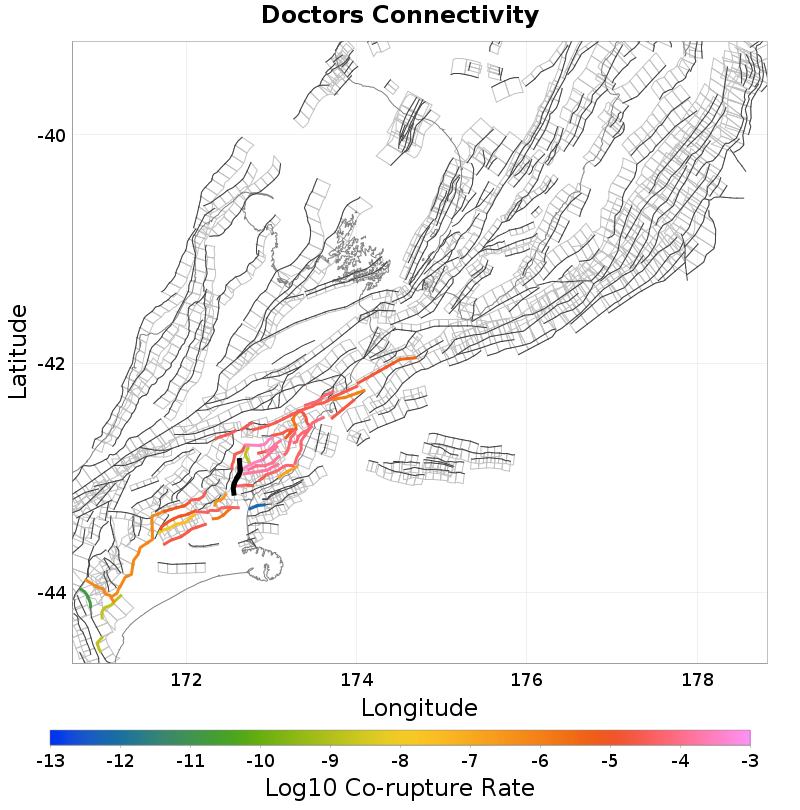

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Boby Stream, 0.13 km awayVirginia, 7.82 km away
Balmoral, 0.29 km awayStarvation - Ashley, 8.25 km away
Lowry, 0.53 km awaySpringbank, 12.15 km away
Kaiwara South, 1.9 km awayOmihiLwrHuru, 12.38 km away
Mt Culverden, 3.33 km awayKnowles Top, 12.44 km away
Alexander, 4.18 km awayLeonard Mound, 12.92 km away
Hurunui Peak, 5.51 km awayPancake, 13.37 km away
AmberBlyth, 5.78 km awayLees Valley, 13.52 km away
Mt Arden, 5.9 km awayEsk North, 14.67 km away
Mt Lawry, 7.57 km away

Boby Stream, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?true
Co-rupture Count14,486
Co-rupture Rate6.185003E-5

Balmoral, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?true
Co-rupture Count728
Co-rupture Rate1.6126831E-9

Lowry, 0.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?true
Co-rupture Count9,238
Co-rupture Rate3.383233E-4

Kaiwara South, 1.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?true
Co-rupture Count1,290
Co-rupture Rate1.7284659E-4

Mt Culverden, 3.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?true
Co-rupture Count4,578
Co-rupture Rate3.3322143E-4

Alexander, 4.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?true
Co-rupture Count778
Co-rupture Rate1.208218E-4

Hurunui Peak, 5.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?true
Co-rupture Count325
Co-rupture Rate2.9721039E-5

AmberBlyth, 5.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?false
Co-rupture Count296
Co-rupture Rate1.6013999E-7

Mt Arden, 5.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Mt Lawry, 7.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?false
Co-rupture Count199
Co-rupture Rate3.187828E-7

Virginia, 7.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate0.0

Starvation - Ashley, 8.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?false
Co-rupture Count14,211
Co-rupture Rate4.1922918E-5

Springbank, 12.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?false
Co-rupture Count402
Co-rupture Rate1.7745109E-6

OmihiLwrHuru, 12.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?false
Co-rupture Count457
Co-rupture Rate9.11164E-5

Knowles Top, 12.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?false
Co-rupture Count46
Co-rupture Rate0.0

Leonard Mound, 12.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?false
Co-rupture Count2,335
Co-rupture Rate1.5349158E-4

Pancake, 13.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lees Valley, 13.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?false
Co-rupture Count2,814
Co-rupture Rate3.291774E-5

Esk North, 14.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?false
Co-rupture Count26
Co-rupture Rate0.0
