Kekerengu Bank Details

PropertyValue
Rupture Count34,700
Ruptures Above Sect Min Mag34,689
Ruptures w/ Nonzero Rates197
Magnitude Range[6.80, 8.59]
Length Range[17, 761] km
Total Rate1.2224149E-4 /yr
Multi-Fault Rate1.2217462E-4 /yr (99.95%)
Directly-Connected Faults11
All Co-Rupturing Faults100

Table Of Contents

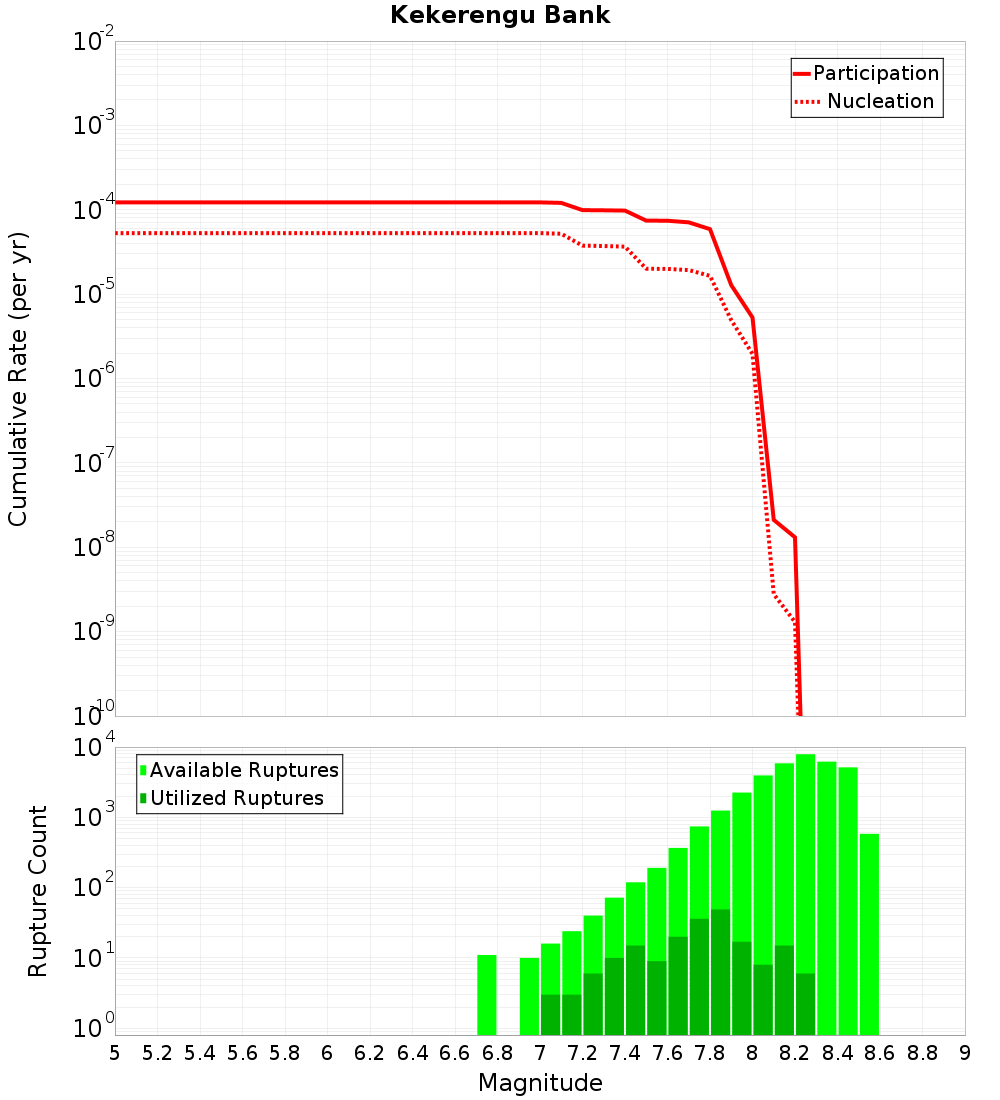

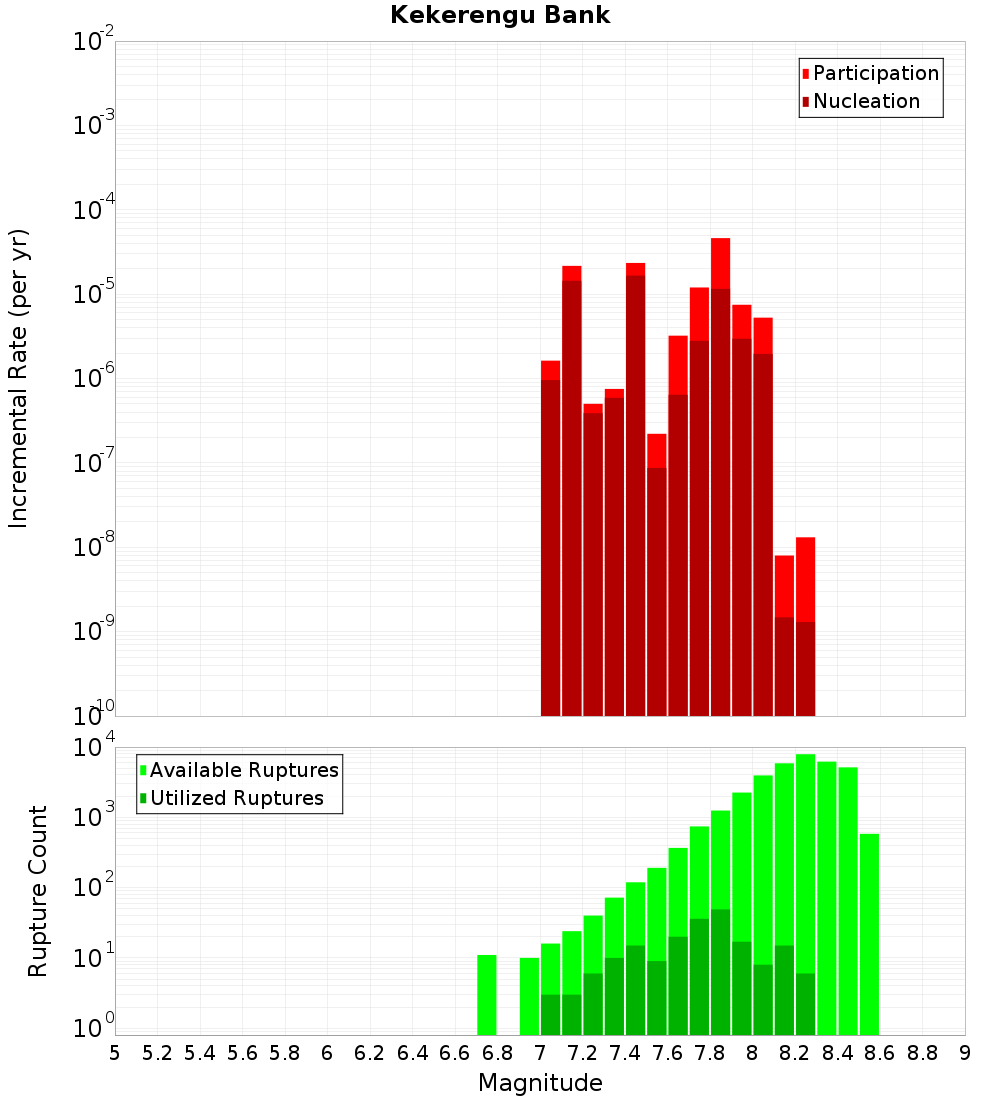

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

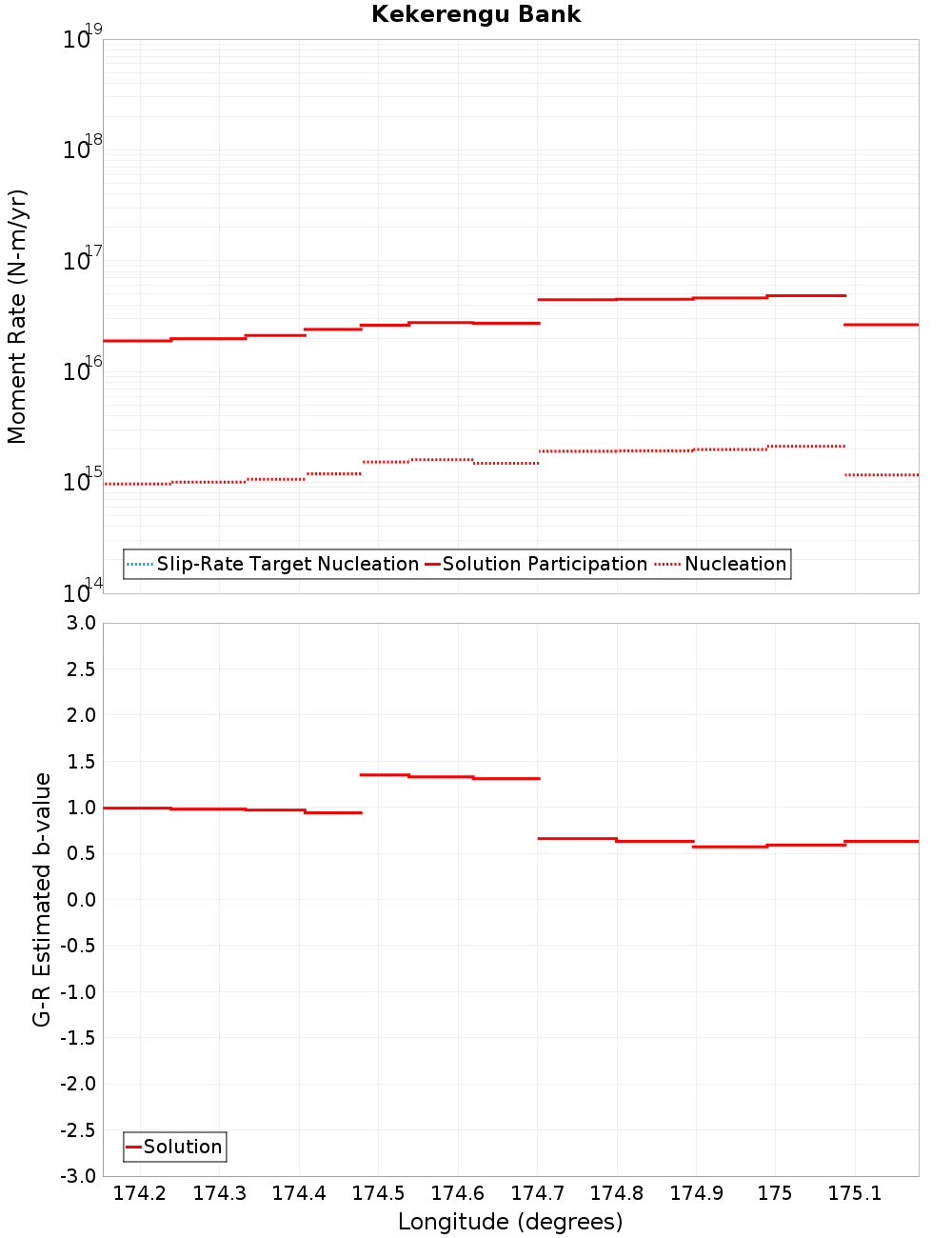

Moment-Rates and b-Values

(top)

Along-strike plot

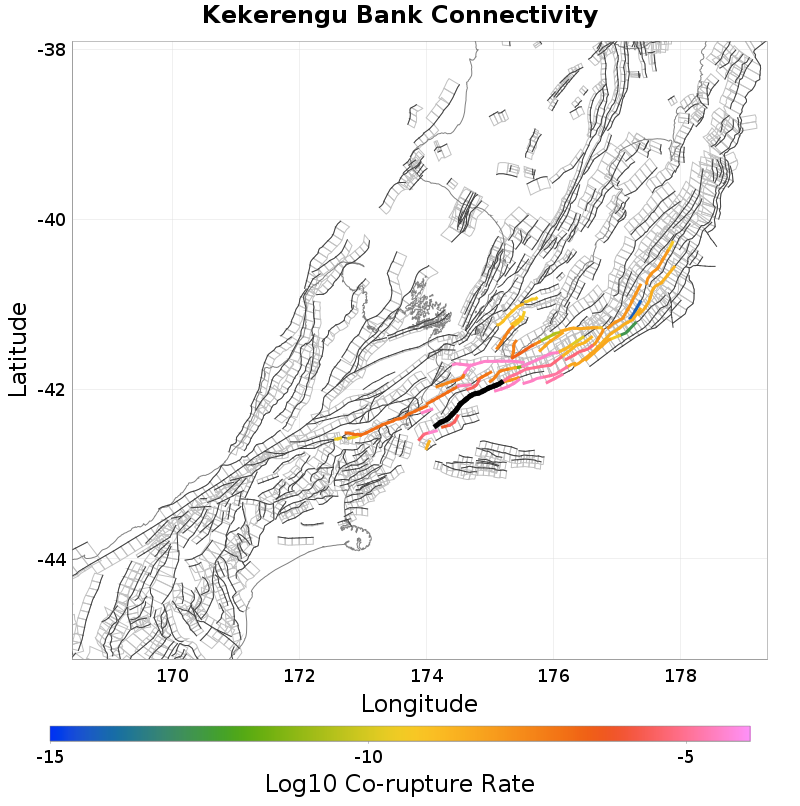

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pahaua, 0 km away
Pahaua SE1, 0 km away
Pahaua SE2, 0.17 km away
Te Rapa 1, 3.06 km away
Marlborough Slope 2, 4.37 km away
Marlborough Slope 4, 4.72 km away
Te Rapa 2, 4.95 km away
Opouawe - Uruti, 5.25 km away
Upper Slope, 5.98 km away
Kaikoura - Mangamaunu, 7.75 km away
Campbell Bank, 8.04 km away
Hope: Te Rapa, 8.98 km away
Marlborough Slope 3, 10.31 km away
Marlborough Slope 10, 11.7 km away
Offshore Splay Thrust, 13.64 km away

Pahaua, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?true
Co-rupture Count15,771
Co-rupture Rate1.0487292E-5

Pahaua SE1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?true
Co-rupture Count5,054
Co-rupture Rate1.538337E-8

Pahaua SE2, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?true
Co-rupture Count3,506
Co-rupture Rate2.9378436E-5

Te Rapa 1, 3.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?true
Co-rupture Count118
Co-rupture Rate2.2016084E-5

Marlborough Slope 2, 4.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?true
Co-rupture Count3,762
Co-rupture Rate3.7585E-5

Marlborough Slope 4, 4.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?true
Co-rupture Count2,843
Co-rupture Rate2.8121199E-6

Te Rapa 2, 4.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?true
Co-rupture Count57
Co-rupture Rate9.676175E-8

Opouawe - Uruti, 5.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?true
Co-rupture Count12,574
Co-rupture Rate3.301957E-5

Upper Slope, 5.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?true
Co-rupture Count313
Co-rupture Rate2.8052682E-6

Kaikoura - Mangamaunu, 7.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?false
Co-rupture Count24
Co-rupture Rate3.126766E-5

Campbell Bank, 8.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?true
Co-rupture Count1,925
Co-rupture Rate3.6366062E-5

Hope: Te Rapa, 8.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?true
Co-rupture Count300
Co-rupture Rate1.4973533E-7

Marlborough Slope 3, 10.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Marlborough Slope 10, 11.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?false
Co-rupture Count269
Co-rupture Rate0.0

Offshore Splay Thrust, 13.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate0.0
