Mt Culverden Details

PropertyValue
Rupture Count14,078
Ruptures Above Sect Min Mag14,078
Ruptures w/ Nonzero Rates99
Magnitude Range[7.22, 8.57]
Length Range[28, 836] km
Total Rate5.625225E-4 /yr
Multi-Fault Rate5.420125E-4 /yr (96.35%)
Directly-Connected Faults6
All Co-Rupturing Faults124

Table Of Contents

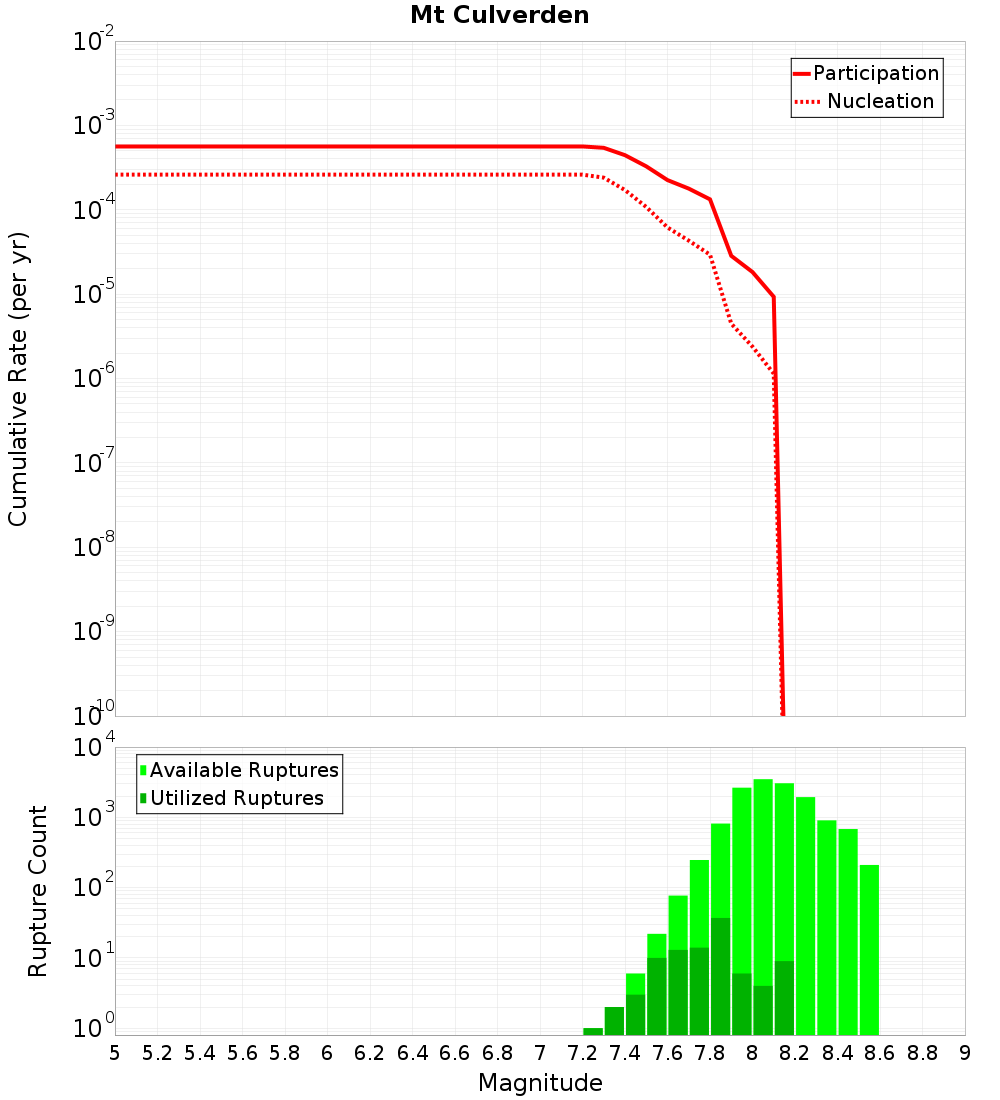

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

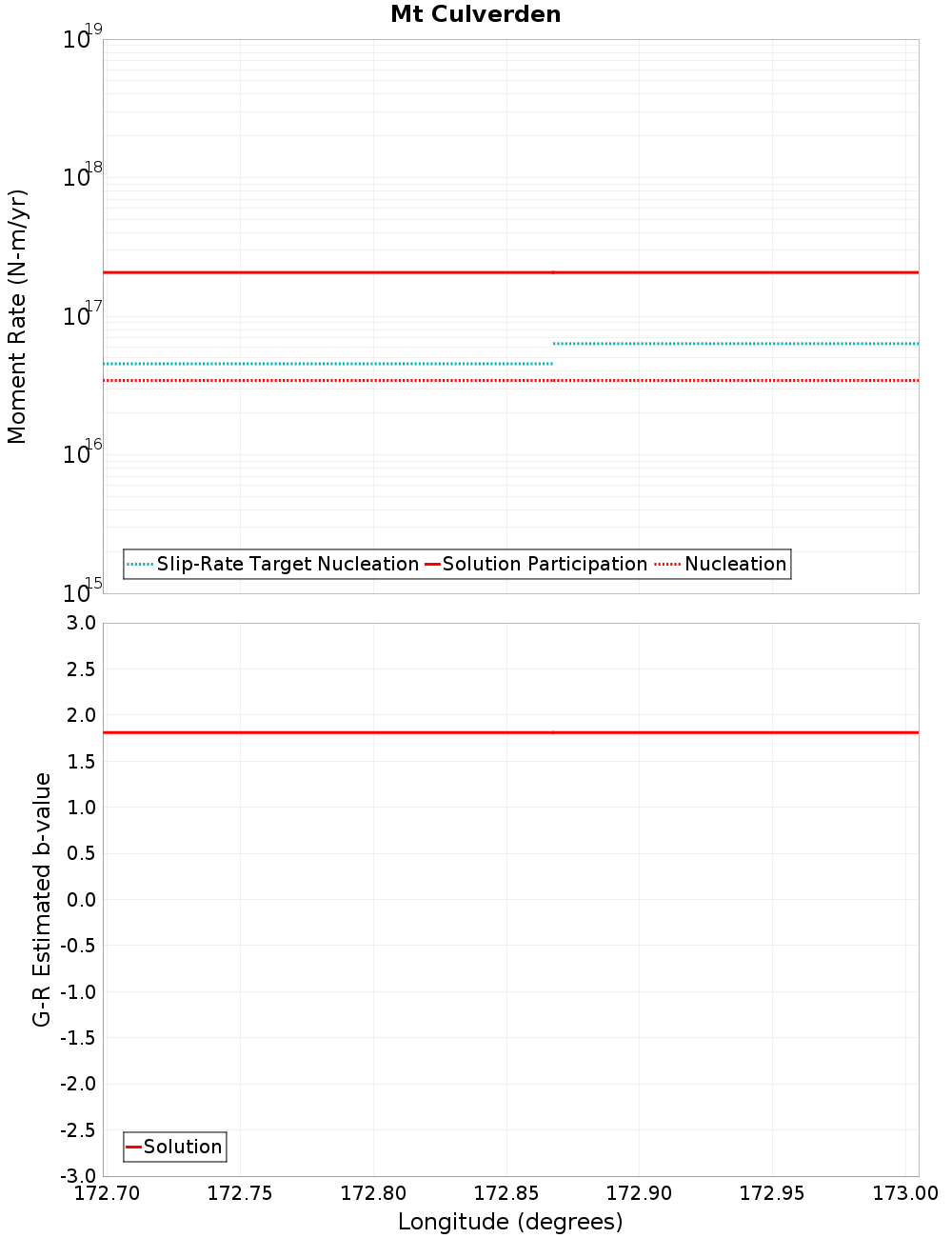

Moment-Rates and b-Values

(top)

Along-strike plot

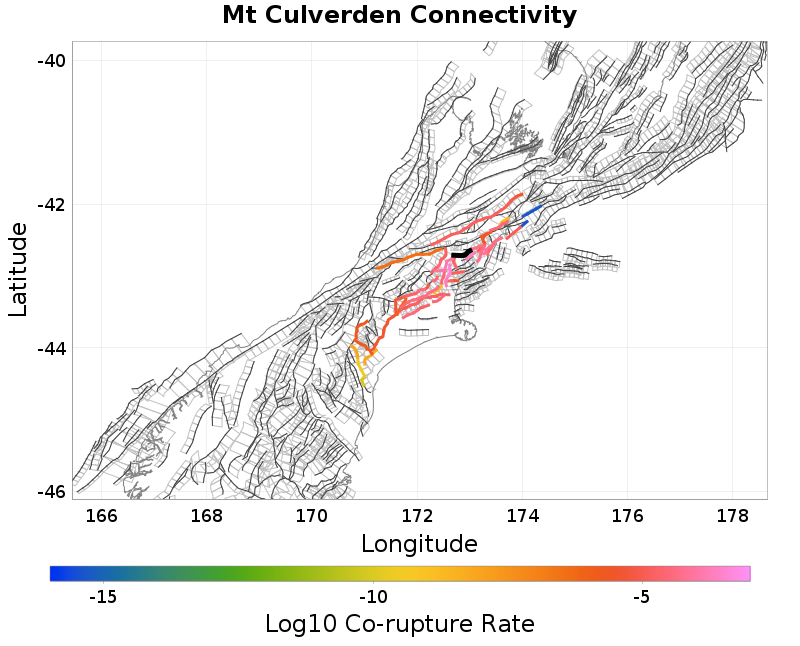

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Balmoral, 0.1 km away
Kaiwara North, 0.45 km away
Hurunui Peak, 1.53 km away
The Humps, 1.72 km away
Doctors, 3.33 km away
Leonard Mound, 4.83 km away
Lowry, 7.58 km away
Hanmer, 11.2 km away
Leader: South, 11.62 km away
Esk North, 12.11 km away
Hope: Hamner SE, 12.56 km away
Hope: Conway, 12.62 km away
Hope: Hamner SW, 14.21 km away
Alexander, 14.58 km away
Hope: Hanmer NW, 14.84 km away

Balmoral, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?true
Co-rupture Count2,035
Co-rupture Rate1.9484445E-5

Kaiwara North, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?true
Co-rupture Count4,736
Co-rupture Rate4.66432E-5

Hurunui Peak, 1.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?true
Co-rupture Count7,817
Co-rupture Rate1.156073E-4

The Humps, 1.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?true
Co-rupture Count8,980
Co-rupture Rate4.690653E-5

Doctors, 3.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?true
Co-rupture Count4,578
Co-rupture Rate3.3322143E-4

Leonard Mound, 4.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?true
Co-rupture Count22
Co-rupture Rate1.8370867E-4

Lowry, 7.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hanmer, 11.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leader: South, 11.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?false
Co-rupture Count189
Co-rupture Rate1.4353887E-5

Esk North, 12.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?false
Co-rupture Count58
Co-rupture Rate2.6201424E-5

Hope: Hamner SE, 12.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Conway, 12.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?true
Directly Connected?false
Co-rupture Count5,379
Co-rupture Rate2.686916E-6

Hope: Hamner SW, 14.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alexander, 14.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hanmer NW, 14.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTIuMHRhSndF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
