Cape Foulwind 2 Details

PropertyValue
Rupture Count3,849
Ruptures Above Sect Min Mag3,840
Ruptures w/ Nonzero Rates438
Magnitude Range[6.83, 8.34]
Length Range[20, 631] km
Total Rate0.0011569672 /yr
Multi-Fault Rate0.0011108591 /yr (96.01%)
Directly-Connected Faults5
All Co-Rupturing Faults43

Table Of Contents

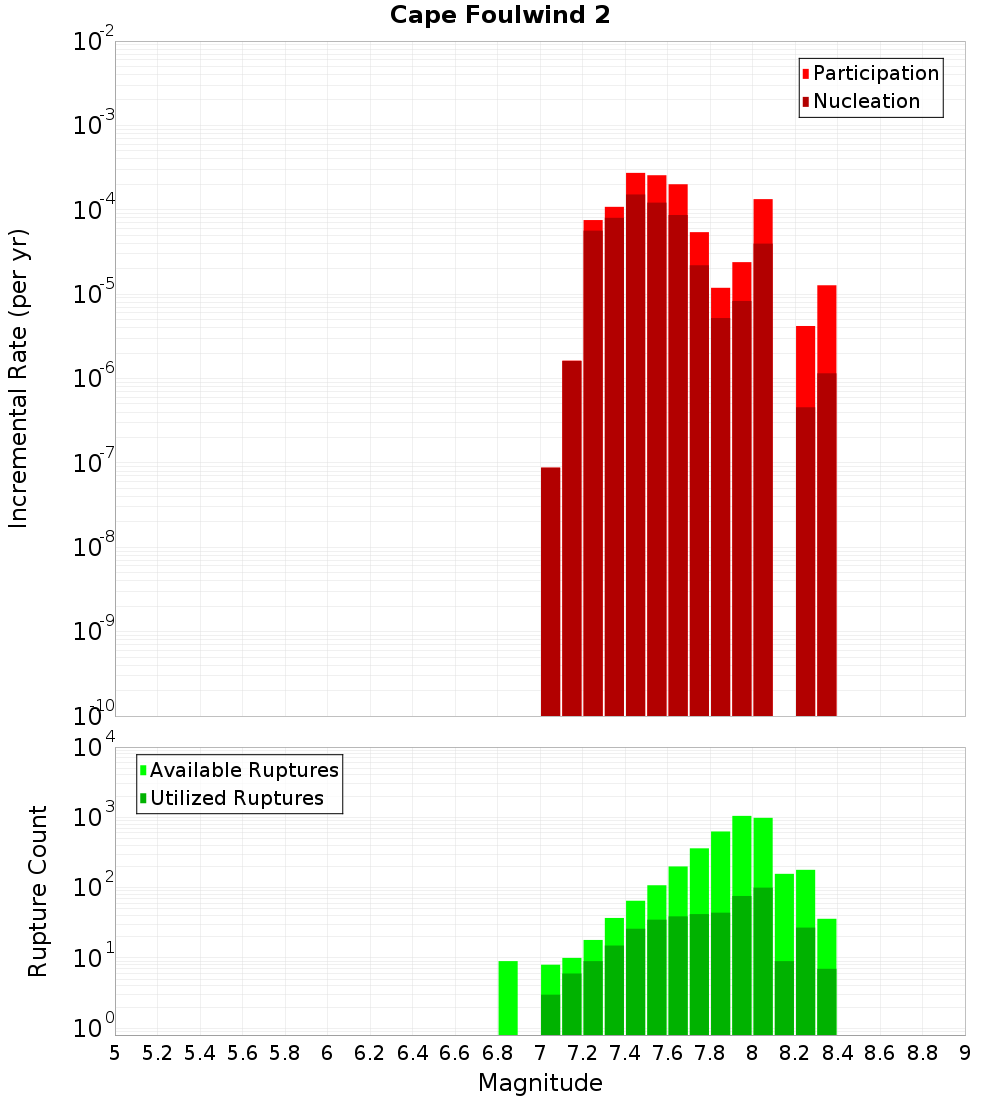

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

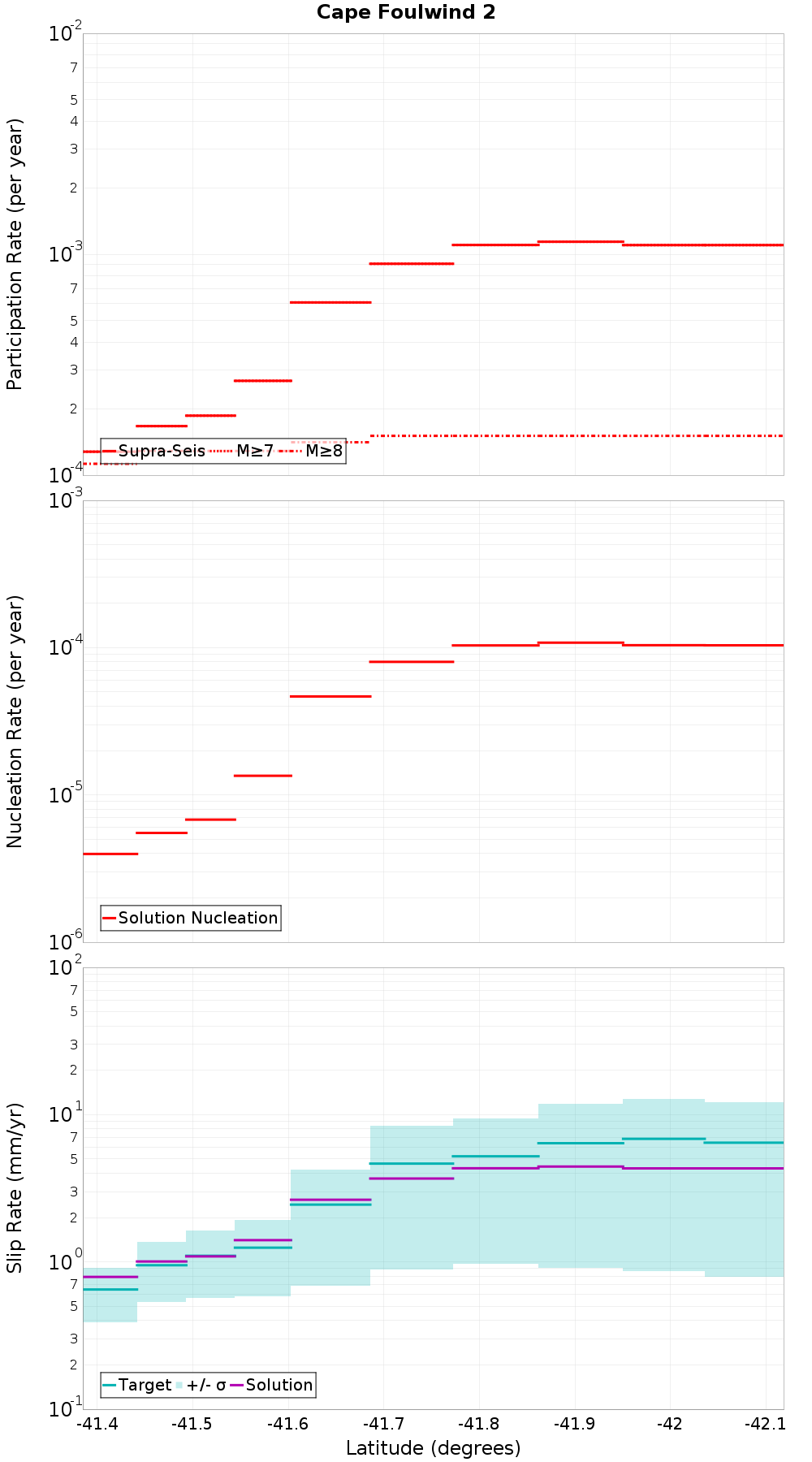

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

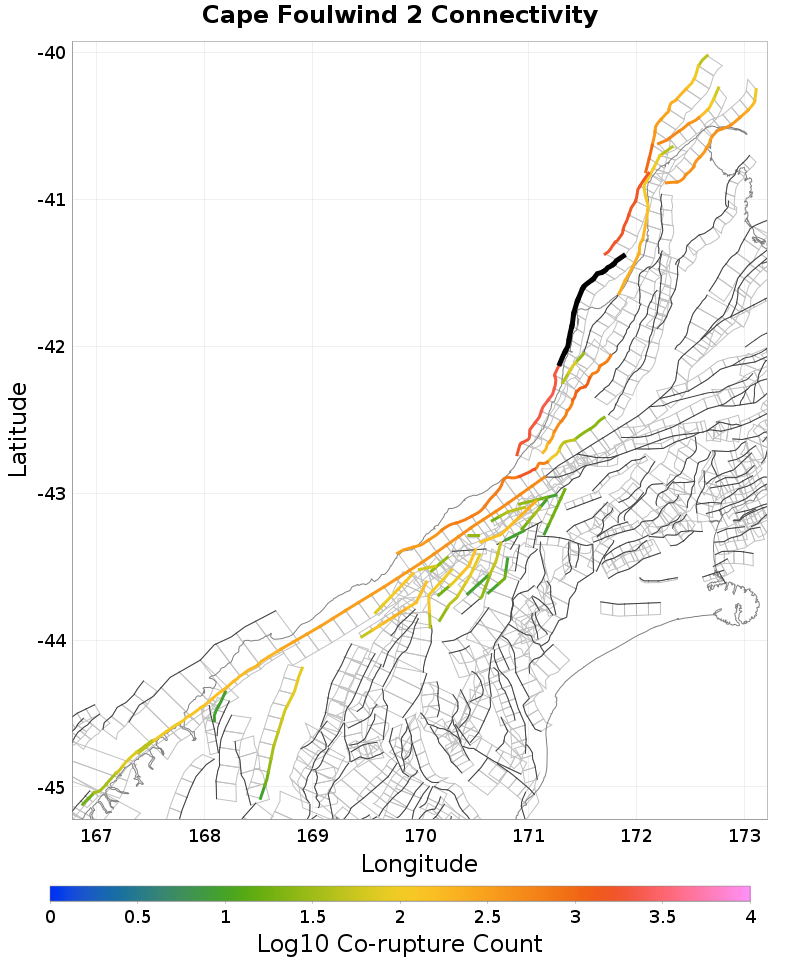

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Cape Foulwind 1, 0 km away
Maimai, 0.22 km away
Maimai: South, 4.96 km away
Paparoa West, 8.1 km away
Cape Foulwind 4, 8.22 km away
Kongahau, 8.65 km away

Cape Foulwind 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?true
Co-rupture Count2,723
Co-rupture Rate0.0011139731

Maimai, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?true
Co-rupture Count634
Co-rupture Rate5.7022848E-5

Maimai: South, 4.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?true
Co-rupture Count1,218
Co-rupture Rate7.720963E-5

Paparoa West, 8.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?false
Co-rupture Count70
Co-rupture Rate1.5973443E-5

Cape Foulwind 4, 8.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?true
Co-rupture Count1,676
Co-rupture Rate1.2772263E-4

Kongahau, 8.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?true
Co-rupture Count272
Co-rupture Rate3.686941E-5
