Five Fingers Details
| Property | Value |
|---|---|
| Rupture Count | 166 |
| Ruptures Above Sect Min Mag | 164 |
| Ruptures w/ Nonzero Rates | 10 |
| Magnitude Range | [6.95, 8.47] |
| Length Range | [22, 742] km |
| Total Rate | 5.764235E-4 /yr |
| Multi-Fault Rate | 2.7956328E-5 /yr (4.85%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 26 |
Table Of Contents

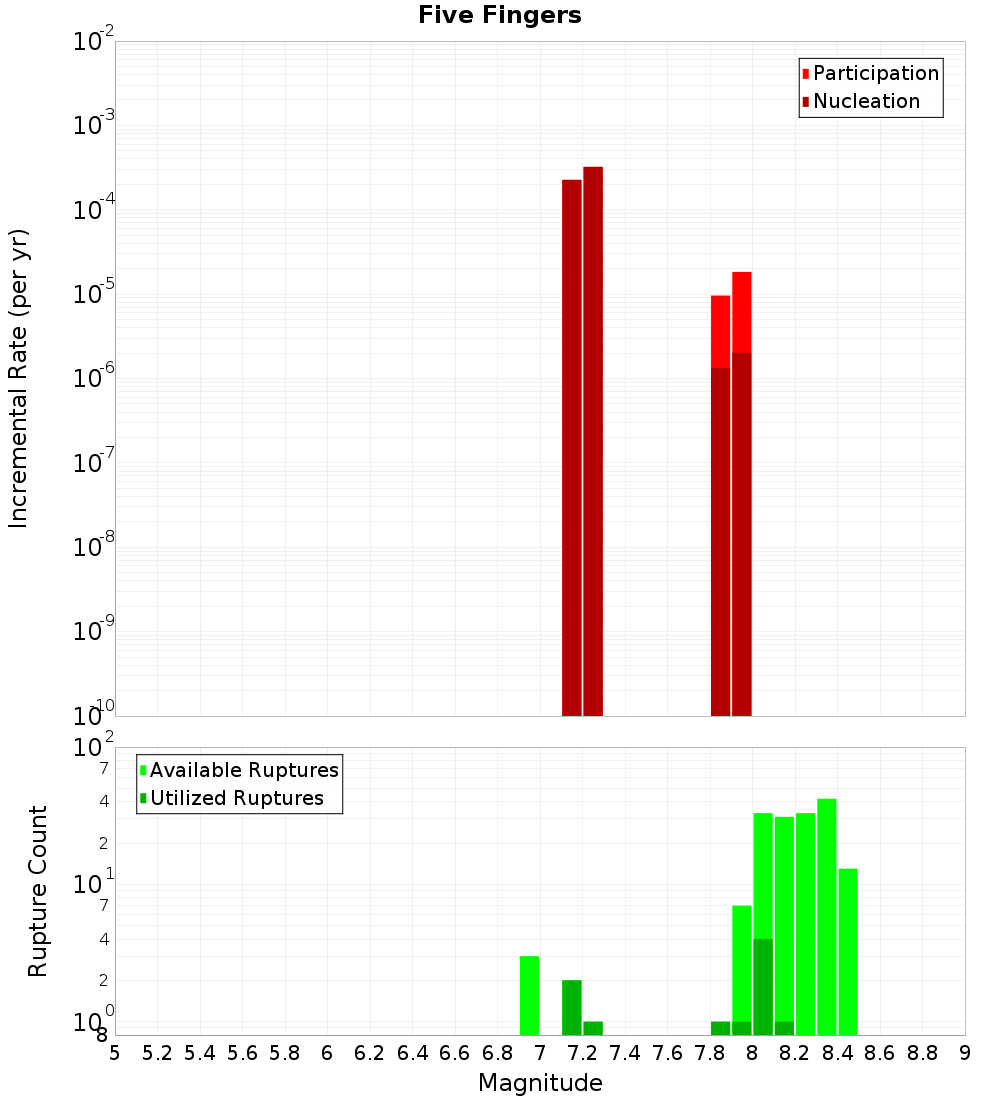

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

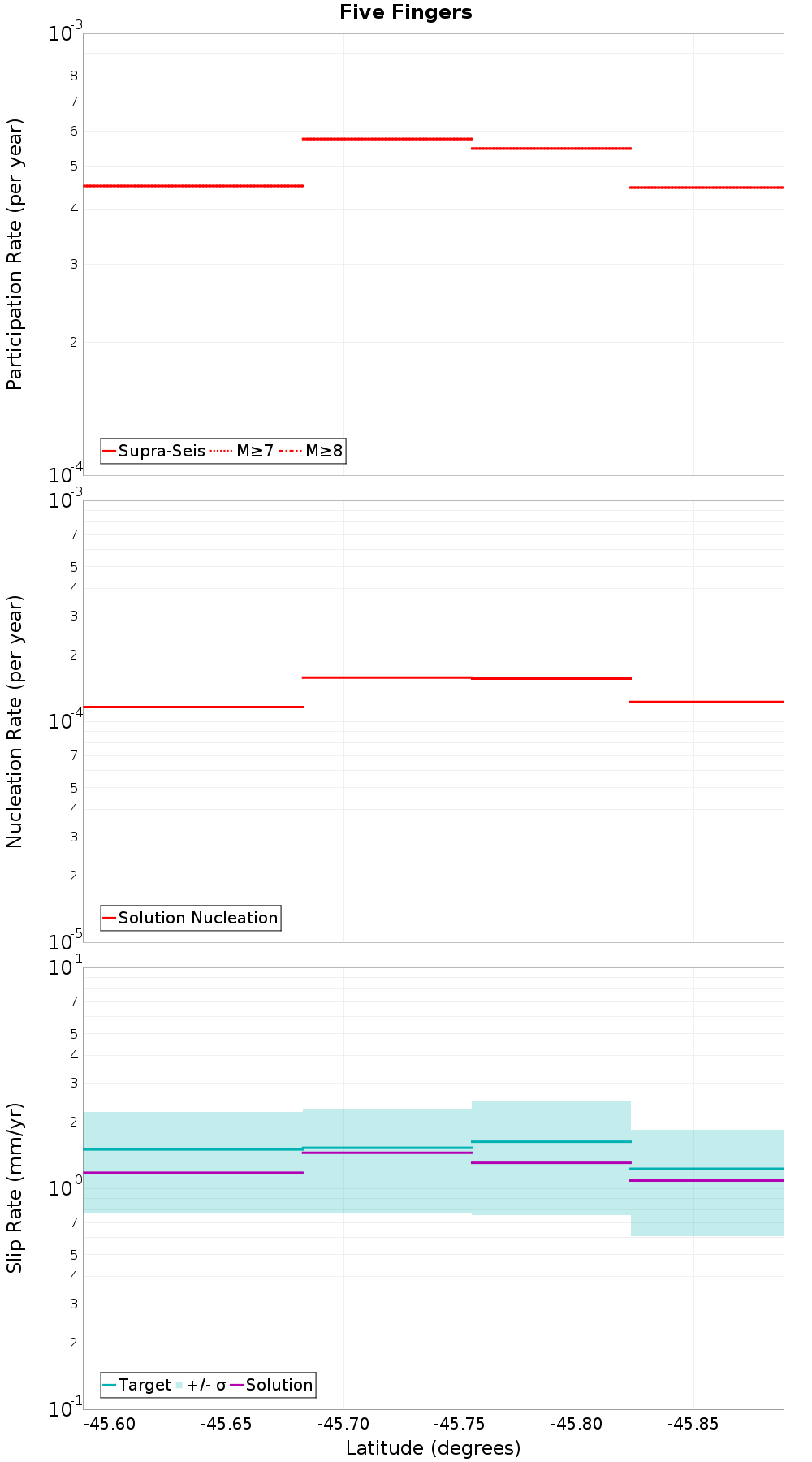

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| South Wedge 3-6-10, 0.09 km away |
| South Wedge 5, 0.16 km away |
South Wedge 3-6-10, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 160 |
| Co-rupture Rate | 2.7956328E-5 |
South Wedge 5, 0.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
