Hope: Hamner SE Details

PropertyValue
Rupture Count131,000
Ruptures Above Sect Min Mag130,998
Ruptures w/ Nonzero Rates2,369
Magnitude Range[6.78, 8.57]
Length Range[16, 1,083] km
Total Rate0.0014379853 /yr
Multi-Fault Rate0.0014379853 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults254

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

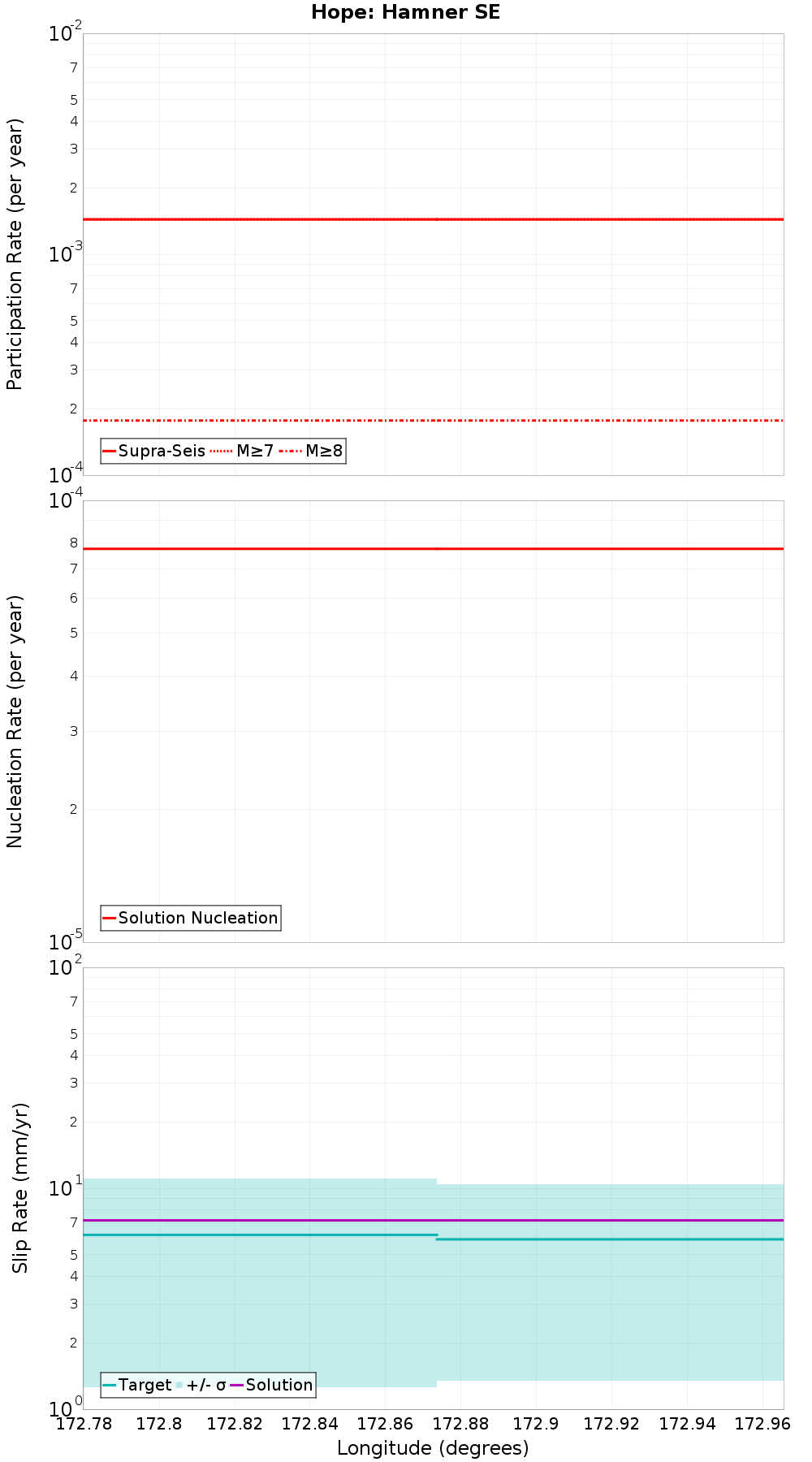

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

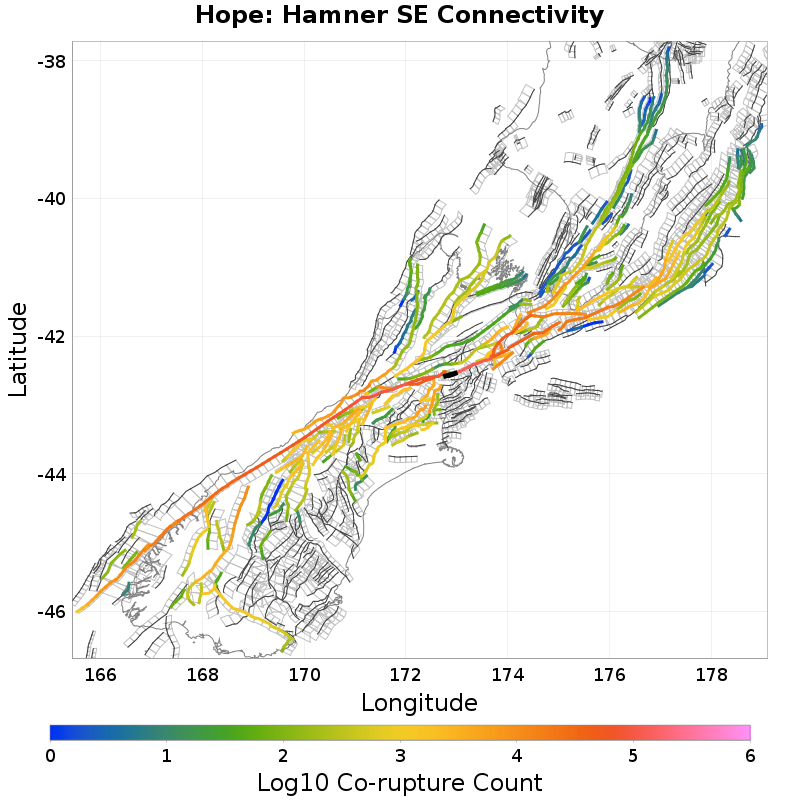

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hope: Hamner SW, 0 km away
Hanmer, 0 km away
Hope: Conway, 0 km away
Hope: Hanmer NW, 0.15 km away
The Humps, 7.7 km away
Acheron, 7.87 km away
Hope: Kakapo-2-Hamner, 10.42 km away
Kaiwara North, 12.41 km away
Mt Culverden, 12.56 km away
Leader: South, 13.69 km away
Elliott, 14.69 km away
Dillon, 14.88 km away

Hope: Hamner SW, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hanmer, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?false
Co-rupture Count238
Co-rupture Rate1.3073785E-8

Hope: Conway, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?true
Co-rupture Count128,955
Co-rupture Rate0.0012447485

Hope: Hanmer NW, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?true
Co-rupture Count55,147
Co-rupture Rate5.3451525E-4

The Humps, 7.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Acheron, 7.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Kakapo-2-Hamner, 10.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?true
Co-rupture Count74,927
Co-rupture Rate0.0010191685

Kaiwara North, 12.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Culverden, 12.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leader: South, 13.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Elliott, 14.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?false
Co-rupture Count436
Co-rupture Rate3.9007404E-8

Dillon, 14.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
