Kirkliston Details

PropertyValue
Rupture Count2,444
Ruptures Above Sect Min Mag2,441
Ruptures w/ Nonzero Rates297
Magnitude Range[6.88, 8.14]
Length Range[19, 334] km
Total Rate4.4167368E-4 /yr
Multi-Fault Rate4.3679887E-4 /yr (98.90%)
Directly-Connected Faults7
All Co-Rupturing Faults38

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

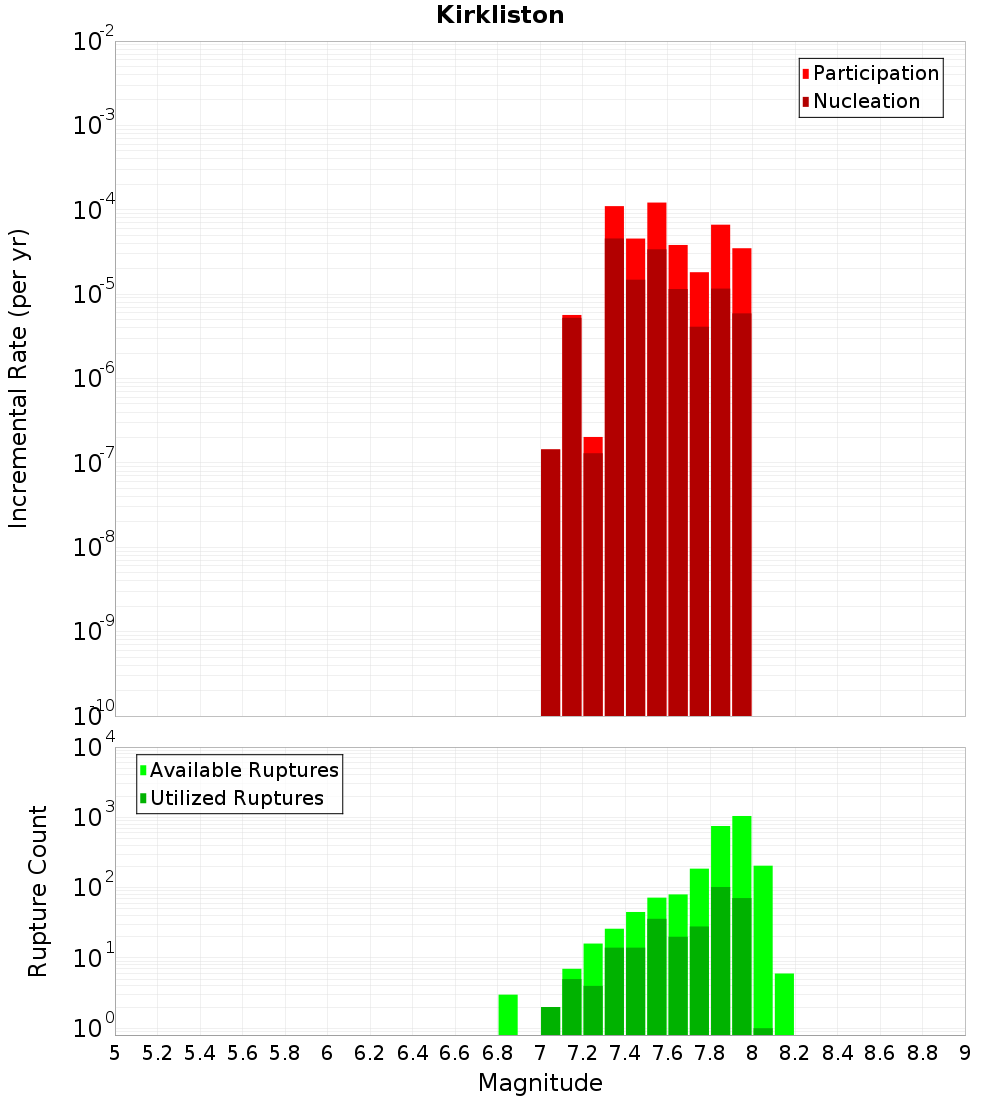

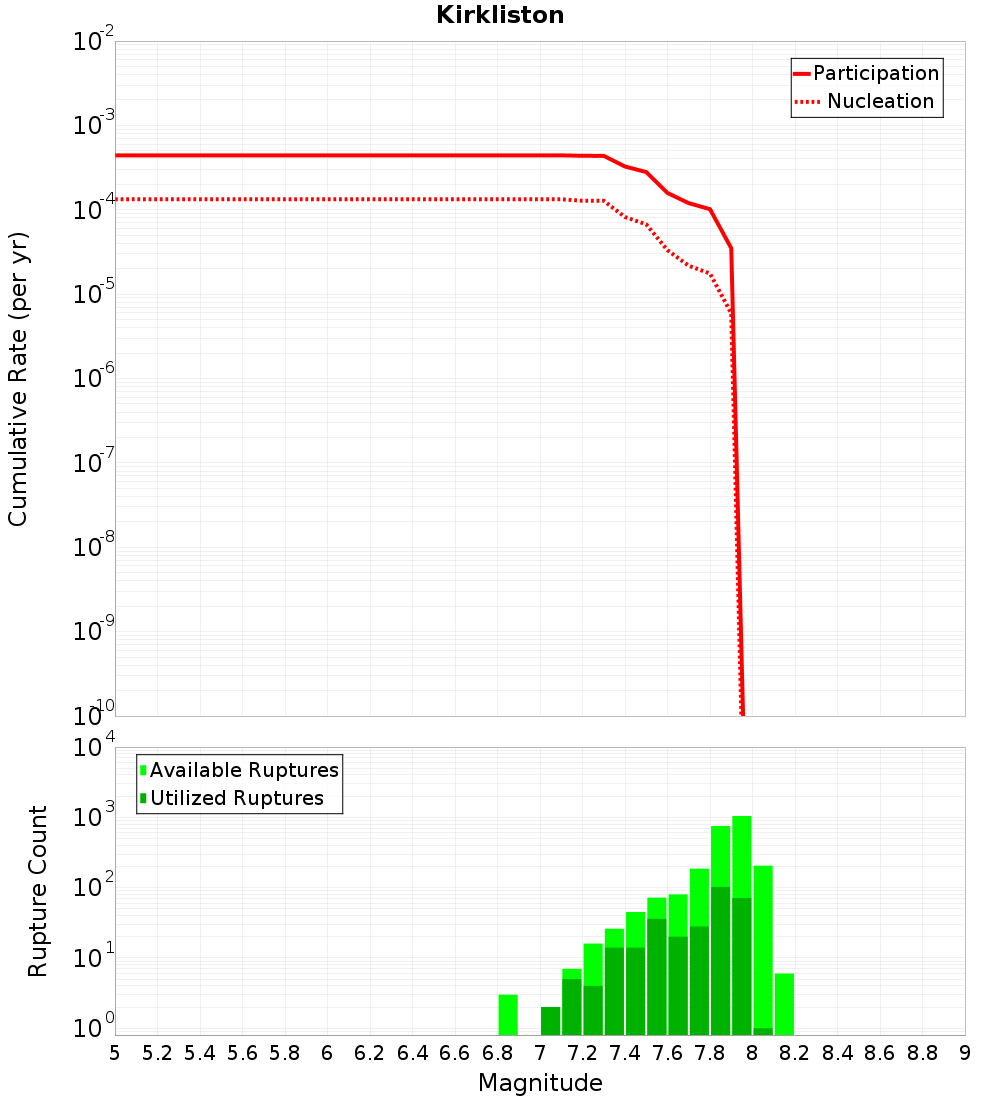

Incremental PlotCumulative Plot

Along-Strike Values

(top)

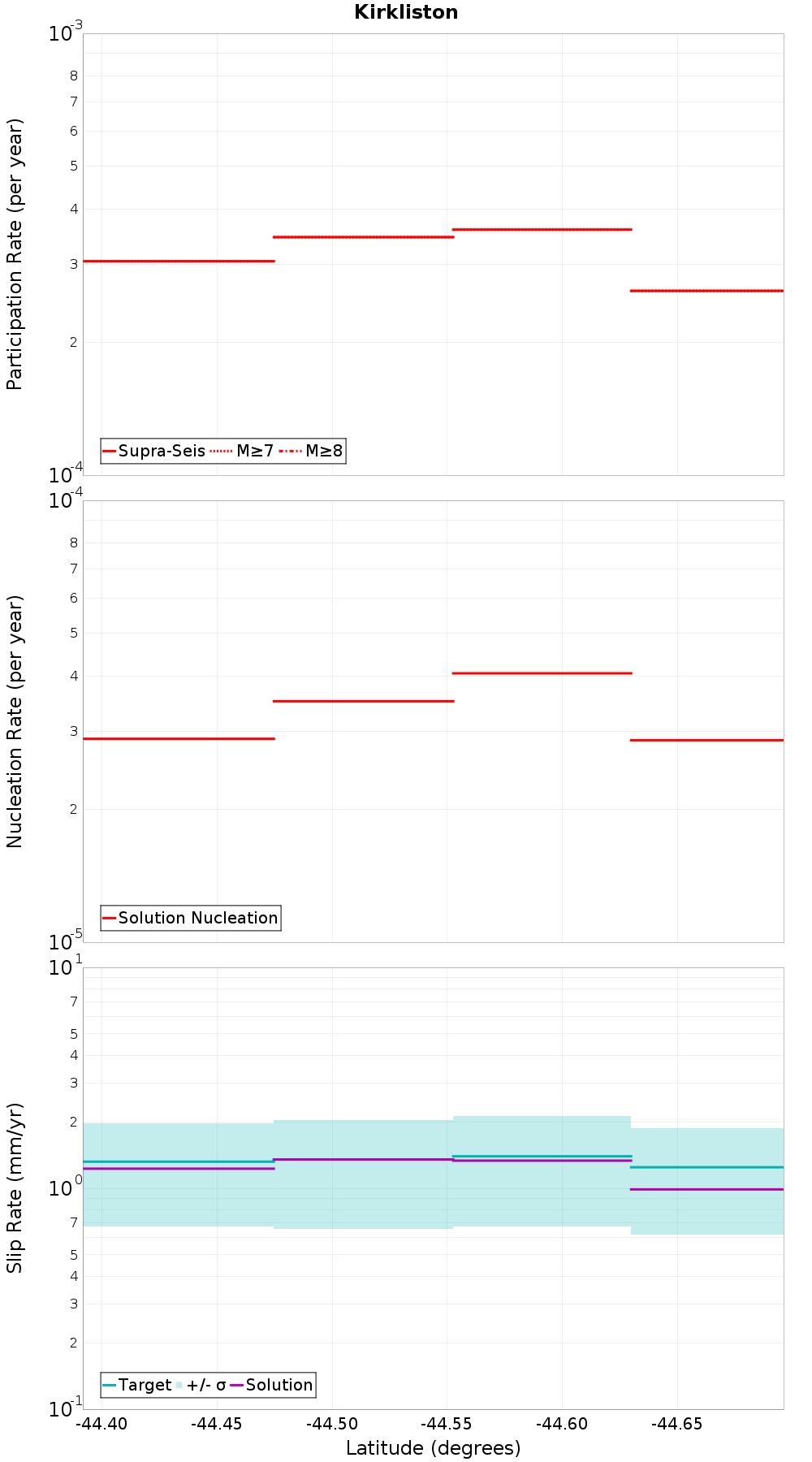

Along-strike plot

Moment-Rates and b-Values

(top)

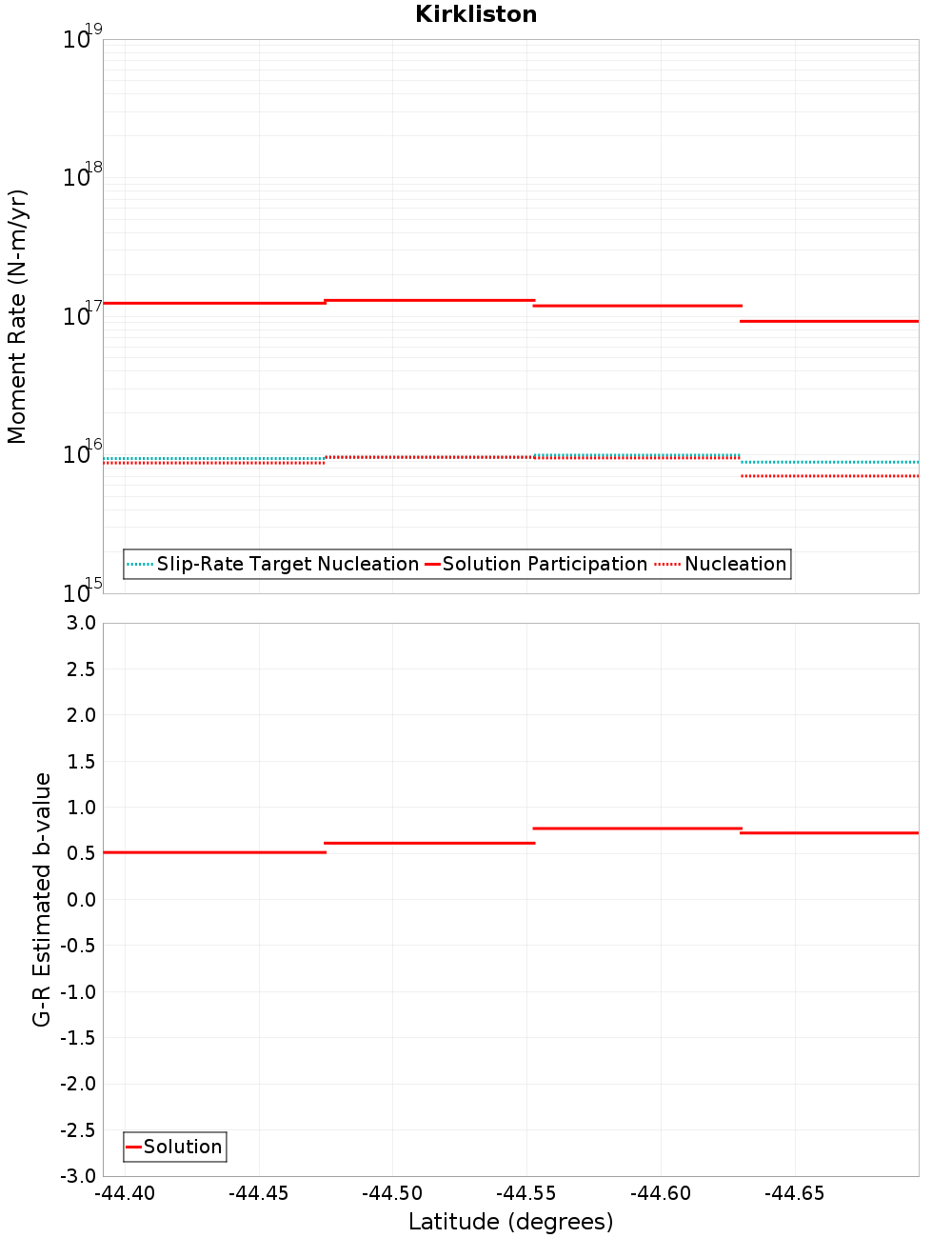

Along-strike plot

Connectivity

(top)

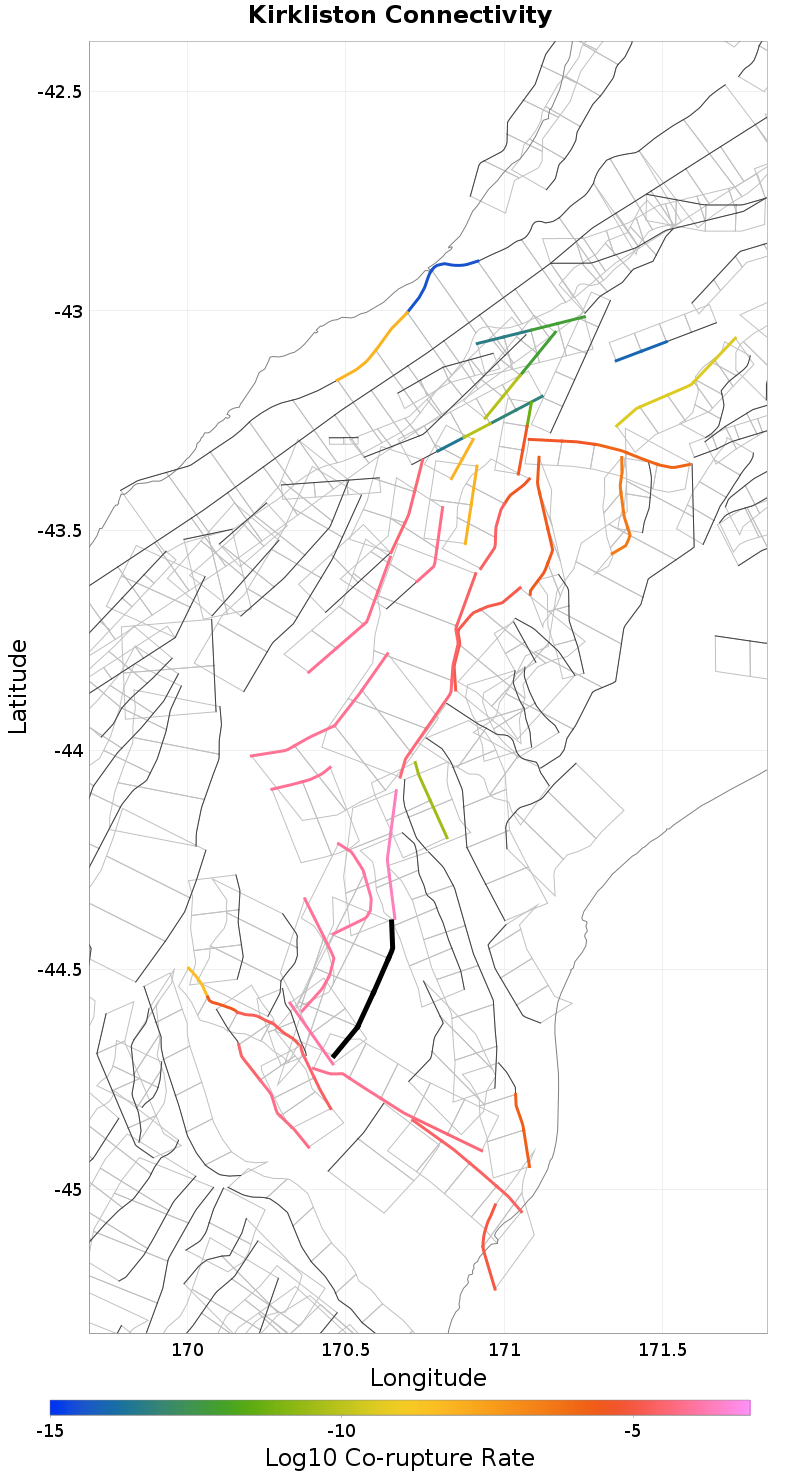

MapMap

Nearby Sections

(top)

Fault Section
Mt Sutton, 0.16 km away
Middle Range, 0.16 km away
Dryburgh, 0.22 km away
Grampian, 0.22 km away
Dalgety, 1.05 km away
Waitangi, 1.61 km away
Stonewall, 2.02 km away
Fern Gully, 3.42 km away
Awahokomo, 5.7 km away
Chamberlain, 9.41 km away
Campbell Hills, 10.34 km away
The Wolds, 10.34 km away
Hunters, 14.53 km away
Gibson, 14.89 km away

Mt Sutton, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?true
Co-rupture Count85
Co-rupture Rate9.333562E-5

Middle Range, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?true
Co-rupture Count485
Co-rupture Rate6.1367085E-5

Dryburgh, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?true
Co-rupture Count392
Co-rupture Rate1.144002E-4

Grampian, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?true
Co-rupture Count40
Co-rupture Rate1.291078E-4

Dalgety, 1.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?true
Co-rupture Count2,303
Co-rupture Rate2.2110999E-4

Waitangi, 1.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Stonewall, 2.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?true
Co-rupture Count1,038
Co-rupture Rate7.3624586E-5

Fern Gully, 3.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?false
Co-rupture Count81
Co-rupture Rate1.7240098E-5

Awahokomo, 5.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?true
Co-rupture Count261
Co-rupture Rate3.0580508E-5

Chamberlain, 9.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Campbell Hills, 10.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

The Wolds, 10.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate8.5905005E-5

Hunters, 14.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gibson, 14.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
