Marlborough Slope 10 Details

Property	Value
Rupture Count	360
Ruptures Above Sect Min Mag	348
Ruptures w/ Nonzero Rates	30
Magnitude Range	[6.76, 8.35]
Length Range	[18, 586] km
Total Rate	3.0268694E-4 /yr
Multi-Fault Rate	3.0267733E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	31

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

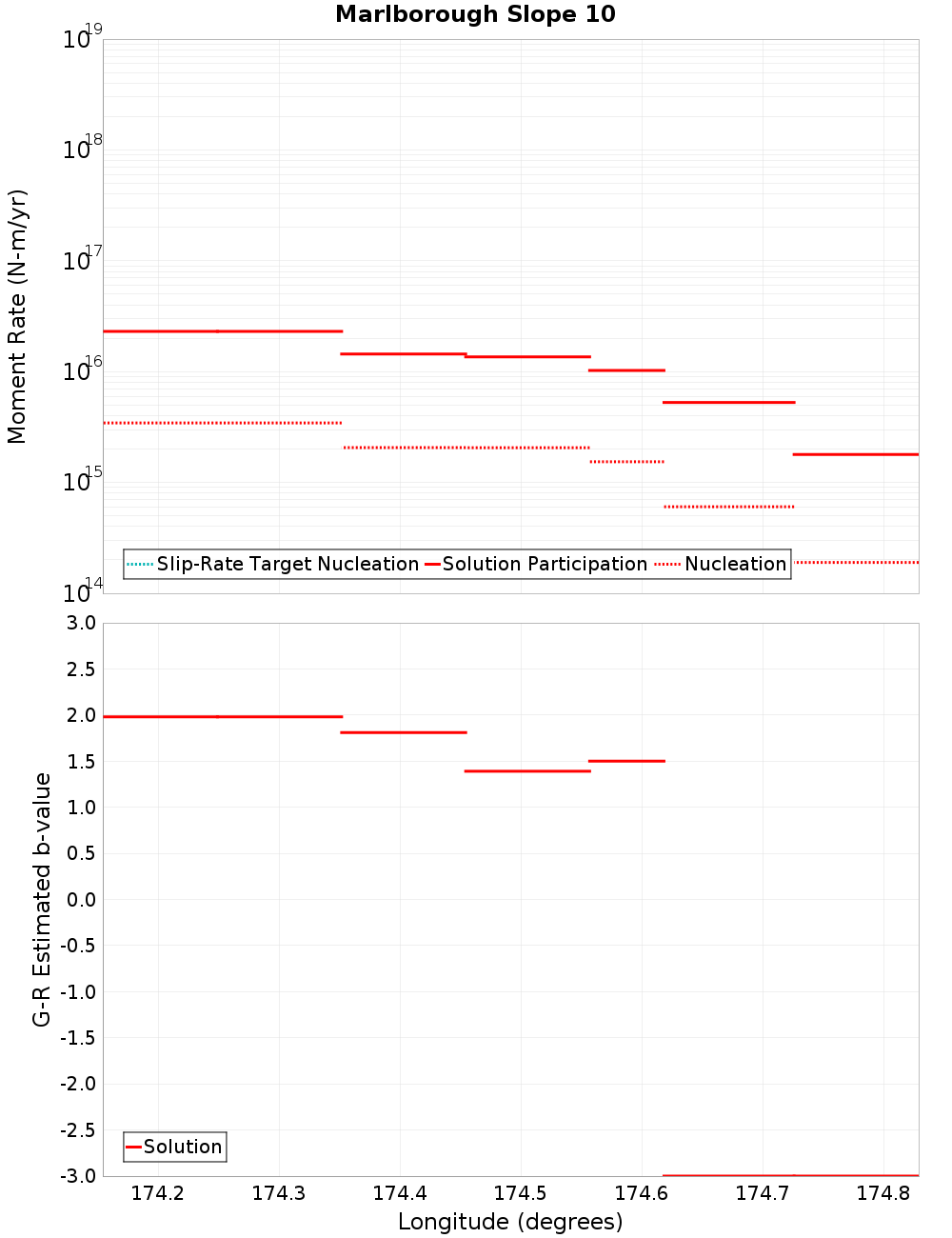

Moment-Rates and b-Values

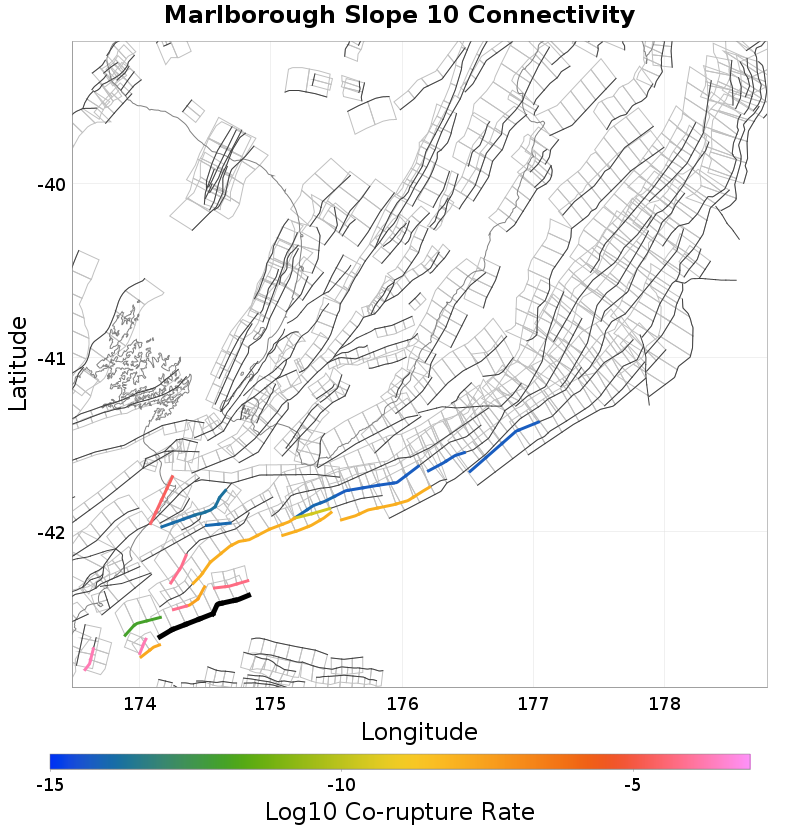

Connectivity

Nearby Sections

Fault Section
Marlborough Slope 3, 4.06 km away
Marlborough Slope 9, 4.64 km away
Marlborough Slope 4, 7.31 km away
Marlborough Slope 2, 7.44 km away
Marlborough Slope 11, 8.8 km away
Kekerengu Bank, 11.7 km away

Marlborough Slope 3, 4.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	16
Co-rupture Rate	5.2715965E-5

Marlborough Slope 9, 4.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	53
Co-rupture Rate	1.9113509E-8

Marlborough Slope 4, 7.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	304
Co-rupture Rate	6.937648E-5

Marlborough Slope 2, 7.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	8.6917105E-13

Marlborough Slope 11, 8.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	21
Co-rupture Rate	1.8058487E-4

Kekerengu Bank, 11.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	false
Co-rupture Count	269
Co-rupture Rate	1.1153279E-8
