Otaheke North Details
| Property | Value |
|---|---|
| Rupture Count | 522 |
| Ruptures Above Sect Min Mag | 520 |
| Ruptures w/ Nonzero Rates | 85 |
| Magnitude Range | [7.09, 8.04] |
| Length Range | [25, 285] km |
| Total Rate | 3.152597E-4 /yr |
| Multi-Fault Rate | 2.2673763E-4 /yr (71.92%) |
| Directly-Connected Faults | 7 |
| All Co-Rupturing Faults | 30 |
Table Of Contents

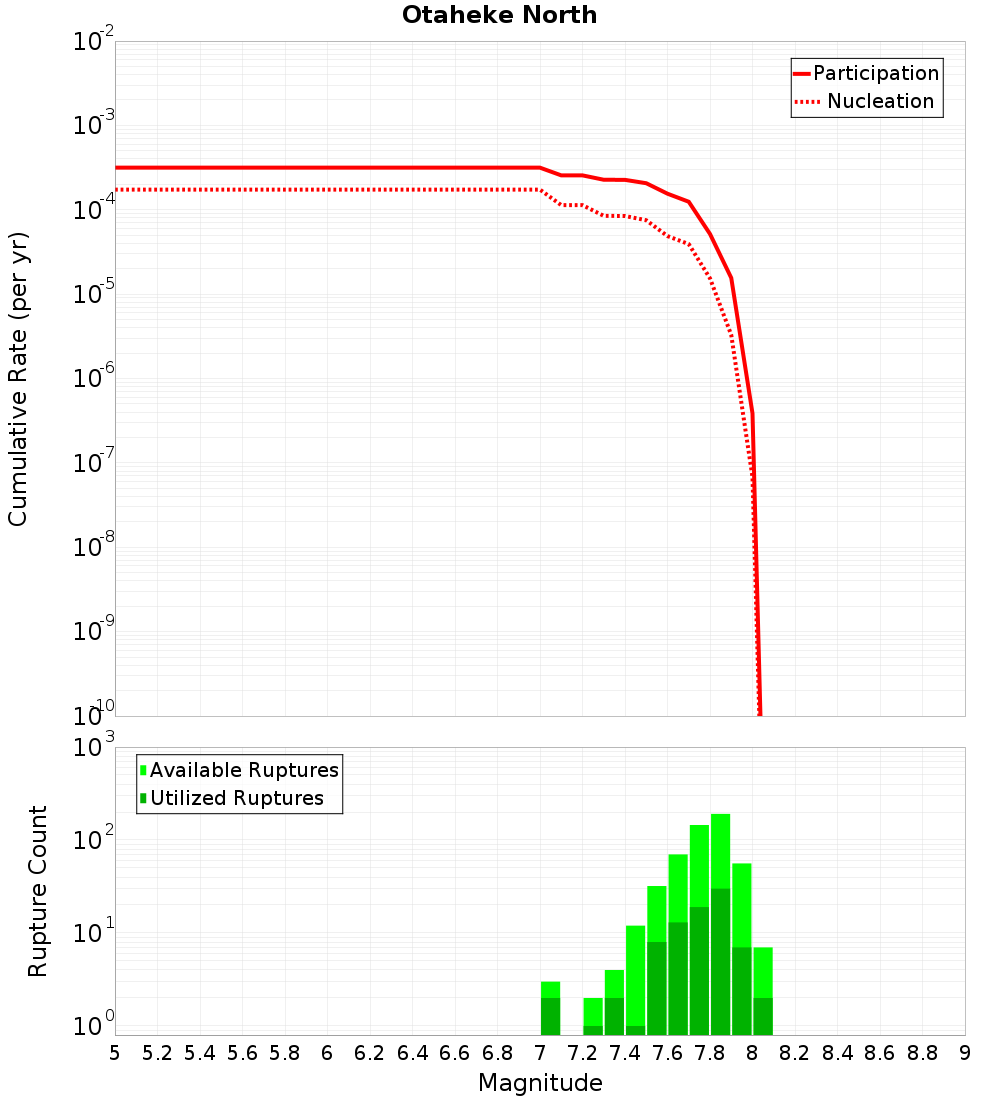

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

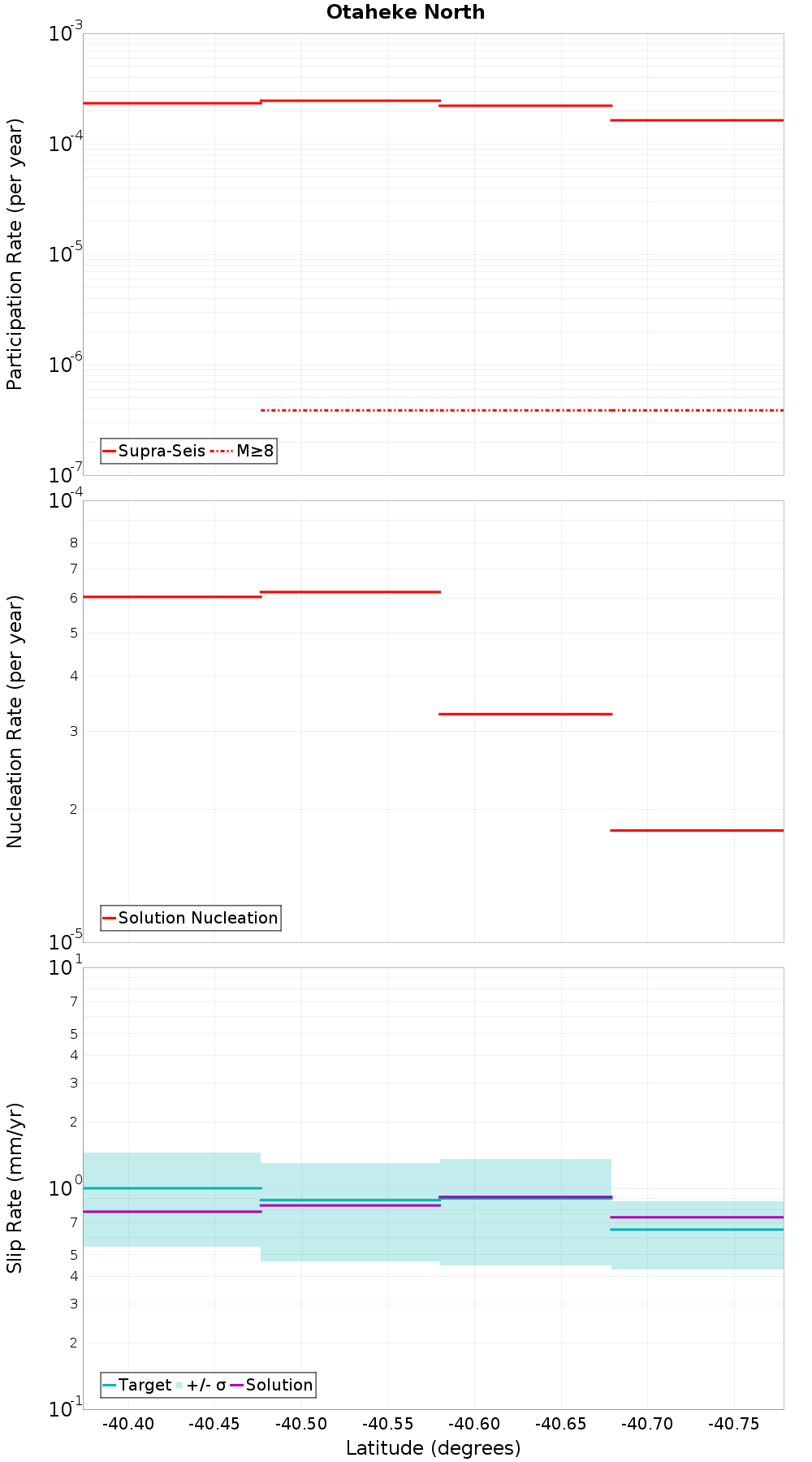

Along-Strike Values

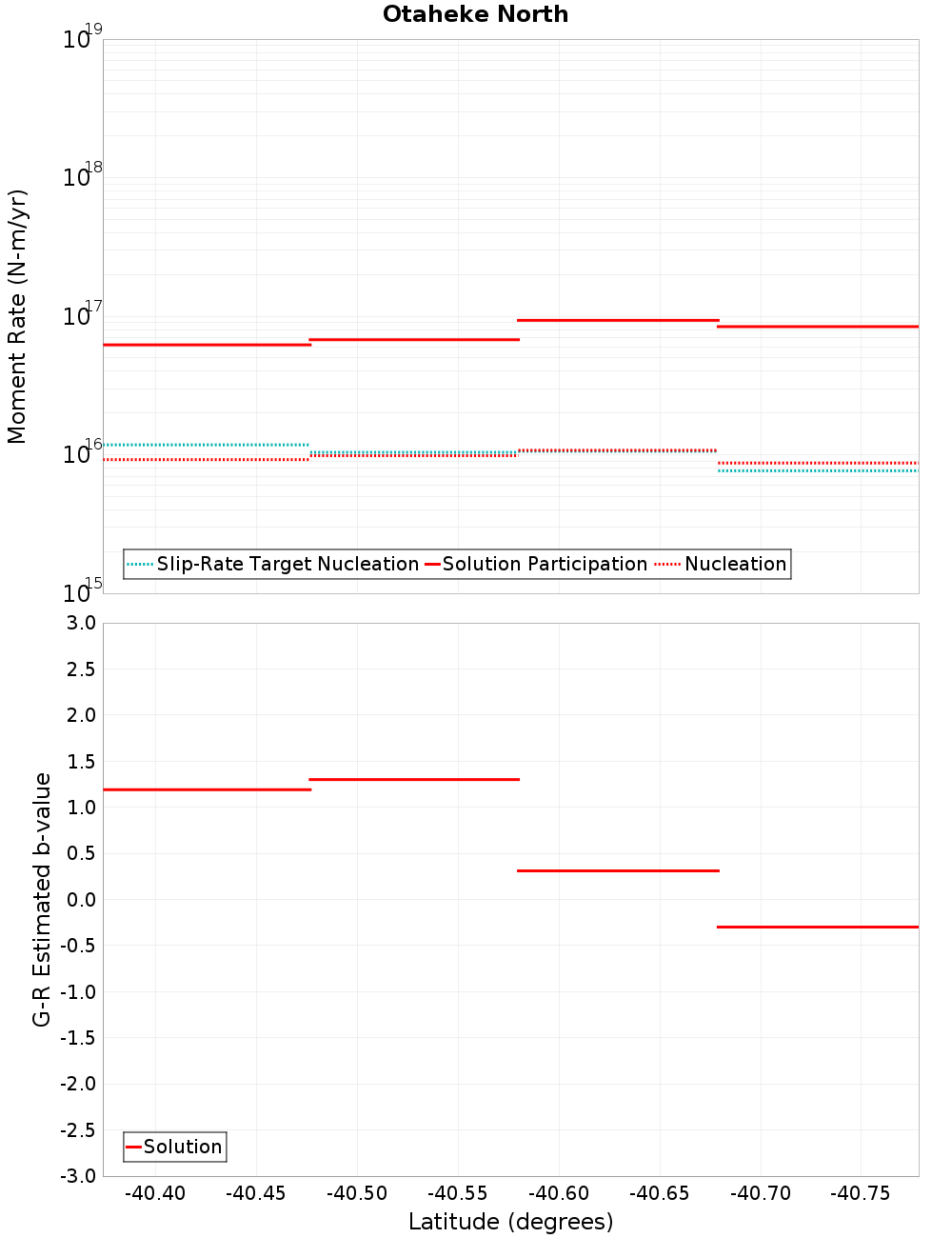

Moment-Rates and b-Values

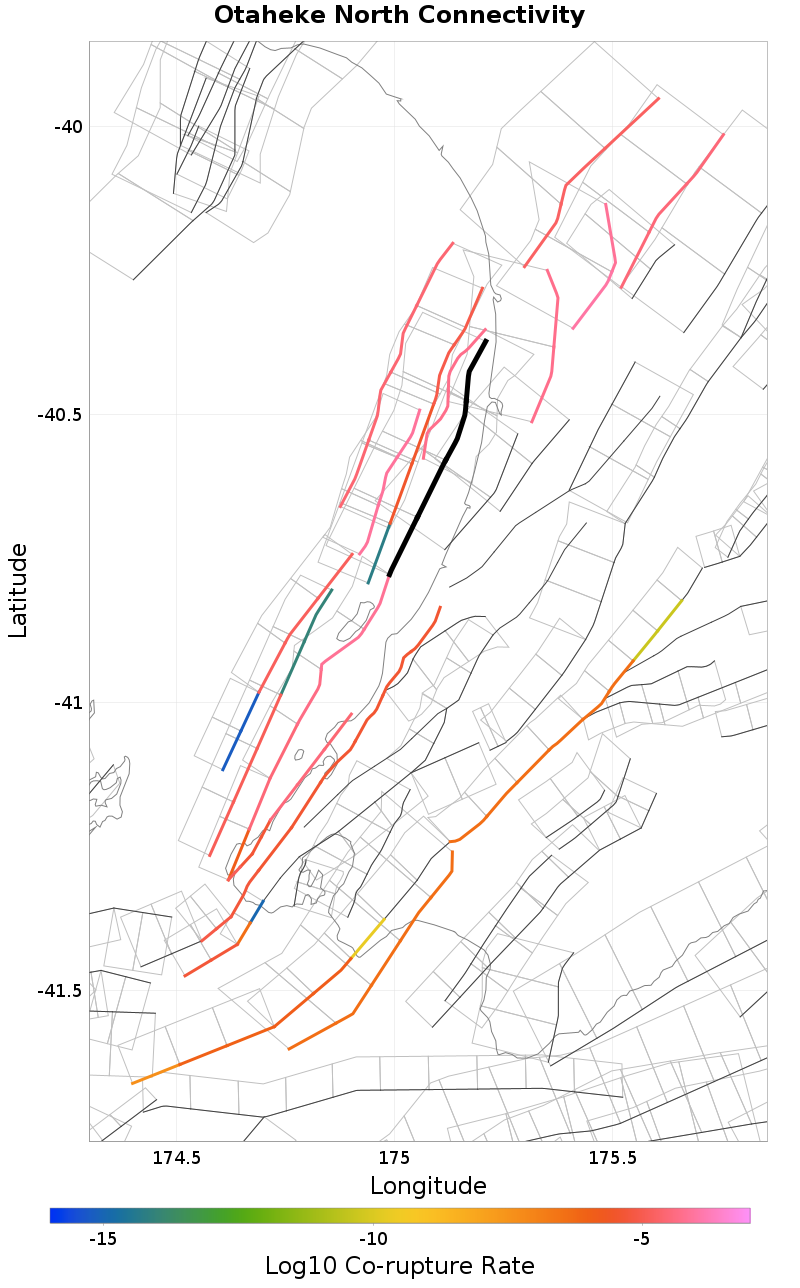

Connectivity
 |  |
|---|
Nearby Sections
Otaheke South, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 298 |
| Co-rupture Rate | 6.660466E-5 |
Rangitikei Offshore 1, 0.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 110 |
| Co-rupture Rate | 5.1346105E-5 |
Onepoto, 0.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 98 |
| Co-rupture Rate | 8.673298E-6 |
Mascarin, 0.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 30 |
| Co-rupture Rate | 2.5675441E-5 |
Fisherman 3, 0.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 48 |
| Co-rupture Rate | 7.947506E-5 |
Fisherman 2, 2.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 205 |
| Co-rupture Rate | 1.3899088E-5 |
Poroutawhao, 4.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Okupe 1, 8.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 243 |
| Co-rupture Rate | 1.2107586E-5 |
Himatangi, 8.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 30 |
| Co-rupture Rate | 5.1040344E-5 |
Levin Anticline, 10.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Northern Ohariu, 11.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohariu, 11.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 174 |
| Co-rupture Rate | 5.272895E-6 |
Mt Stewart, 14.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 62 |
| Co-rupture Rate | 1.01092526E-4 |
Gibbs, 14.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
