Otaki Forks: 1 Details

Property	Value
Rupture Count	18,902
Ruptures Above Sect Min Mag	18,901
Ruptures w/ Nonzero Rates	747
Magnitude Range	[6.76, 8.61]
Length Range	[17, 1,132] km
Total Rate	5.5518205E-4 /yr
Multi-Fault Rate	5.5518205E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	120

Table Of Contents

Magnitude-Frequency Distribution

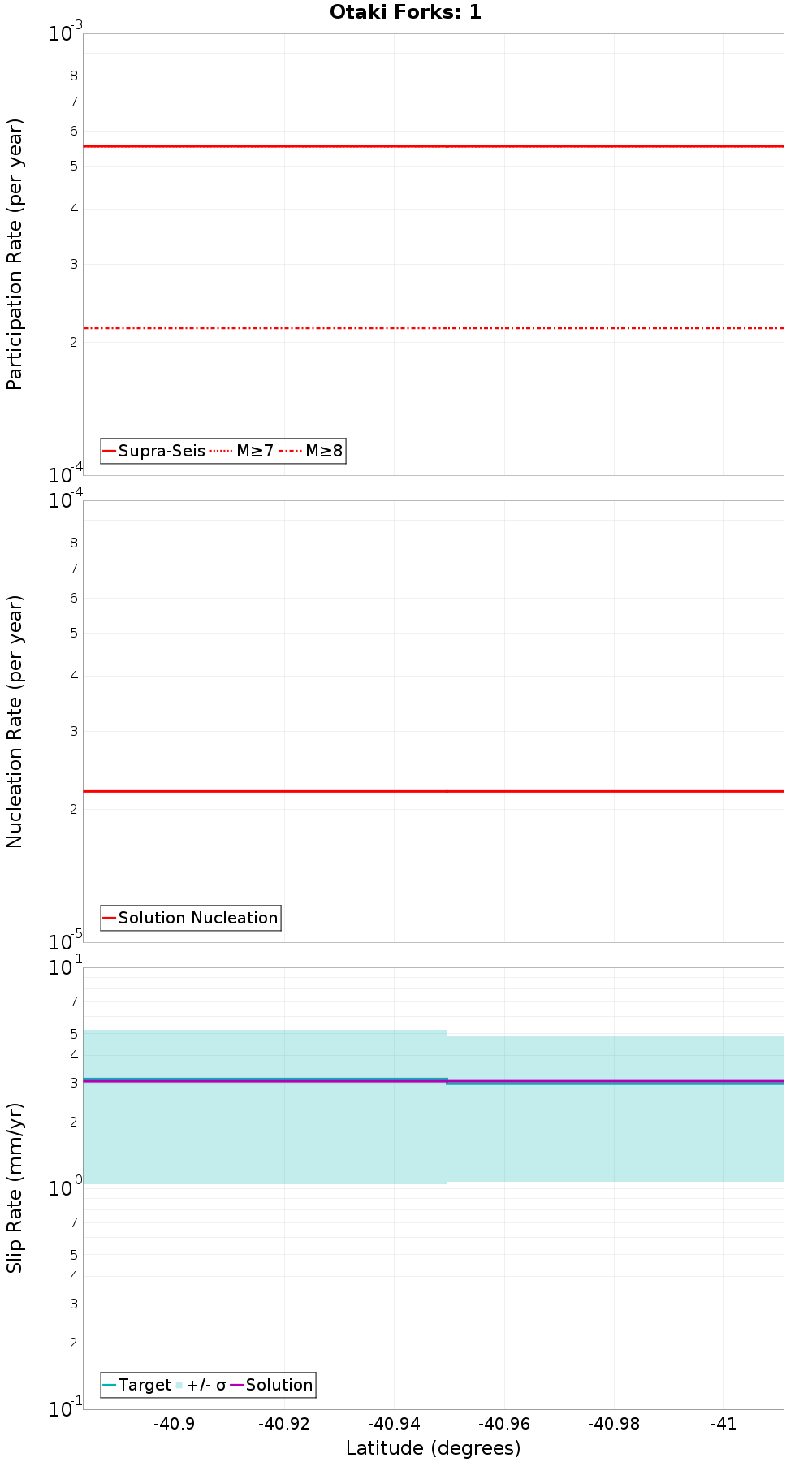

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

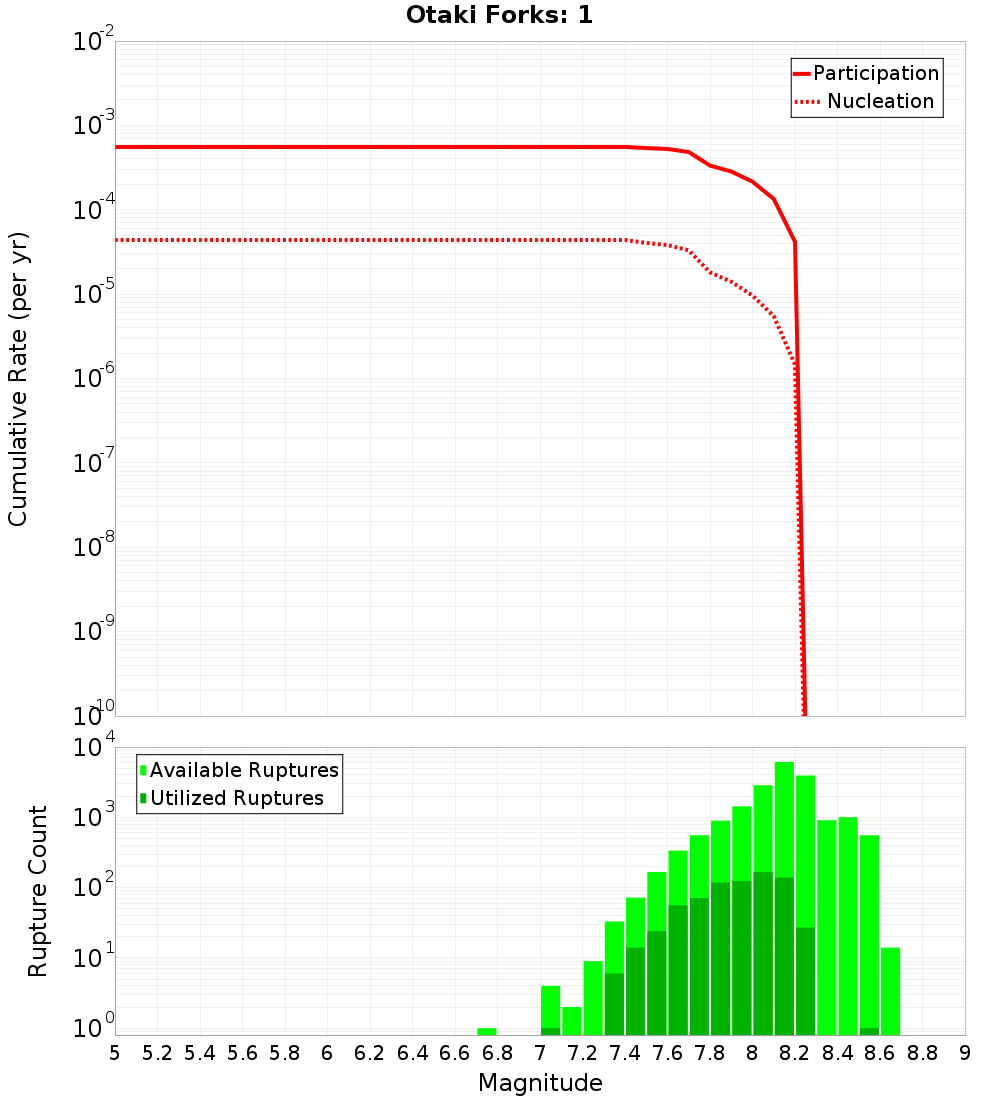

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Moonshine, 0 km away
Akatarawa, 0 km away
Otaki Forks: 2, 0 km away
Gibbs, 0.31 km away
Ohariu, 5.13 km away
Northern Ohariu, 7.28 km away
Wellington: Tararua 1, 7.89 km away
Wellington Hutt Valley: 5, 8.56 km away
Wellington: Tararua 2, 10.09 km away
Wellington: Tararua 3, 11.35 km away
Wellington Hutt Valley: 4, 14.19 km away
Pukerua - Shepherds Gully: 3, 14.24 km away

Moonshine, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	12,359
Co-rupture Rate	3.041316E-4

Akatarawa, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	8,178
Co-rupture Rate	1.7163232E-4

Otaki Forks: 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	17,955
Co-rupture Rate	4.8312265E-4

Gibbs, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	18
Co-rupture Rate	9.730215E-12

Ohariu, 5.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	6,364
Co-rupture Rate	1.7281936E-4

Northern Ohariu, 7.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	false
Co-rupture Count	1,868
Co-rupture Rate	1.20940414E-4

Wellington: Tararua 1, 7.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington Hutt Valley: 5, 8.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington: Tararua 2, 10.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington: Tararua 3, 11.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	false
Co-rupture Count	1,550
Co-rupture Rate	4.4089506E-5

Wellington Hutt Valley: 4, 14.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	false
Co-rupture Count	2,184
Co-rupture Rate	1.1719831E-4

Pukerua - Shepherds Gully: 3, 14.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
