Pakupaku Ridge East Details

Property	Value
Rupture Count	7,350
Ruptures Above Sect Min Mag	7,349
Ruptures w/ Nonzero Rates	116
Magnitude Range	[6.95, 8.49]
Length Range	[20, 779] km
Total Rate	8.288551E-6 /yr
Multi-Fault Rate	8.288551E-6 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	86

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

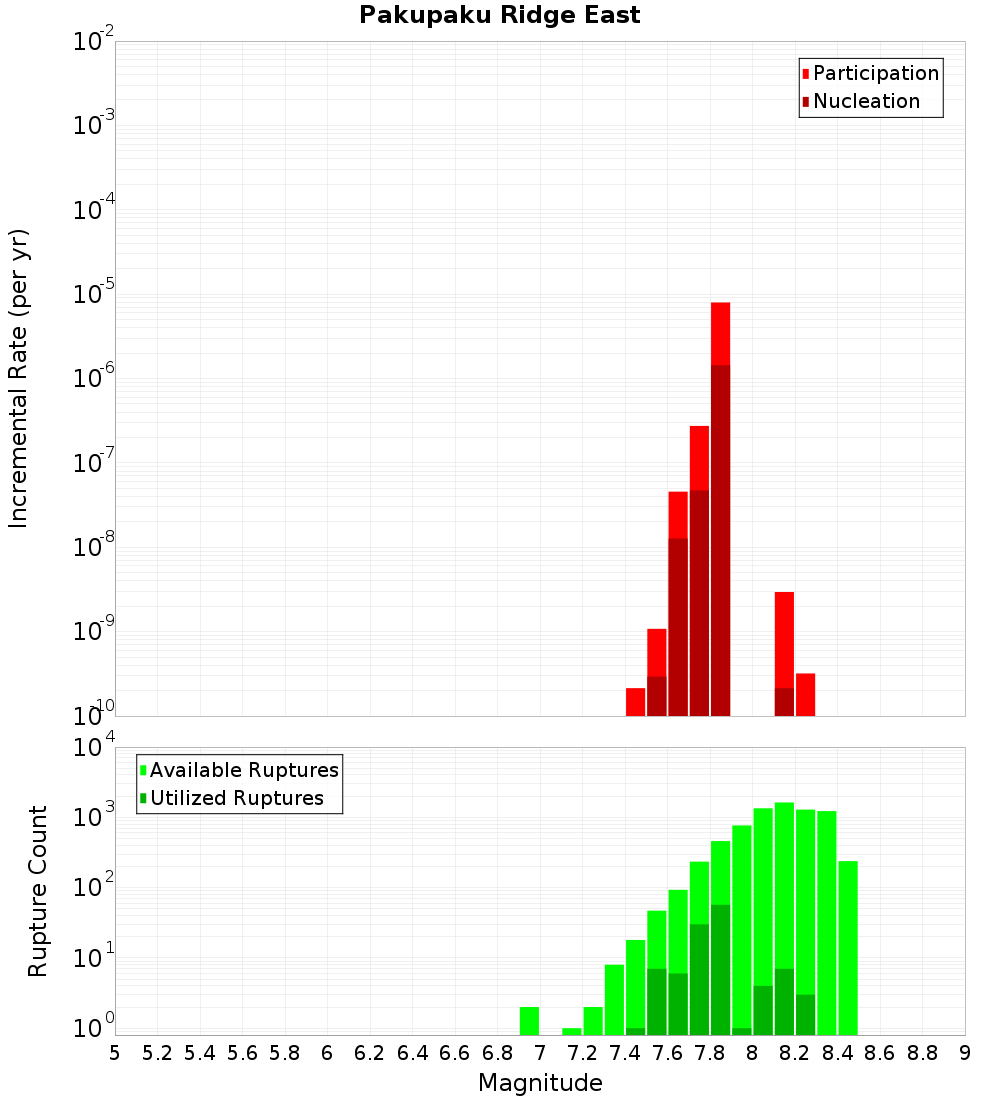

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

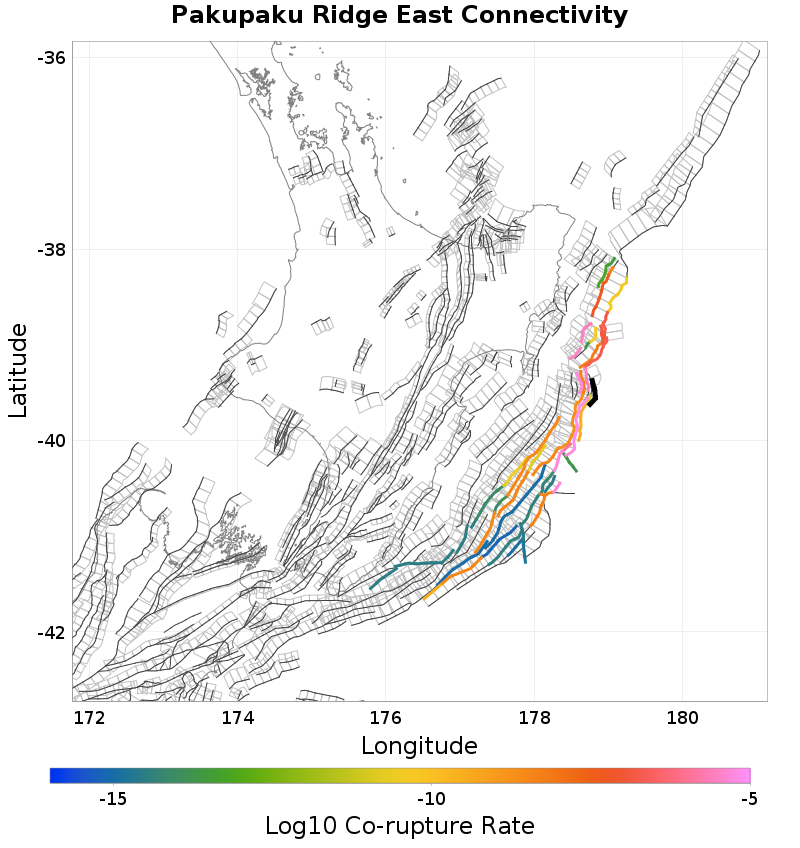

Connectivity

Nearby Sections

Fault Section
Te Kapu Bank, 0.14 km away
Pakupaku Ridge, 1.22 km away
Rock Garden - Ritchie East 1, 2.98 km away
Whaiti Ridge, 3.58 km away
Te Kapu Bank East, 5.86 km away
Rock Garden - Ritchie East, 8.41 km away
Ritchie Ridge 1, 9.59 km away
Ritchie Ridge, 10.28 km away
Puke Knoll, 10.44 km away
Riwha, 11.64 km away

Te Kapu Bank, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	2,508
Co-rupture Rate	5.0977274E-6

Pakupaku Ridge, 1.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	1,078
Co-rupture Rate	3.0444952E-10

Rock Garden - Ritchie East 1, 2.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	5,707
Co-rupture Rate	8.087061E-6

Whaiti Ridge, 3.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	615
Co-rupture Rate	3.1018362E-6

Te Kapu Bank East, 5.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	448
Co-rupture Rate	4.938481E-9

Rock Garden - Ritchie East, 8.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	false
Co-rupture Count	575
Co-rupture Rate	3.357739E-9

Ritchie Ridge 1, 9.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ritchie Ridge, 10.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Puke Knoll, 10.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	false
Co-rupture Count	559
Co-rupture Rate	1.9137853E-7

Riwha, 11.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	false
Co-rupture Count	790
Co-rupture Rate	5.907545E-9
