Sliver Stream - Merton Details

PropertyValue
Rupture Count68
Ruptures Above Sect Min Mag67
Ruptures w/ Nonzero Rates35
Magnitude Range[7.06, 7.88]
Length Range[24, 158] km
Total Rate1.322691E-4 /yr
Multi-Fault Rate1.16931005E-4 /yr (88.40%)
Directly-Connected Faults5
All Co-Rupturing Faults16

Table Of Contents

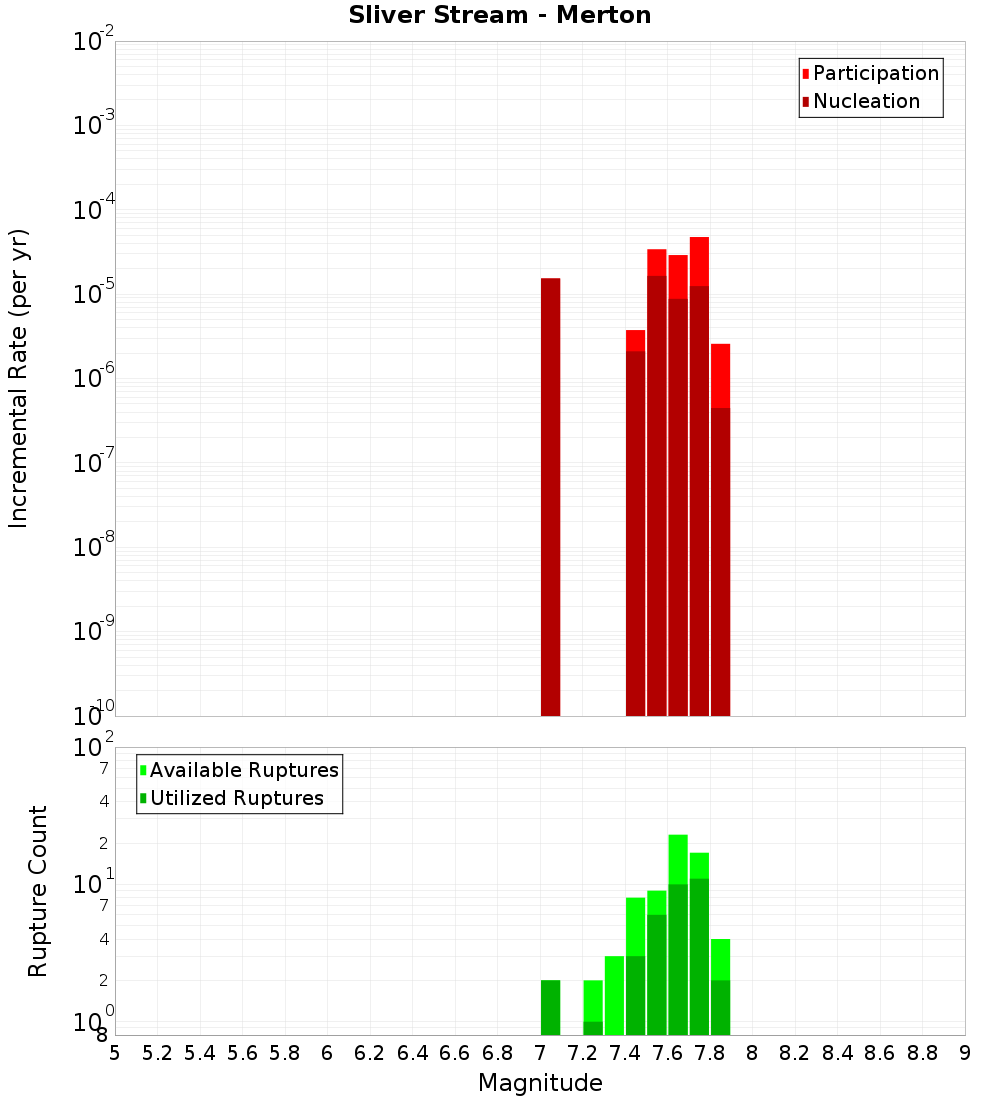

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

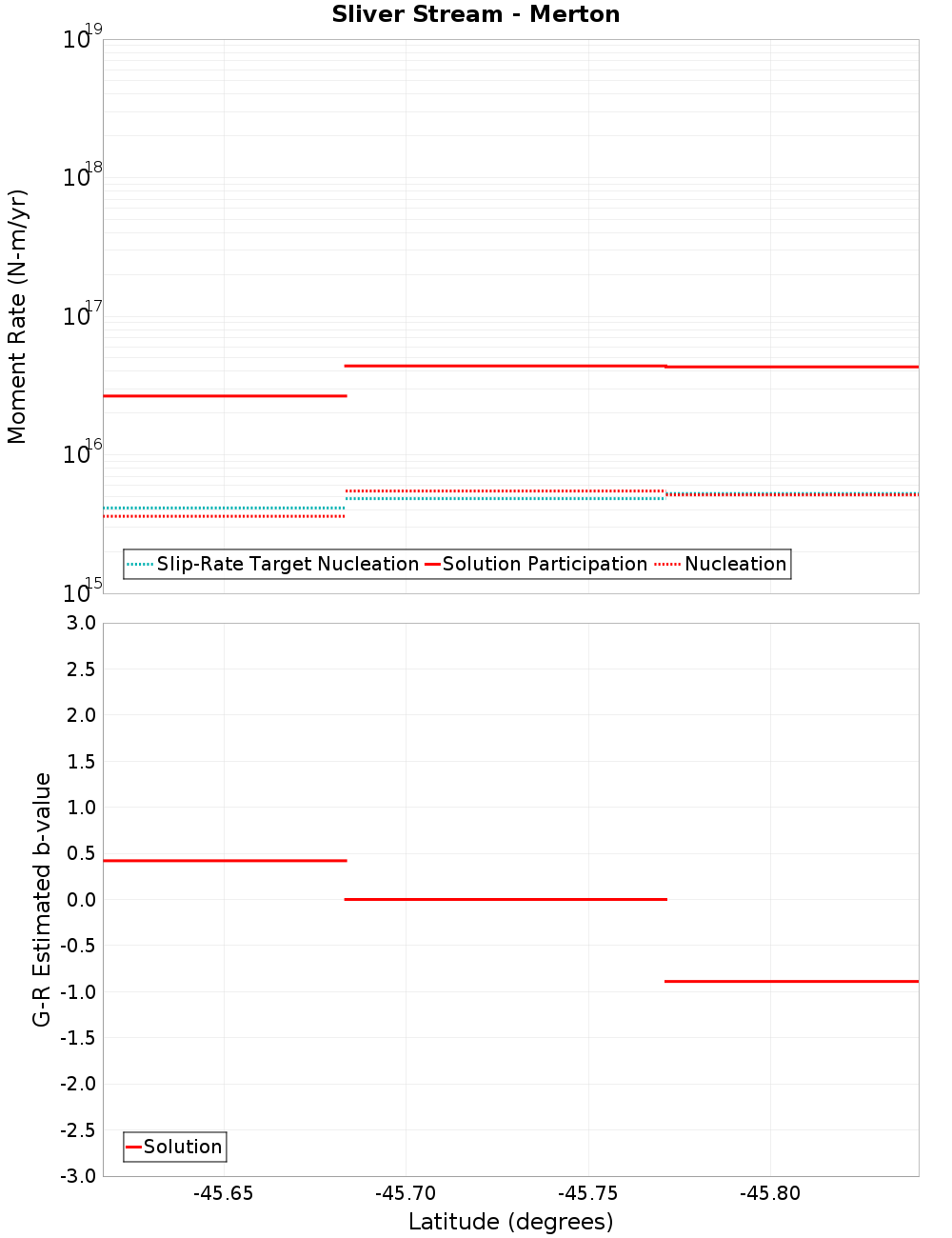

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Maungatua - North Taieri, 0.35 km away
Titri North, 0.88 km away
Kaikorai, 7.87 km away
Flat Stream - Glenpark, 8.34 km away
Dunback Hill, 11.61 km away
Nichols Rock, 12.26 km away
Green Island, 12.64 km away
Waipiata, 14.52 km away

Maungatua - North Taieri, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?true
Co-rupture Count24
Co-rupture Rate2.6826301E-5

Titri North, 0.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?true
Co-rupture Count21
Co-rupture Rate4.701819E-5

Kaikorai, 7.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate2.6640218E-5

Flat Stream - Glenpark, 8.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?true
Co-rupture Count7
Co-rupture Rate1.6446294E-5

Dunback Hill, 11.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?true
Co-rupture Count20
Co-rupture Rate2.8484123E-5

Nichols Rock, 12.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate3.6996425E-6

Green Island, 12.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate2.6640211E-5

Waipiata, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
