Uruti East - PorWest 1 Details

Property	Value
Rupture Count	57,924
Ruptures Above Sect Min Mag	57,917
Ruptures w/ Nonzero Rates	678
Magnitude Range	[6.87, 8.55]
Length Range	[22, 1,076] km
Total Rate	1.561593E-4 /yr
Multi-Fault Rate	1.5608588E-4 /yr (99.95%)
Directly-Connected Faults	13
All Co-Rupturing Faults	149

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

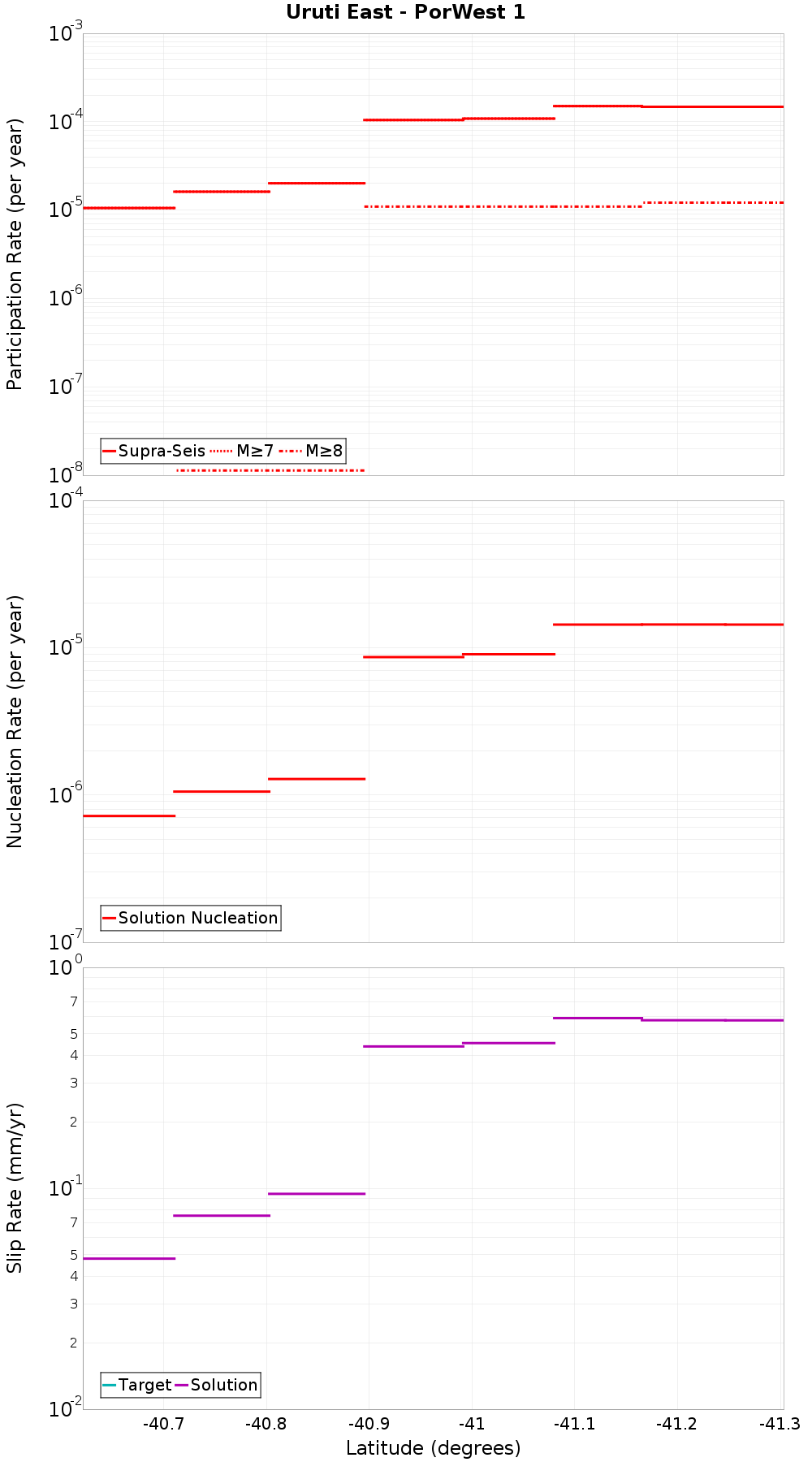

Along-Strike Values

Moment-Rates and b-Values

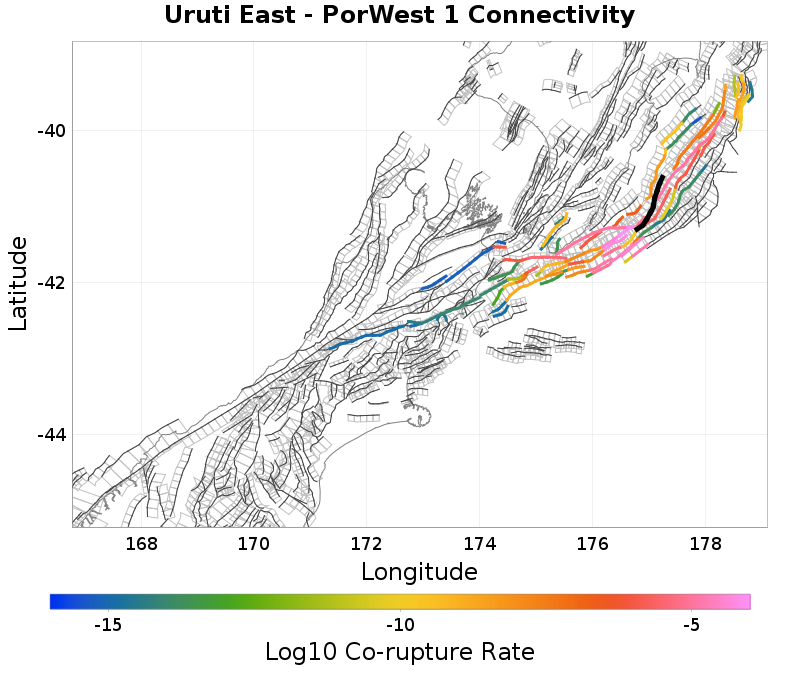

Connectivity

Nearby Sections

Fault Section	Fault Section
Pukeroro 2, 0 km away	Madden Banks, 4.33 km away
Porangahau Basin, 0.15 km away	Opouawe - Uruti, 5.48 km away
Uruti Basin, 0.25 km away	Porangahau Ridge, 6.91 km away
Pukeroro Ridge, 0.71 km away	Pahaua, 7.45 km away
Uruti Basin 2, 1.75 km away	Uruti North, 10.36 km away
Uruti Ridge 2, 2.58 km away	Aorangi Ridge, 12.19 km away
PorWest2 - PaoanuiRSouth, 3.48 km away	Akitio Trough West, 13.04 km away
Aorangi Trough, 3.76 km away	Porangahau Northeast, 14.3 km away

Pukeroro 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	2,036
Co-rupture Rate	7.958633E-6

Porangahau Basin, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	3,388
Co-rupture Rate	2.2384265E-6

Uruti Basin, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	28,964
Co-rupture Rate	5.0230952E-5

Pukeroro Ridge, 0.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	2,065
Co-rupture Rate	2.2797401E-5

Uruti Basin 2, 1.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	4,217
Co-rupture Rate	2.2579646E-7

Uruti Ridge 2, 2.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	18,797
Co-rupture Rate	8.66414E-6

PorWest2 - PaoanuiRSouth, 3.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	34,240
Co-rupture Rate	1.2594091E-5

Aorangi Trough, 3.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	704
Co-rupture Rate	3.196294E-5

Madden Banks, 4.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	2,586
Co-rupture Rate	8.018598E-9

Opouawe - Uruti, 5.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	41,069
Co-rupture Rate	9.7031814E-5

Porangahau Ridge, 6.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	false
Co-rupture Count	1,643
Co-rupture Rate	1.2420585E-6

Pahaua, 7.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	false
Co-rupture Count	5,736
Co-rupture Rate	5.982984E-5

Uruti North, 10.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	793
Co-rupture Rate	2.0409897E-7

Aorangi Ridge, 12.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	45
Co-rupture Rate	1.4808518E-5

Akitio Trough West, 13.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	true
Co-rupture Count	1,261
Co-rupture Rate	1.5346665E-14

Porangahau Northeast, 14.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTYuMEx6RUV3
Connected?	true
Directly Connected?	false
Co-rupture Count	1,001
Co-rupture Rate	1.1895323E-6
