Alpine: Springs Junction to Tophouse Details

PropertyValue
Rupture Count95,011
Ruptures Above Sect Min Mag95,007
Ruptures w/ Nonzero Rates475
Magnitude Range[7.00, 8.61]
Length Range[24, 1,132] km
Total Rate0.0023870103 /yr
Multi-Fault Rate0.002371067 /yr (99.33%)
Directly-Connected Faults8
All Co-Rupturing Faults179

Table Of Contents

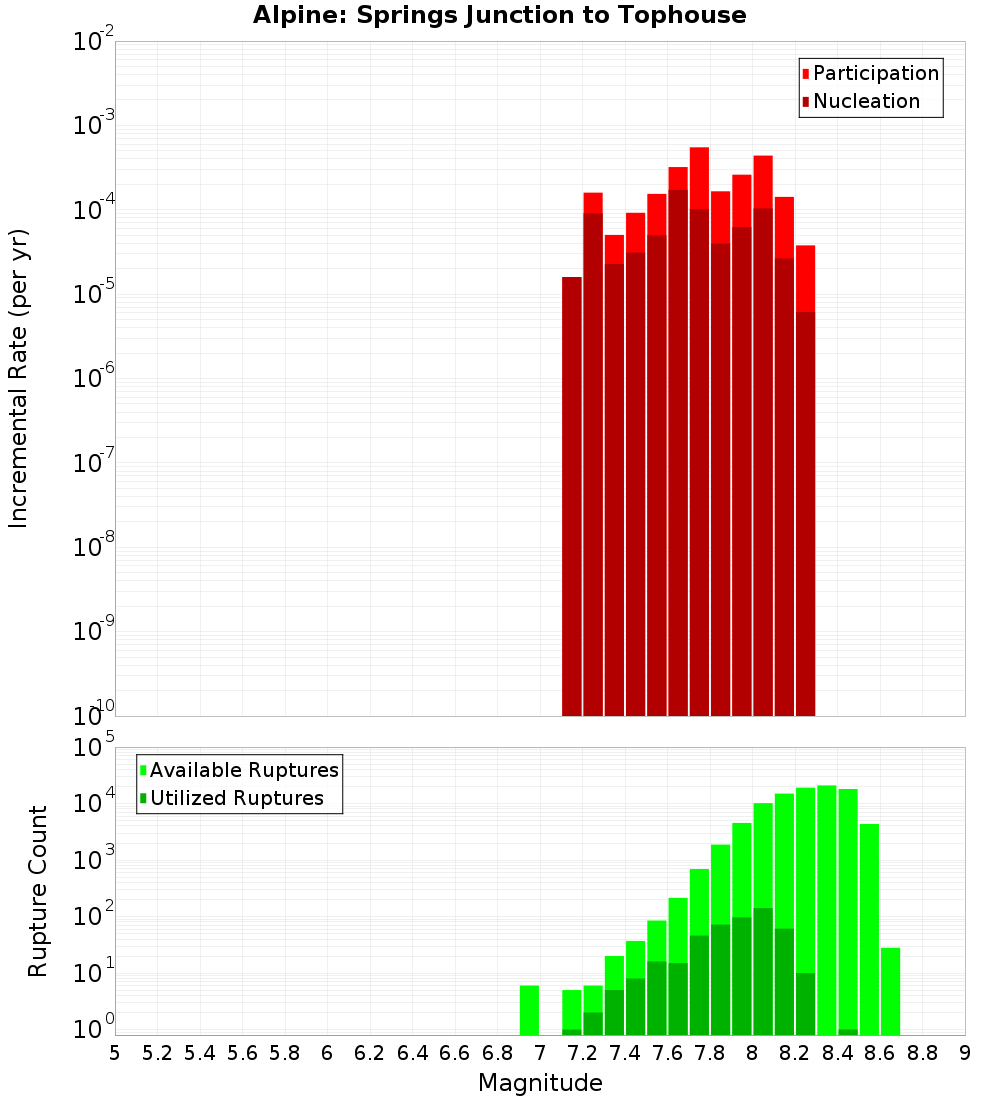

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

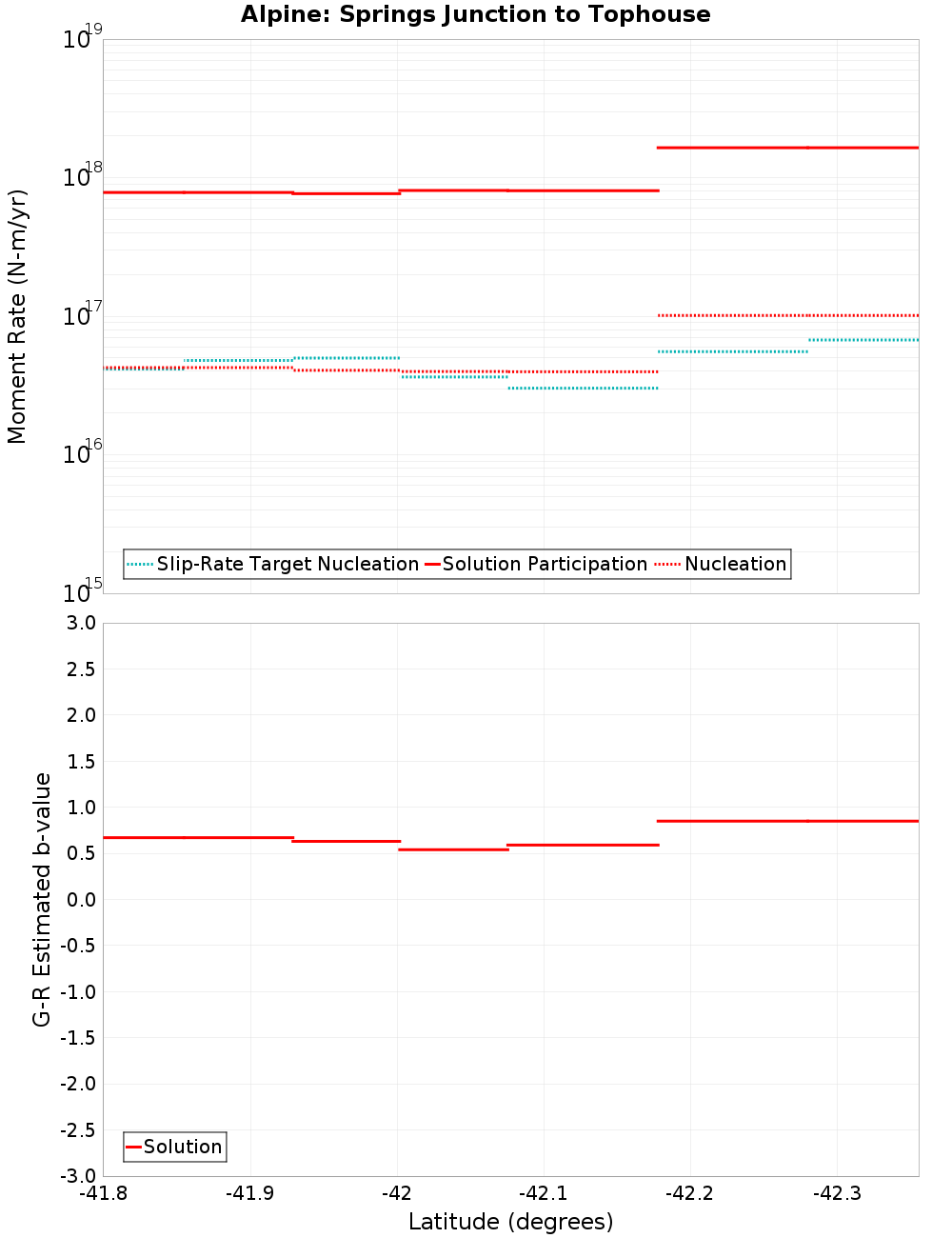

Moment-Rates and b-Values

(top)

Along-strike plot

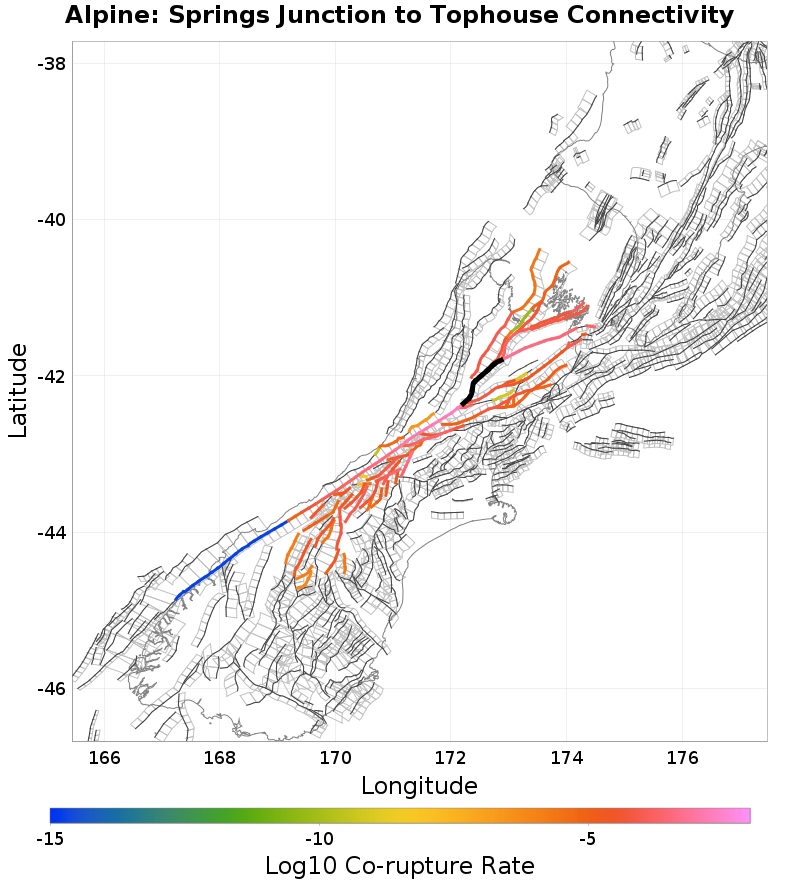

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Kaniere to Springs Junction, 0 km away
Whangamoa, 0 km away
Awatere: Southwest, 0 km away
Wairau, 0 km away
Tutaki, 0.15 km away
Fowlers, 0.21 km away
Flaxmore - Waimea - Tahunanui, 0.45 km away
Clarence: Southwest, 5.45 km away
Hope: Hope River, 13.2 km away
Waihopai, 14.6 km away
Esk North, 14.63 km away

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?true
Directly Connected?true
Co-rupture Count93,096
Co-rupture Rate0.0018686552

Whangamoa, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?true
Directly Connected?true
Co-rupture Count47,509
Co-rupture Rate1.652636E-4

Awatere: Southwest, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?true
Directly Connected?true
Co-rupture Count429
Co-rupture Rate6.778533E-5

Wairau, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?true
Directly Connected?true
Co-rupture Count29,329
Co-rupture Rate6.532944E-4

Tutaki, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?true
Directly Connected?true
Co-rupture Count8,505
Co-rupture Rate7.037153E-5

Fowlers, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?true
Directly Connected?true
Co-rupture Count312
Co-rupture Rate1.6436153E-4

Flaxmore - Waimea - Tahunanui, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?true
Directly Connected?true
Co-rupture Count7,634
Co-rupture Rate5.558759E-5

Clarence: Southwest, 5.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?true
Directly Connected?true
Co-rupture Count1,099
Co-rupture Rate7.040286E-5

Hope: Hope River, 13.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?true
Directly Connected?false
Co-rupture Count10,407
Co-rupture Rate6.1507366E-5

Waihopai, 14.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk North, 14.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
