Hundalee Details

Property	Value
Rupture Count	13,832
Ruptures Above Sect Min Mag	13,821
Ruptures w/ Nonzero Rates	241
Magnitude Range	[6.65, 8.47]
Length Range	[16, 836] km
Total Rate	8.360929E-4 /yr
Multi-Fault Rate	8.360929E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	135

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

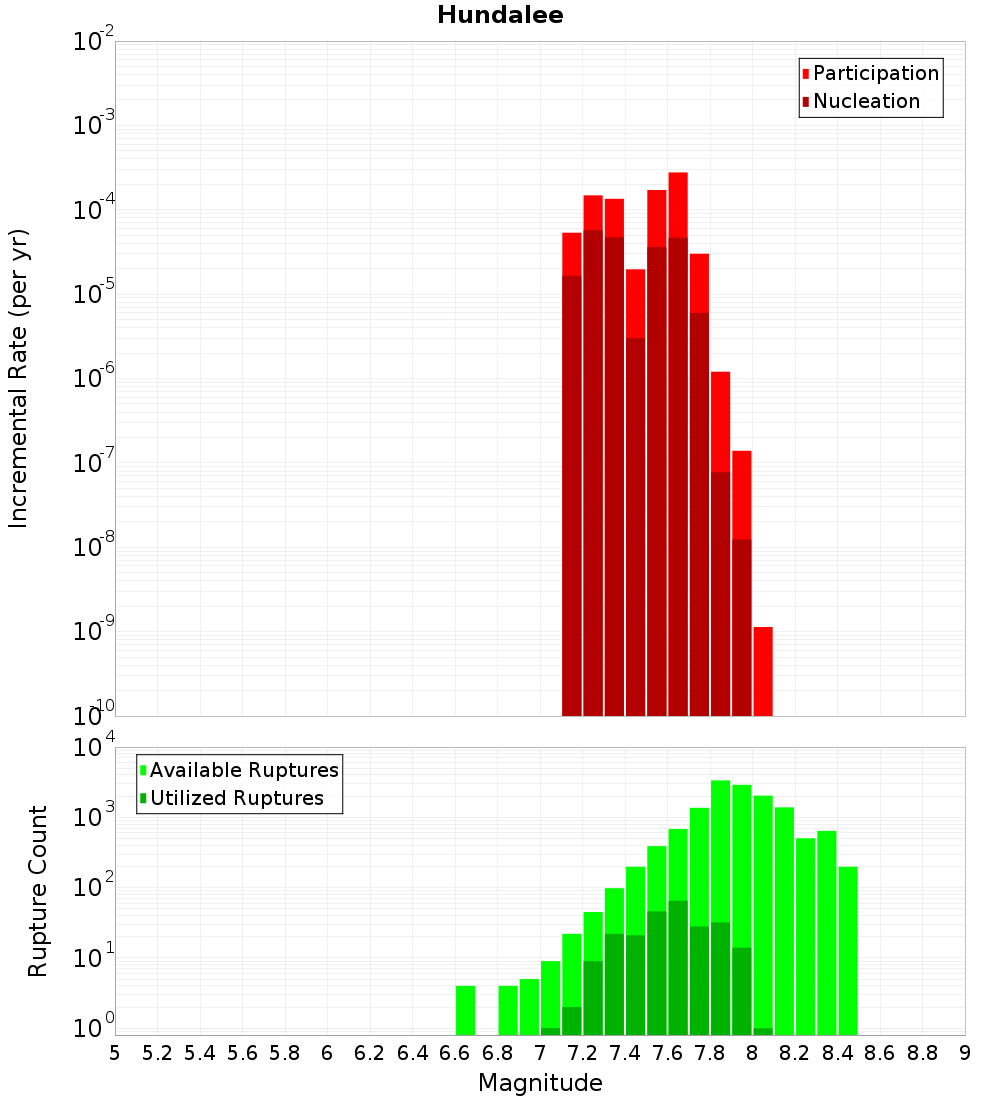

Magnitude-Frequency Distribution

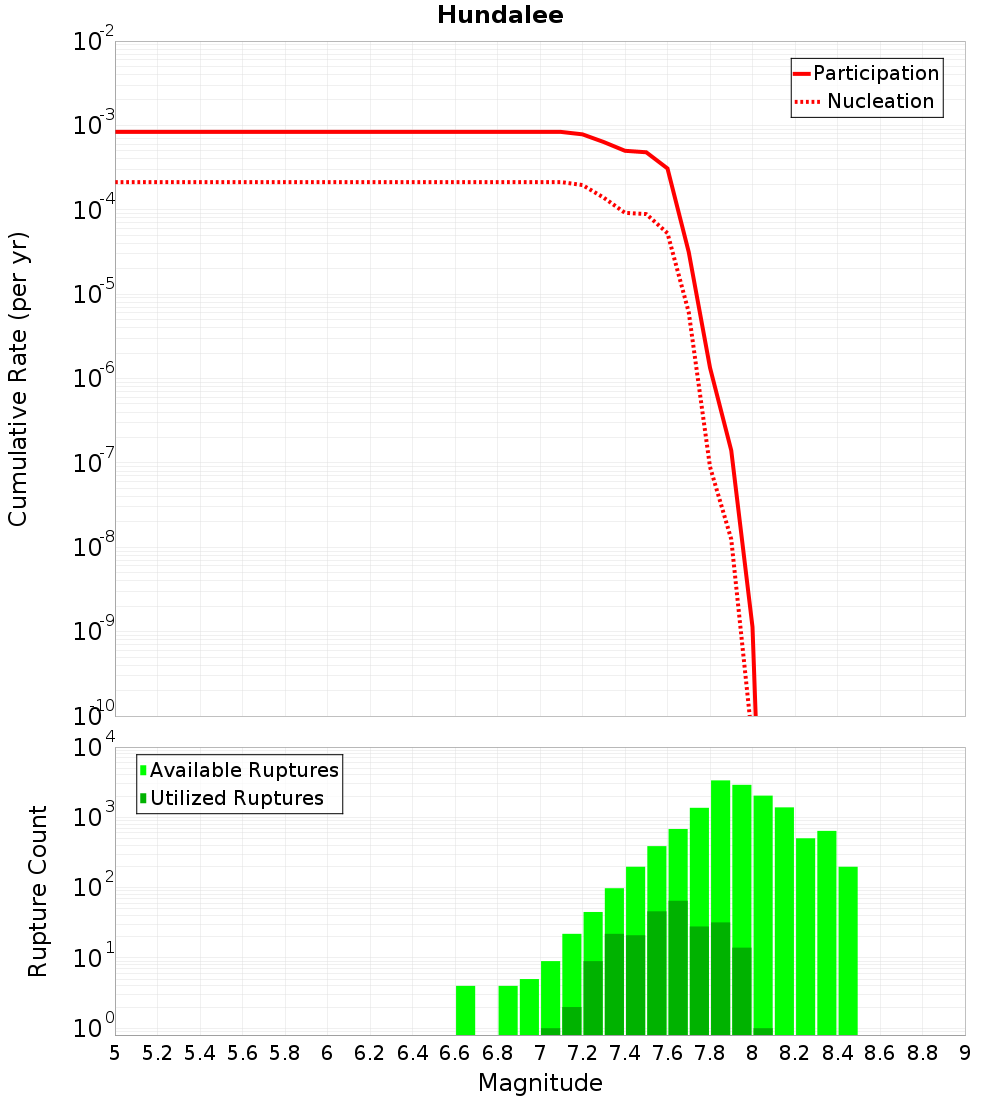

Incremental	Cumulative

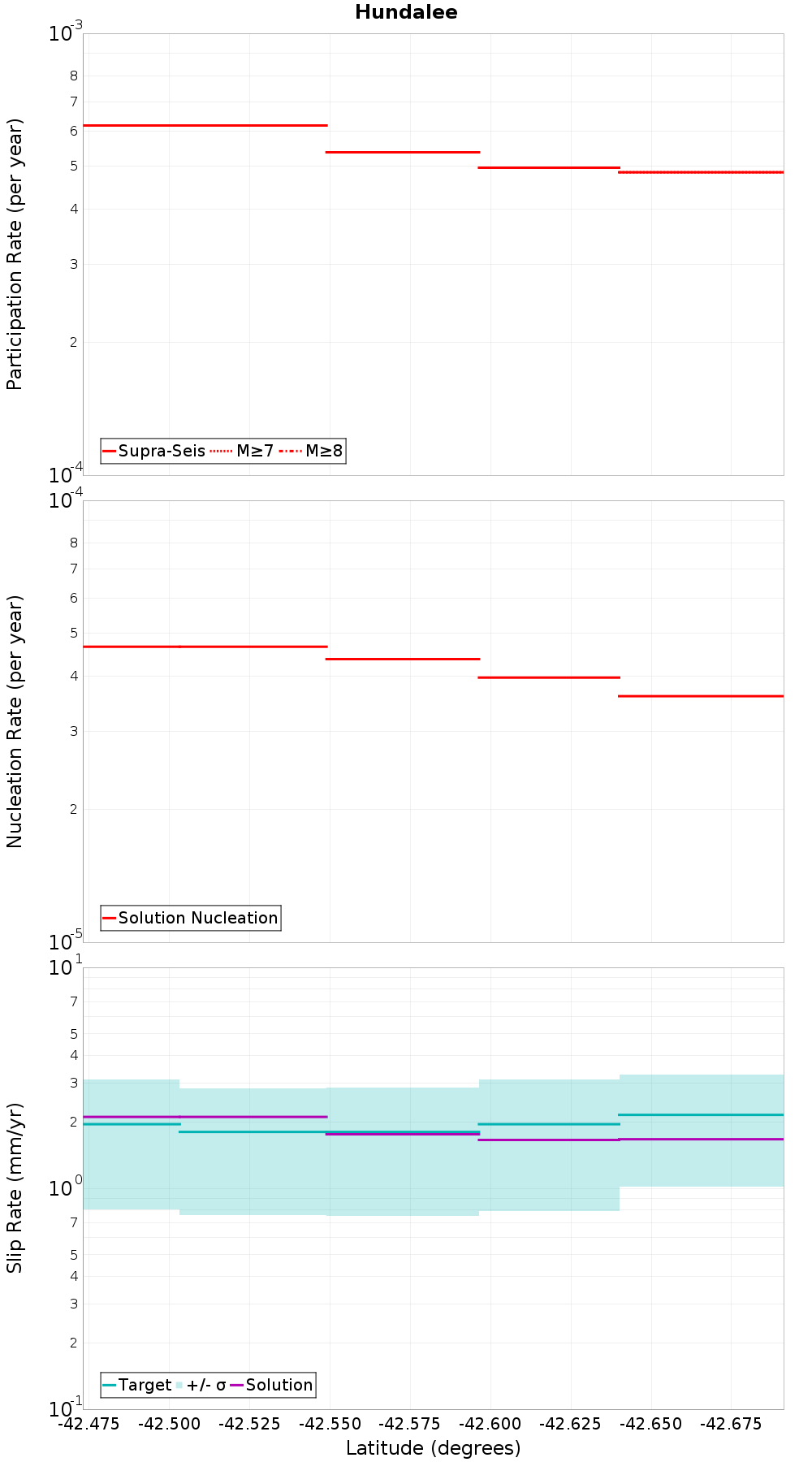

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
StoneJug, 0.05 km away
Leader: Central, 0.25 km away
The Humps, 0.25 km away
Hawkswood, 0.87 km away
Kaiwara North, 3.47 km away
Conway Trough West, 5.24 km away
Leader: South, 5.67 km away
Offshore Splay Thrust, 6.67 km away
Hope: Conway, 7.09 km away
Kowhai, 7.44 km away
Upper Kowhai - Manakau, 9 km away
Kaikoura 2, 9.44 km away
Leonard Mound, 9.87 km away
Leader: North, 12.83 km away

StoneJug, 0.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?	true
Directly Connected?	false
Co-rupture Count	64
Co-rupture Rate	2.7746352E-10

Leader: Central, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,305
Co-rupture Rate	7.066393E-5

The Humps, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?	true
Directly Connected?	true
Co-rupture Count	8,710
Co-rupture Rate	7.638377E-5

Hawkswood, 0.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?	true
Directly Connected?	true
Co-rupture Count	4,582
Co-rupture Rate	2.6467972E-4

Kaiwara North, 3.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?	true
Directly Connected?	true
Co-rupture Count	516
Co-rupture Rate	2.1640395E-4

Conway Trough West, 5.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leader: South, 5.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?	true
Directly Connected?	true
Co-rupture Count	182
Co-rupture Rate	1.4867798E-4

Offshore Splay Thrust, 6.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?	true
Directly Connected?	true
Co-rupture Count	5,254
Co-rupture Rate	1.1557195E-4

Hope: Conway, 7.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?	true
Directly Connected?	false
Co-rupture Count	2,110
Co-rupture Rate	7.066383E-5

Kowhai, 7.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,206
Co-rupture Rate	5.0304993E-4

Upper Kowhai - Manakau, 9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?	true
Directly Connected?	false
Co-rupture Count	621
Co-rupture Rate	3.9641504E-4

Kaikoura 2, 9.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leonard Mound, 9.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?	true
Directly Connected?	false
Co-rupture Count	123
Co-rupture Rate	1.2349798E-5

Leader: North, 12.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEyOTkuMHRBbnF4
Connected?	true
Directly Connected?	false
Co-rupture Count	1,422
Co-rupture Rate	7.016879E-5
