Kongahau Details

Property	Value
Rupture Count	26,778
Ruptures Above Sect Min Mag	26,768
Ruptures w/ Nonzero Rates	540
Magnitude Range	[6.95, 8.57]
Length Range	[23, 1,039] km
Total Rate	2.468002E-4 /yr
Multi-Fault Rate	2.4679585E-4 /yr (100.00%)
Directly-Connected Faults	9
All Co-Rupturing Faults	86

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

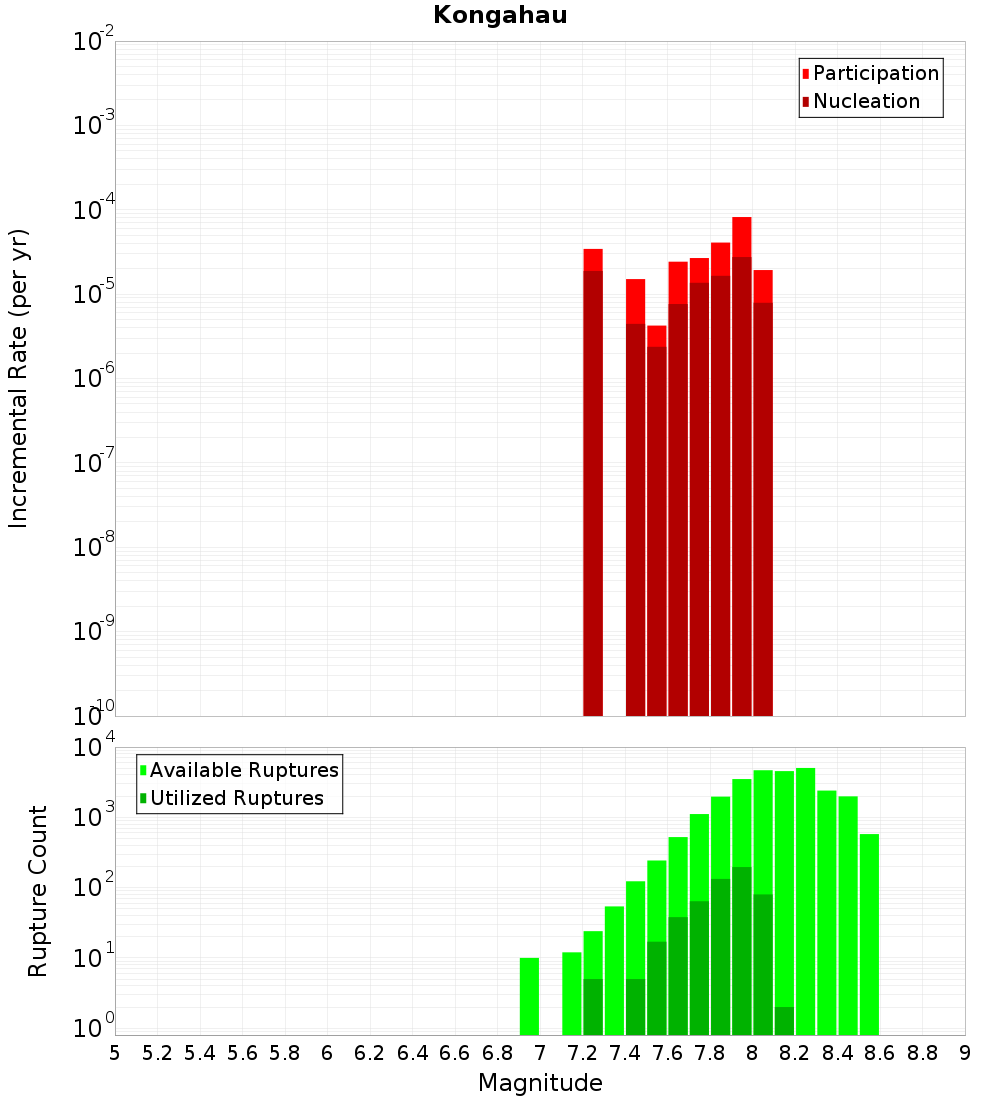

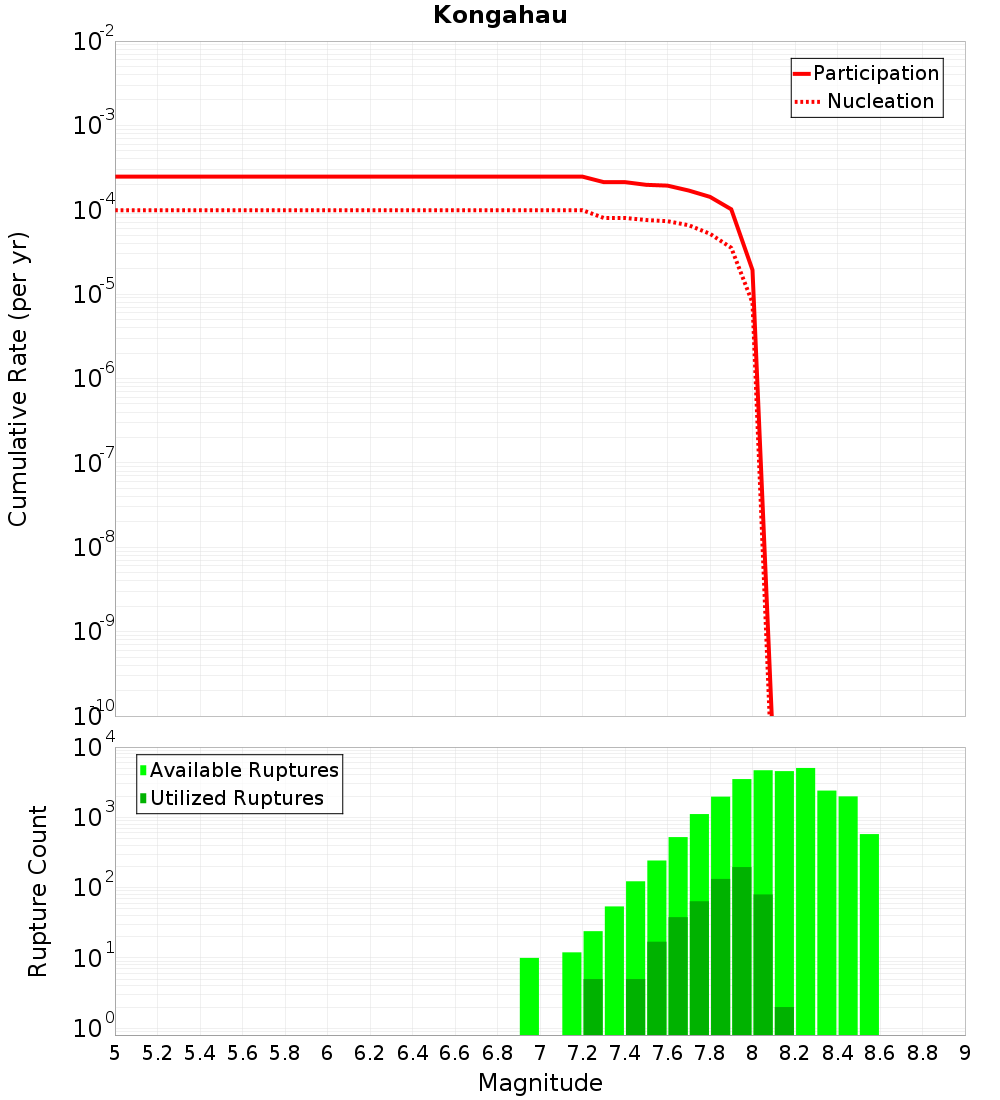

Magnitude-Frequency Distribution

Incremental	Cumulative

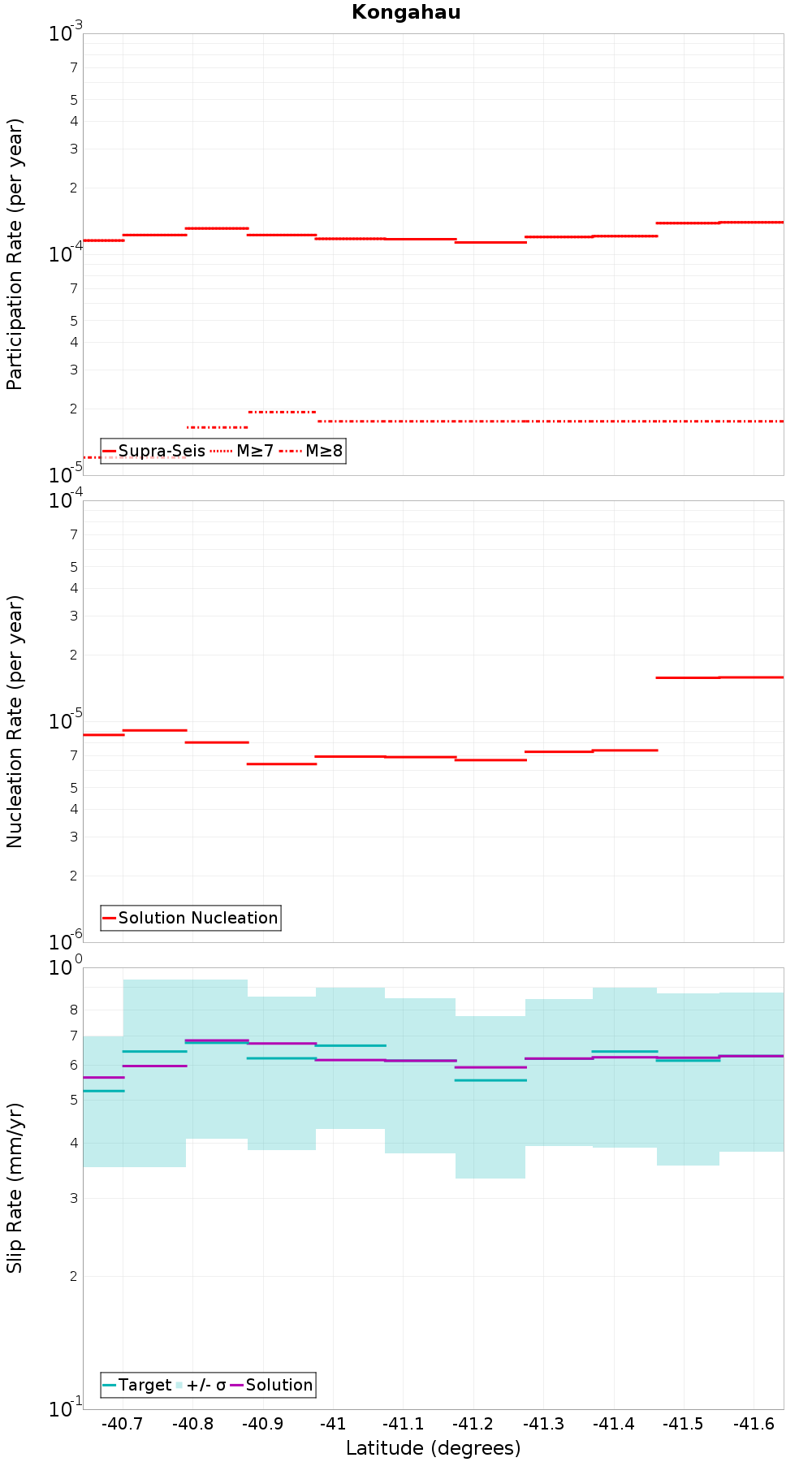

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kahurangi, 0.37 km away
Wakamarama, 0.4 km away
Inangahua, 0.88 km away
Cape Foulwind 4, 1.28 km away
Paparoa West: North, 1.54 km away
Farewell, 4.12 km away
Kohaihai, 5.4 km away
Glasgow, 6.47 km away
Kohaihai South, 7.18 km away
Cape Foulwind 2, 8.65 km away
Matiri West, 10.55 km away
White Creek, 11.77 km away

Kahurangi, 0.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	647
Co-rupture Rate	5.2870877E-5

Wakamarama, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	6,360
Co-rupture Rate	3.930352E-5

Inangahua, 0.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	10,762
Co-rupture Rate	6.192685E-5

Cape Foulwind 4, 1.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	90
Co-rupture Rate	5.3962867E-6

Paparoa West: North, 1.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	4,886
Co-rupture Rate	6.571432E-5

Farewell, 4.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	1,845
Co-rupture Rate	4.845741E-5

Kohaihai, 5.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	17,737
Co-rupture Rate	6.0943097E-5

Glasgow, 6.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	false
Co-rupture Count	1,876
Co-rupture Rate	1.5817897E-5

Kohaihai South, 7.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	false
Co-rupture Count	3,062
Co-rupture Rate	2.752699E-5

Cape Foulwind 2, 8.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	272
Co-rupture Rate	2.5704734E-5

Matiri West, 10.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	933
Co-rupture Rate	2.2667546E-6

White Creek, 11.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	false
Co-rupture Count	15,724
Co-rupture Rate	4.512838E-5
