Motu o Kura Ridge Details
| Property | Value |
|---|---|
| Rupture Count | 1,290 |
| Ruptures Above Sect Min Mag | 1,283 |
| Ruptures w/ Nonzero Rates | 40 |
| Magnitude Range | [6.69, 8.13] |
| Length Range | [17, 440] km |
| Total Rate | 9.22132E-5 /yr |
| Multi-Fault Rate | 9.22132E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 32 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

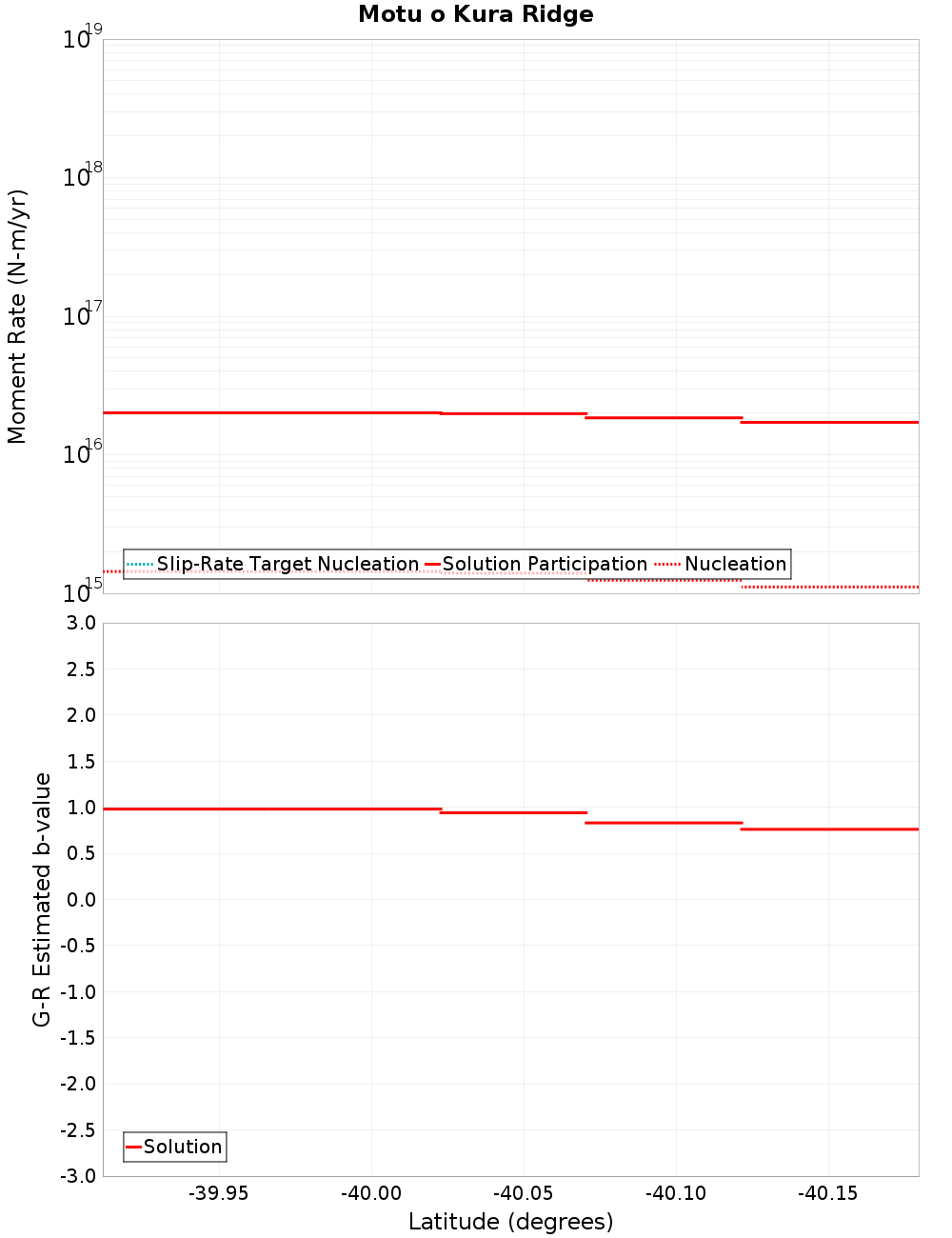

Moment-Rates and b-Values

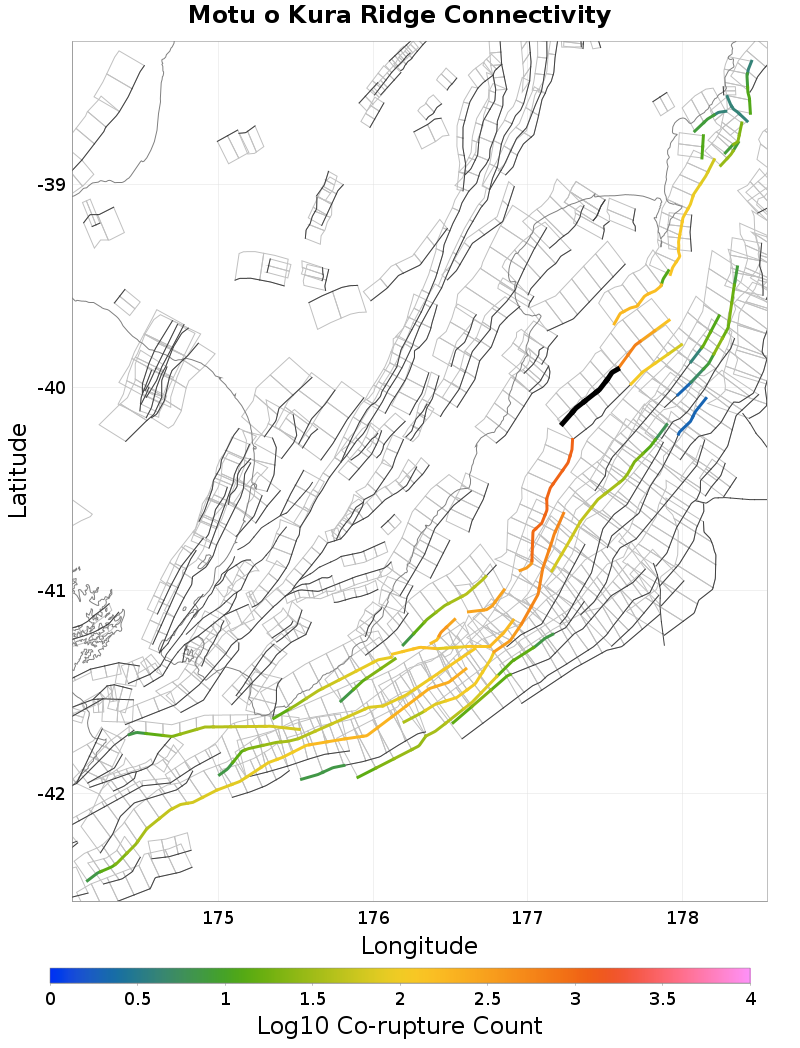

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Motuokura North, 0 km away |
| Motu o Kura East, 6.46 km away |
| Madden Banks, 7.92 km away |
| Kairakau 2, 13.65 km away |
Motuokura North, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 610 |
| Co-rupture Rate | 9.221319E-5 |
Motu o Kura East, 6.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 109 |
| Co-rupture Rate | 1.8453924E-11 |
Madden Banks, 7.92 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,124 |
| Co-rupture Rate | 5.078848E-5 |
Kairakau 2, 13.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
