North Mernoo K2 Details

PropertyValue
Rupture Count126
Ruptures Above Sect Min Mag117
Ruptures w/ Nonzero Rates4
Magnitude Range[6.60, 7.71]
Length Range[15, 187] km
Total Rate1.077458E-4 /yr
Multi-Fault Rate1.077458E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults4

Table Of Contents

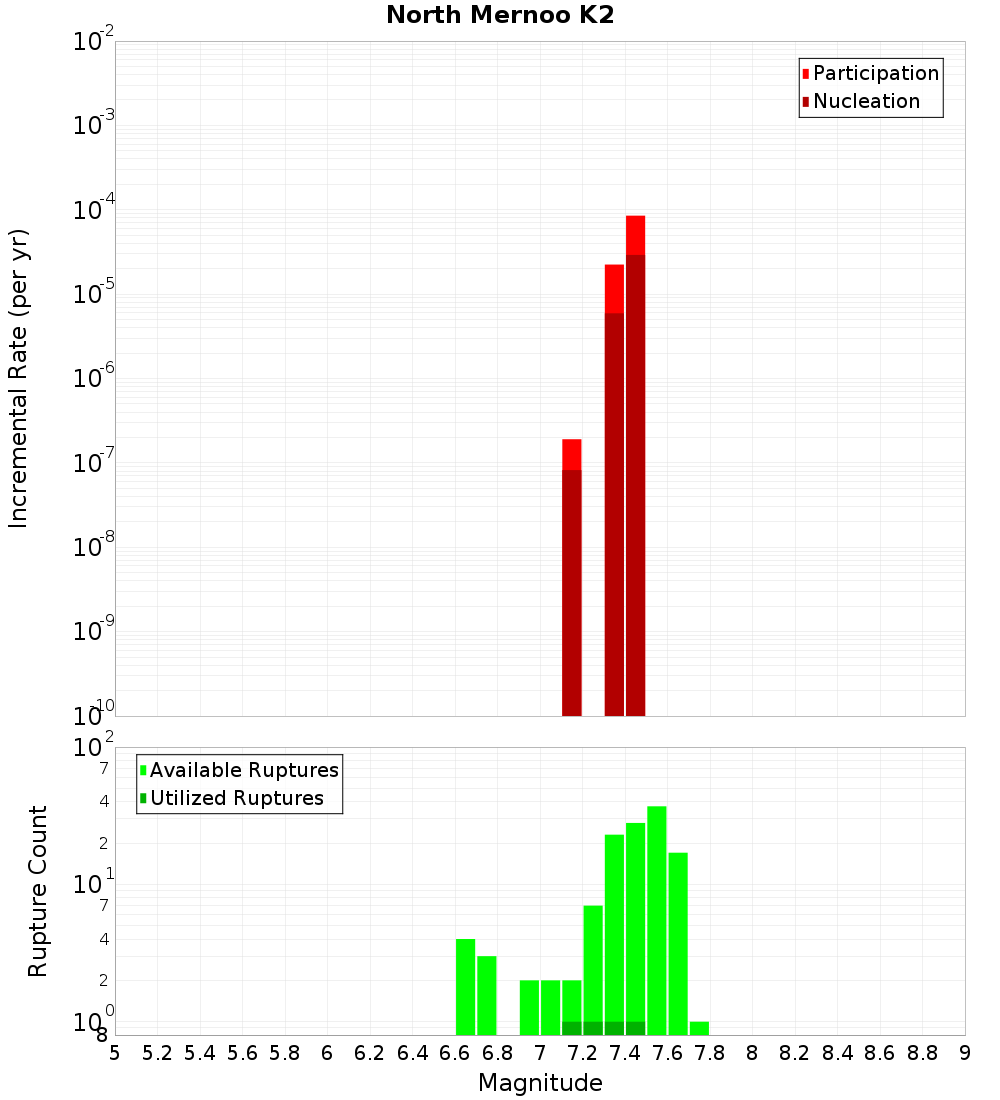

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
North Mernoo K3, 0.35 km away
North Mernoo J, 0.56 km away
North Mernoo M, 6.97 km away
North Mernoo I, 10 km away
North Mernoo 15, 11.7 km away
North Mernoo 26, 12.44 km away
North Mernoo H, 12.67 km away
North Mernoo G, 14.83 km away

North Mernoo K3, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?true
Directly Connected?true
Co-rupture Count108
Co-rupture Rate8.532959E-5

North Mernoo J, 0.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

North Mernoo M, 6.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?true
Directly Connected?true
Co-rupture Count79
Co-rupture Rate2.2416205E-5

North Mernoo I, 10 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

North Mernoo 15, 11.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

North Mernoo 26, 12.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?true
Directly Connected?false
Co-rupture Count37
Co-rupture Rate0.0

North Mernoo H, 12.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

North Mernoo G, 14.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
