Omakere South Details

Property	Value
Rupture Count	7,595
Ruptures Above Sect Min Mag	7,592
Ruptures w/ Nonzero Rates	41
Magnitude Range	[6.83, 8.28]
Length Range	[20, 599] km
Total Rate	1.9634546E-4 /yr
Multi-Fault Rate	1.9634546E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	48

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

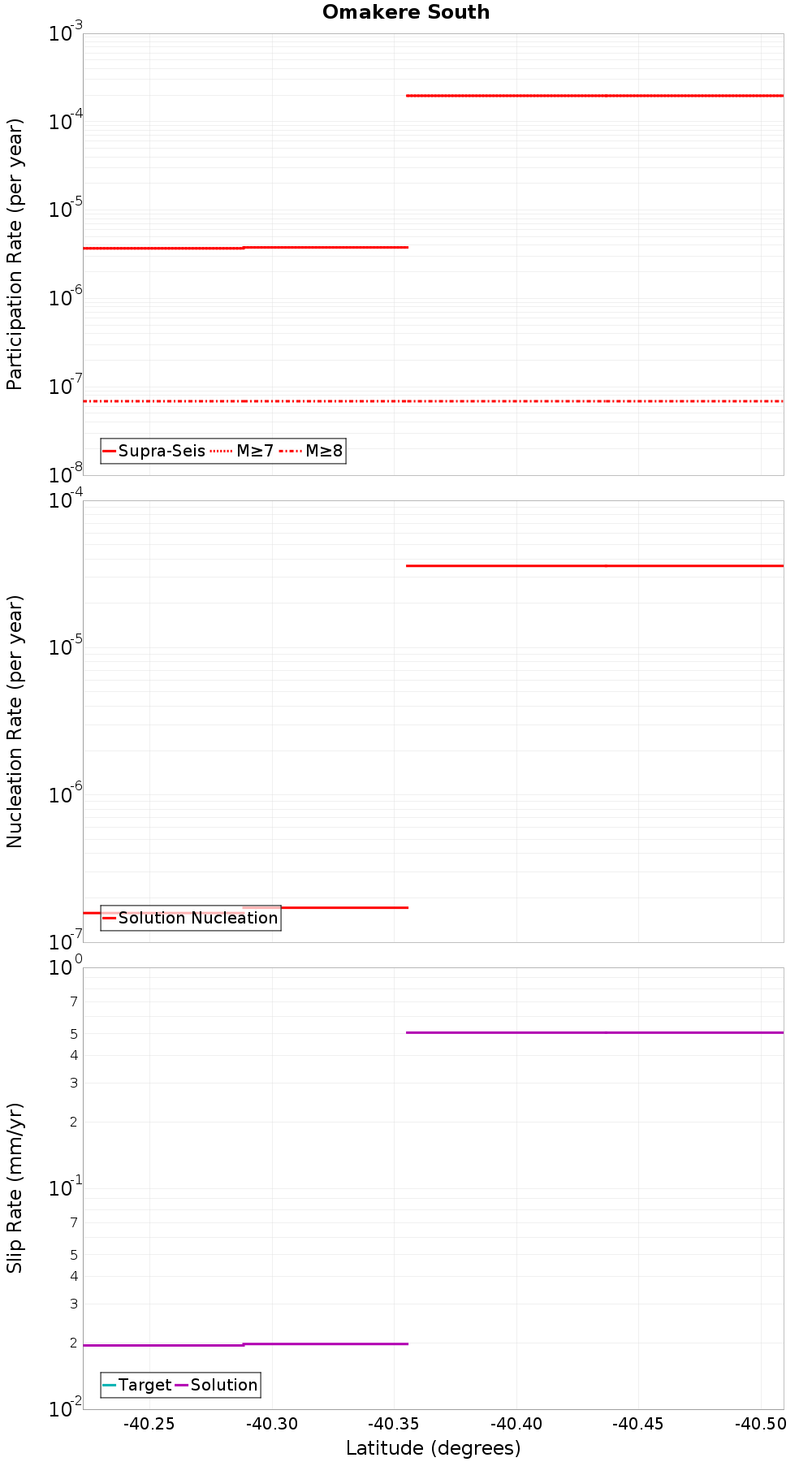

Along-Strike Values

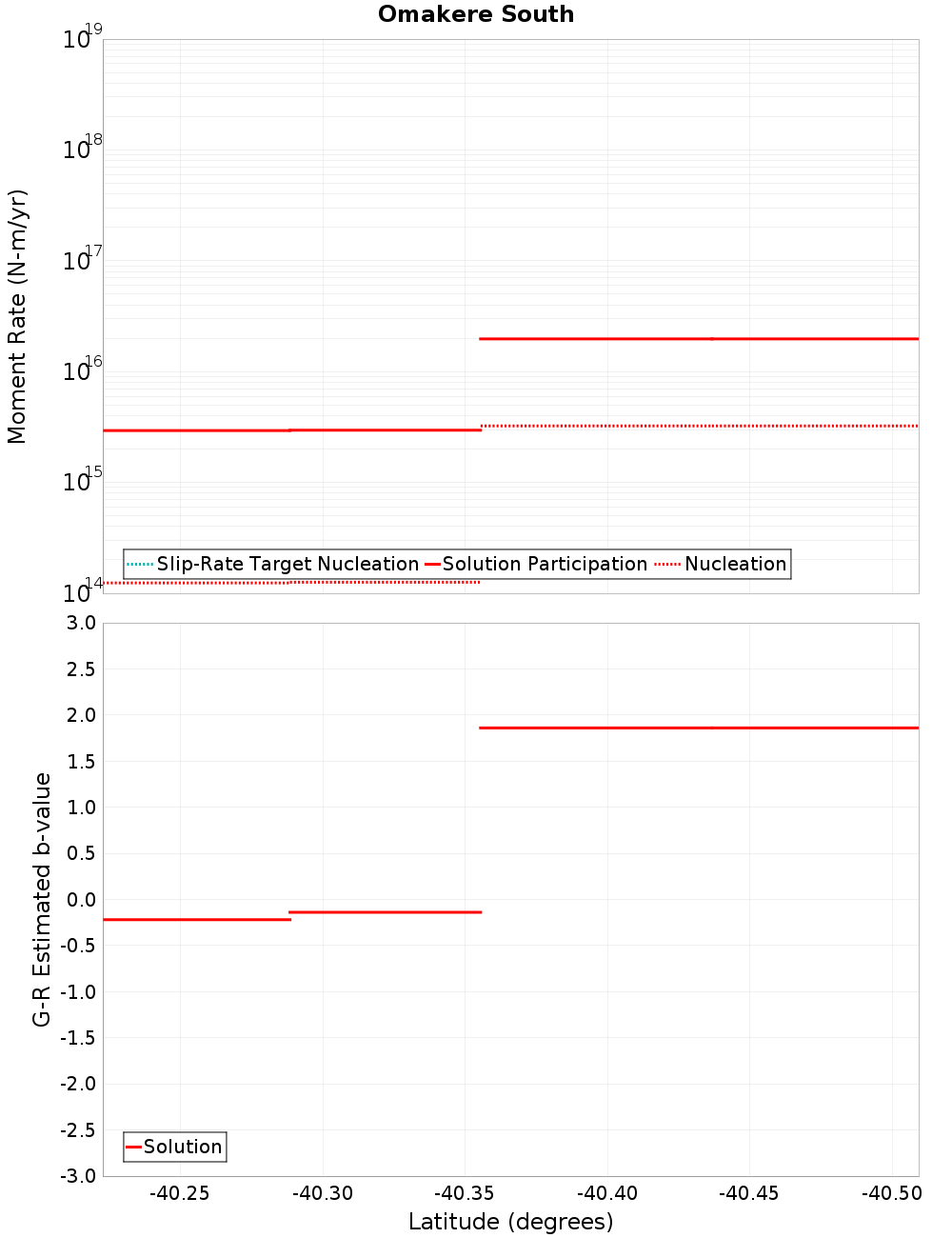

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Omakere Ridge, 0 km away
PorWest2 - PaoanuiRSouth, 2.92 km away
Porangahau Ridge, 5.76 km away
Porangahau Northeast, 9.71 km away
Paoanui Ridge North, 11.28 km away
Motu o Kura East, 12.5 km away
Madden Banks, 13.38 km away
Rock Garden - Ritchie East, 14.23 km away

Omakere Ridge, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	5,912
Co-rupture Rate	3.682544E-6

PorWest2 - PaoanuiRSouth, 2.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	6,767
Co-rupture Rate	7.6552067E-7

Porangahau Ridge, 5.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	690
Co-rupture Rate	1.954659E-4

Porangahau Northeast, 9.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	207
Co-rupture Rate	9.178789E-10

Paoanui Ridge North, 11.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Motu o Kura East, 12.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	156
Co-rupture Rate	1.1335921E-7

Madden Banks, 13.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rock Garden - Ritchie East, 14.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
