Pukeroro 2 Details

Property	Value
Rupture Count	58,522
Ruptures Above Sect Min Mag	58,520
Ruptures w/ Nonzero Rates	165
Magnitude Range	[7.06, 8.54]
Length Range	[26, 992] km
Total Rate	3.7984006E-4 /yr
Multi-Fault Rate	2.845591E-4 /yr (74.92%)
Directly-Connected Faults	11
All Co-Rupturing Faults	162

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

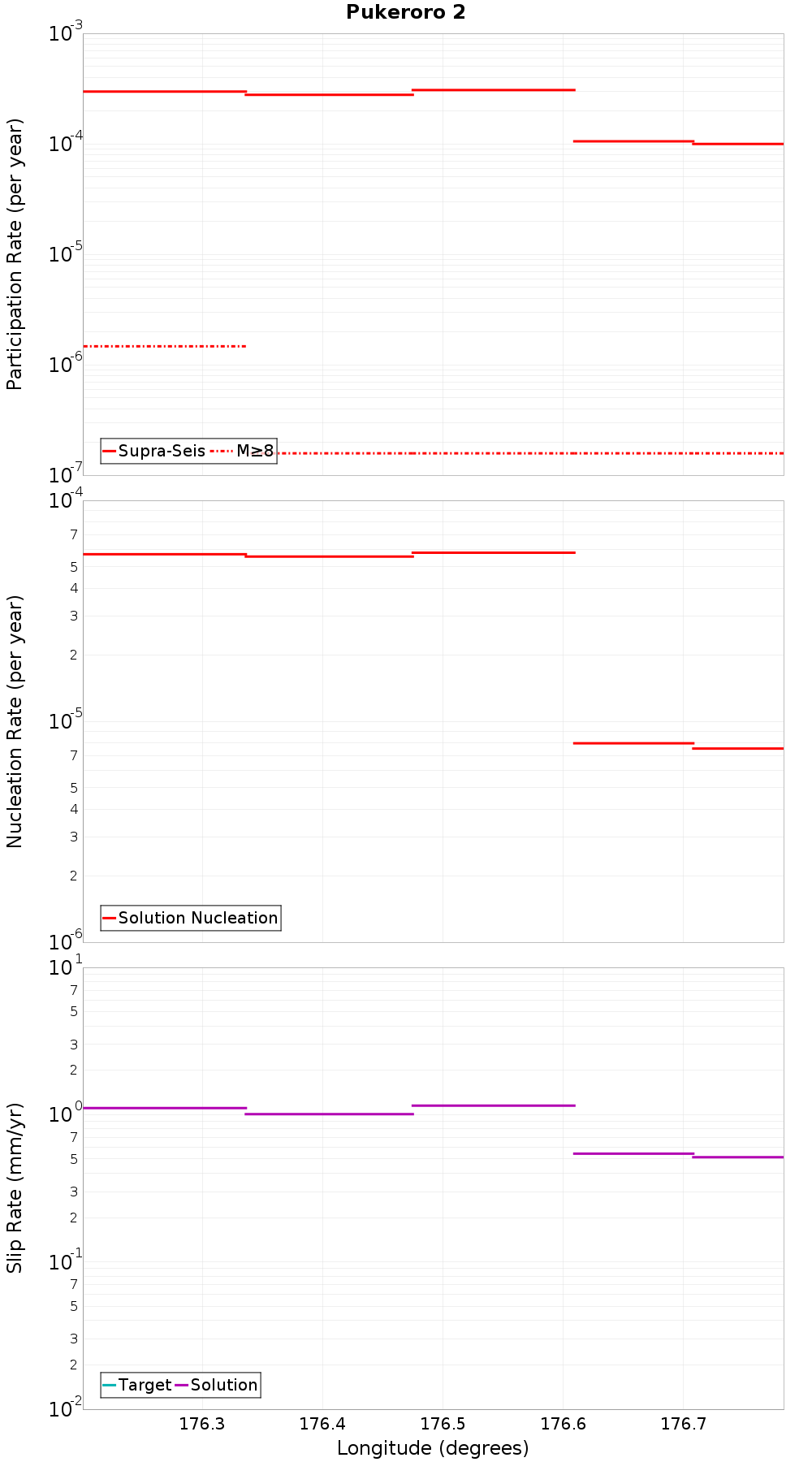

Along-Strike Values

Moment-Rates and b-Values

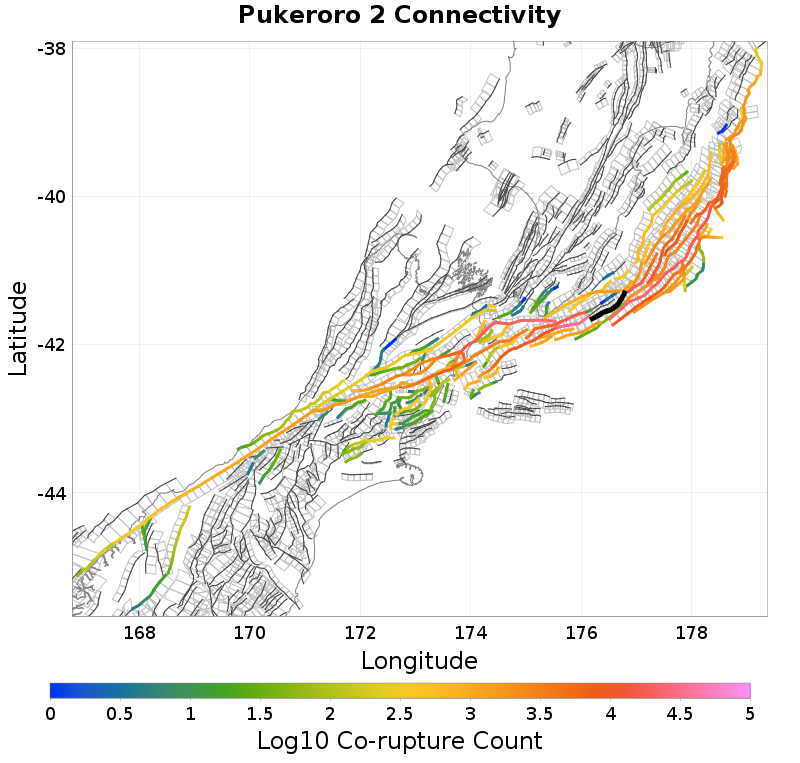

Connectivity

Nearby Sections

Fault Section
Uruti East - PorWest 1, 0 km away
Uruti Basin, 0.07 km away
Pahaua, 0.1 km away
Uruti Basin 2, 0.26 km away
Uruti Ridge 2, 0.31 km away
Opouawe - Uruti, 1.18 km away
Porangahau Basin, 1.6 km away
Pukeroro Ridge, 2.83 km away
Aorangi Trough, 4.1 km away
Glendhu Ridge, 4.62 km away
Honeycomb Ridge, 6.12 km away
Aorangi Ridge, 9.84 km away
Uruti North, 11.67 km away
F17 - South, 14.86 km away

Uruti East - PorWest 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	2,036
Co-rupture Rate	7.923789E-5

Uruti Basin, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	2,033
Co-rupture Rate	2.6352083E-9

Pahaua, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	33,076
Co-rupture Rate	1.835383E-5

Uruti Basin 2, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	684
Co-rupture Rate	1.00911544E-4

Uruti Ridge 2, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	1,121
Co-rupture Rate	8.344451E-9

Opouawe - Uruti, 1.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	16,010
Co-rupture Rate	8.18367E-5

Porangahau Basin, 1.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	17,416
Co-rupture Rate	1.6271579E-4

Pukeroro Ridge, 2.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	2,148
Co-rupture Rate	2.1336005E-10

Aorangi Trough, 4.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	24,759
Co-rupture Rate	3.5938214E-5

Glendhu Ridge, 4.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	1,604
Co-rupture Rate	2.2483482E-7

Honeycomb Ridge, 6.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	false
Co-rupture Count	32
Co-rupture Rate	7.675912E-12

Aorangi Ridge, 9.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	true
Co-rupture Count	9,420
Co-rupture Rate	1.9075203E-5

Uruti North, 11.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	false
Co-rupture Count	351
Co-rupture Rate	1.9747877E-11

F17 - South, 14.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDUuMHBpZWJu
Connected?	true
Directly Connected?	false
Co-rupture Count	2,014
Co-rupture Rate	1.1912363E-6
