Dromedary Details

Property	Value
Rupture Count	24,662
Ruptures Above Sect Min Mag	24,661
Ruptures w/ Nonzero Rates	76
Magnitude Range	[7.04, 8.51]
Length Range	[26, 781] km
Total Rate	1.7839867E-4 /yr
Multi-Fault Rate	1.7839867E-4 /yr (100.00%)
Directly-Connected Faults	10
All Co-Rupturing Faults	143

Table Of Contents

Magnitude-Frequency Distribution

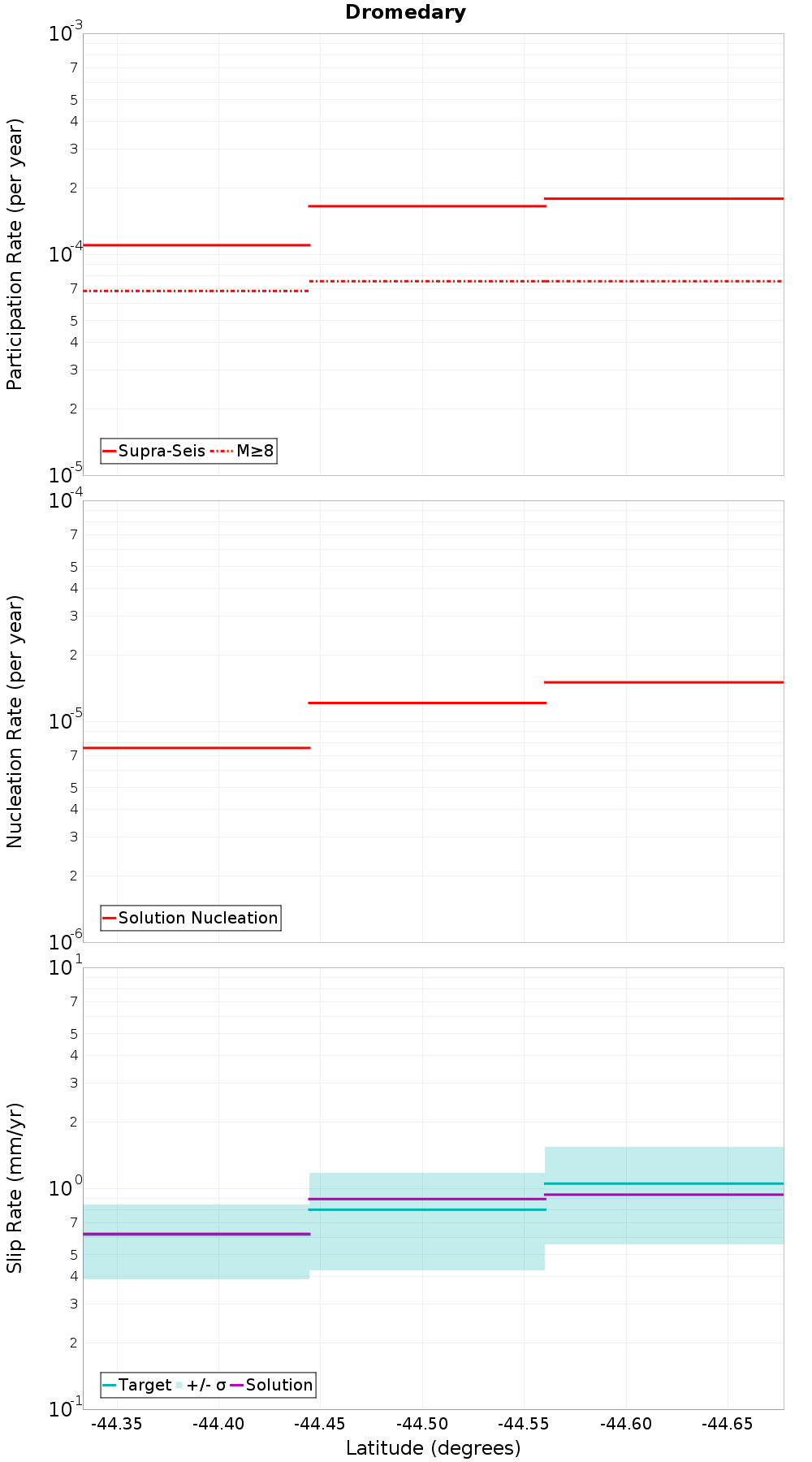

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

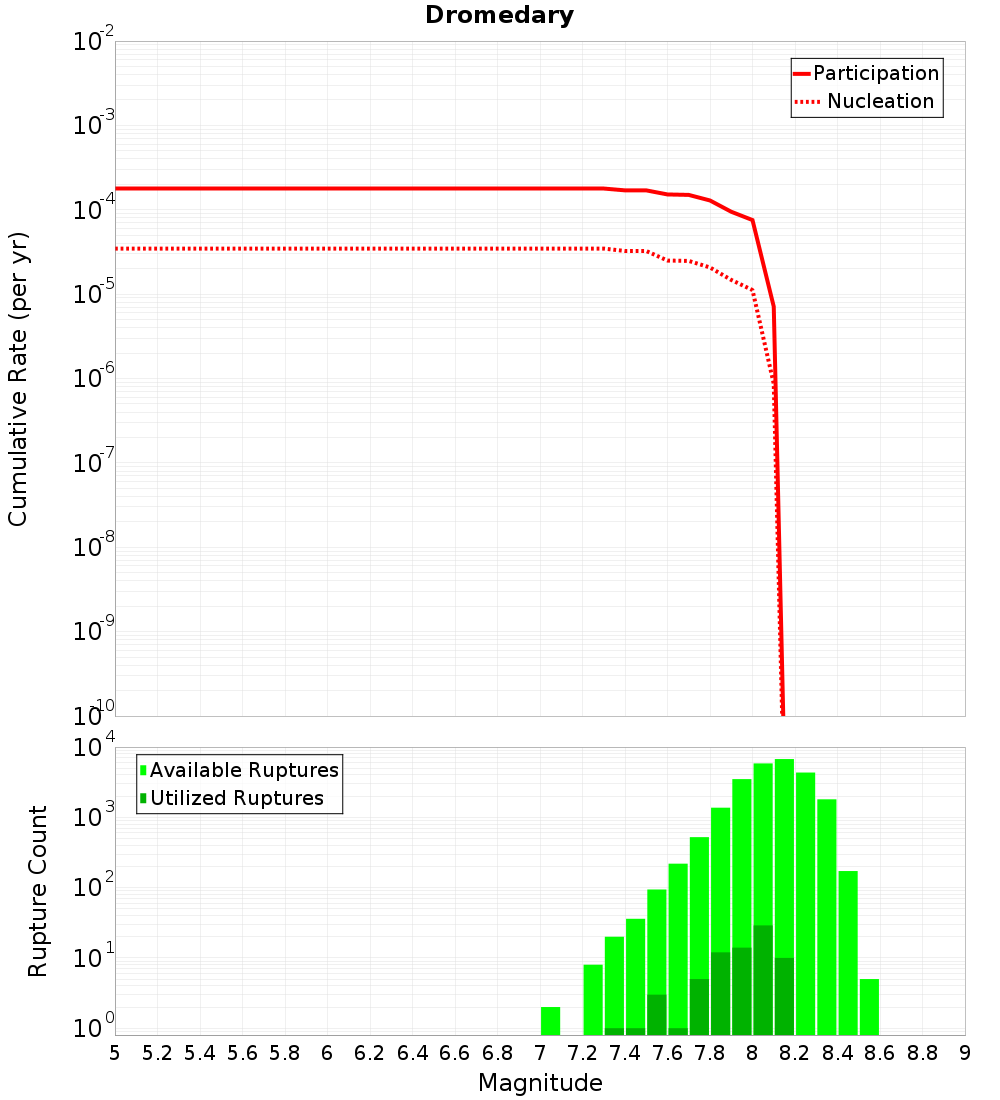

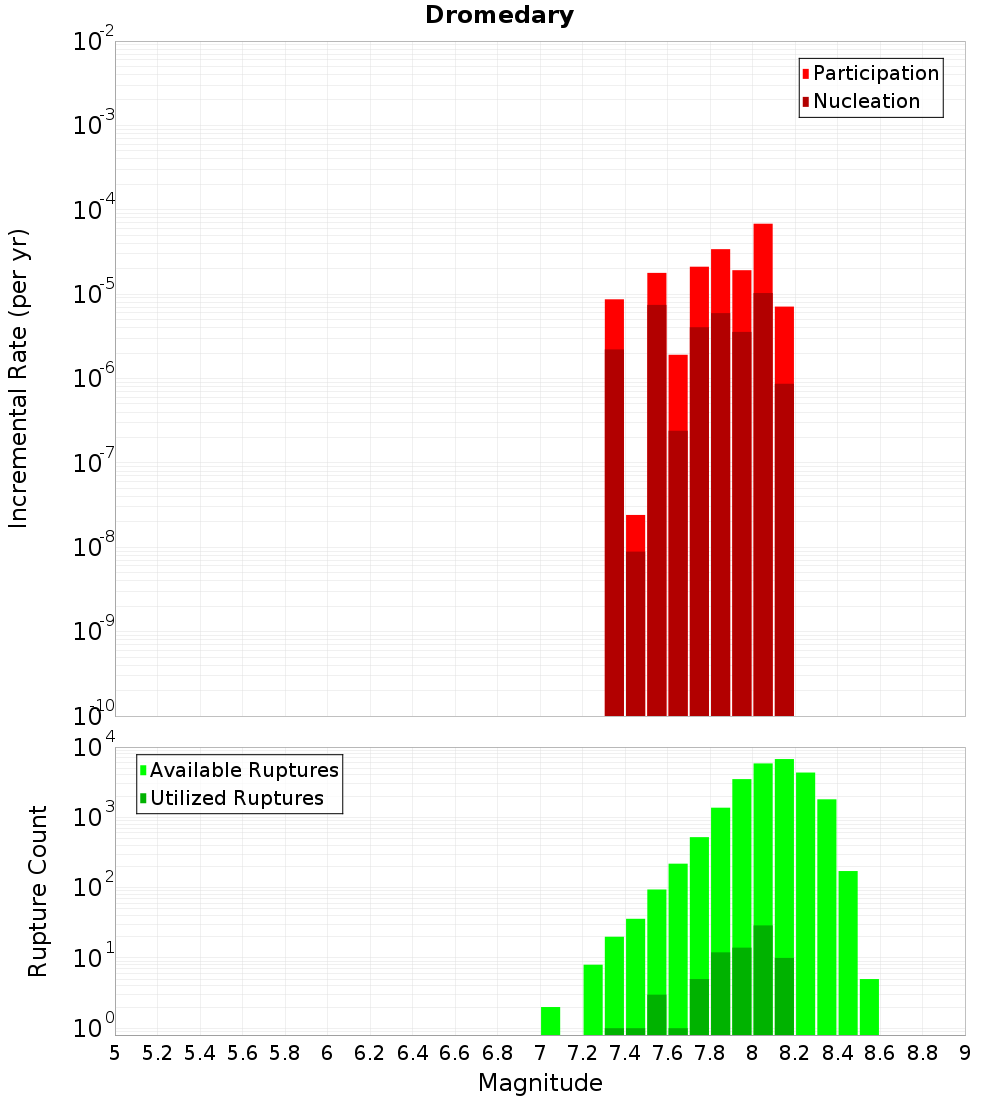

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

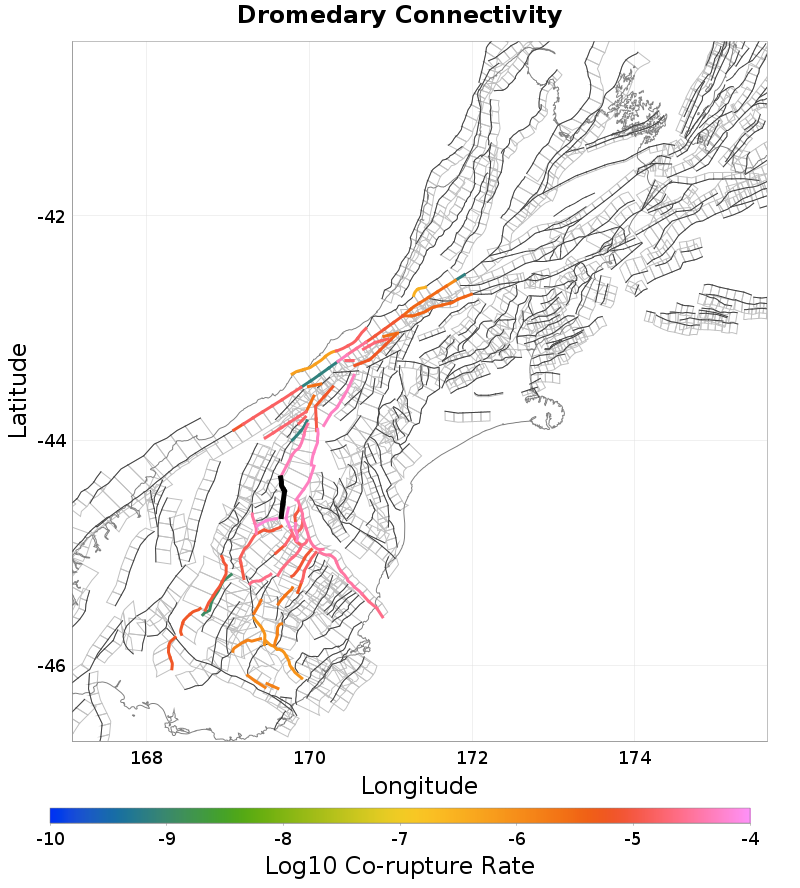

Connectivity

Nearby Sections

Fault Section
Timaru Creek, 0.13 km away
Lindis River, 0.21 km away
Cluden, 0.38 km away
Grandview, 1.07 km away
Barrier Range, 1.72 km away
Goodger, 3.8 km away
Ostler South, 4.67 km away
Blue Lake, 4.84 km away
Dunstan, 5.56 km away
Dingle, 7.84 km away
Wanaka, 11.93 km away
Omarama Saddle, 13.1 km away
Hawkdun, 14.4 km away

Timaru Creek, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3
Connected?	true
Directly Connected?	true
Co-rupture Count	106
Co-rupture Rate	0.0

Lindis River, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3
Connected?	true
Directly Connected?	true
Co-rupture Count	403
Co-rupture Rate	0.0

Cluden, 0.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3
Connected?	true
Directly Connected?	true
Co-rupture Count	594
Co-rupture Rate	8.343476E-6

Grandview, 1.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3
Connected?	true
Directly Connected?	true
Co-rupture Count	4,955
Co-rupture Rate	3.8161314E-5

Barrier Range, 1.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3
Connected?	true
Directly Connected?	true
Co-rupture Count	20,098
Co-rupture Rate	4.407953E-5

Goodger, 3.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3
Connected?	true
Directly Connected?	true
Co-rupture Count	2,665
Co-rupture Rate	6.2938365E-5

Ostler South, 4.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3
Connected?	true
Directly Connected?	true
Co-rupture Count	2,949
Co-rupture Rate	4.9341856E-5

Blue Lake, 4.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3
Connected?	true
Directly Connected?	true
Co-rupture Count	5,109
Co-rupture Rate	6.424122E-5

Dunstan, 5.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3
Connected?	true
Directly Connected?	true
Co-rupture Count	10,022
Co-rupture Rate	1.8121058E-5

Dingle, 7.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wanaka, 11.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3
Connected?	true
Directly Connected?	false
Co-rupture Count	12
Co-rupture Rate	0.0

Omarama Saddle, 13.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3
Connected?	true
Directly Connected?	false
Co-rupture Count	704
Co-rupture Rate	4.8821228E-5

Hawkdun, 14.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3
Connected?	true
Directly Connected?	true
Co-rupture Count	854
Co-rupture Rate	3.3751778E-5
