Glendhu Ridge Details

PropertyValue
Rupture Count14,847
Ruptures Above Sect Min Mag14,843
Ruptures w/ Nonzero Rates193
Magnitude Range[7.02, 8.44]
Length Range[24, 651] km
Total Rate5.0960196E-4 /yr
Multi-Fault Rate2.7874226E-4 /yr (54.70%)
Directly-Connected Faults7
All Co-Rupturing Faults59

Table Of Contents

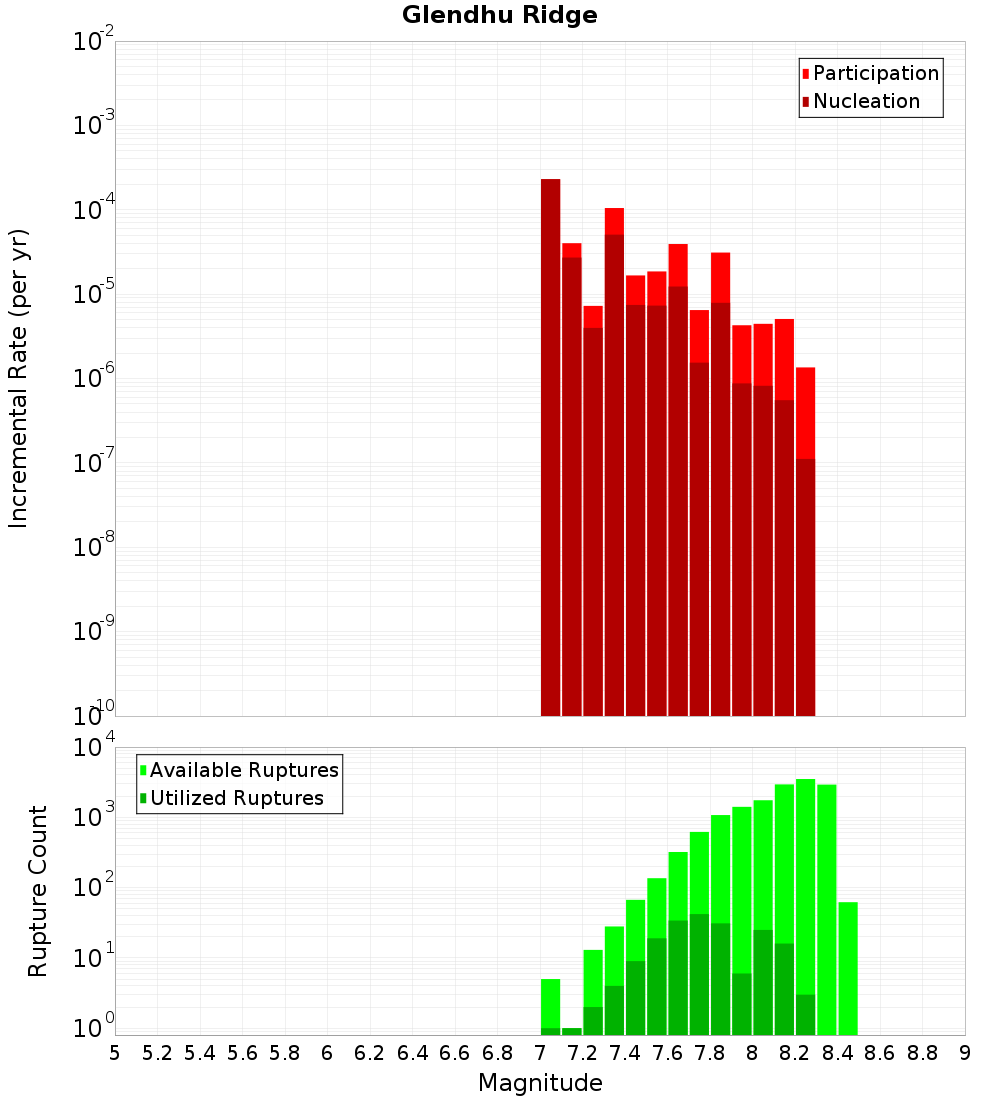

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

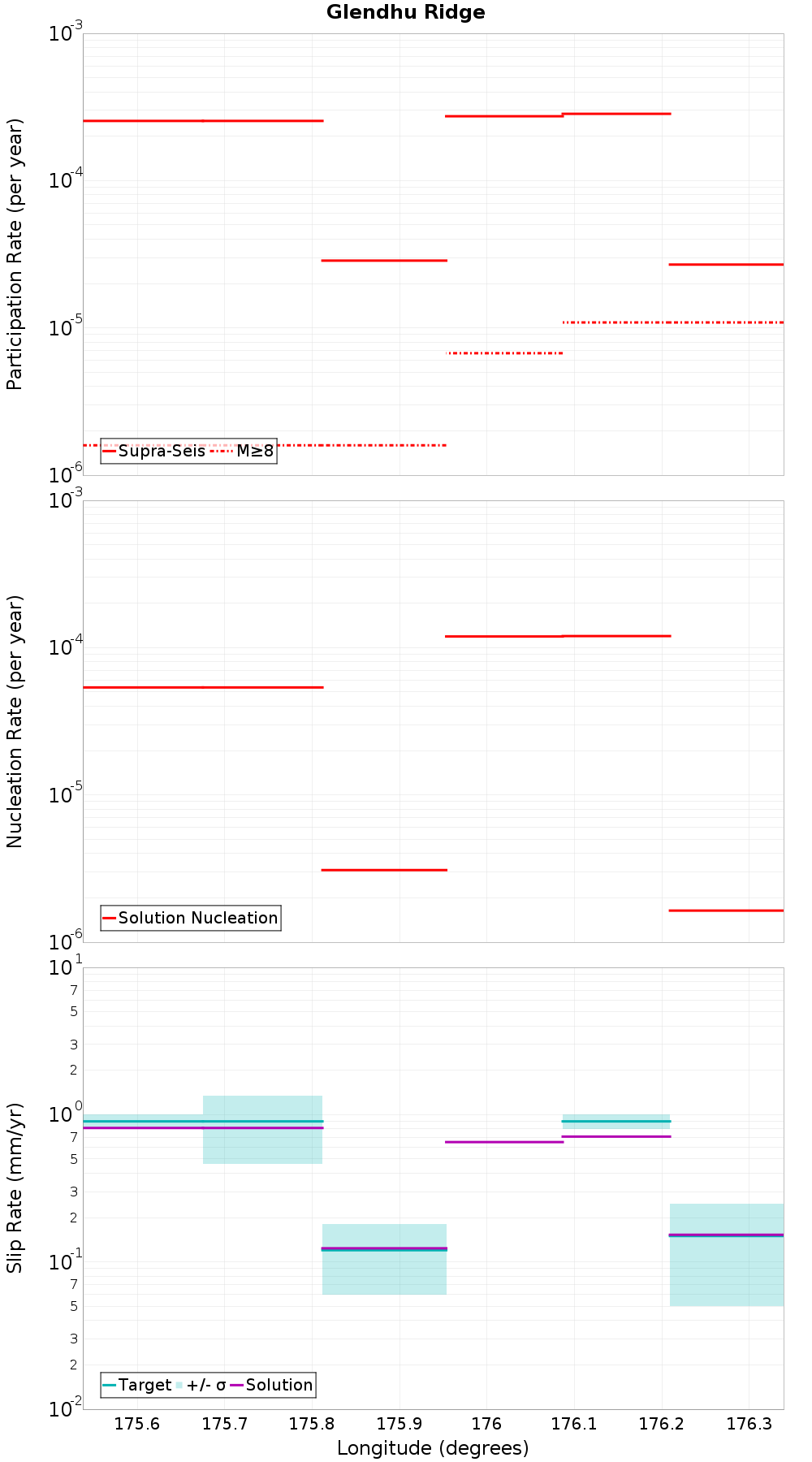

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pukeroro Ridge, 0.96 km away
Honeycomb Ridge, 1.18 km away
Pahaua, 3.55 km away
Pahaua SE1, 3.64 km away
Pukeroro 2, 4.62 km away
Pahaua SE2, 5.69 km away
BooBoo, 6.94 km away
Aorangi Trough, 8.97 km away
Opouawe - Uruti, 9.19 km away
Aorangi Ridge, 11.73 km away

Pukeroro Ridge, 0.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3
Connected?true
Directly Connected?true
Co-rupture Count11,567
Co-rupture Rate2.3242339E-5

Honeycomb Ridge, 1.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3
Connected?true
Directly Connected?true
Co-rupture Count6,242
Co-rupture Rate4.314308E-5

Pahaua, 3.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3
Connected?true
Directly Connected?true
Co-rupture Count391
Co-rupture Rate0.0

Pahaua SE1, 3.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3
Connected?true
Directly Connected?true
Co-rupture Count6,489
Co-rupture Rate1.6994034E-4

Pukeroro 2, 4.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3
Connected?true
Directly Connected?true
Co-rupture Count1,604
Co-rupture Rate3.6465442E-6

Pahaua SE2, 5.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3
Connected?true
Directly Connected?true
Co-rupture Count5,485
Co-rupture Rate1.2674593E-4

BooBoo, 6.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate6.283816E-5

Aorangi Trough, 8.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3
Connected?true
Directly Connected?false
Co-rupture Count7,837
Co-rupture Rate2.3242168E-5

Opouawe - Uruti, 9.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3
Connected?true
Directly Connected?true
Co-rupture Count1,181
Co-rupture Rate0.0

Aorangi Ridge, 11.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
