Vernon 2 Details
| Property | Value |
|---|---|
| Rupture Count | 3,060 |
| Ruptures Above Sect Min Mag | 3,056 |
| Ruptures w/ Nonzero Rates | 28 |
| Magnitude Range | [6.60, 8.56] |
| Length Range | [13, 921] km |
| Total Rate | 5.9371472E-5 /yr |
| Multi-Fault Rate | 5.9371472E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 97 |
Table Of Contents

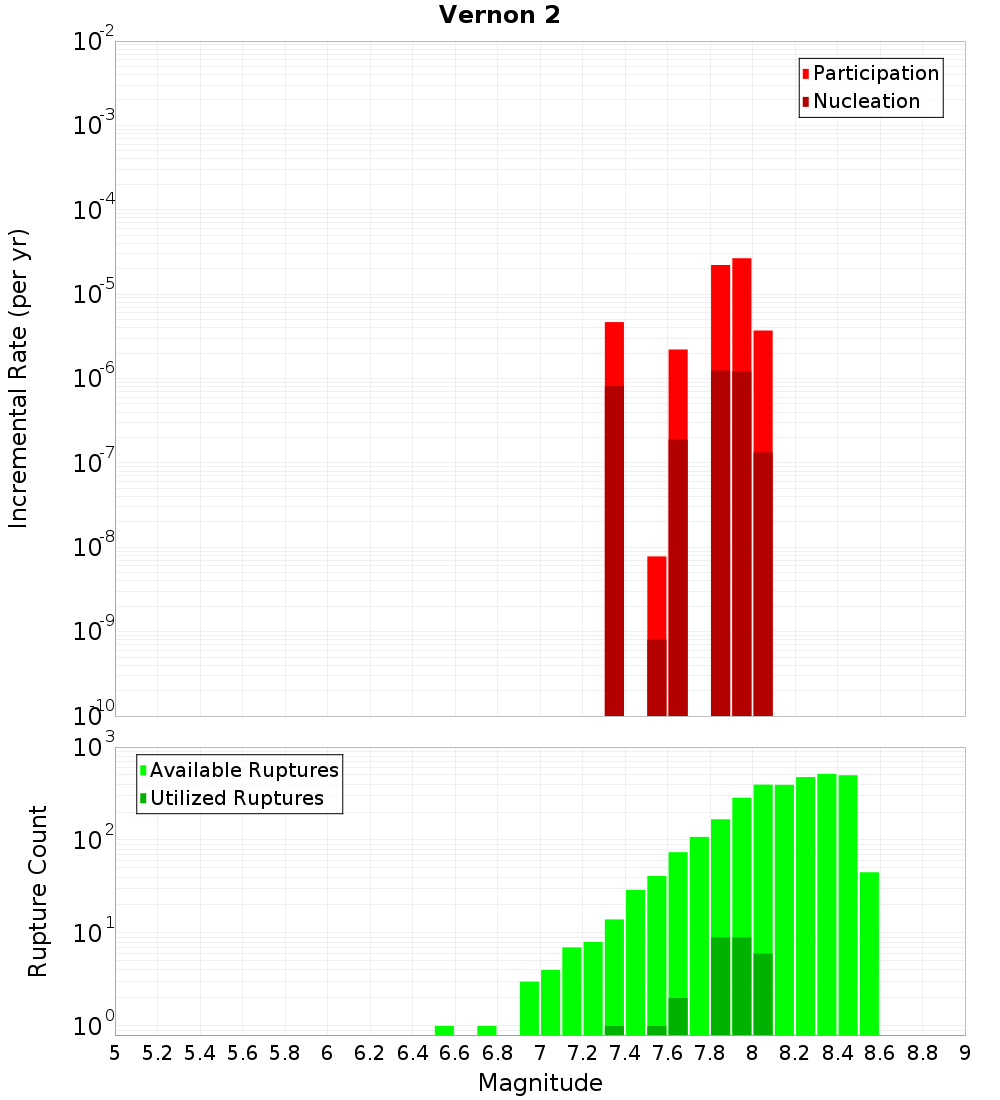

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Cloudy 1, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,618 |
| Co-rupture Rate | 5.9371472E-5 |
Vernon 1, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 493 |
| Co-rupture Rate | 5.9371472E-5 |
Vernon 3, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Awatere: Northeast 2, 0.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 482 |
| Co-rupture Rate | 4.660559E-6 |
Awatere: Northeast 1, 4.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,790 |
| Co-rupture Rate | 5.4710912E-5 |
Vernon 4, 5.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cloudy 3, 7.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 26 |
| Co-rupture Rate | 0.0 |
Cloudy 2, 8.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Needles East 2, 12.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairau, 14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 344 |
| Co-rupture Rate | 0.0 |
Wairarapa: Needles, 14.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairau 2, 14.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
