Waimea Offshore Details
| Property | Value |
|---|---|
| Rupture Count | 16,178 |
| Ruptures Above Sect Min Mag | 16,175 |
| Ruptures w/ Nonzero Rates | 44 |
| Magnitude Range | [7.16, 8.61] |
| Length Range | [29, 1,002] km |
| Total Rate | 1.6324733E-4 /yr |
| Multi-Fault Rate | 1.251788E-4 /yr (76.68%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 139 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

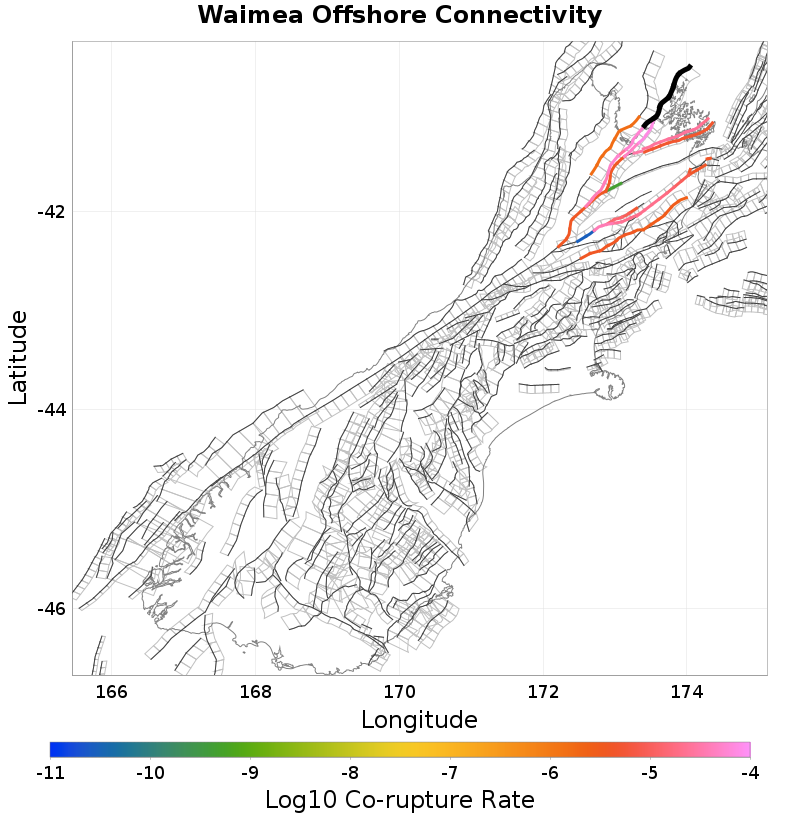

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Flaxmore - Waimea - Tahunanui, 0 km away |
| Whangamoa, 0.81 km away |
| Surville, 9.67 km away |
Flaxmore - Waimea - Tahunanui, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6,028 |
| Co-rupture Rate | 8.533321E-5 |
Whangamoa, 0.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 13,044 |
| Co-rupture Rate | 7.41165E-5 |
Surville, 9.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHR3Nnc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 478 |
| Co-rupture Rate | 1.5303174E-6 |
