Wellington: Pahiatua Details

PropertyValue
Rupture Count78,674
Ruptures Above Sect Min Mag78,672
Ruptures w/ Nonzero Rates422
Magnitude Range[7.02, 8.71]
Length Range[21, 1,132] km
Total Rate0.001515134 /yr
Multi-Fault Rate0.0012594319 /yr (83.12%)
Directly-Connected Faults8
All Co-Rupturing Faults131

Table Of Contents

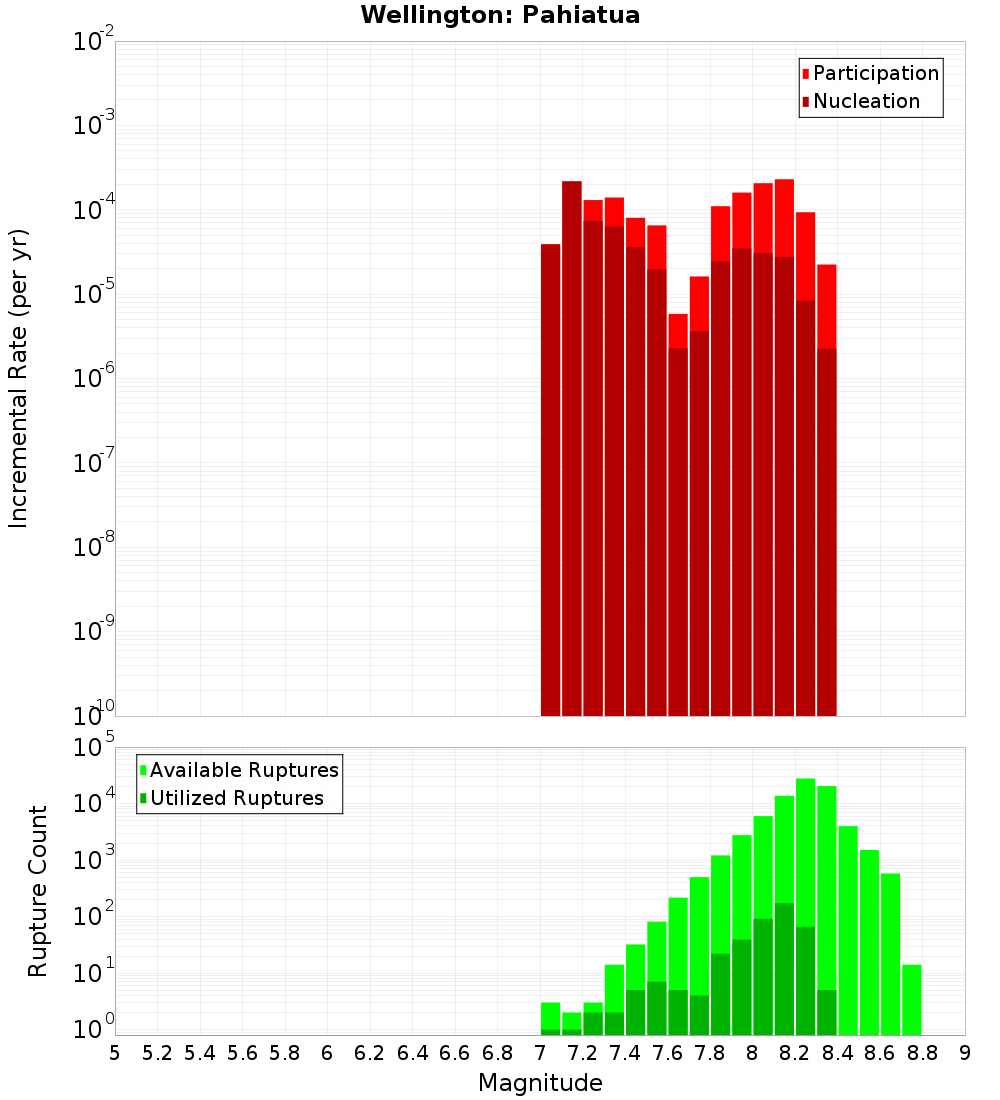

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

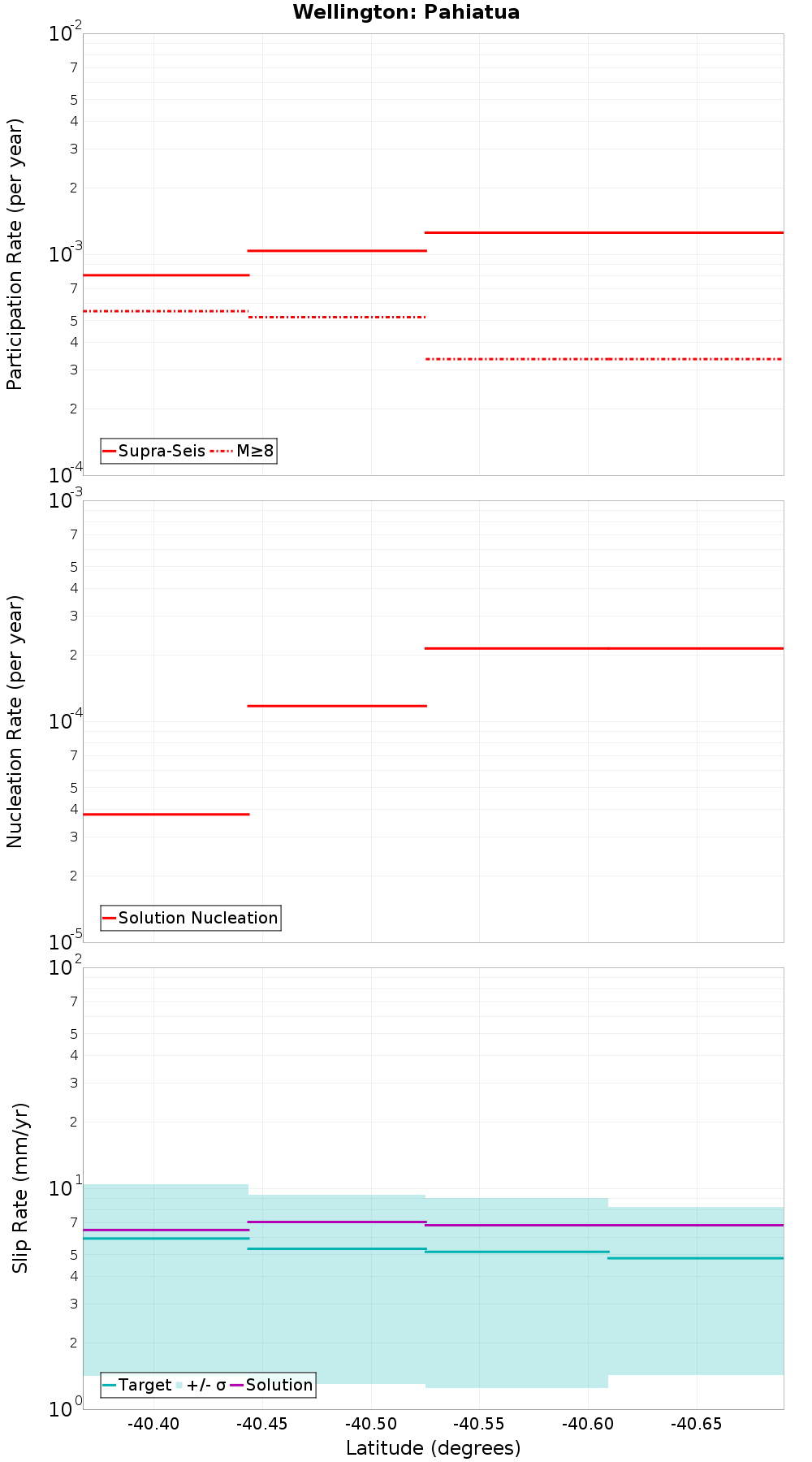

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

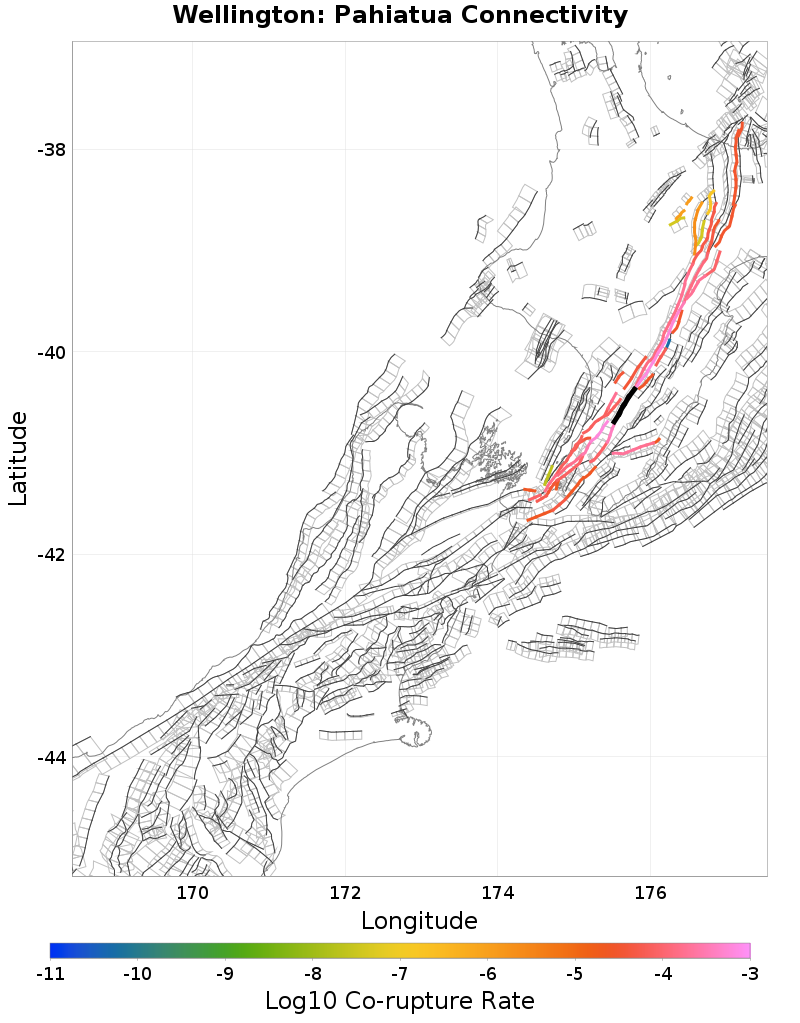

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mohaka: South, 0 km away
Ruahine: South, 0 km away
Wellington: Tararua 3, 0.03 km away
Tokomaru, 0.14 km away
Northern Ohariu, 2.46 km away
Otaki Forks: 2, 4.7 km away
Woodville, 5.05 km away
Pahiatua, 5.57 km away
Pohangina, 9.35 km away
Wairarapa: 3, 13.85 km away

Mohaka: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHdzWXZ5
Connected?true
Directly Connected?true
Co-rupture Count63,899
Co-rupture Rate7.4936554E-4

Ruahine: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHdzWXZ5
Connected?true
Directly Connected?true
Co-rupture Count24,167
Co-rupture Rate1.3889145E-4

Wellington: Tararua 3, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHdzWXZ5
Connected?true
Directly Connected?true
Co-rupture Count45,994
Co-rupture Rate3.9114774E-4

Tokomaru, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHdzWXZ5
Connected?true
Directly Connected?true
Co-rupture Count915
Co-rupture Rate1.7883266E-4

Northern Ohariu, 2.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHdzWXZ5
Connected?true
Directly Connected?true
Co-rupture Count8,204
Co-rupture Rate7.4615265E-5

Otaki Forks: 2, 4.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHdzWXZ5
Connected?true
Directly Connected?true
Co-rupture Count23,350
Co-rupture Rate6.252964E-4

Woodville, 5.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHdzWXZ5
Connected?true
Directly Connected?true
Co-rupture Count5,945
Co-rupture Rate2.8096427E-5

Pahiatua, 5.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHdzWXZ5
Connected?true
Directly Connected?false
Co-rupture Count124
Co-rupture Rate0.0

Pohangina, 9.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHdzWXZ5
Connected?true
Directly Connected?true
Co-rupture Count686
Co-rupture Rate4.236728E-5

Wairarapa: 3, 13.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDYuMHdzWXZ5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
