Grampian Details

Property	Value
Rupture Count	171
Ruptures Above Sect Min Mag	169
Ruptures w/ Nonzero Rates	12
Magnitude Range	[6.89, 7.83]
Length Range	[21, 232] km
Total Rate	1.4874605E-4 /yr
Multi-Fault Rate	1.3723546E-4 /yr (92.26%)
Directly-Connected Faults	3
All Co-Rupturing Faults	16

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

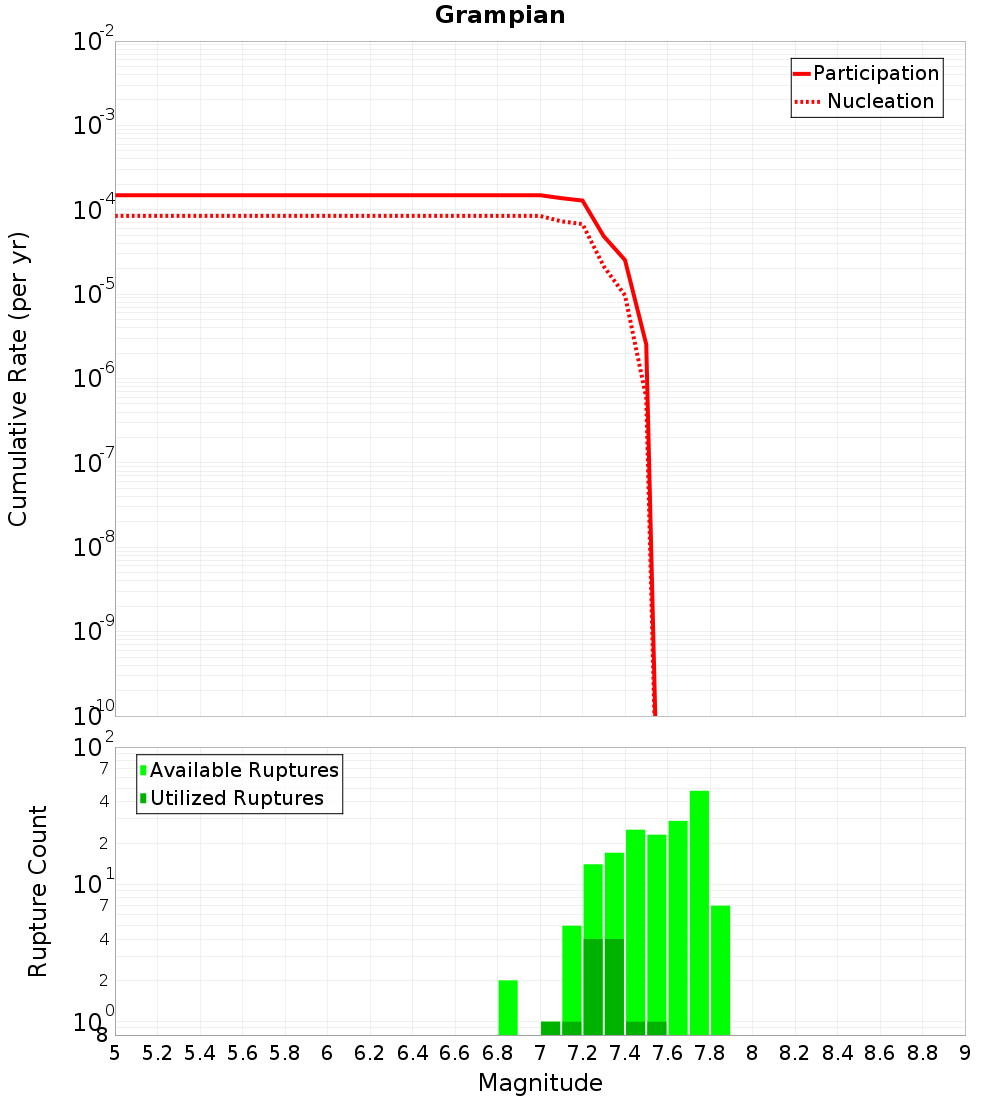

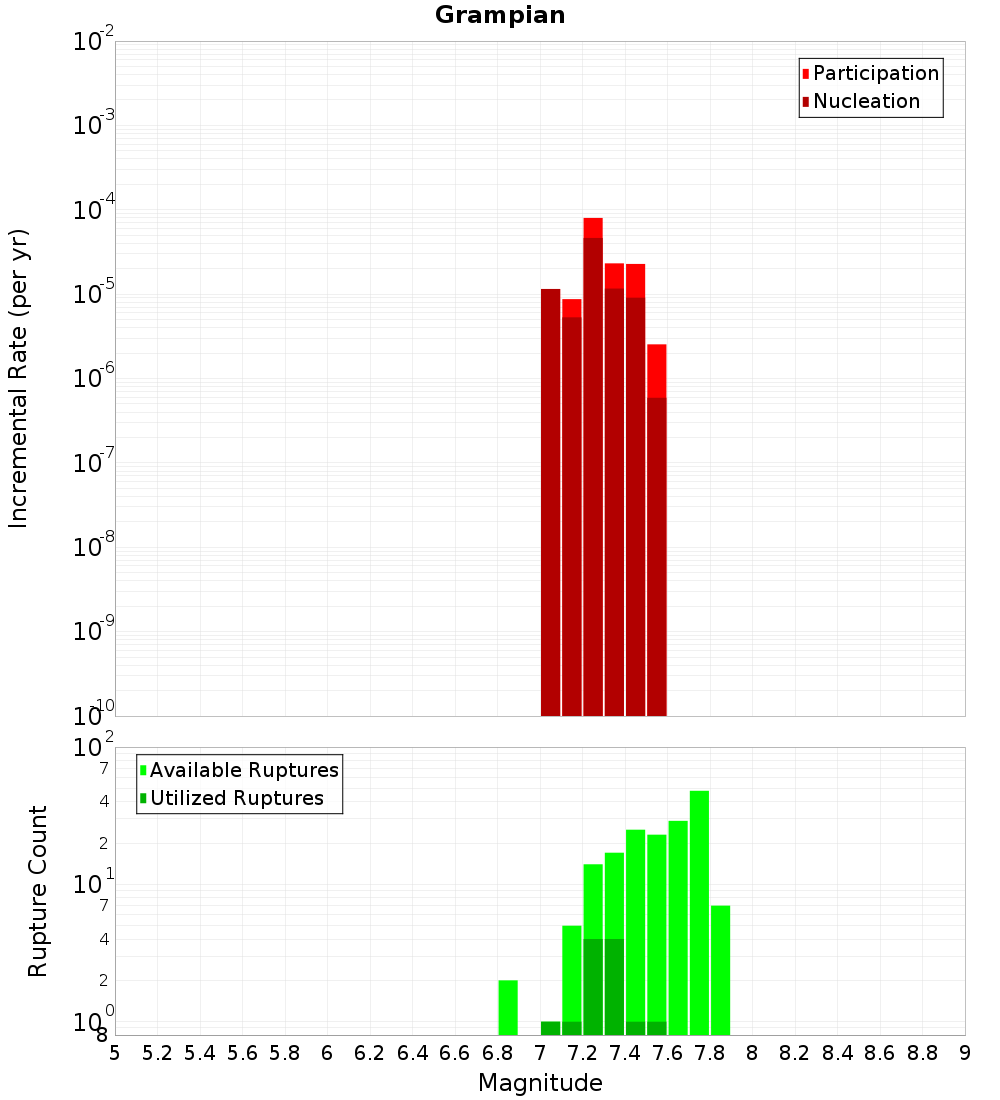

Incremental	Cumulative

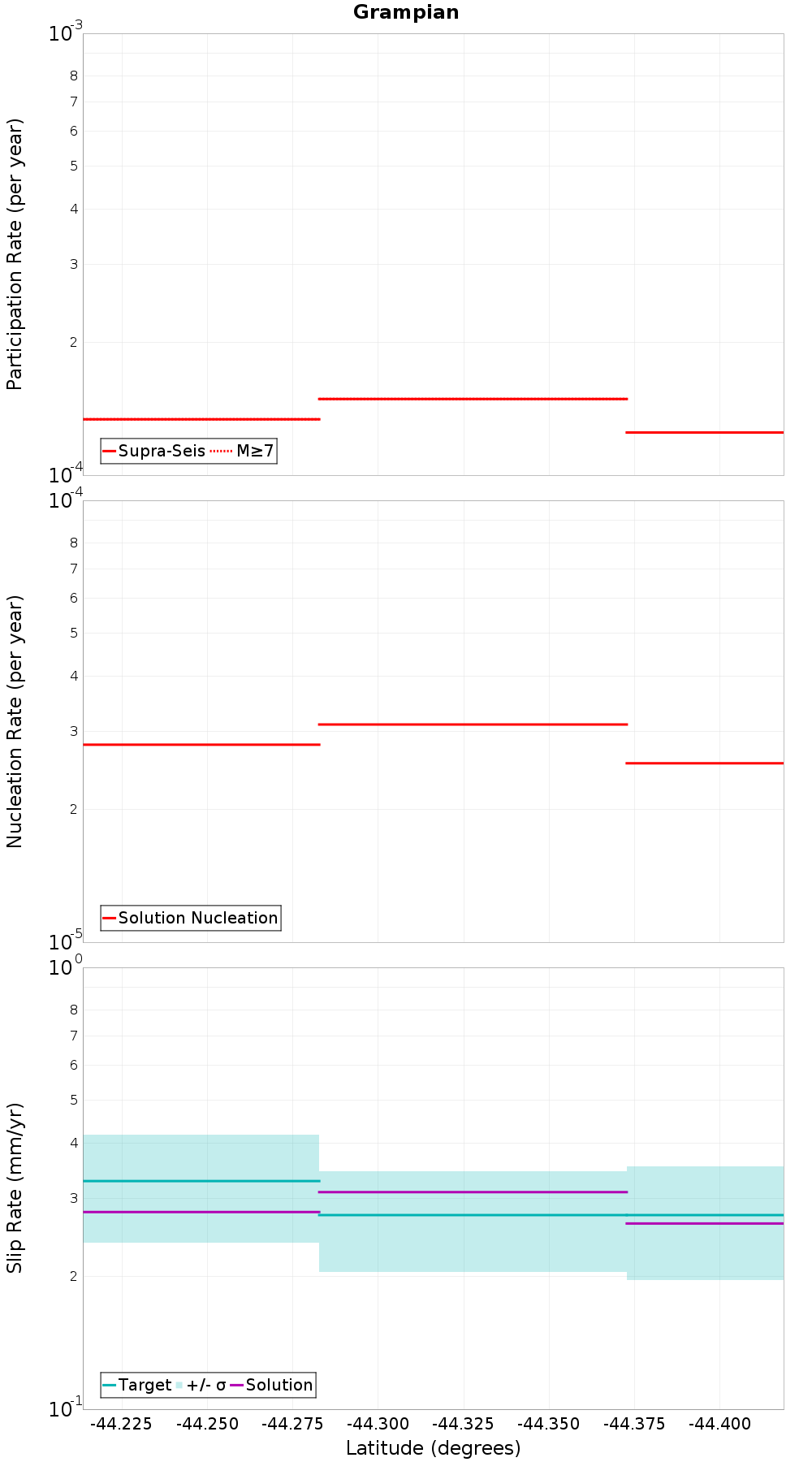

Along-Strike Values

Moment-Rates and b-Values

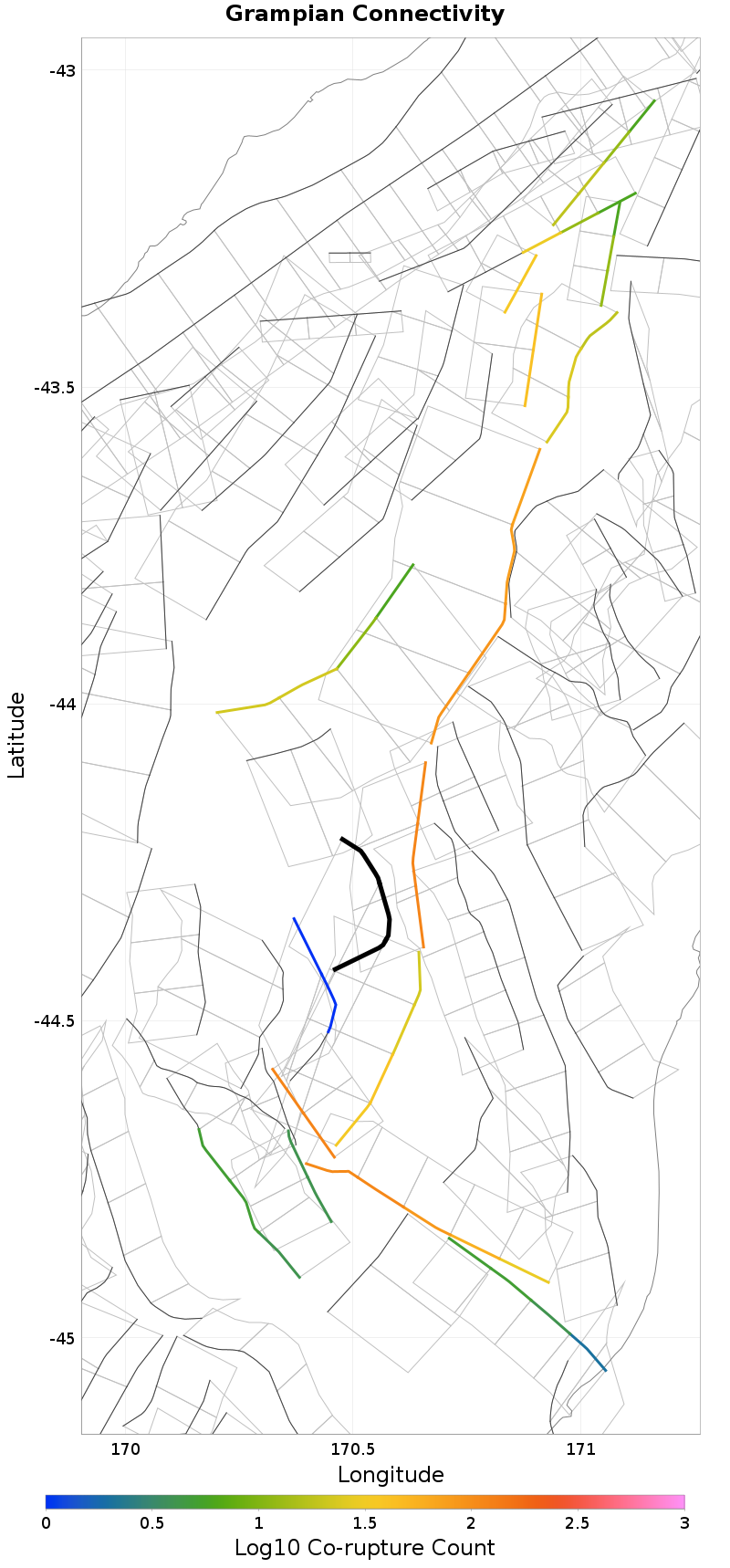

Connectivity

Nearby Sections

Fault Section
Kirkliston, 0.22 km away
Dryburgh, 0.23 km away
Mt Sutton, 0.7 km away
Dalgety, 4.58 km away
Middle Range, 6.8 km away
Gibson, 8.32 km away
Waitangi, 8.68 km away
The Wolds, 10.21 km away
Stonewall, 10.47 km away
Chamberlain, 11.51 km away
Fern Gully, 11.8 km away
Hunters, 14.81 km away

Kirkliston, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?	true
Directly Connected?	true
Co-rupture Count	45
Co-rupture Rate	1.1335296E-4

Dryburgh, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?	true
Directly Connected?	true
Co-rupture Count	118
Co-rupture Rate	3.8877024E-5

Mt Sutton, 0.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	1.2600152E-5

Dalgety, 4.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?	true
Directly Connected?	true
Co-rupture Count	117
Co-rupture Rate	3.3645703E-15

Middle Range, 6.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0

Gibson, 8.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitangi, 8.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

The Wolds, 10.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Stonewall, 10.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?	true
Directly Connected?	false
Co-rupture Count	111
Co-rupture Rate	4.851787E-5

Chamberlain, 11.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Fern Gully, 11.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hunters, 14.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
