Macaulay 2 Details

PropertyValue
Rupture Count2,872
Ruptures Above Sect Min Mag2,871
Ruptures w/ Nonzero Rates31
Magnitude Range[6.82, 8.28]
Length Range[22, 691] km
Total Rate2.1945925E-4 /yr
Multi-Fault Rate2.1945925E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults147

Table Of Contents

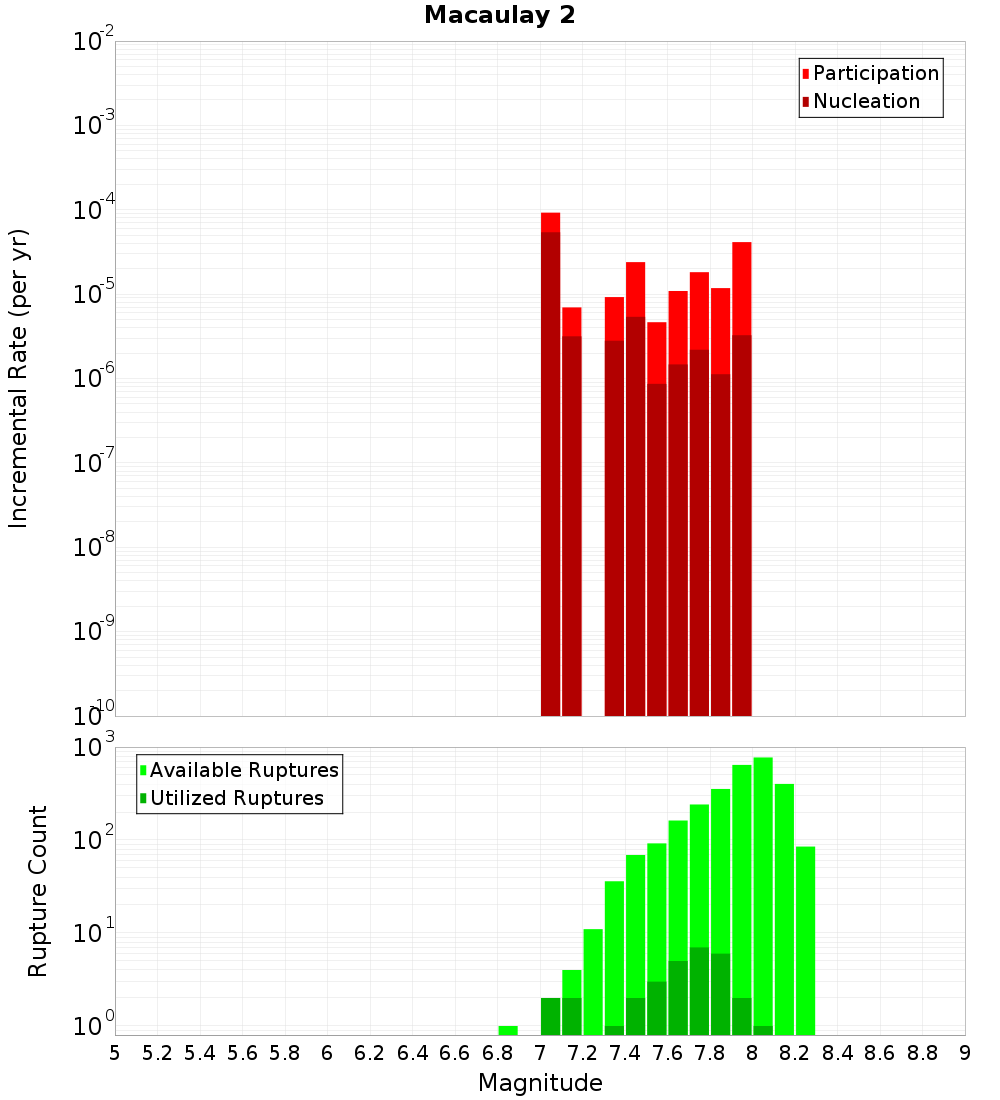

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

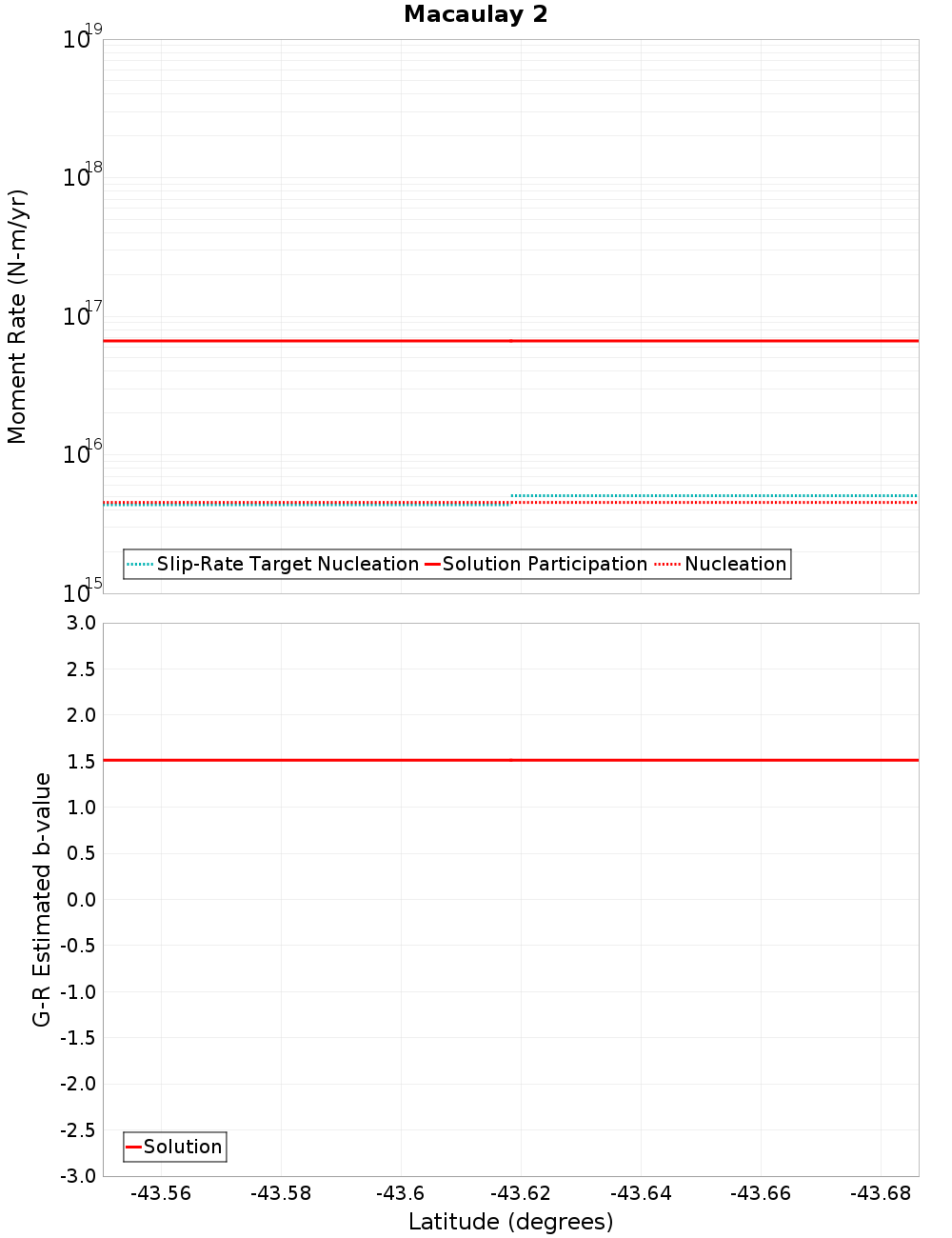

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Veil Stream, 0.15 km away
Lilybank, 0.83 km away
Liebig North, 5.03 km away
Two Thumb Stream, 5.09 km away
Gunn Glacier, 7.84 km away
Fox Peak, 9.17 km away
Alpine: Jacksons to Kaniere, 12.21 km away
Murchison 1 - Ice Lake, 12.38 km away
Mt Roon, 12.88 km away
Straight Creek, 13.4 km away
Potts Range, 13.84 km away

Veil Stream, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?true
Directly Connected?true
Co-rupture Count2,523
Co-rupture Rate1.405319E-4

Lilybank, 0.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate3.0909596E-5

Liebig North, 5.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?true
Directly Connected?true
Co-rupture Count7
Co-rupture Rate0.0

Two Thumb Stream, 5.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?true
Directly Connected?true
Co-rupture Count158
Co-rupture Rate2.5568674E-5

Gunn Glacier, 7.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?true
Directly Connected?false
Co-rupture Count182
Co-rupture Rate1.7860498E-6

Fox Peak, 9.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alpine: Jacksons to Kaniere, 12.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?true
Directly Connected?false
Co-rupture Count1,400
Co-rupture Rate8.126496E-5

Murchison 1 - Ice Lake, 12.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?true
Directly Connected?true
Co-rupture Count769
Co-rupture Rate7.7803095E-5

Mt Roon, 12.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Straight Creek, 13.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Potts Range, 13.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
