Mohaka: North Details

PropertyValue
Rupture Count44,263
Ruptures Above Sect Min Mag44,258
Ruptures w/ Nonzero Rates217
Magnitude Range[6.78, 8.51]
Length Range[20, 1,132] km
Total Rate8.5010374E-4 /yr
Multi-Fault Rate7.987153E-4 /yr (93.96%)
Directly-Connected Faults5
All Co-Rupturing Faults122

Table Of Contents

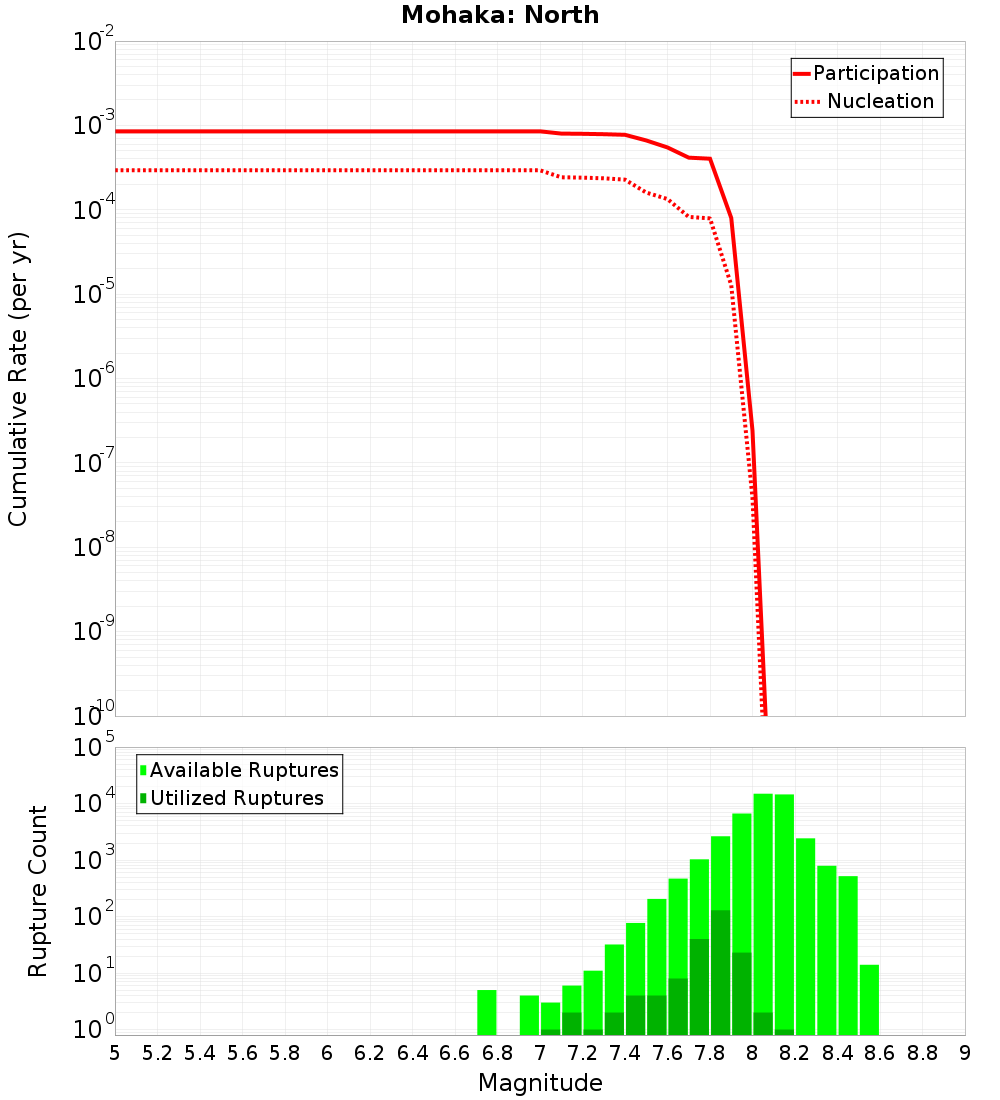

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

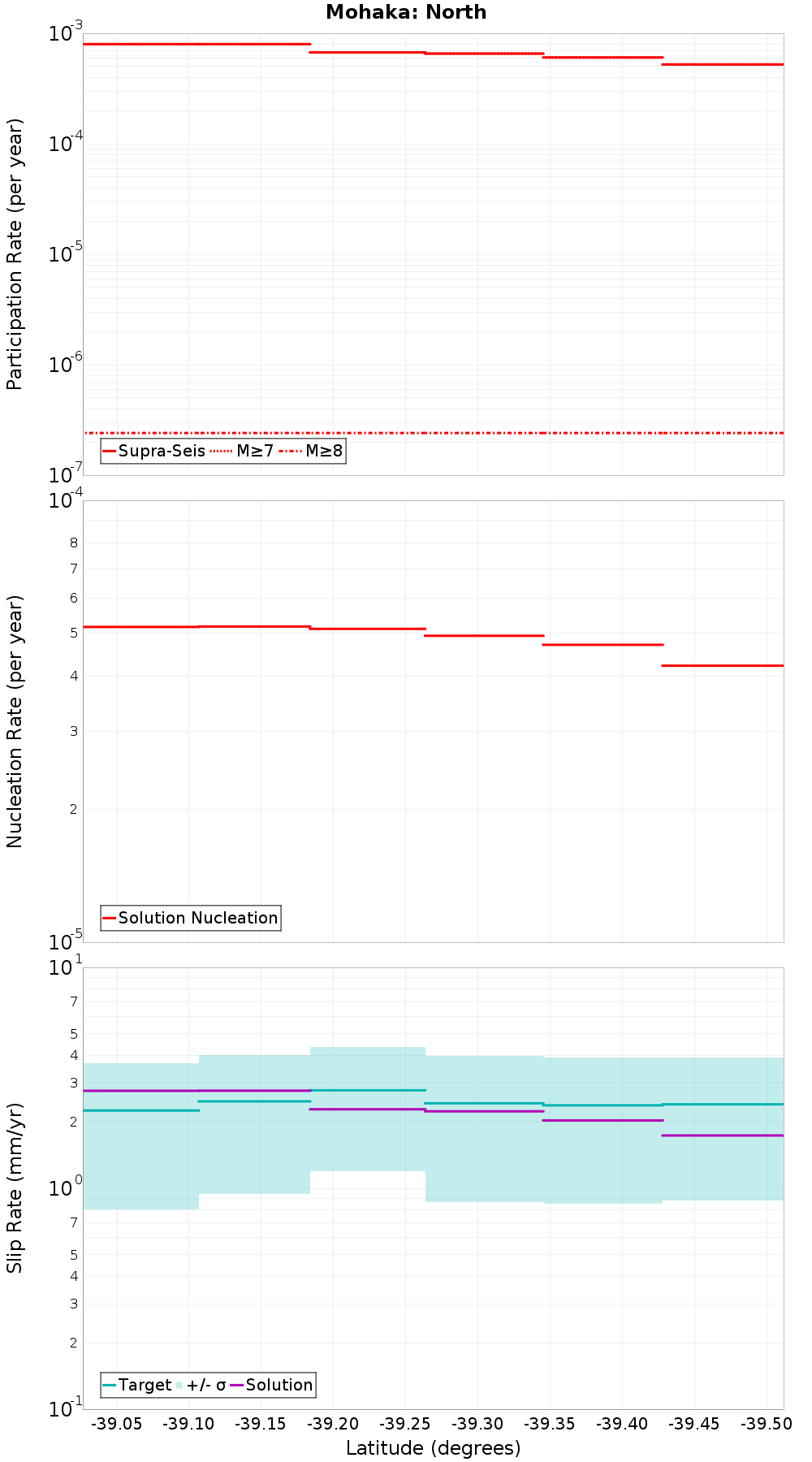

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

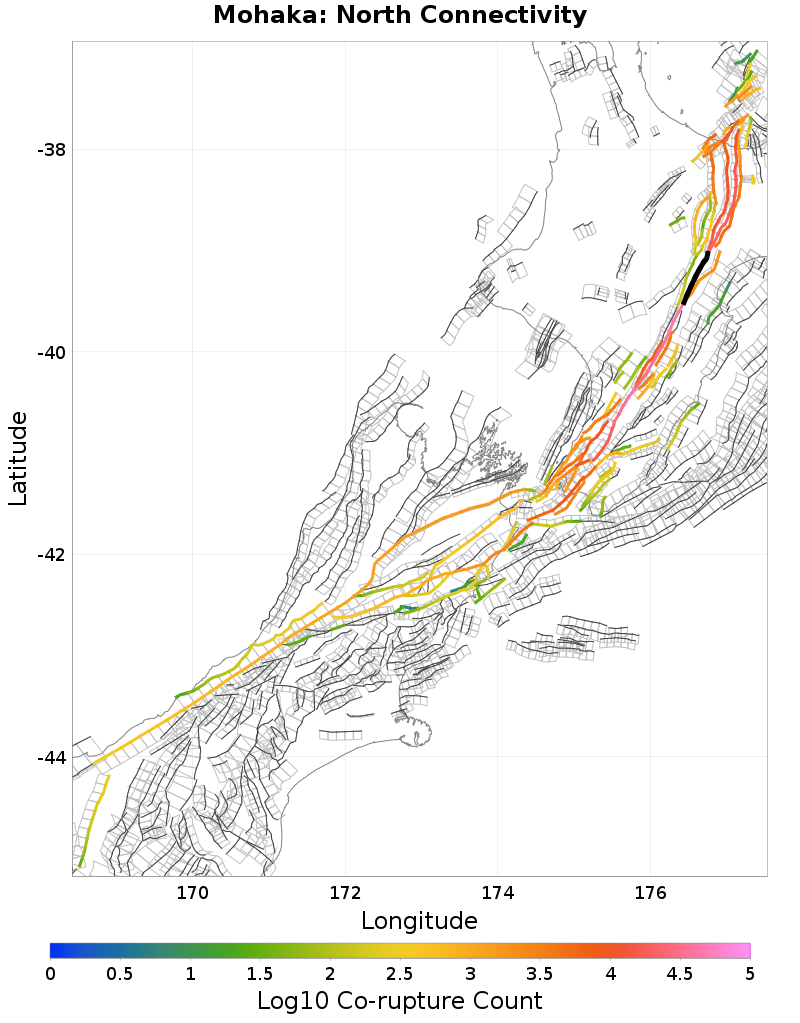

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mohaka: South, 0 km away
Whakatane: South, 0 km away
Waimana: South, 0 km away
Patoka - Rangiora, 0.38 km away
Ruahine: North, 5.2 km away
Ruahine: Central, 7.58 km away
Waiohau: South, 8.1 km away
Wakarara, 9.58 km away
Kaweka, 10.6 km away
Awanui, 11.21 km away
Waiotahi: South, 11.55 km away
Wheao: South, 13.51 km away
Te Heka, 14.25 km away

Mohaka: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?true
Directly Connected?true
Co-rupture Count45,873
Co-rupture Rate1.12498536E-4

Whakatane: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?true
Directly Connected?true
Co-rupture Count14,821
Co-rupture Rate3.4332203E-4

Waimana: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?true
Directly Connected?true
Co-rupture Count22,342
Co-rupture Rate3.2348078E-4

Patoka - Rangiora, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?true
Directly Connected?true
Co-rupture Count1,990
Co-rupture Rate1.7348657E-4

Ruahine: North, 5.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?true
Directly Connected?false
Co-rupture Count157
Co-rupture Rate0.0

Ruahine: Central, 7.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiohau: South, 8.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?true
Directly Connected?false
Co-rupture Count551
Co-rupture Rate1.8262515E-5

Wakarara, 9.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaweka, 10.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awanui, 11.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate0.0

Waiotahi: South, 11.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?true
Directly Connected?true
Co-rupture Count5,371
Co-rupture Rate1.2966973E-4

Wheao: South, 13.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?true
Directly Connected?false
Co-rupture Count904
Co-rupture Rate0.0

Te Heka, 14.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMDd1ZG9L
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
