Moonlight South Details

Property	Value
Rupture Count	19,603
Ruptures Above Sect Min Mag	19,601
Ruptures w/ Nonzero Rates	144
Magnitude Range	[7.25, 8.71]
Length Range	[28, 1,002] km
Total Rate	1.0741252E-4 /yr
Multi-Fault Rate	1.07412474E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	147

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

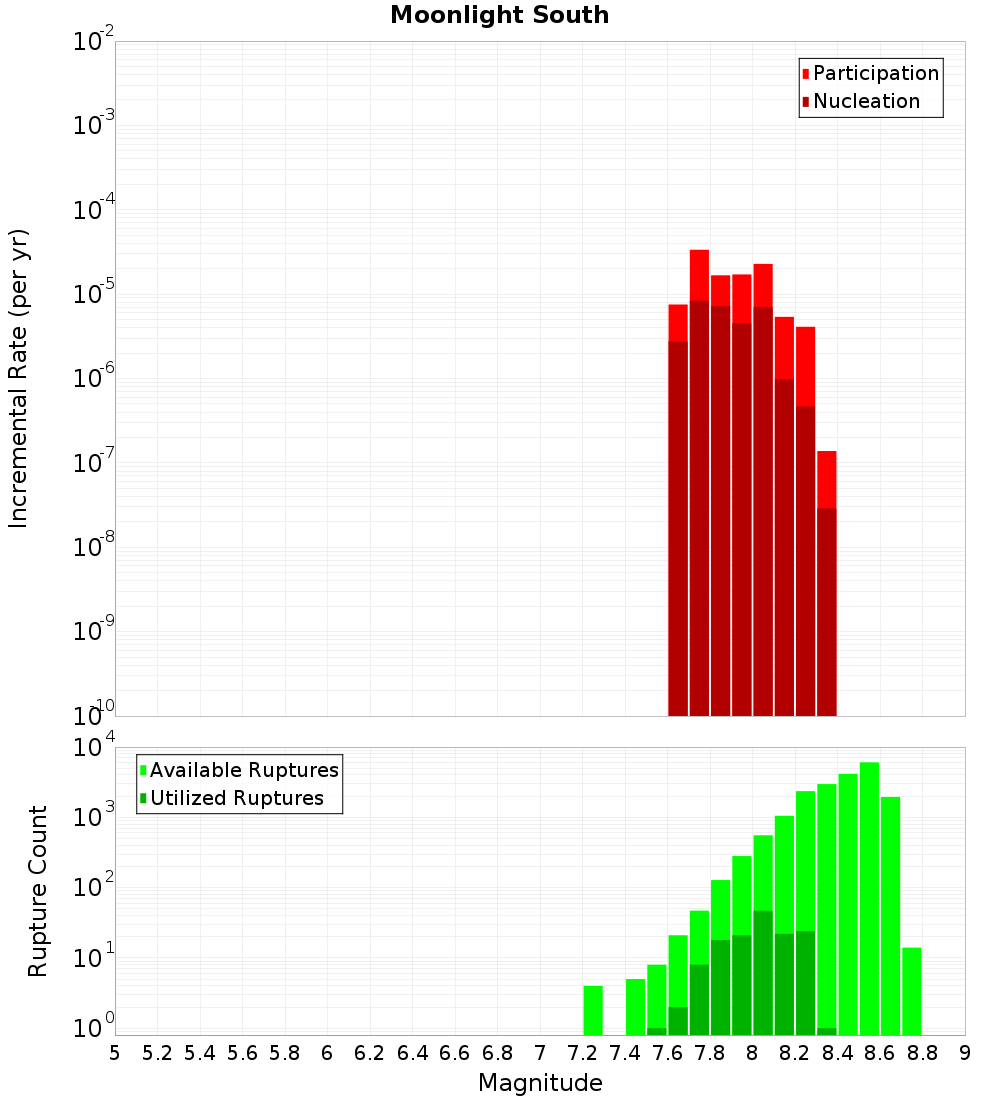

Magnitude-Frequency Distribution

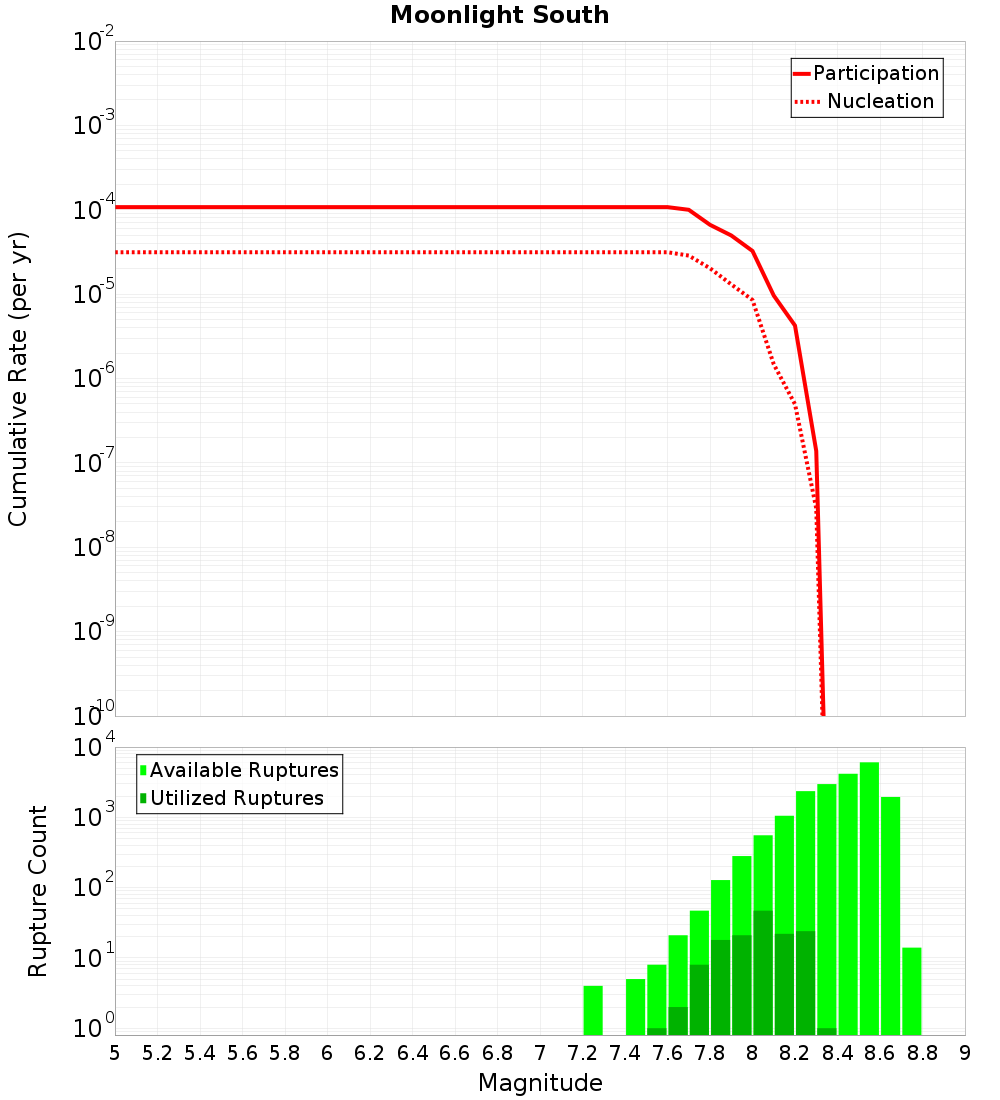

Incremental	Cumulative

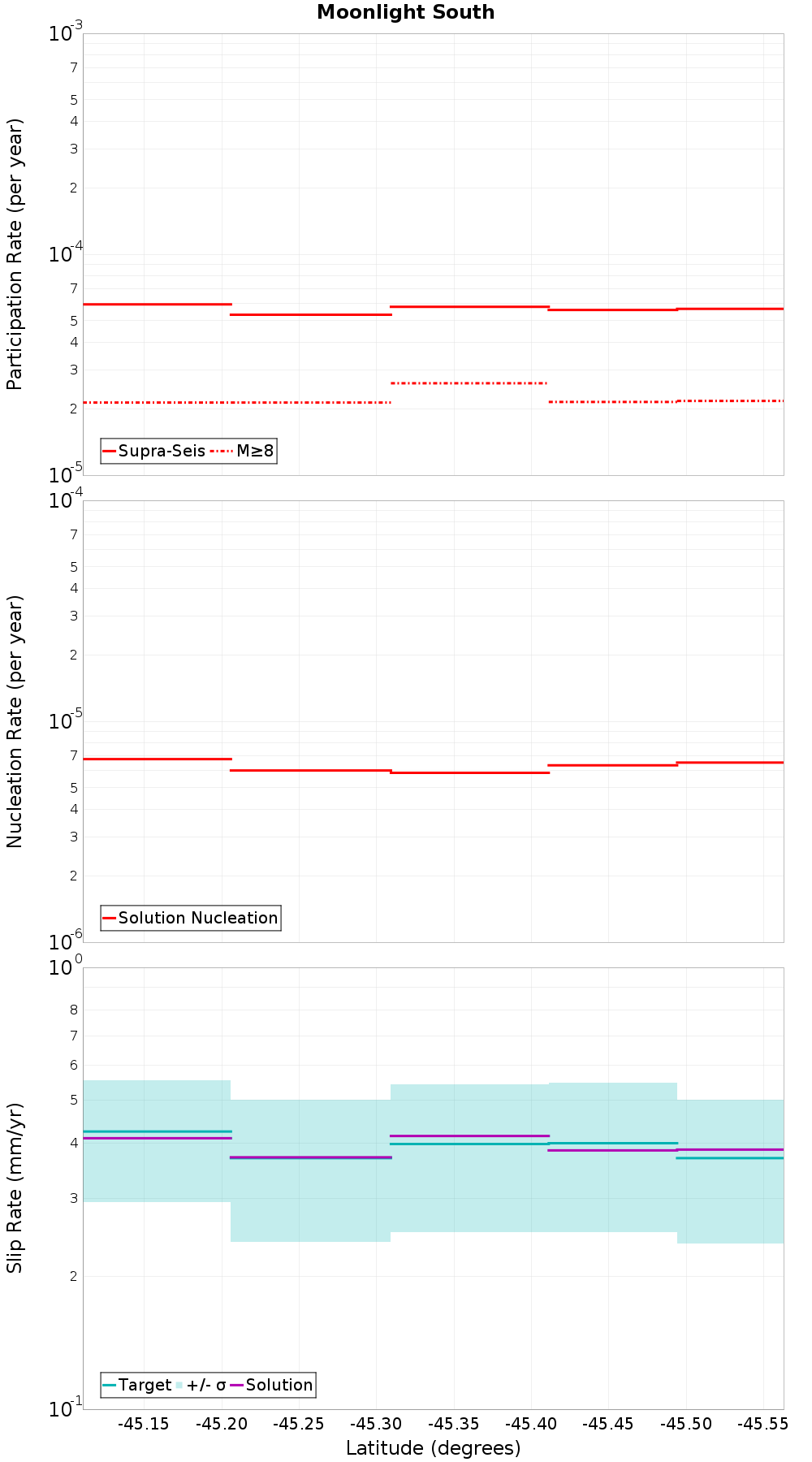

Along-Strike Values

Moment-Rates and b-Values

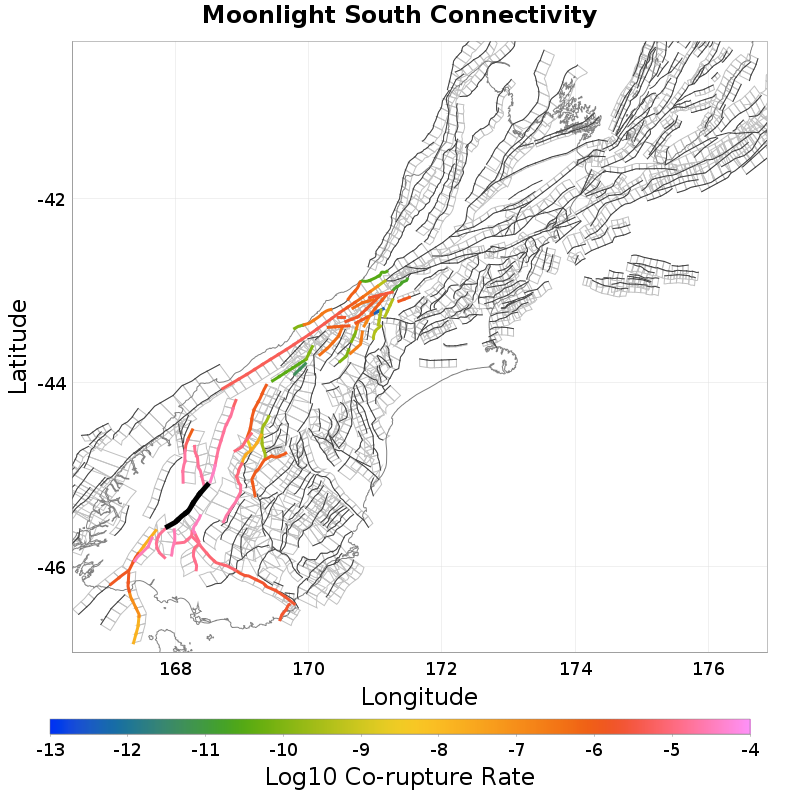

Connectivity

Nearby Sections

Fault Section
Mossburn, 0.18 km away
Acton, 0.18 km away
Tin Hut, 0.65 km away
McKerchar, 1.41 km away
Nevis, 1.53 km away
West Wakatipu, 1.86 km away
Moonlight North, 4.73 km away
Hokonui, 12.76 km away
Hauroko: North, 14.39 km away

Mossburn, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMFJ1MjlF
Connected?	true
Directly Connected?	true
Co-rupture Count	6,828
Co-rupture Rate	1.3767155E-5

Acton, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMFJ1MjlF
Connected?	true
Directly Connected?	true
Co-rupture Count	426
Co-rupture Rate	3.350185E-5

Tin Hut, 0.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMFJ1MjlF
Connected?	true
Directly Connected?	true
Co-rupture Count	2,356
Co-rupture Rate	2.7695993E-5

McKerchar, 1.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMFJ1MjlF
Connected?	true
Directly Connected?	true
Co-rupture Count	3,544
Co-rupture Rate	1.5112605E-5

Nevis, 1.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMFJ1MjlF
Connected?	true
Directly Connected?	true
Co-rupture Count	1,763
Co-rupture Rate	2.2560313E-5

West Wakatipu, 1.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMFJ1MjlF
Connected?	true
Directly Connected?	true
Co-rupture Count	200
Co-rupture Rate	1.8944633E-5

Moonlight North, 4.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMFJ1MjlF
Connected?	true
Directly Connected?	true
Co-rupture Count	17,725
Co-rupture Rate	3.6079662E-5

Hokonui, 12.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMFJ1MjlF
Connected?	true
Directly Connected?	false
Co-rupture Count	6,170
Co-rupture Rate	1.2702206E-5

Hauroko: North, 14.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMDguMFJ1MjlF
Connected?	true
Directly Connected?	false
Co-rupture Count	885
Co-rupture Rate	1.3600894E-6
