Wharekauhau Details

PropertyValue
Rupture Count18,401
Ruptures Above Sect Min Mag18,397
Ruptures w/ Nonzero Rates223
Magnitude Range[6.81, 8.43]
Length Range[20, 960] km
Total Rate2.4841703E-4 /yr
Multi-Fault Rate2.4841703E-4 /yr (100.00%)
Directly-Connected Faults10
All Co-Rupturing Faults192

Table Of Contents

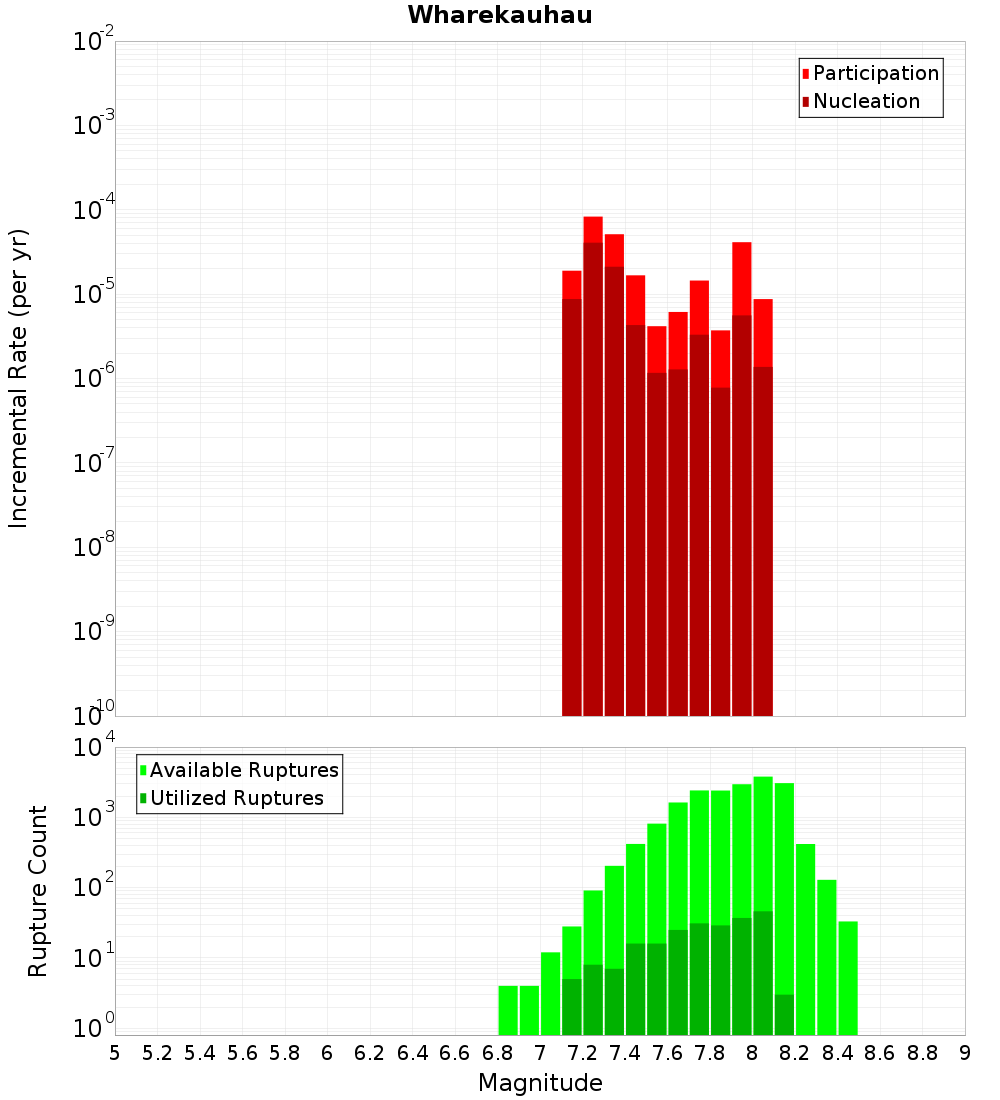

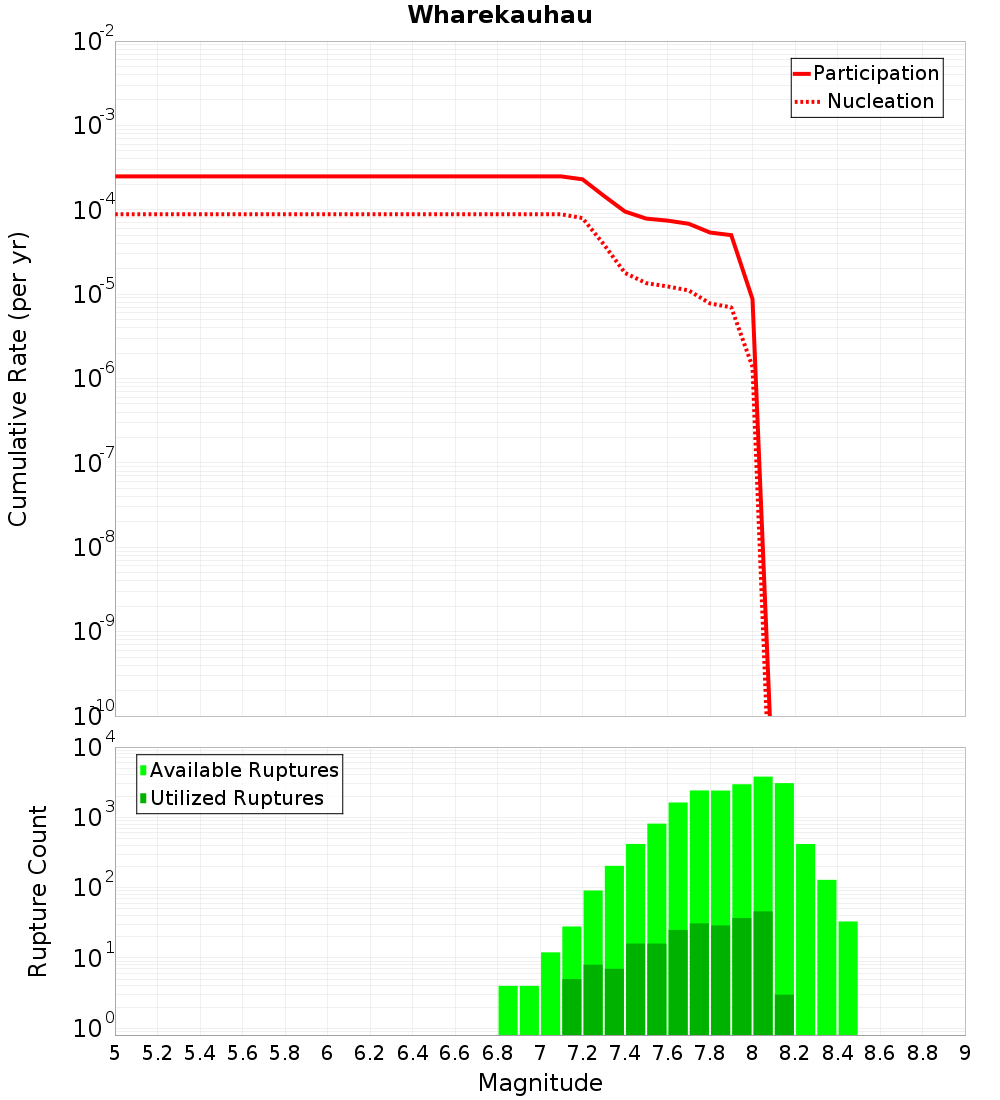

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

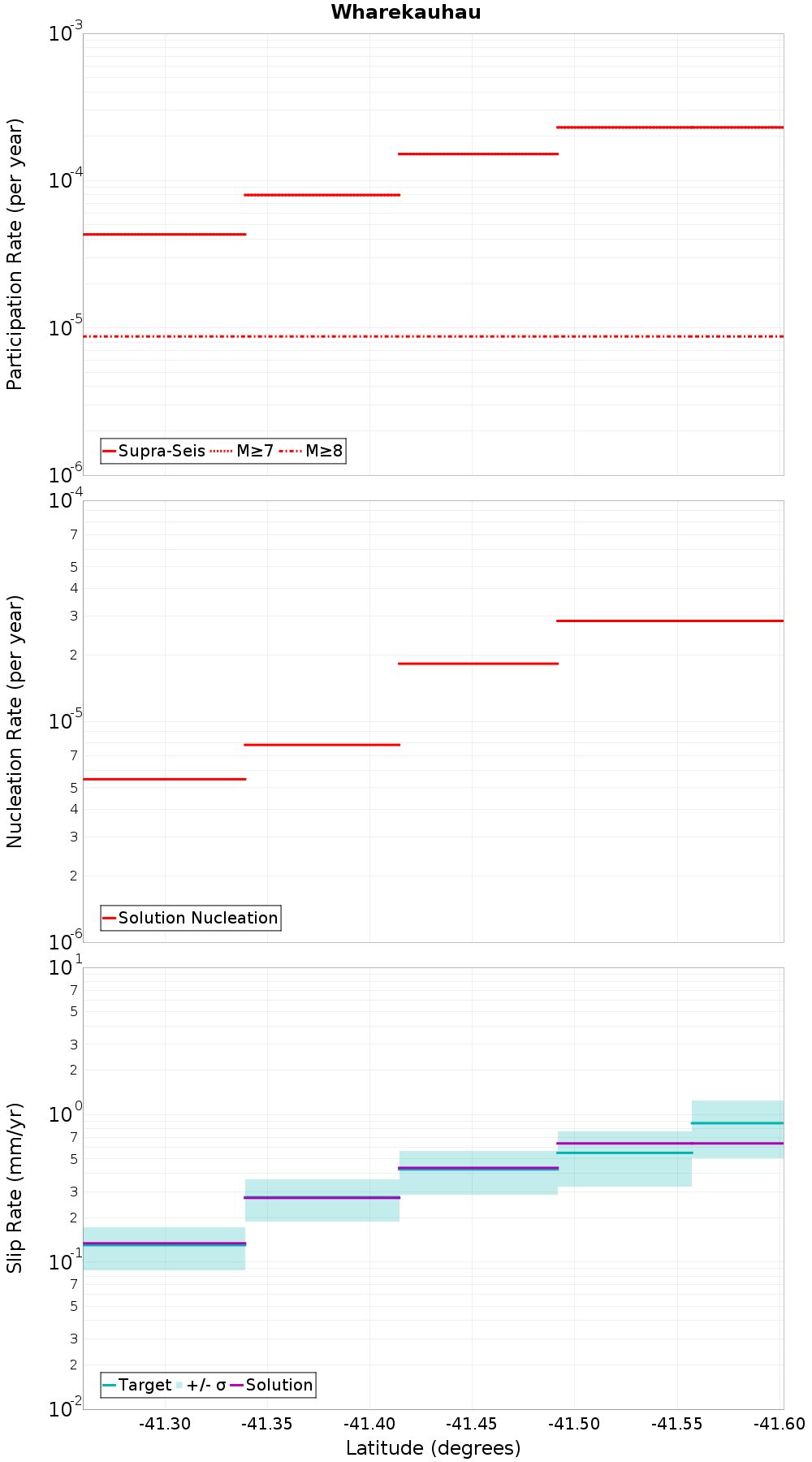

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

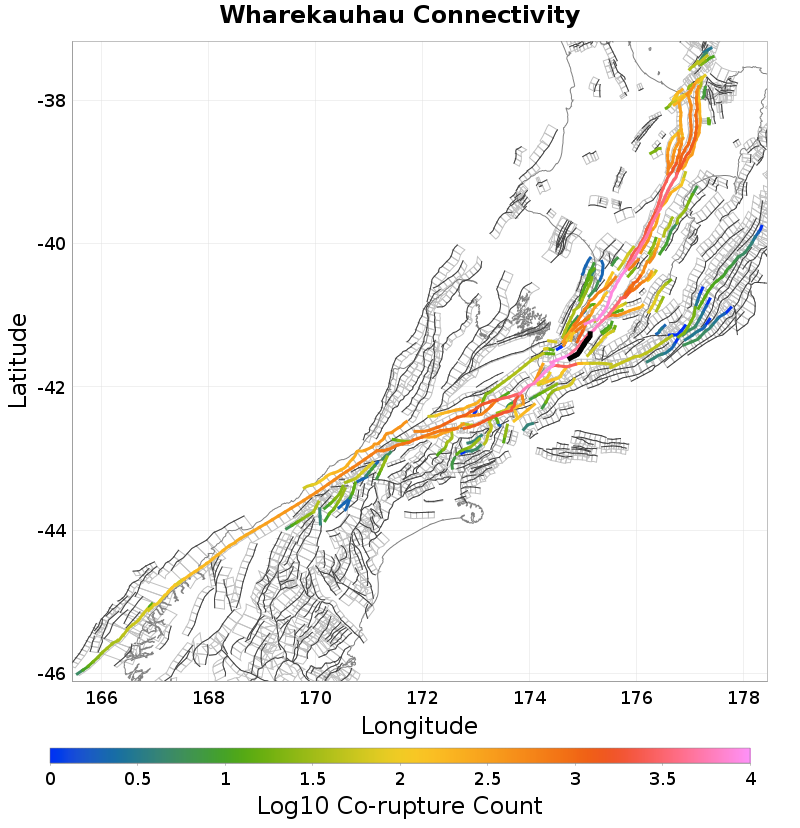

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wairarapa: 1, 0.2 km awayWellington Hutt Valley: 2, 8.32 km away
Wellington Hutt Valley: 4, 0.21 km awayOhariu, 10 km away
Aotea - Evans Bay, 0.31 km awayBooBoo, 10.67 km away
Wairarapa: Needles, 0.4 km awayWellington Hutt Valley: 1, 11.16 km away
Wairarapa: 2, 1.34 km awayWairau 3, 11.59 km away
Whitemans Valley, 3.06 km awayOtaraia, 12.78 km away
Wellington Hutt Valley: 5, 3.98 km awayDry River - Huangarua: 1, 12.89 km away
Moonshine, 4.85 km awayPukerua - Shepherds Gully: 3, 13.68 km away
Akatarawa, 6.22 km awayCampbell Bank, 13.94 km away
Wellington Hutt Valley: 3, 7.34 km awayGibbs, 14.76 km away

Wairarapa: 1, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMTIuMHFLOEJZ
Connected?true
Directly Connected?true
Co-rupture Count4,396
Co-rupture Rate1.2035512E-4

Wellington Hutt Valley: 4, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMTIuMHFLOEJZ
Connected?true
Directly Connected?true
Co-rupture Count710
Co-rupture Rate8.17689E-8

Aotea - Evans Bay, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMTIuMHFLOEJZ
Connected?true
Directly Connected?true
Co-rupture Count146
Co-rupture Rate3.238178E-6

Wairarapa: Needles, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMTIuMHFLOEJZ
Connected?true
Directly Connected?true
Co-rupture Count8,513
Co-rupture Rate4.8203576E-5

Wairarapa: 2, 1.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMTIuMHFLOEJZ
Connected?true
Directly Connected?true
Co-rupture Count7,533
Co-rupture Rate4.0630508E-5

Whitemans Valley, 3.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMTIuMHFLOEJZ
Connected?true
Directly Connected?true
Co-rupture Count1,211
Co-rupture Rate6.324668E-5

Wellington Hutt Valley: 5, 3.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMTIuMHFLOEJZ
Connected?true
Directly Connected?true
Co-rupture Count7,313
Co-rupture Rate1.8948338E-5

Moonshine, 4.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMTIuMHFLOEJZ
Connected?true
Directly Connected?true
Co-rupture Count963
Co-rupture Rate4.0932802E-5

Akatarawa, 6.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMTIuMHFLOEJZ
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate0.0

Wellington Hutt Valley: 3, 7.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMTIuMHFLOEJZ
Connected?true
Directly Connected?false
Co-rupture Count61
Co-rupture Rate8.791408E-5

Wellington Hutt Valley: 2, 8.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMTIuMHFLOEJZ
Connected?true
Directly Connected?false
Co-rupture Count382
Co-rupture Rate1.2035512E-4

Ohariu, 10 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMTIuMHFLOEJZ
Connected?true
Directly Connected?false
Co-rupture Count840
Co-rupture Rate3.5742007E-5

BooBoo, 10.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMTIuMHFLOEJZ
Connected?true
Directly Connected?true
Co-rupture Count2,832
Co-rupture Rate1.3106209E-13

Wellington Hutt Valley: 1, 11.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMTIuMHFLOEJZ
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Wairau 3, 11.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMTIuMHFLOEJZ
Connected?true
Directly Connected?false
Co-rupture Count64
Co-rupture Rate1.895907E-5

Otaraia, 12.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMTIuMHFLOEJZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dry River - Huangarua: 1, 12.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMTIuMHFLOEJZ
Connected?true
Directly Connected?true
Co-rupture Count80
Co-rupture Rate5.5788372E-15

Pukerua - Shepherds Gully: 3, 13.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMTIuMHFLOEJZ
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate8.275633E-11

Campbell Bank, 13.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMTIuMHFLOEJZ
Connected?true
Directly Connected?false
Co-rupture Count131
Co-rupture Rate1.7139513E-14

Gibbs, 14.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMTIuMHFLOEJZ
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate0.0
