Alpine: Resolution - Dagg Details

Property	Value
Rupture Count	57,131
Ruptures Above Sect Min Mag	57,124
Ruptures w/ Nonzero Rates	37
Magnitude Range	[6.83, 8.48]
Length Range	[22, 1,083] km
Total Rate	3.6067268E-4 /yr
Multi-Fault Rate	2.491771E-4 /yr (69.09%)
Directly-Connected Faults	5
All Co-Rupturing Faults	174

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

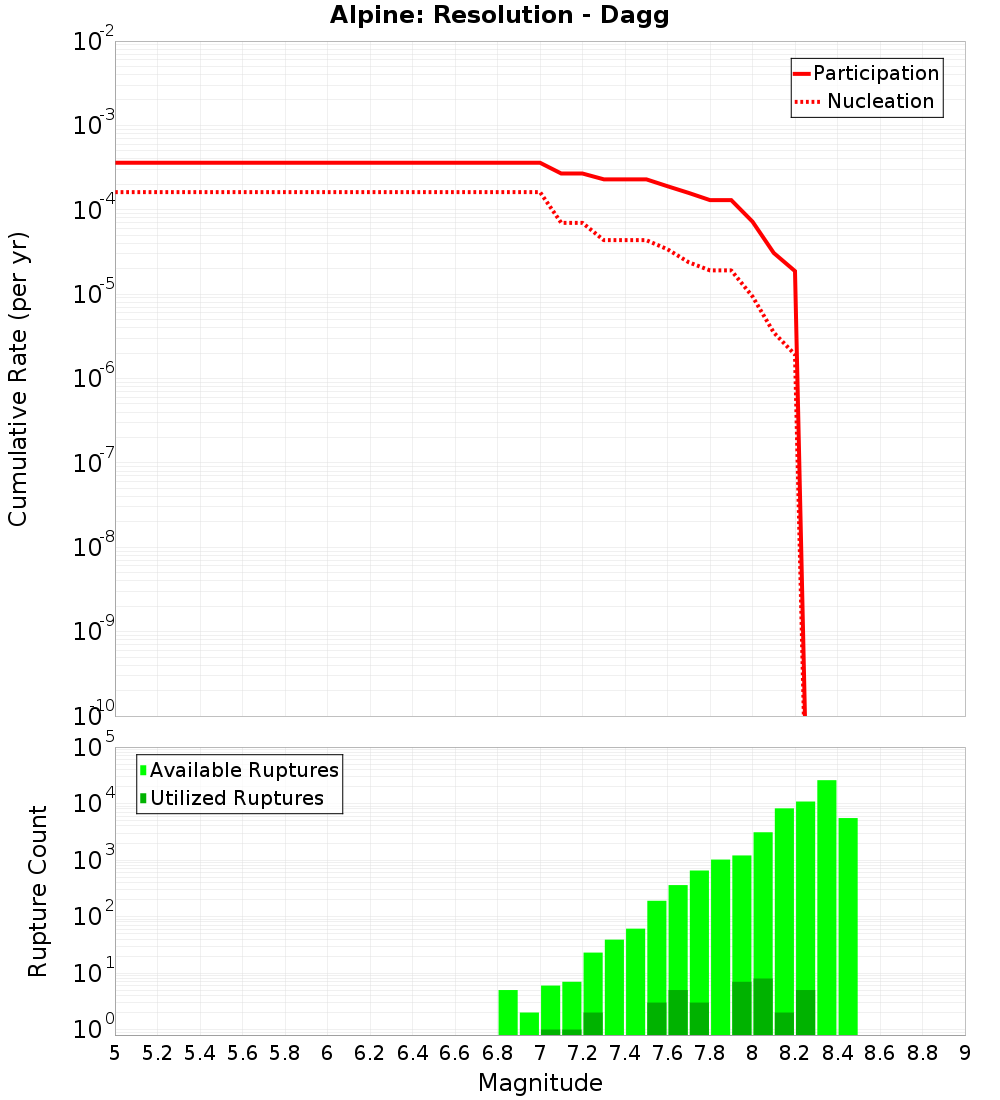

Magnitude-Frequency Distribution

Incremental	Cumulative

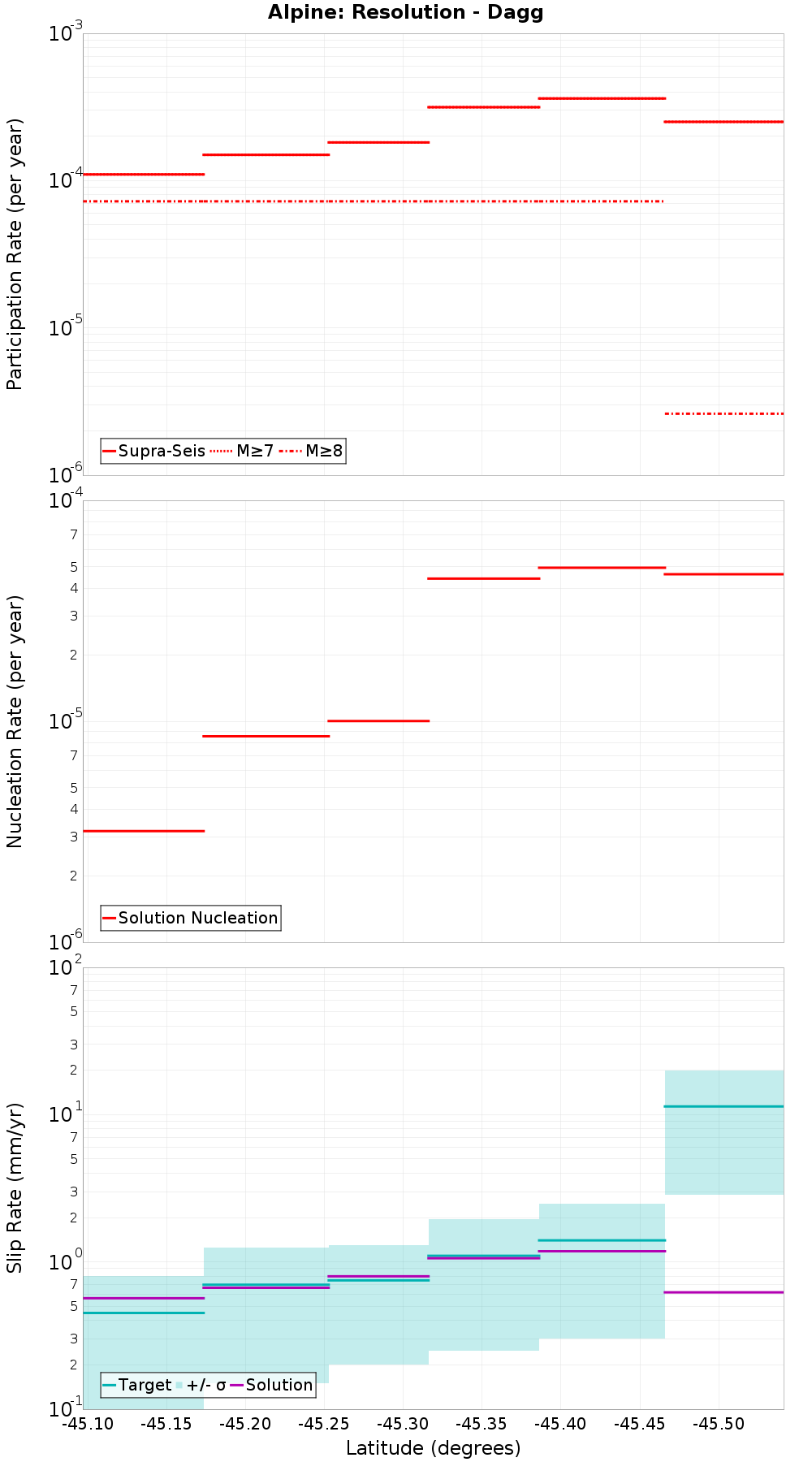

Along-Strike Values

Moment-Rates and b-Values

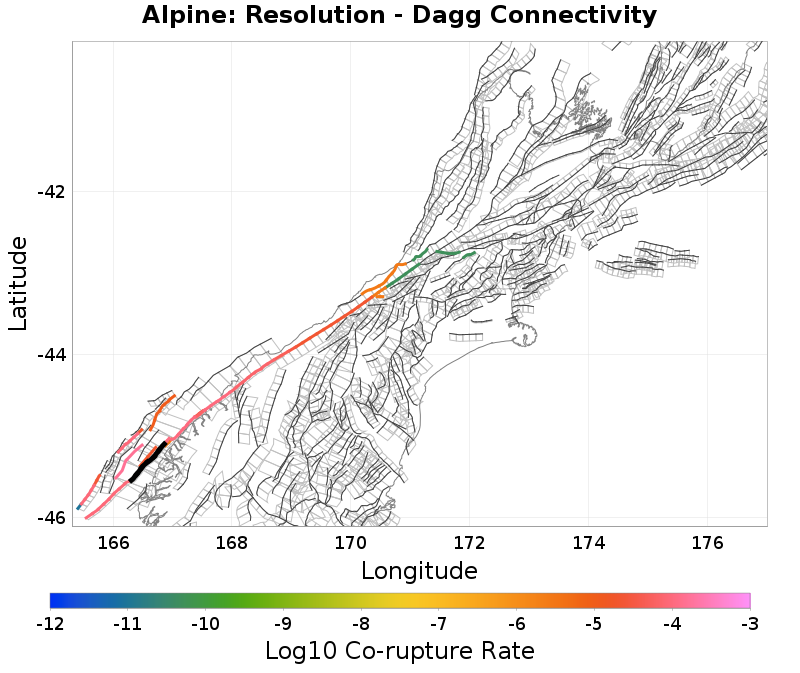

Connectivity

Nearby Sections

Fault Section
Alpine: Resolution - Charles, 0 km away
South Wedge 5, 0.14 km away
South Wedge 1, 0.22 km away
South Wedge 2, 0.22 km away
South Wedge 3-6-10, 0.23 km away
Central Wedge 4 - South Wedge 411, 0.23 km away
Alpine: Resolution - Five Fingers, 0.91 km away
Alpine: Nancy, 2.58 km away
Alpine: Caswell, 11.17 km away
Central Wedge 1 & 2 & 3, 12.35 km away

Alpine: Resolution - Charles, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	true
Co-rupture Count	23,987
Co-rupture Rate	1.0742391E-4

South Wedge 5, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

South Wedge 1, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	true
Co-rupture Count	358
Co-rupture Rate	1.9709109E-5

South Wedge 2, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

South Wedge 3-6-10, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	true
Co-rupture Count	2,463
Co-rupture Rate	1.5556956E-4

Central Wedge 4 - South Wedge 411, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: Resolution - Five Fingers, 0.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	true
Co-rupture Count	32,045
Co-rupture Rate	9.131225E-5

Alpine: Nancy, 2.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	true
Co-rupture Count	33,665
Co-rupture Rate	2.6133825E-6

Alpine: Caswell, 11.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	false
Co-rupture Count	56,212
Co-rupture Rate	9.947173E-5

Central Wedge 1 & 2 & 3, 12.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	false
Co-rupture Count	871
Co-rupture Rate	1.0565571E-5
