McKerrow - Douglas Duplex Details

PropertyValue
Rupture Count31,968
Ruptures Above Sect Min Mag31,967
Ruptures w/ Nonzero Rates89
Magnitude Range[6.77, 8.36]
Length Range[17, 773] km
Total Rate1.00547644E-4 /yr
Multi-Fault Rate1.00547644E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults228

Table Of Contents

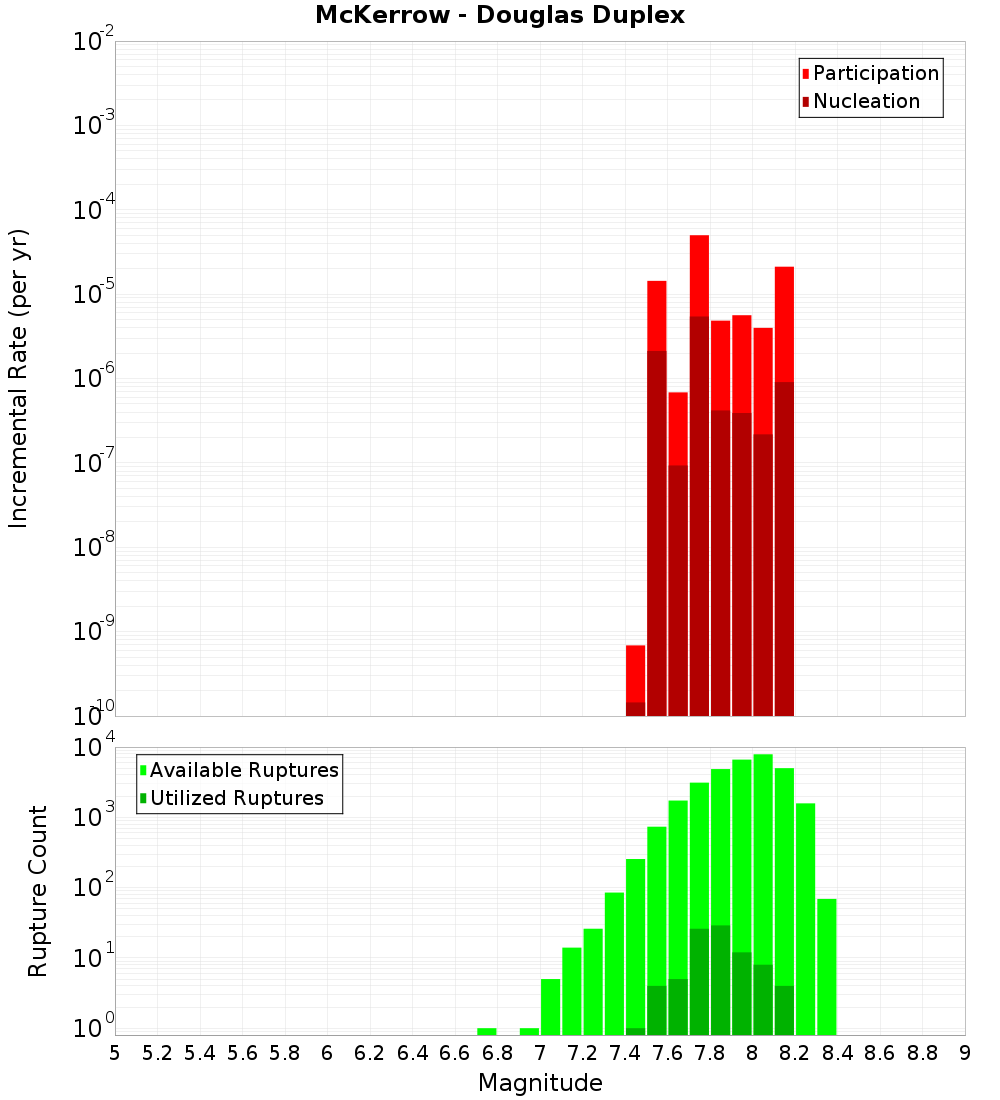

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

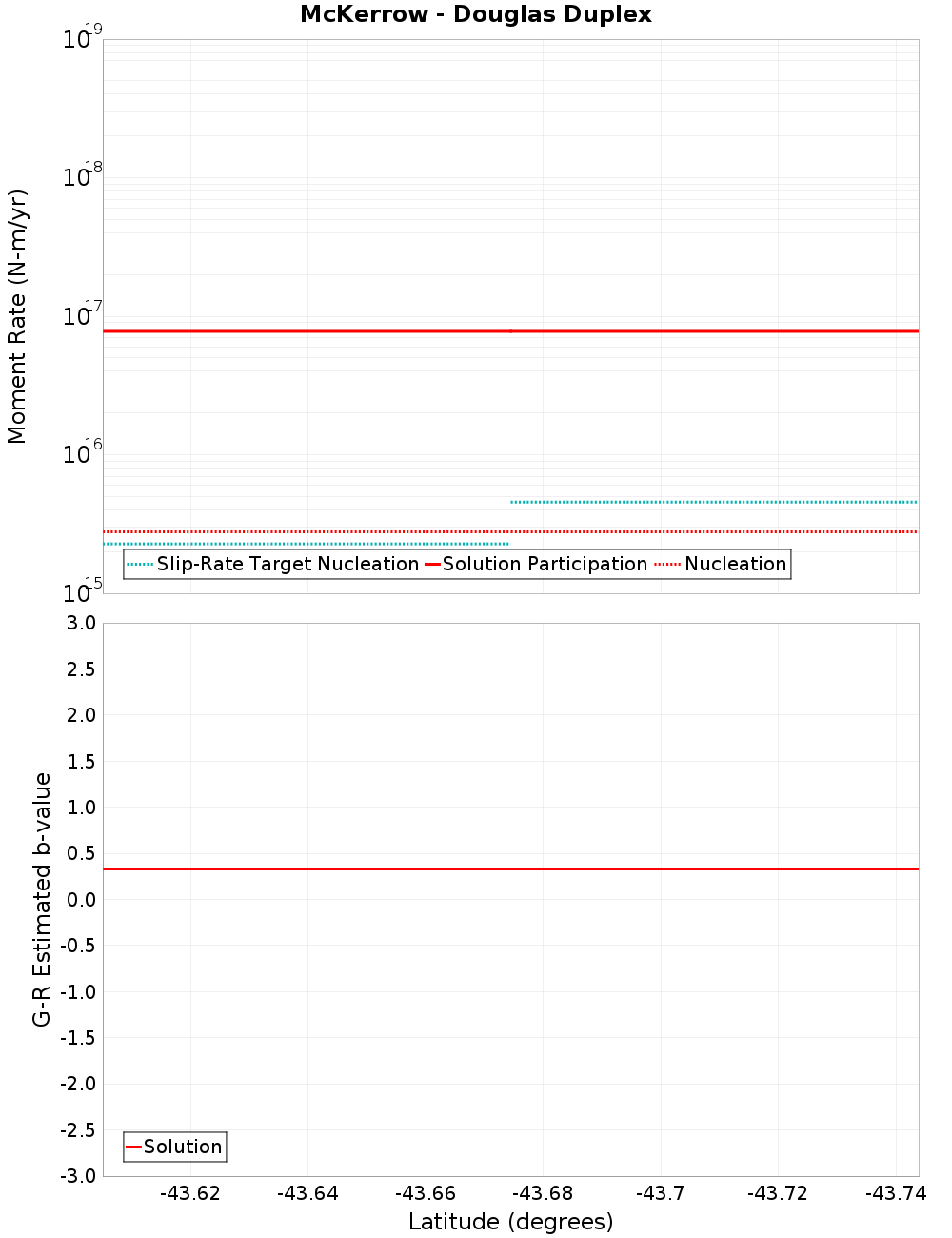

Moment-Rates and b-Values

(top)

Along-strike plot

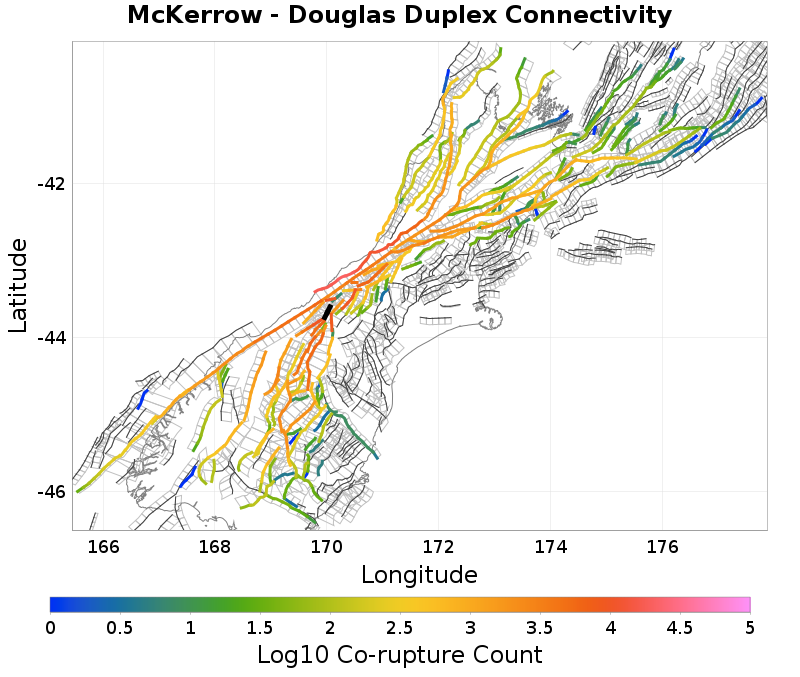

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Landsborough 2, 0 km away
Alpine: Jacksons to Kaniere, 0.1 km away
Karangarua, 0.24 km away
Straight Creek, 1.75 km away
Hohonu South, 2.56 km away
Great Groove, 4.77 km away
Black Blob - Haast Ridge, 4.95 km away
Huxley, 5.04 km away
Hopkins, 8.79 km away
Mt Roon, 8.92 km away
Murchison 1 - Ice Lake, 9.71 km away
Barrier Range, 11.94 km away

Landsborough 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?true
Directly Connected?true
Co-rupture Count9,759
Co-rupture Rate3.824862E-5

Alpine: Jacksons to Kaniere, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?true
Directly Connected?true
Co-rupture Count9,304
Co-rupture Rate2.5153651E-5

Karangarua, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?true
Directly Connected?true
Co-rupture Count1,419
Co-rupture Rate3.8245555E-5

Straight Creek, 1.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?true
Directly Connected?true
Co-rupture Count9,334
Co-rupture Rate3.2837826E-5

Hohonu South, 2.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?true
Directly Connected?true
Co-rupture Count25,535
Co-rupture Rate3.2568692E-5

Great Groove, 4.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?true
Directly Connected?true
Co-rupture Count8,531
Co-rupture Rate9.989825E-5

Black Blob - Haast Ridge, 4.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?true
Directly Connected?true
Co-rupture Count1,869
Co-rupture Rate2.0286481E-15

Huxley, 5.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?true
Directly Connected?true
Co-rupture Count6,676
Co-rupture Rate1.6381662E-8

Hopkins, 8.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?true
Directly Connected?false
Co-rupture Count6,371
Co-rupture Rate3.6511923E-5

Mt Roon, 8.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Murchison 1 - Ice Lake, 9.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?true
Directly Connected?false
Co-rupture Count10,052
Co-rupture Rate1.4539264E-5

Barrier Range, 11.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?true
Directly Connected?false
Co-rupture Count6,035
Co-rupture Rate3.7680531E-6
