Pahaua Details

Property	Value
Rupture Count	52,113
Ruptures Above Sect Min Mag	52,083
Ruptures w/ Nonzero Rates	201
Magnitude Range	[6.68, 8.42]
Length Range	[19, 855] km
Total Rate	3.4719668E-4 /yr
Multi-Fault Rate	3.4704158E-4 /yr (99.96%)
Directly-Connected Faults	11
All Co-Rupturing Faults	109

Table Of Contents

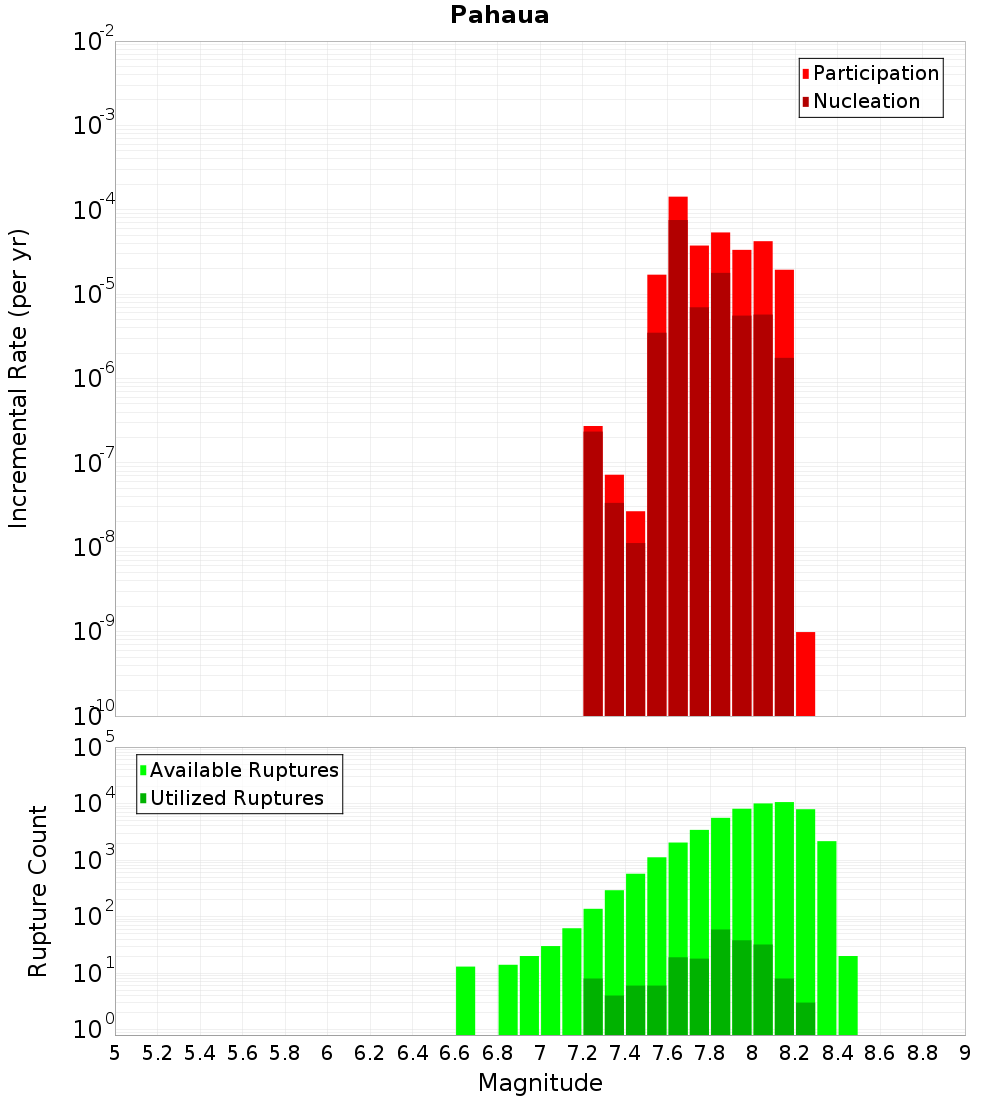

Magnitude-Frequency Distribution

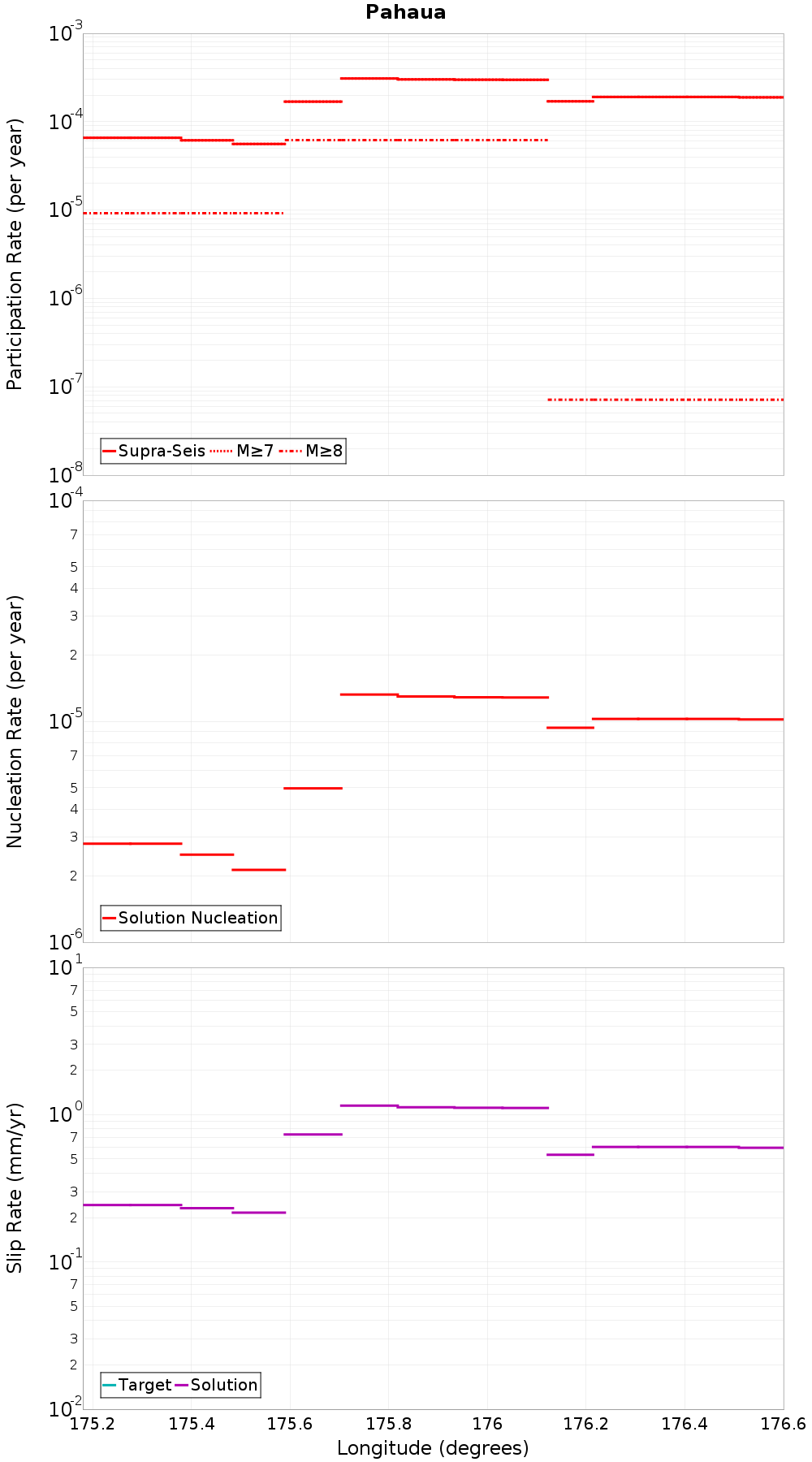

Along-Strike Values

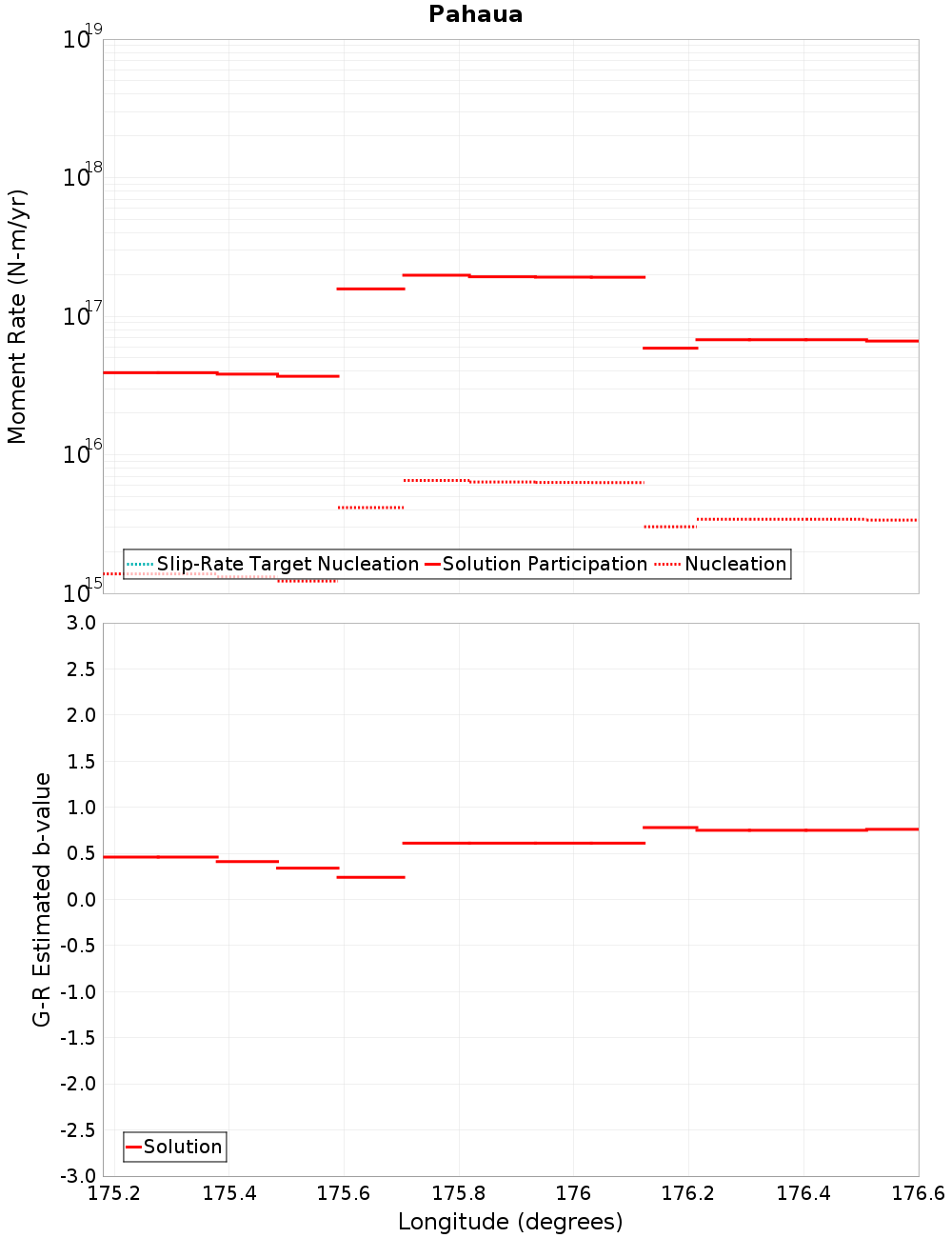

- Moment-Rates and b-Values

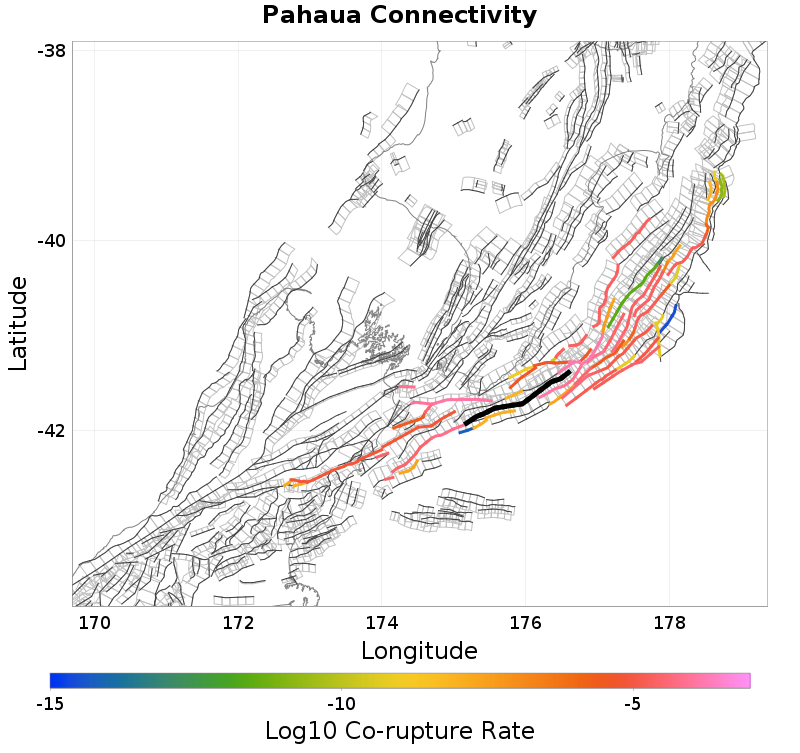

Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

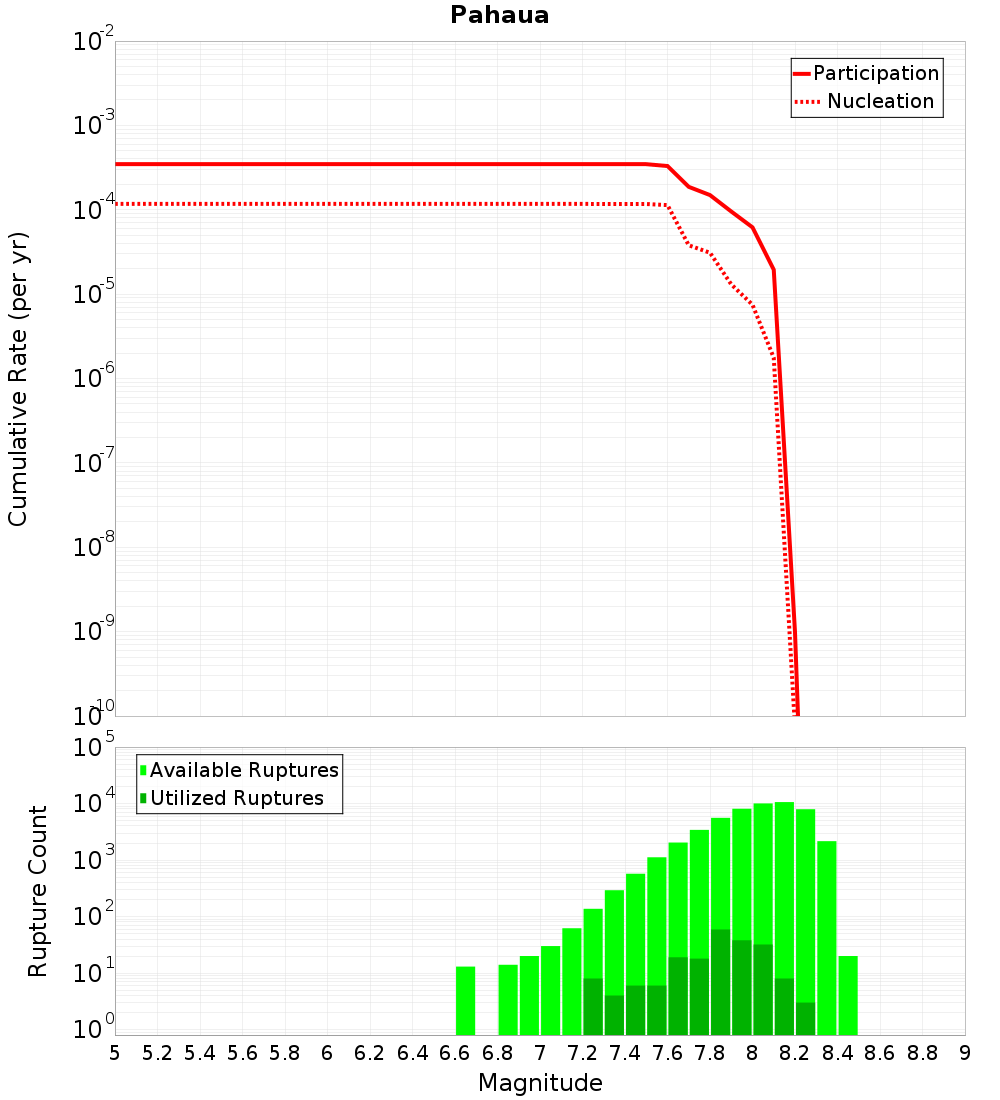

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section	Fault Section
Kekerengu Bank, 0 km away	Aorangi Trough, 6.21 km away
Pahaua SE1, 0 km away	Honeycomb Ridge, 6.75 km away
Pukeroro 2, 0.1 km away	Uruti East - PorWest 1, 7.45 km away
Uruti Basin 2, 0.14 km away	Te Rapa 2, 10.36 km away
BooBoo, 0.16 km away	Uruti Ridge 2, 12.1 km away
Uruti Basin, 0.28 km away	Ngapotiki, 12.75 km away
Pahaua SE2, 2.07 km away	Honeycomb, 13.47 km away
Opouawe - Uruti, 2.68 km away	Palliser - Kaiwhata, 13.63 km away
Glendhu Ridge, 3.55 km away	Aorangi Ridge, 13.7 km away
Pukeroro Ridge, 4.31 km away

Kekerengu Bank, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	true
Co-rupture Count	15,771
Co-rupture Rate	6.547879E-5

Pahaua SE1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	true
Co-rupture Count	1,305
Co-rupture Rate	9.872114E-9

Pukeroro 2, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	true
Co-rupture Count	33,147
Co-rupture Rate	1.2774071E-4

Uruti Basin 2, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	true
Co-rupture Count	1,572
Co-rupture Rate	2.0307392E-5

BooBoo, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	true
Co-rupture Count	22,815
Co-rupture Rate	1.4422674E-4

Uruti Basin, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	true
Co-rupture Count	7,226
Co-rupture Rate	1.4556218E-4

Pahaua SE2, 2.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	true
Co-rupture Count	1,377
Co-rupture Rate	9.872119E-9

Opouawe - Uruti, 2.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	true
Co-rupture Count	6,849
Co-rupture Rate	1.411148E-4

Glendhu Ridge, 3.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	true
Co-rupture Count	391
Co-rupture Rate	0.0

Pukeroro Ridge, 4.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	true
Co-rupture Count	5,897
Co-rupture Rate	2.687995E-5

Aorangi Trough, 6.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	false
Co-rupture Count	18,165
Co-rupture Rate	3.7872895E-5

Honeycomb Ridge, 6.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	0.0

Uruti East - PorWest 1, 7.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	false
Co-rupture Count	5,736
Co-rupture Rate	1.4116771E-4

Te Rapa 2, 10.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	false
Co-rupture Count	243
Co-rupture Rate	7.2967873E-6

Uruti Ridge 2, 12.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	false
Co-rupture Count	2,803
Co-rupture Rate	4.417644E-6

Ngapotiki, 12.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Honeycomb, 13.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	true
Co-rupture Count	4,851
Co-rupture Rate	4.4692138E-6

Palliser - Kaiwhata, 13.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	false
Co-rupture Count	245
Co-rupture Rate	1.1120255E-9

Aorangi Ridge, 13.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjAuMGt5SnlD
Connected?	true
Directly Connected?	false
Co-rupture Count	6,979
Co-rupture Rate	1.534426E-5
