Whangamoa Details

Property	Value
Rupture Count	49,332
Ruptures Above Sect Min Mag	49,324
Ruptures w/ Nonzero Rates	117
Magnitude Range	[6.87, 8.51]
Length Range	[23, 1,002] km
Total Rate	3.577771E-4 /yr
Multi-Fault Rate	3.1685576E-4 /yr (88.56%)
Directly-Connected Faults	8
All Co-Rupturing Faults	136

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

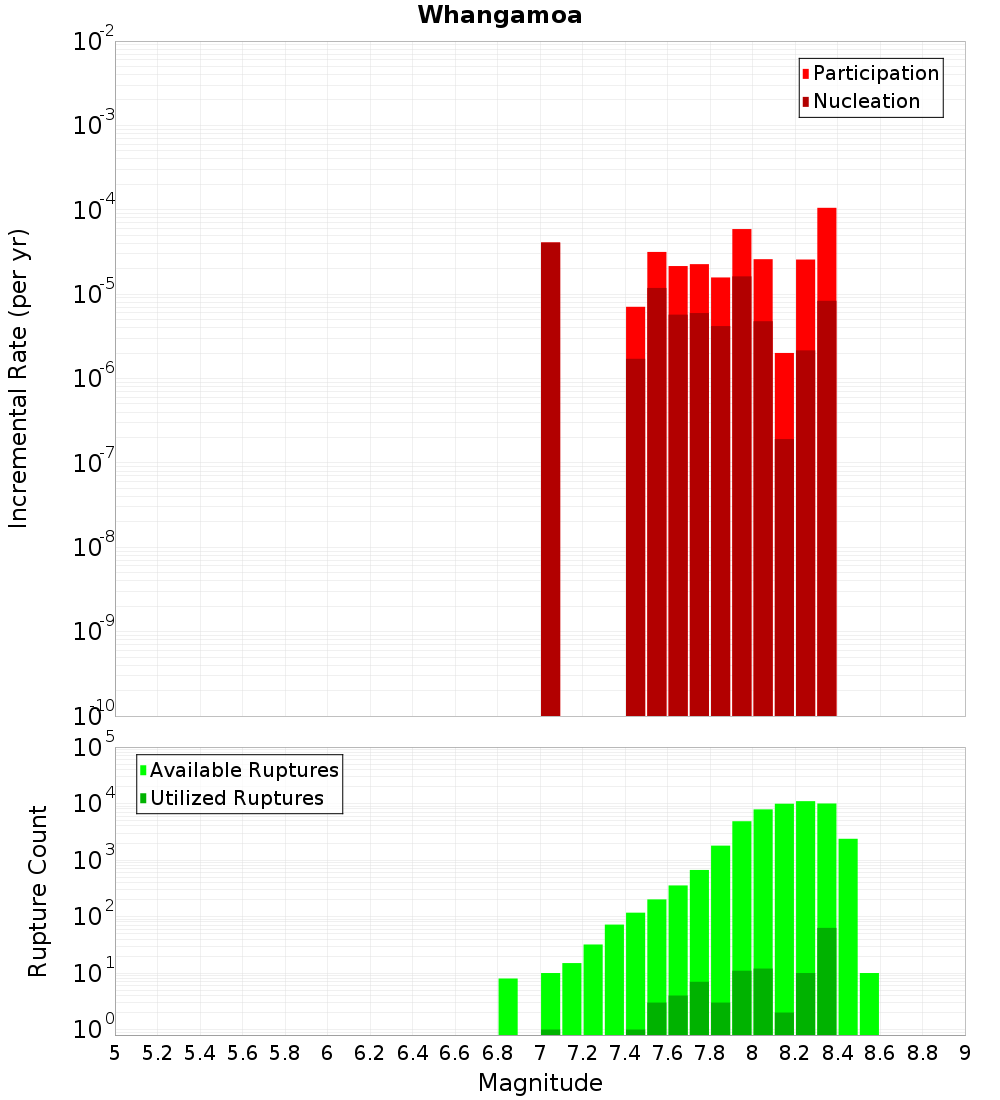

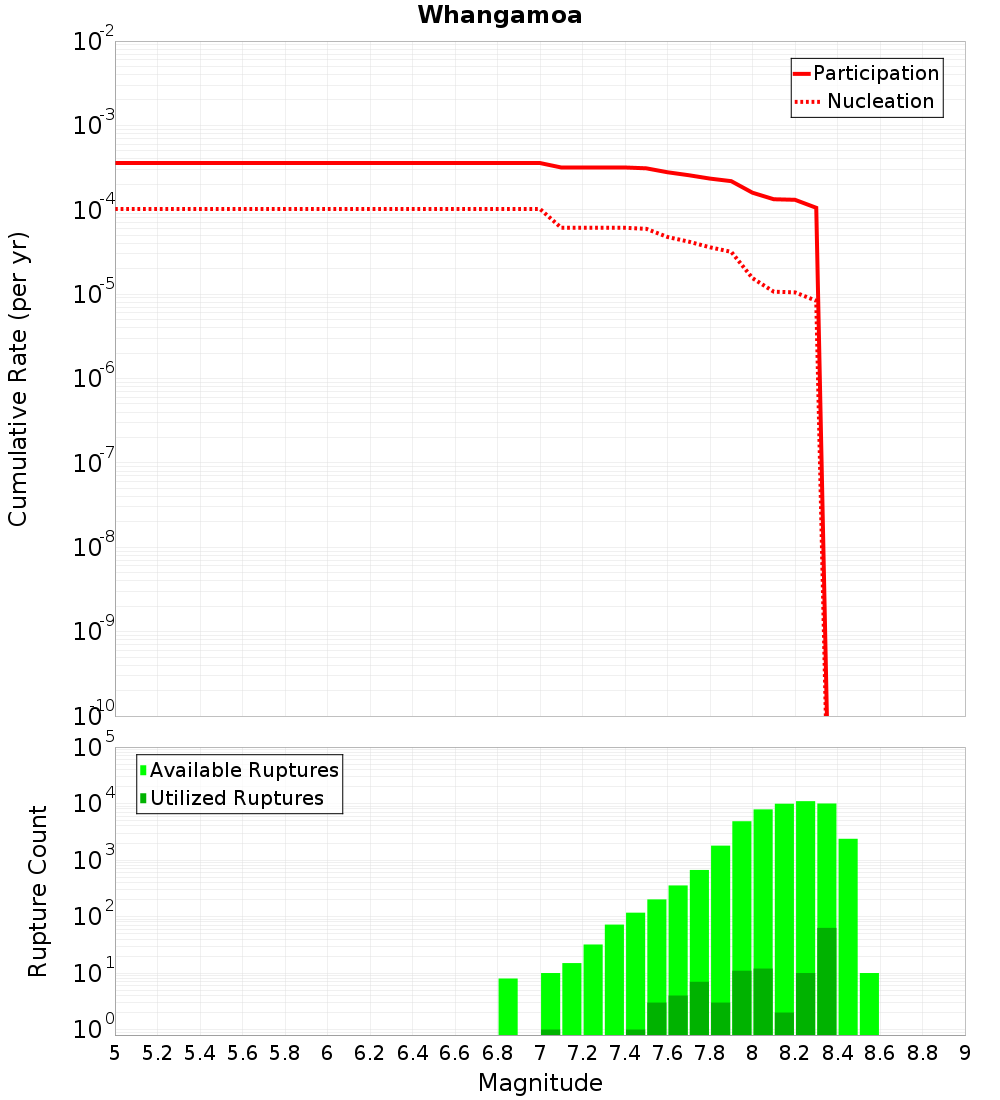

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alpine: Springs Junction to Tophouse, 0 km away
Wairau, 0 km away
Totara Saddle, 0.19 km away
Kenepuru, 0.43 km away
Waimea Offshore, 0.81 km away
Flaxmore - Waimea - Tahunanui, 2.28 km away
Queen Charlotte, 3.21 km away
Waihopai, 13.04 km away
Surville, 13.9 km away
Tutaki, 14.85 km away

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjIuMGRrN3JH
Connected?	true
Directly Connected?	true
Co-rupture Count	47,509
Co-rupture Rate	1.7633298E-4

Wairau, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjIuMGRrN3JH
Connected?	true
Directly Connected?	true
Co-rupture Count	5,287
Co-rupture Rate	9.670499E-6

Totara Saddle, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjIuMGRrN3JH
Connected?	true
Directly Connected?	true
Co-rupture Count	5,944
Co-rupture Rate	9.983526E-5

Kenepuru, 0.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjIuMGRrN3JH
Connected?	true
Directly Connected?	true
Co-rupture Count	5,907
Co-rupture Rate	1.5218361E-4

Waimea Offshore, 0.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjIuMGRrN3JH
Connected?	true
Directly Connected?	true
Co-rupture Count	13,044
Co-rupture Rate	8.564496E-5

Flaxmore - Waimea - Tahunanui, 2.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjIuMGRrN3JH
Connected?	true
Directly Connected?	true
Co-rupture Count	5,700
Co-rupture Rate	8.825251E-5

Queen Charlotte, 3.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjIuMGRrN3JH
Connected?	true
Directly Connected?	true
Co-rupture Count	5,517
Co-rupture Rate	9.4593684E-5

Waihopai, 13.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjIuMGRrN3JH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Surville, 13.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjIuMGRrN3JH
Connected?	true
Directly Connected?	true
Co-rupture Count	3,162
Co-rupture Rate	2.8846322E-5

Tutaki, 14.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjIuMGRrN3JH
Connected?	true
Directly Connected?	false
Co-rupture Count	9
Co-rupture Rate	4.5167476E-6
