Keepa Details
| Property | Value |
|---|---|
| Rupture Count | 5,294 |
| Ruptures Above Sect Min Mag | 5,292 |
| Ruptures w/ Nonzero Rates | 33 |
| Magnitude Range | [6.52, 8.35] |
| Length Range | [11, 645] km |
| Total Rate | 1.1097538E-4 /yr |
| Multi-Fault Rate | 1.1097538E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 71 |
Table Of Contents

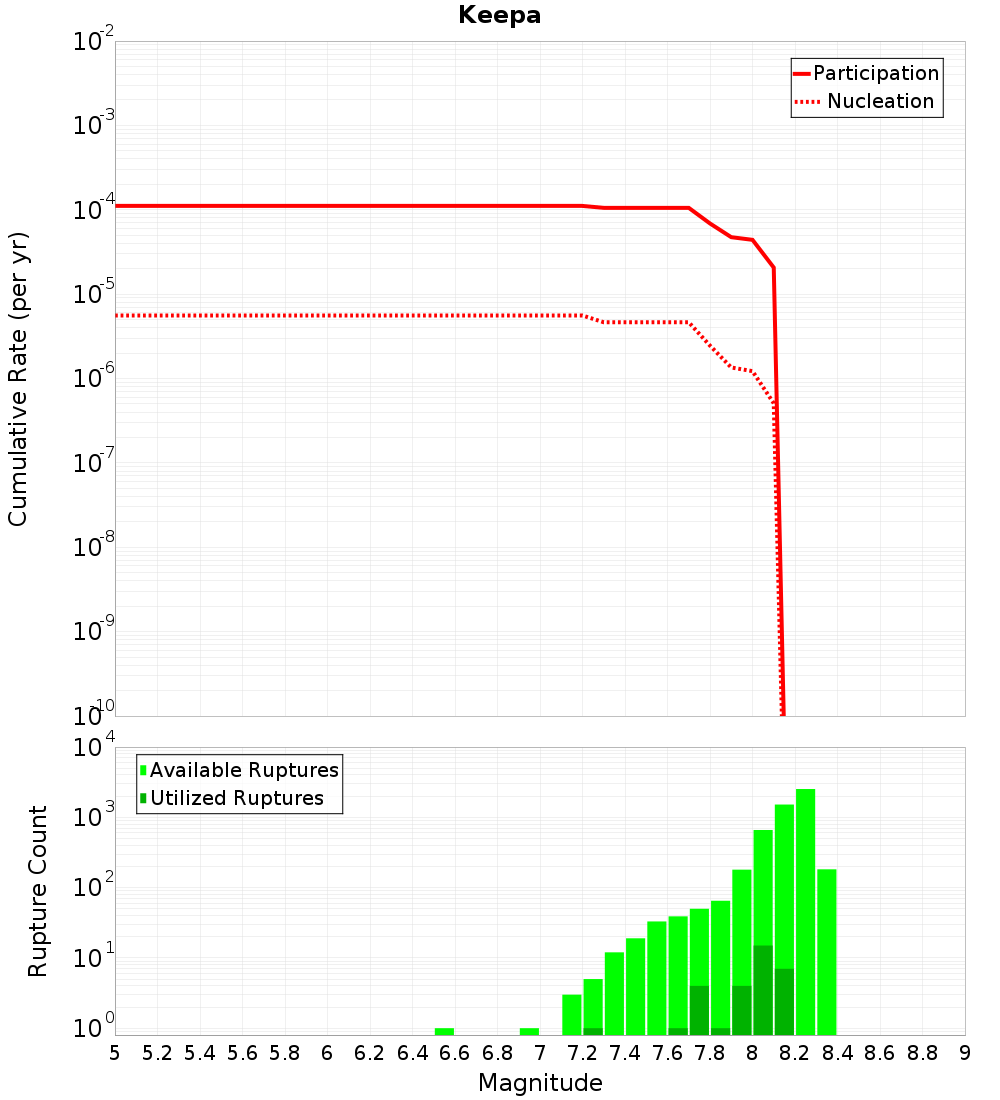

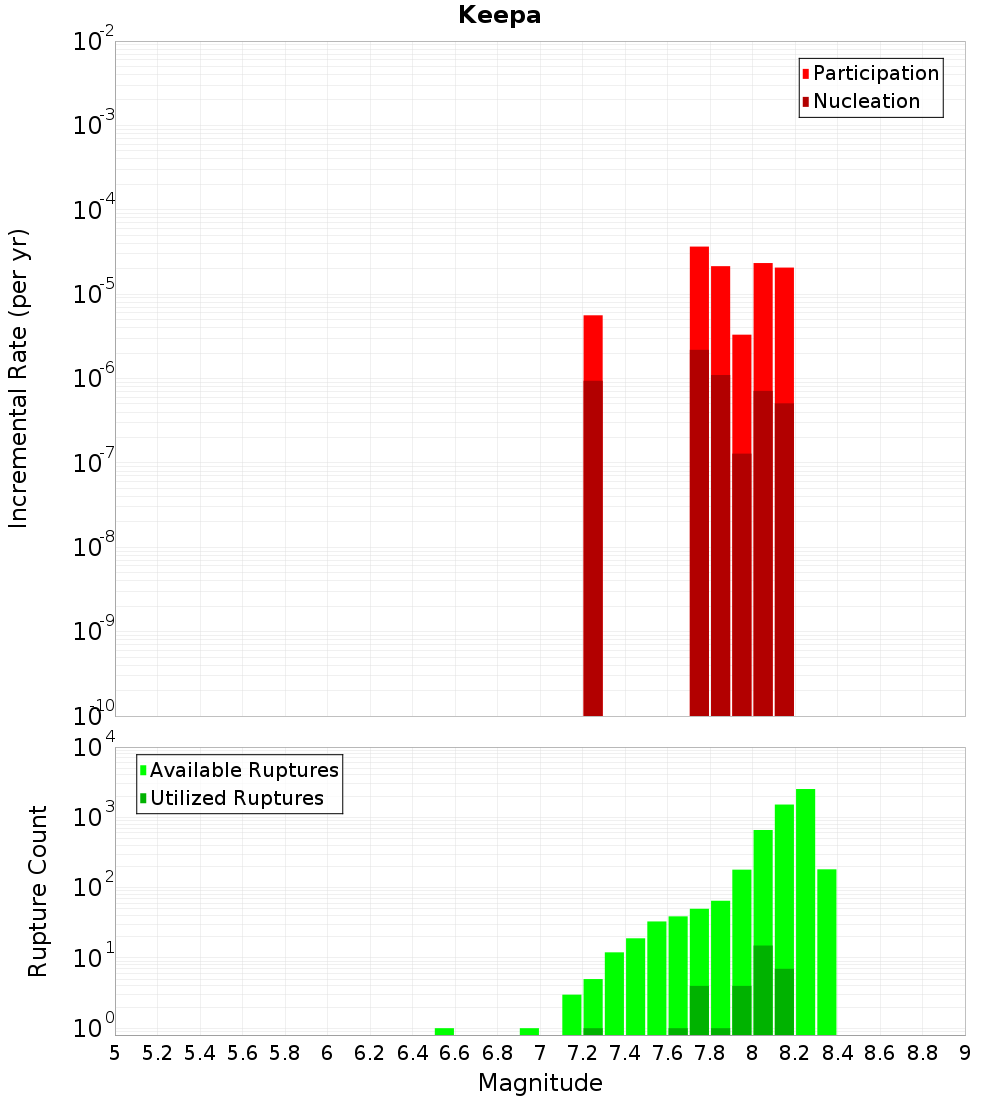

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

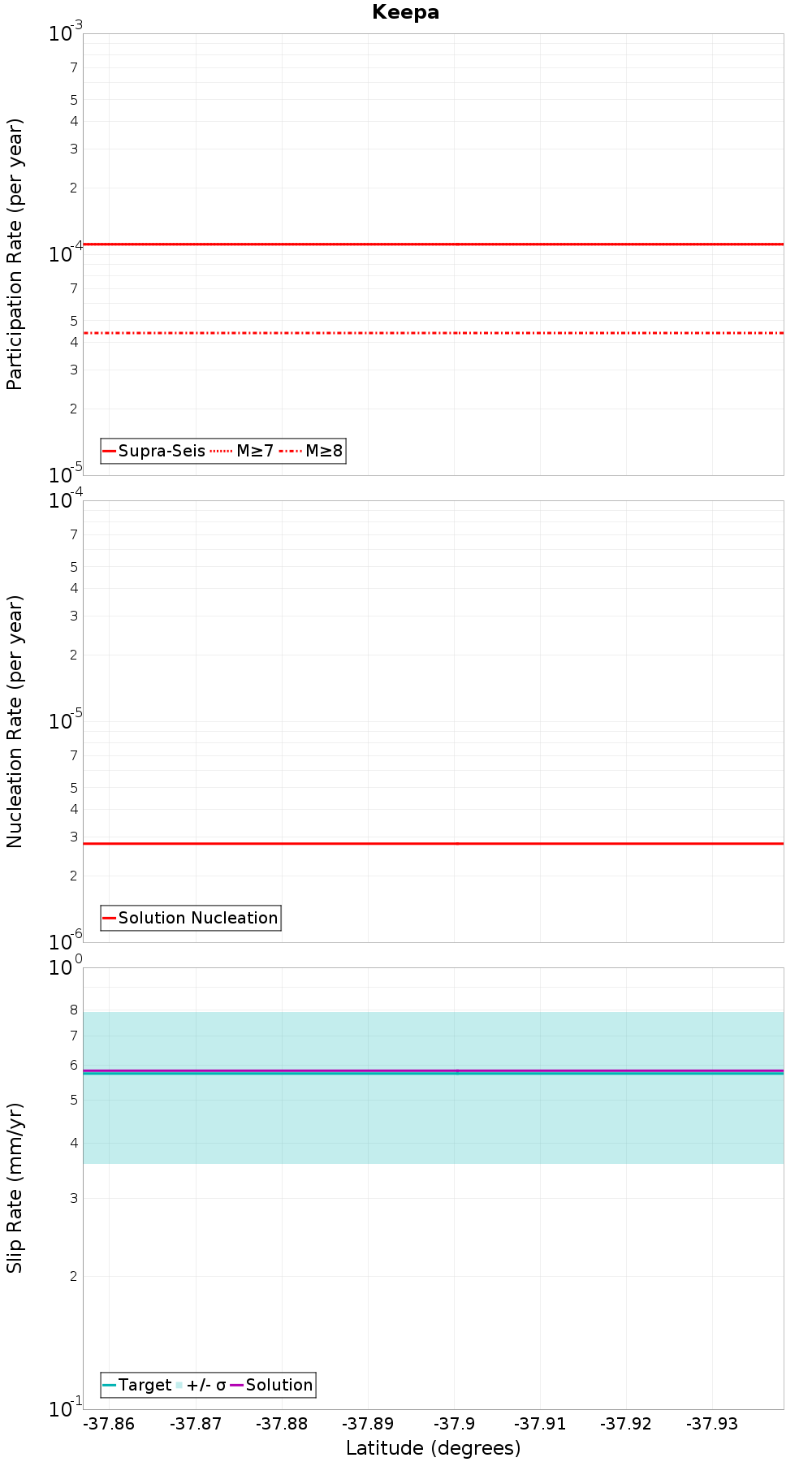

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Whakatane: North, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMENkbzg1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
White Island 1, 0.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMENkbzg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2,717 |
| Co-rupture Rate | 7.01322E-5 |
Matata, 0.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMENkbzg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5,016 |
| Co-rupture Rate | 1.1097538E-4 |
Otakiri, 2.92 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMENkbzg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,041 |
| Co-rupture Rate | 1.888191E-5 |
Edgecumbe Coastal, 3.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMENkbzg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 507 |
| Co-rupture Rate | 9.616696E-6 |
Rangitaiki 1, 4.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMENkbzg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 376 |
| Co-rupture Rate | 3.244447E-5 |
Rangitaiki 2, 7.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMENkbzg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 20 |
| Co-rupture Rate | 0.0 |
Edgecumbe 1987, 8.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMENkbzg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 809 |
| Co-rupture Rate | 9.616696E-6 |
Waimana: North, 9.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMENkbzg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5,105 |
| Co-rupture Rate | 1.0536292E-4 |
Waimanawa - Waikaremoana, 10.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMENkbzg1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Braemar, 10.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMENkbzg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 601 |
| Co-rupture Rate | 2.4494375E-5 |
Waiotahi: North, 11.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMENkbzg1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 30 |
| Co-rupture Rate | 4.5564917E-5 |
