Hopkins Details

Property	Value
Rupture Count	52,969
Ruptures Above Sect Min Mag	52,967
Ruptures w/ Nonzero Rates	388
Magnitude Range	[7.09, 8.66]
Length Range	[24, 856] km
Total Rate	2.8674857E-4 /yr
Multi-Fault Rate	2.8674857E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	172

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

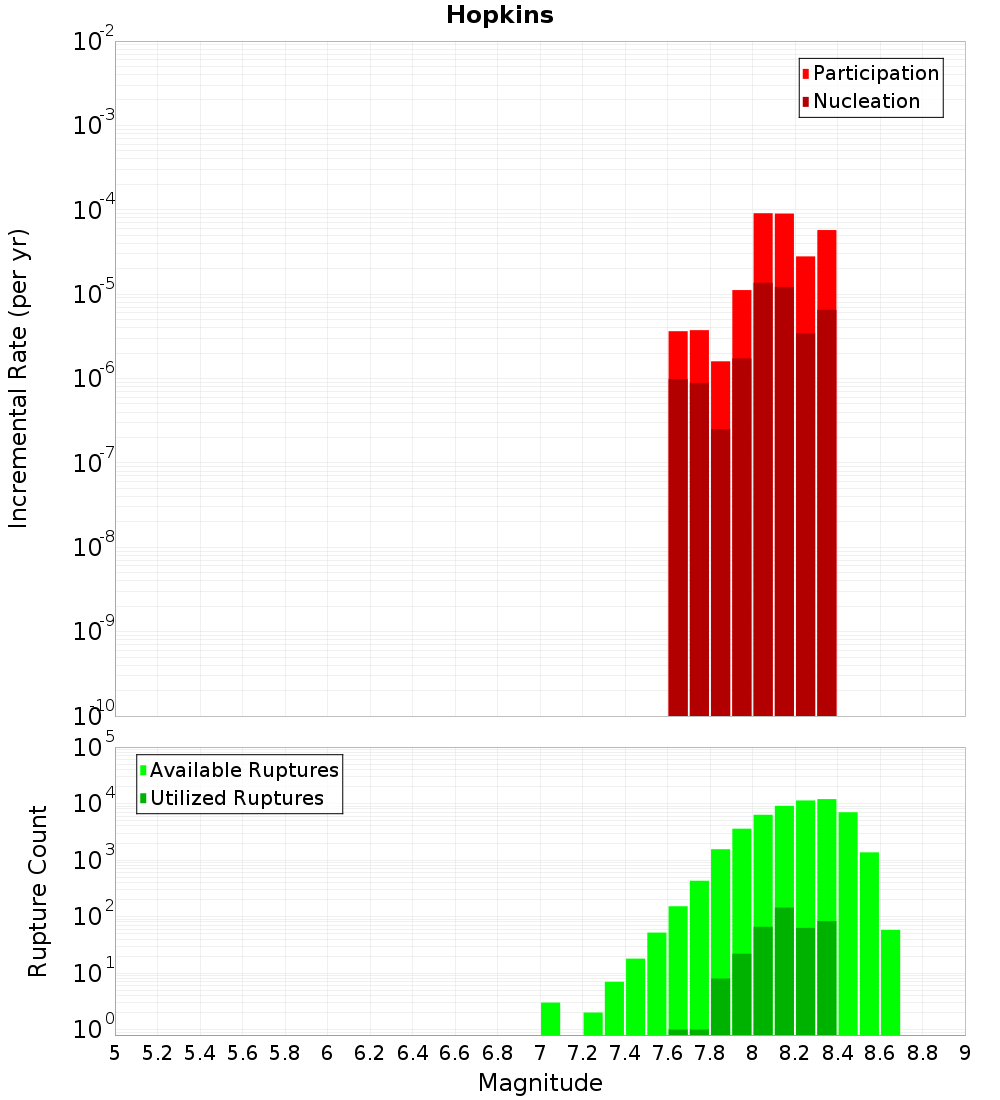

Magnitude-Frequency Distribution

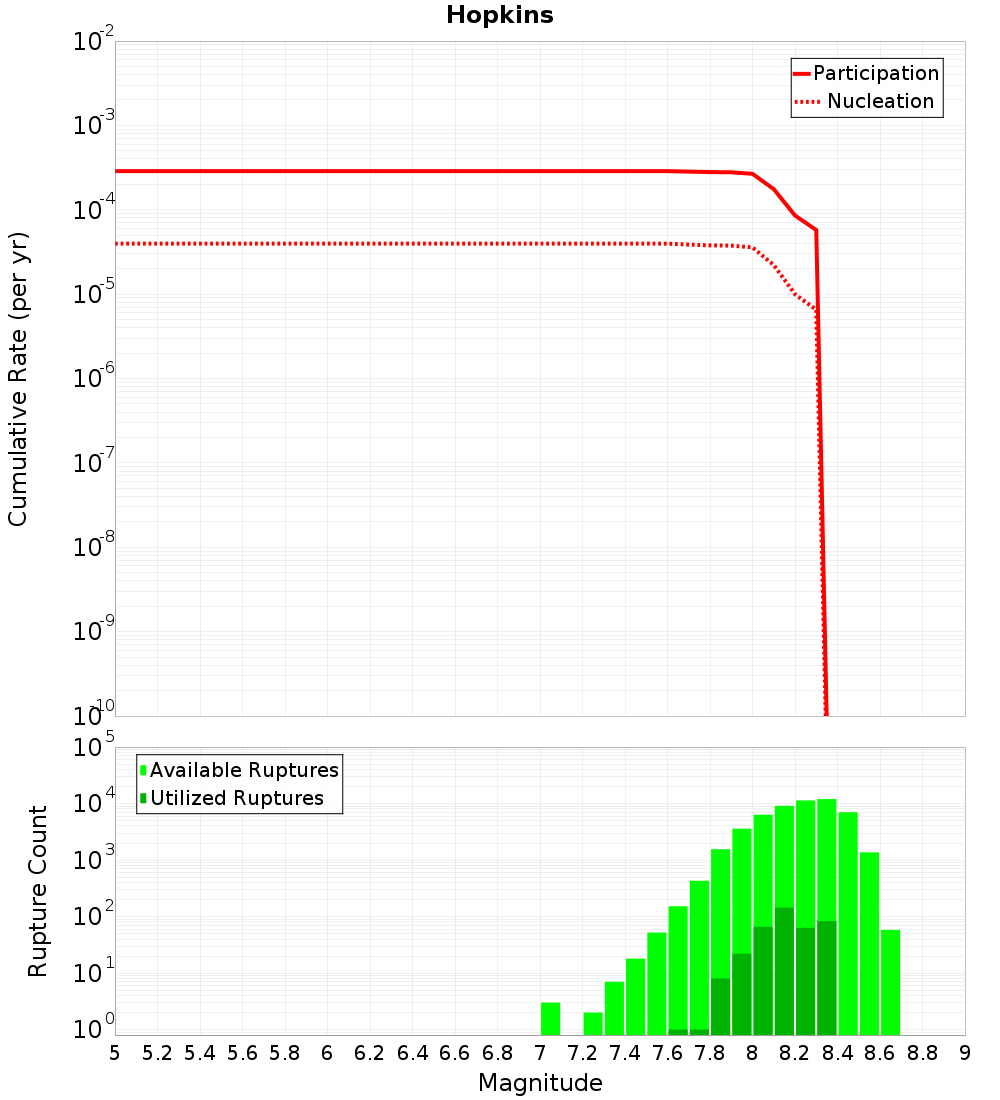

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Great Groove, 0.18 km away
Landsborough 2, 1.13 km away
Dingle, 1.8 km away
Barrier Range, 1.82 km away
Wanaka, 1.91 km away
Huxley, 3.39 km away
Ostler North, 4.44 km away
Alpine: Jacksons to Kaniere, 5.86 km away
Hunter Valley, 7.71 km away
Karangarua, 8.27 km away
McKerrow - Douglas Duplex, 8.79 km away
Liebig North, 12.8 km away

Great Groove, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	true
Directly Connected?	true
Co-rupture Count	6,102
Co-rupture Rate	1.5053268E-5

Landsborough 2, 1.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	true
Directly Connected?	false
Co-rupture Count	2,775
Co-rupture Rate	1.1771355E-6

Dingle, 1.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	true
Directly Connected?	true
Co-rupture Count	23,128
Co-rupture Rate	5.3345262E-5

Barrier Range, 1.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	true
Directly Connected?	true
Co-rupture Count	5,316
Co-rupture Rate	1.1002126E-5

Wanaka, 1.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	true
Directly Connected?	true
Co-rupture Count	24,002
Co-rupture Rate	5.947845E-5

Huxley, 3.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	true
Directly Connected?	true
Co-rupture Count	9,570
Co-rupture Rate	8.475893E-5

Ostler North, 4.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: Jacksons to Kaniere, 5.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	true
Directly Connected?	true
Co-rupture Count	36,877
Co-rupture Rate	2.4482427E-4

Hunter Valley, 7.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	true
Directly Connected?	true
Co-rupture Count	6,689
Co-rupture Rate	1.4643425E-4

Karangarua, 8.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	true
Directly Connected?	false
Co-rupture Count	3,084
Co-rupture Rate	1.4638059E-5

McKerrow - Douglas Duplex, 8.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	true
Directly Connected?	false
Co-rupture Count	6,371
Co-rupture Rate	4.025744E-6

Liebig North, 12.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	true
Directly Connected?	false
Co-rupture Count	207
Co-rupture Rate	0.0
