Nevis Details

Property	Value
Rupture Count	5,333
Ruptures Above Sect Min Mag	5,332
Ruptures w/ Nonzero Rates	105
Magnitude Range	[7.34, 8.63]
Length Range	[33, 849] km
Total Rate	2.6358268E-4 /yr
Multi-Fault Rate	1.4921185E-4 /yr (56.61%)
Directly-Connected Faults	4
All Co-Rupturing Faults	79

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

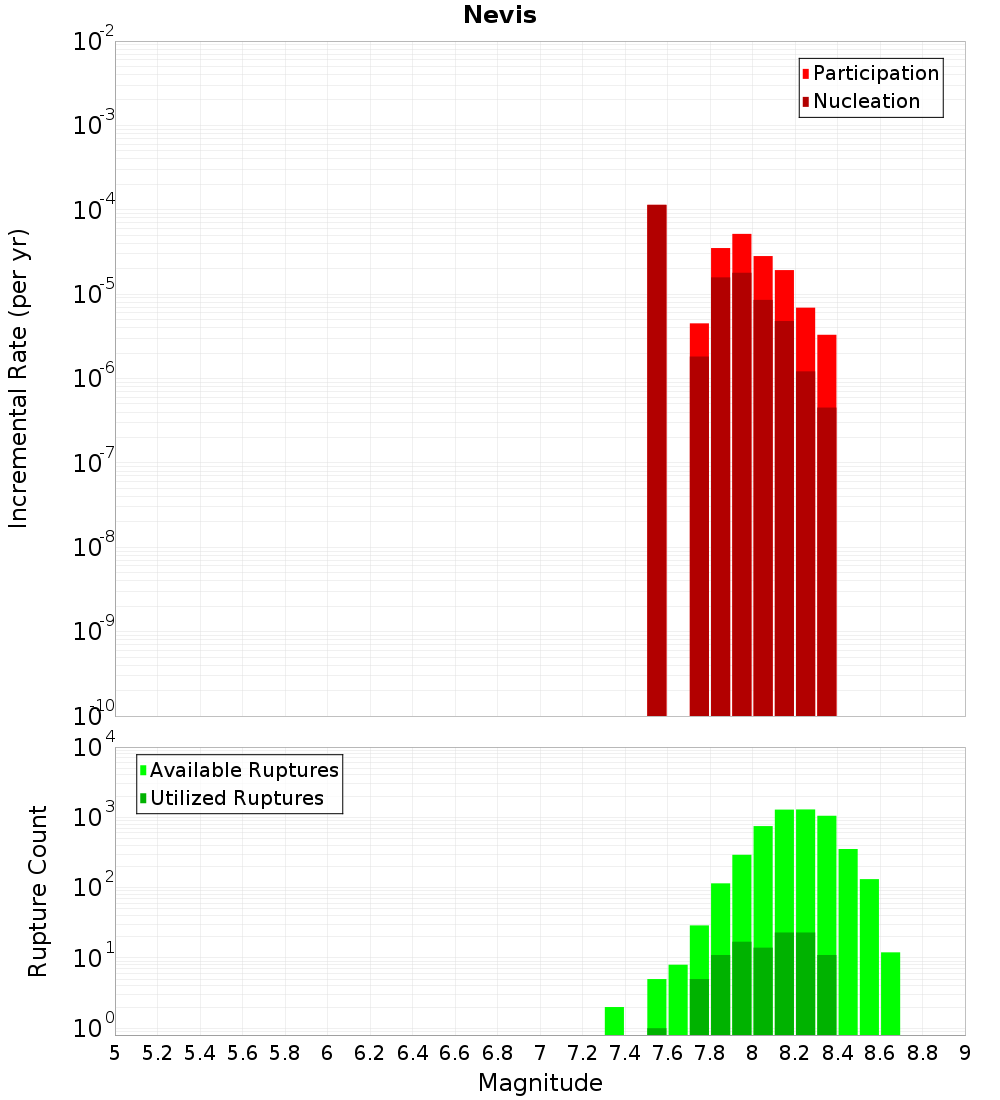

Magnitude-Frequency Distribution

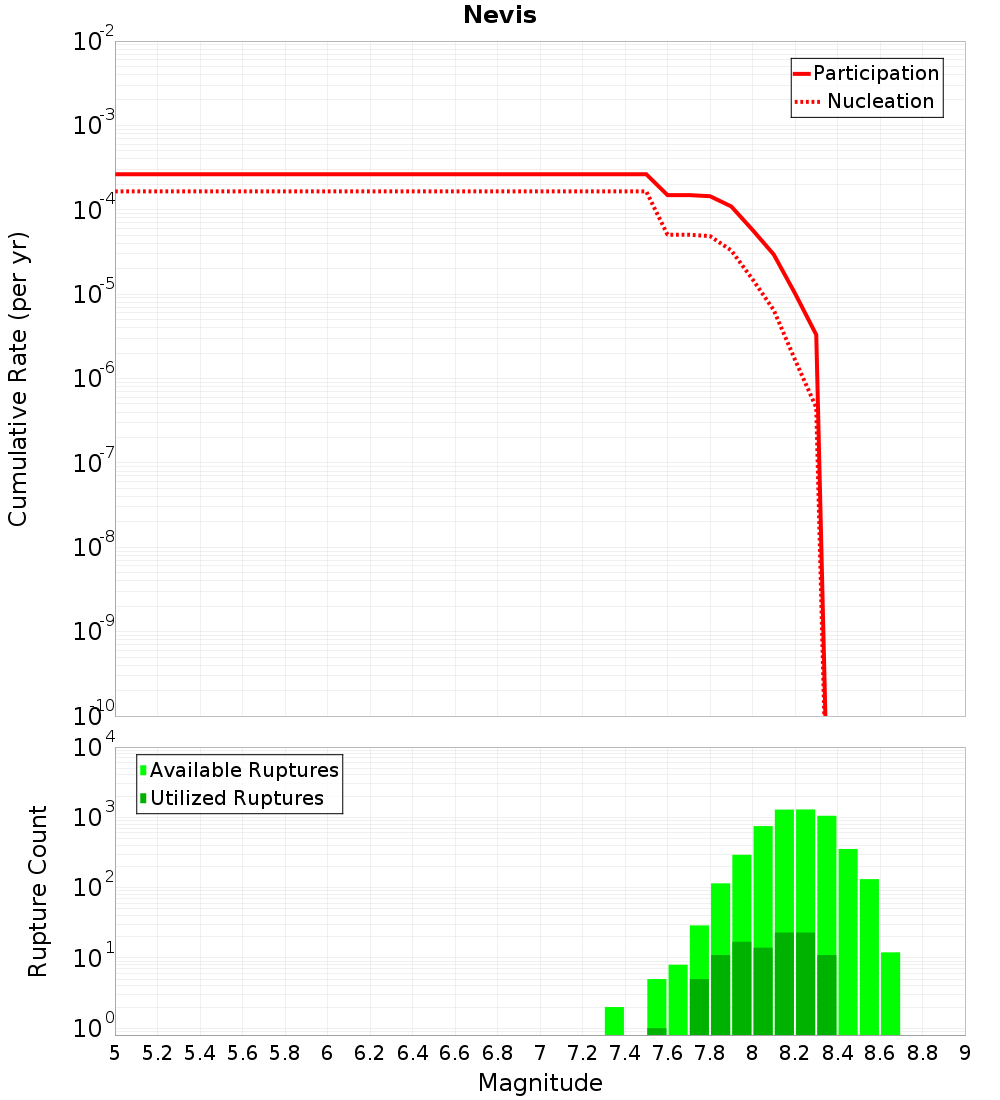

Incremental	Cumulative

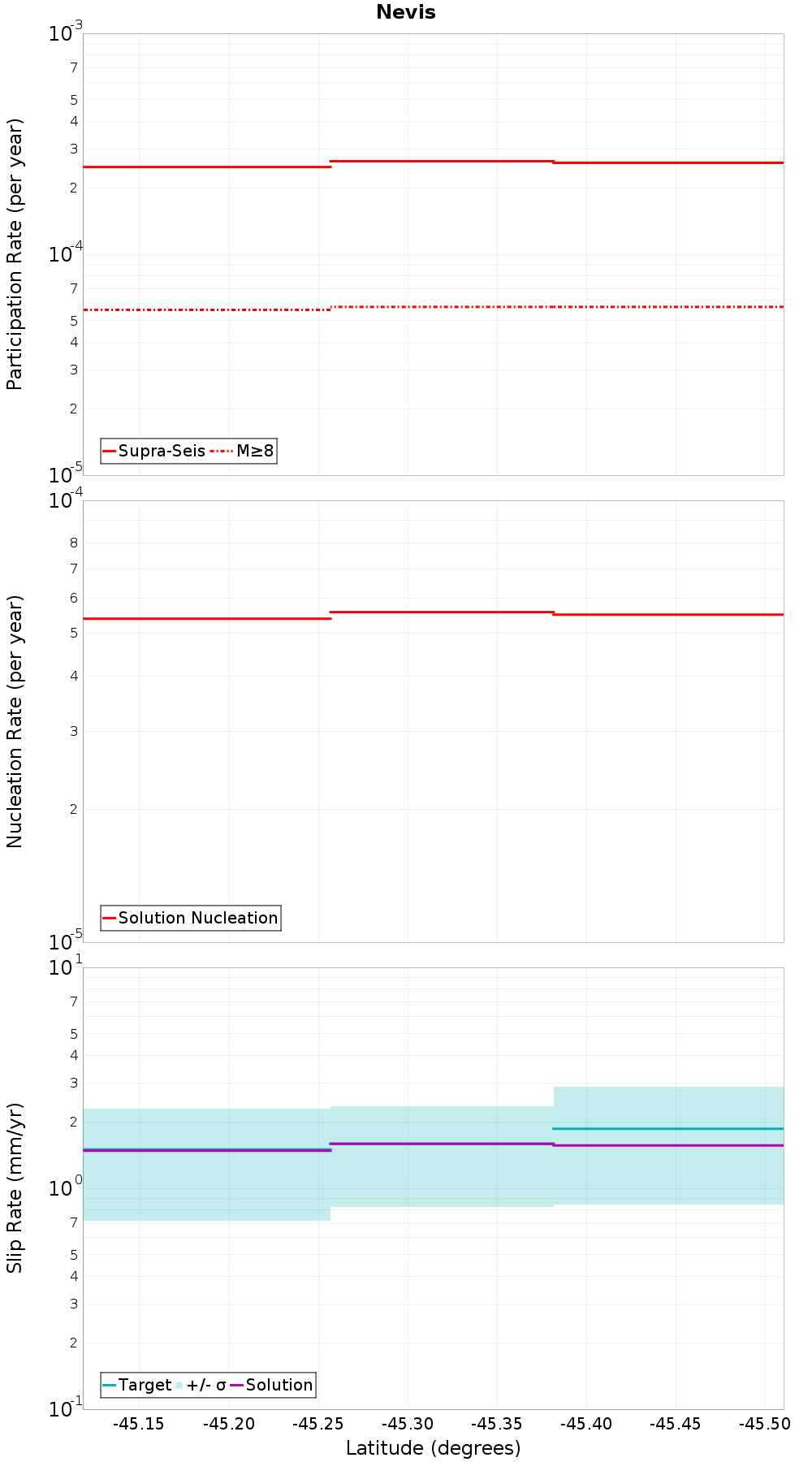

Along-Strike Values

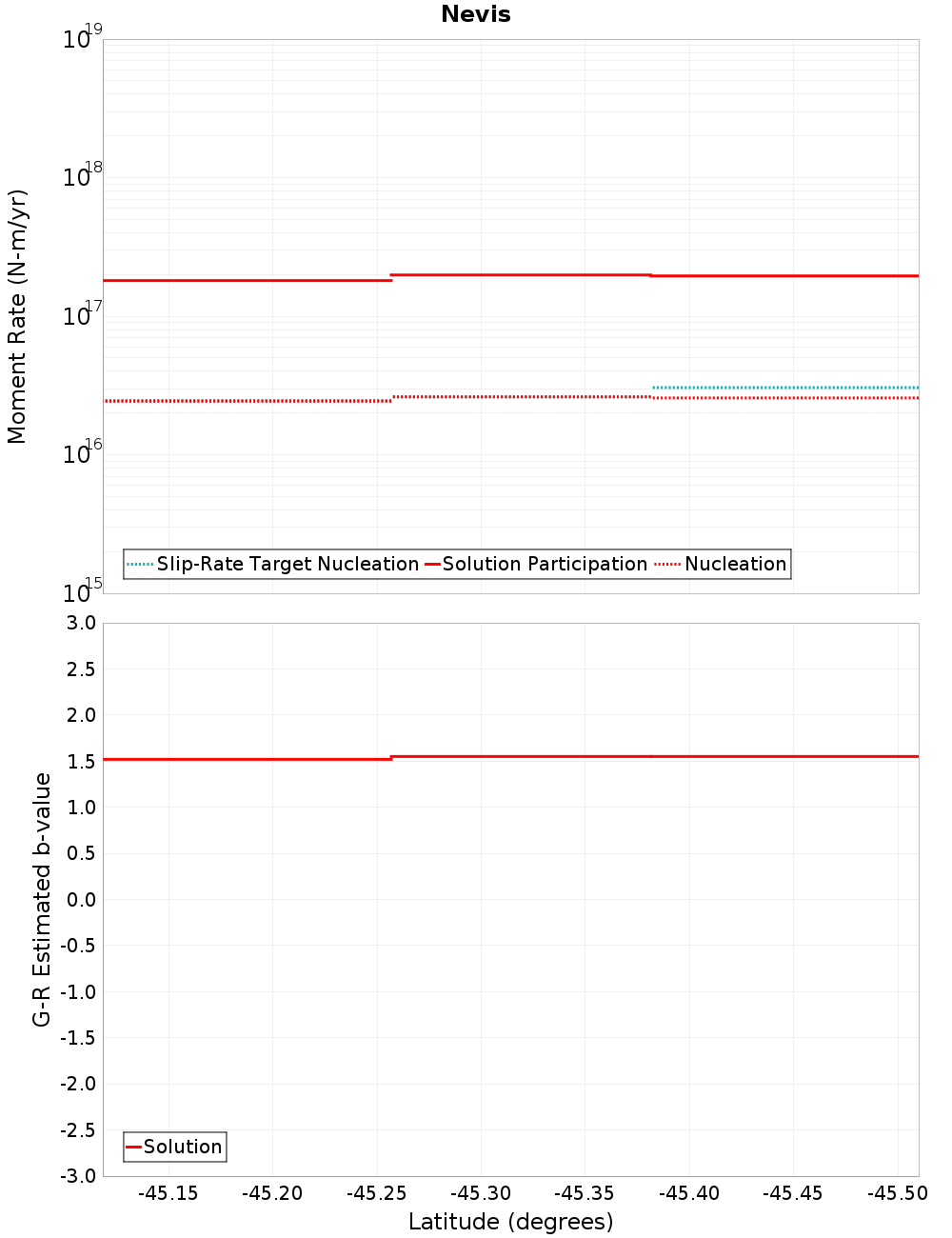

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Roaring Lion, 0.43 km away
Mid Dome, 1.03 km away
NW Cardrona South, 1.08 km away
Moonlight South, 1.53 km away
Garvie, 6.28 km away
Roaring Meg, 6.29 km away
West Wakatipu, 7.56 km away
Pisa, 11.08 km away
Acton, 14.41 km away
Old Man, 14.73 km away

Roaring Lion, 0.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	true
Directly Connected?	true
Co-rupture Count	2,862
Co-rupture Rate	9.547601E-6

Mid Dome, 1.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	true
Directly Connected?	true
Co-rupture Count	2,147
Co-rupture Rate	5.9997426E-5

NW Cardrona South, 1.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	true
Directly Connected?	true
Co-rupture Count	2,159
Co-rupture Rate	1.070612E-4

Moonlight South, 1.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	true
Directly Connected?	true
Co-rupture Count	2,061
Co-rupture Rate	3.1363572E-5

Garvie, 6.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Roaring Meg, 6.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	true
Directly Connected?	false
Co-rupture Count	108
Co-rupture Rate	0.0

West Wakatipu, 7.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	true
Directly Connected?	false
Co-rupture Count	10
Co-rupture Rate	6.133488E-6

Pisa, 11.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	true
Directly Connected?	false
Co-rupture Count	2,921
Co-rupture Rate	4.9096383E-5

Acton, 14.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	true
Directly Connected?	false
Co-rupture Count	10
Co-rupture Rate	0.0

Old Man, 14.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
