Ruby Bay - Moutere Details

Property	Value
Rupture Count	11,492
Ruptures Above Sect Min Mag	11,490
Ruptures w/ Nonzero Rates	135
Magnitude Range	[7.12, 8.70]
Length Range	[24, 982] km
Total Rate	2.5178664E-4 /yr
Multi-Fault Rate	2.1068814E-4 /yr (83.68%)
Directly-Connected Faults	3
All Co-Rupturing Faults	84

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

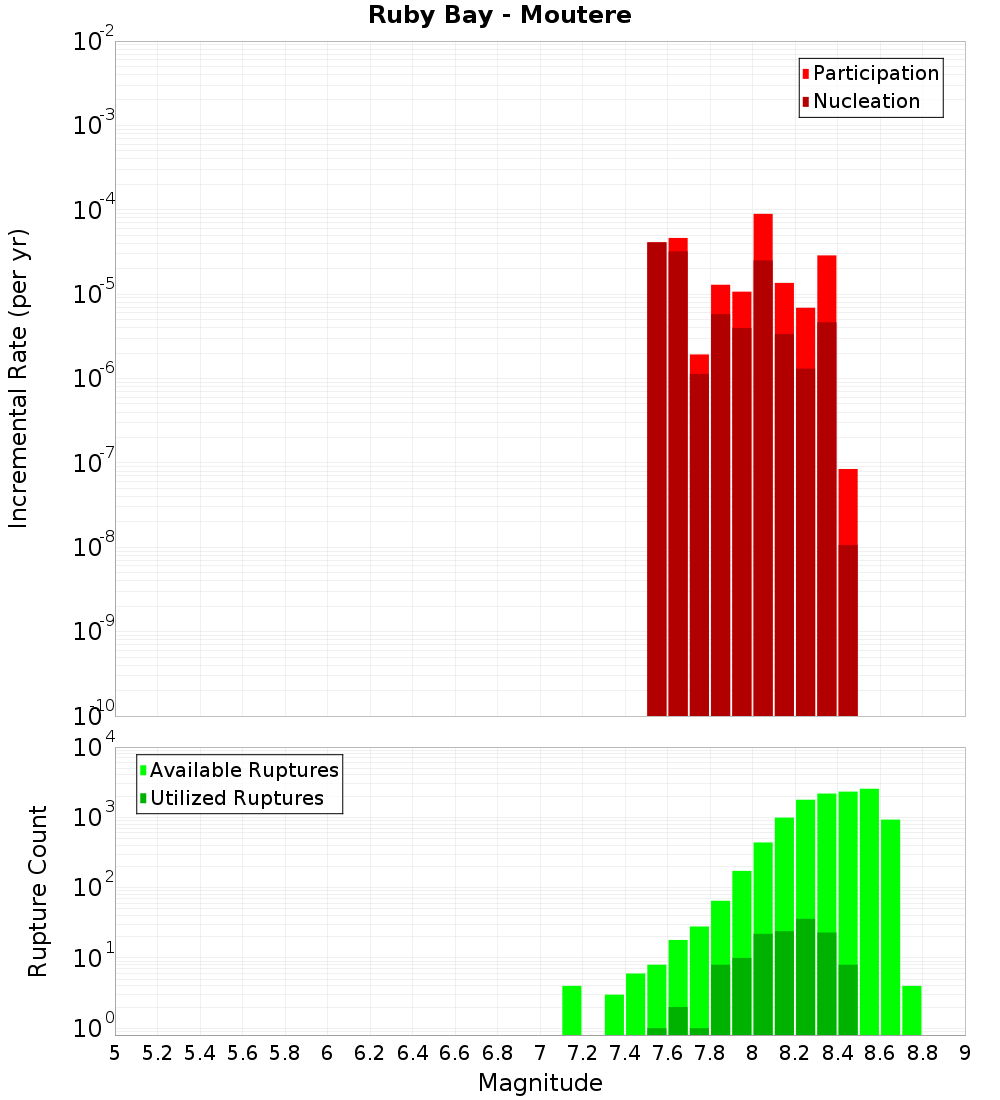

Magnitude-Frequency Distribution

Incremental	Cumulative

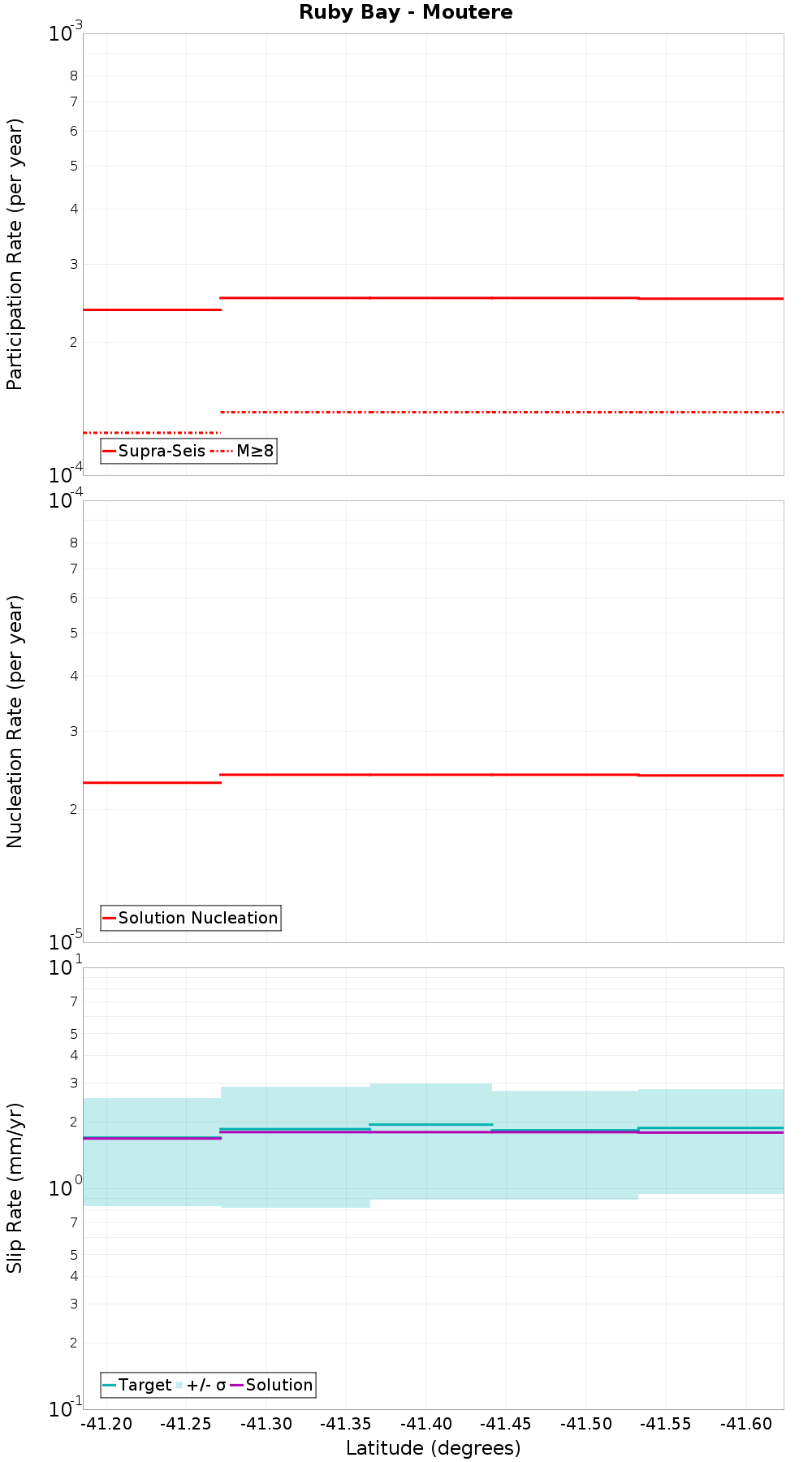

Along-Strike Values

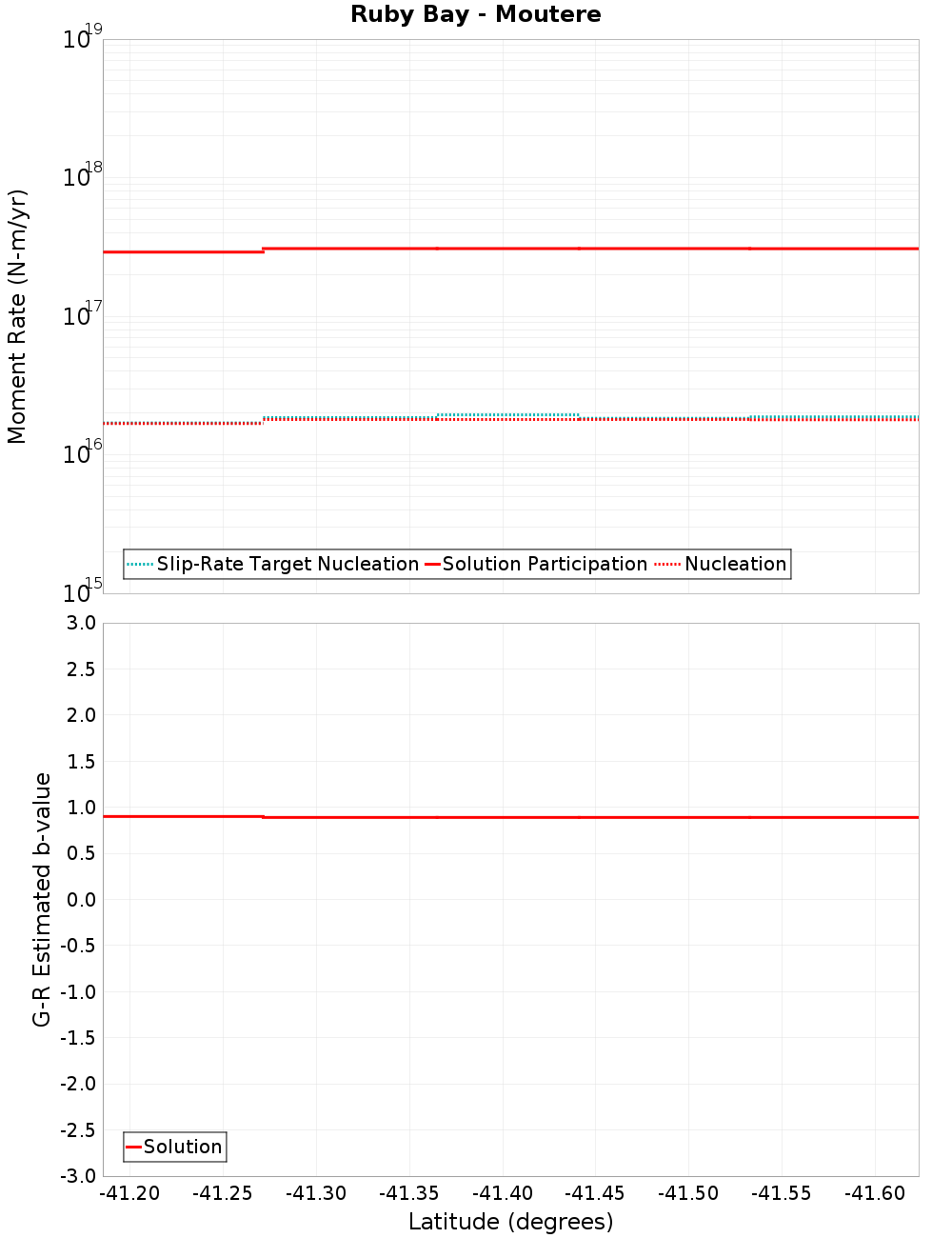

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Surville, 0.05 km away
Tutaki, 3.45 km away
Flaxmore - Waimea - Tahunanui, 9.4 km away
Totara Saddle, 9.52 km away
Wairau, 14.97 km away

Surville, 0.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	true
Directly Connected?	true
Co-rupture Count	7,549
Co-rupture Rate	2.6764297E-5

Tutaki, 3.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	true
Directly Connected?	true
Co-rupture Count	11,243
Co-rupture Rate	1.8884694E-4

Flaxmore - Waimea - Tahunanui, 9.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	true
Directly Connected?	true
Co-rupture Count	179
Co-rupture Rate	1.4523113E-5

Totara Saddle, 9.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairau, 14.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
