The Humps Details

PropertyValue
Rupture Count9,498
Ruptures Above Sect Min Mag9,497
Ruptures w/ Nonzero Rates12
Magnitude Range[7.04, 8.57]
Length Range[20, 836] km
Total Rate1.7857806E-4 /yr
Multi-Fault Rate1.10271794E-4 /yr (61.75%)
Directly-Connected Faults6
All Co-Rupturing Faults114

Table Of Contents

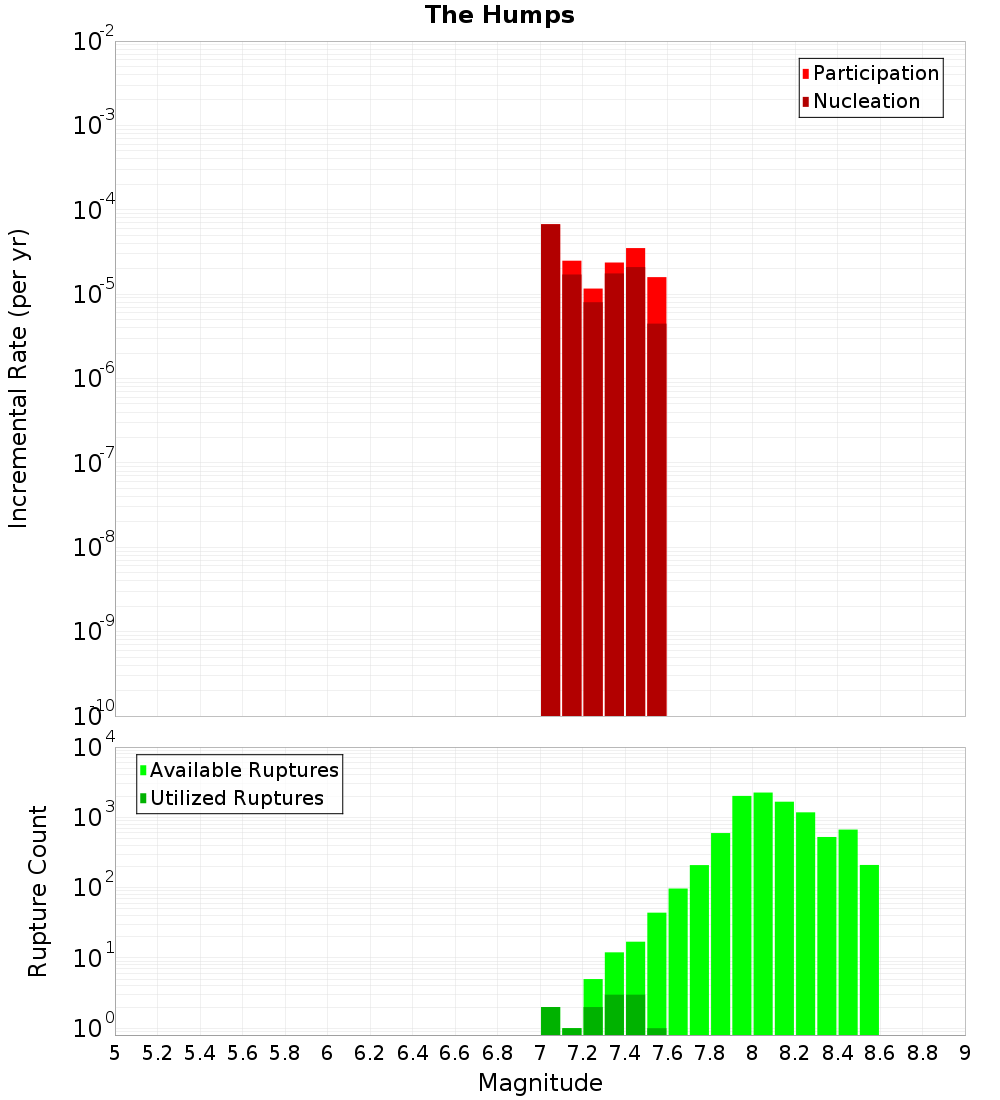

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

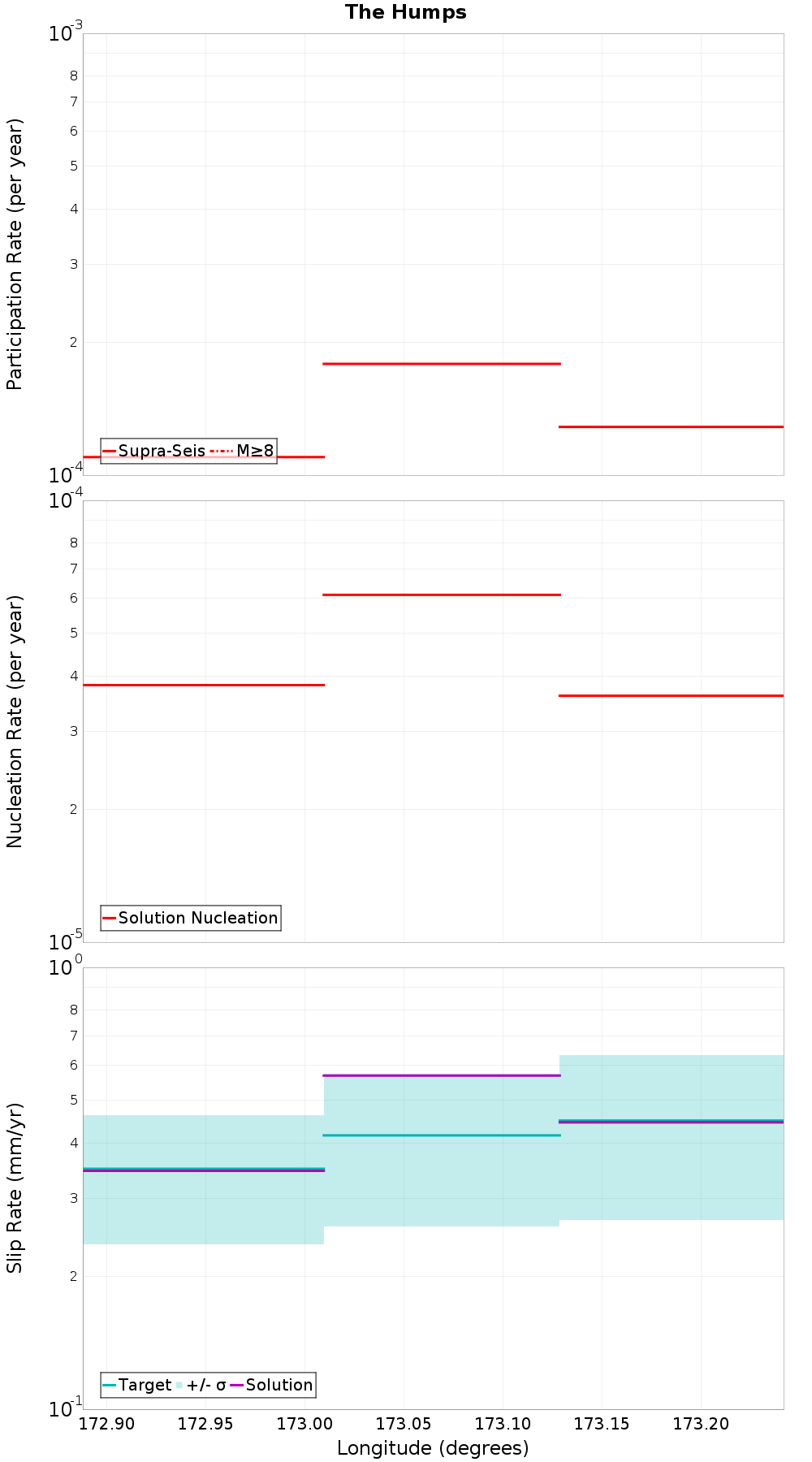

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kaiwara North, 0.19 km away
Hundalee, 0.25 km away
Leader: South, 0.28 km away
Mt Culverden, 1.72 km away
Leader: Central, 2.89 km away
Leonard Mound, 4.72 km away
Hope: Hamner SE, 7.7 km away
Lowry, 8.15 km away
Hanmer, 9.06 km away
Leader: North, 9.77 km away
Hope: Conway, 10.44 km away
Hope: Hamner SW, 10.45 km away
Hawkswood, 11.31 km away
StoneJug, 14.18 km away

Kaiwara North, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate0.0

Hundalee, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?true
Directly Connected?true
Co-rupture Count9,142
Co-rupture Rate6.193997E-5

Leader: South, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?true
Directly Connected?true
Co-rupture Count204
Co-rupture Rate4.833182E-5

Mt Culverden, 1.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?true
Directly Connected?true
Co-rupture Count8,980
Co-rupture Rate1.5903228E-5

Leader: Central, 2.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?true
Directly Connected?false
Co-rupture Count1,343
Co-rupture Rate0.0

Leonard Mound, 4.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?true
Directly Connected?true
Co-rupture Count163
Co-rupture Rate0.0

Hope: Hamner SE, 7.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lowry, 8.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?true
Directly Connected?false
Co-rupture Count119
Co-rupture Rate0.0

Hanmer, 9.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leader: North, 9.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?true
Directly Connected?false
Co-rupture Count608
Co-rupture Rate0.0

Hope: Conway, 10.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?true
Directly Connected?false
Co-rupture Count1,239
Co-rupture Rate0.0

Hope: Hamner SW, 10.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?true
Directly Connected?true
Co-rupture Count43
Co-rupture Rate1.816642E-5

Hawkswood, 11.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?true
Directly Connected?false
Co-rupture Count554
Co-rupture Rate3.2874083E-5

StoneJug, 14.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMFphZUE0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
