Leithfield - NCVI - NCVII Details

PropertyValue
Rupture Count556
Ruptures Above Sect Min Mag549
Ruptures w/ Nonzero Rates101
Magnitude Range[6.76, 7.88]
Length Range[17, 195] km
Total Rate2.9278614E-4 /yr
Multi-Fault Rate2.924547E-4 /yr (99.89%)
Directly-Connected Faults7
All Co-Rupturing Faults25

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

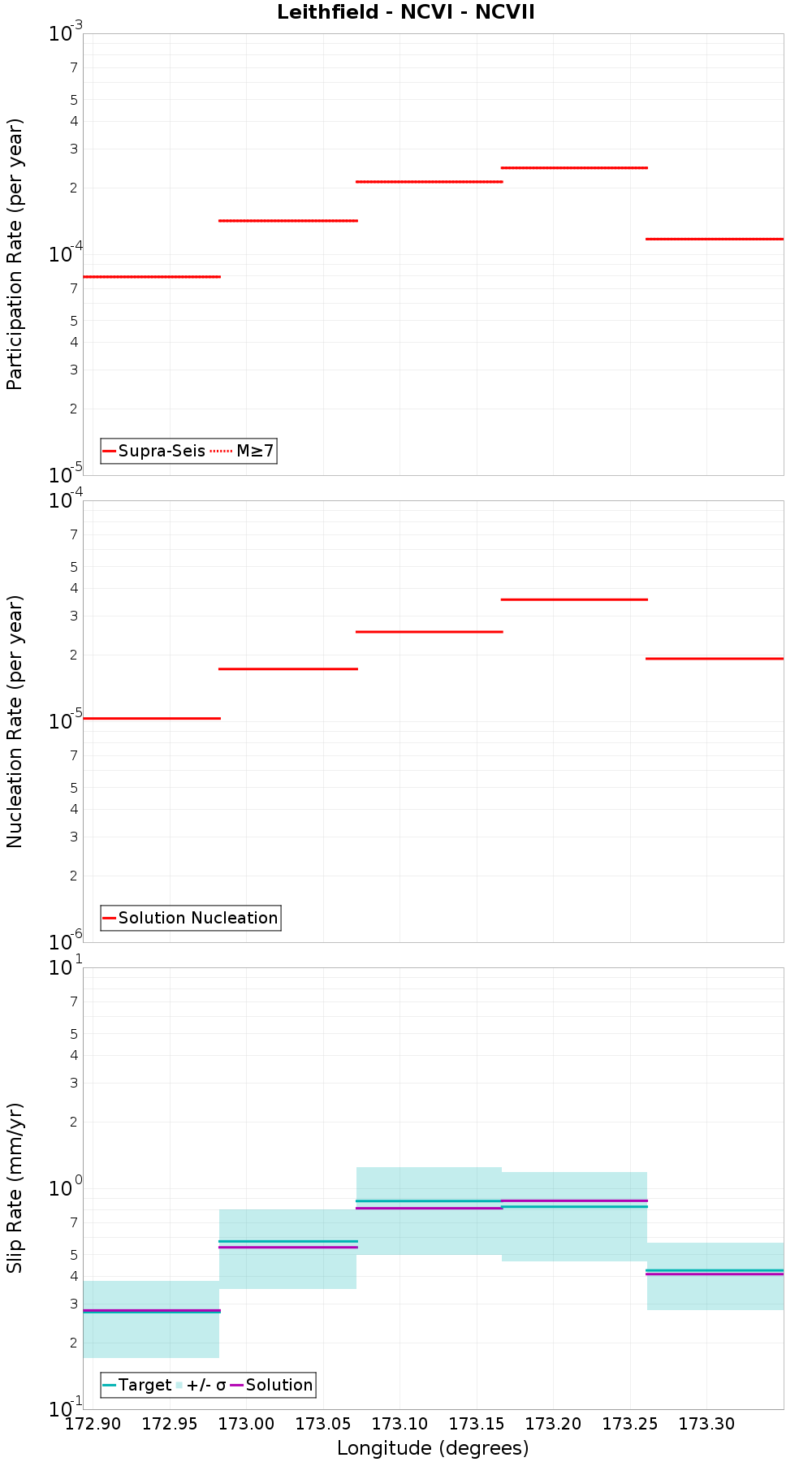

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
North Canterbury Shelf 2, 0.49 km away
North Canterbury Shelf 11, 1.13 km away
Motunau, 1.34 km away
Point Gibson, 3.66 km away
Waikuku, 4.07 km away
North Canterbury Shelf 4, 4.53 km away
AmberBlyth, 5.71 km away
Pegasus Bay, 7.81 km away
OmihiLwrHuru, 11.17 km away
Boby Stream, 14.97 km away

North Canterbury Shelf 2, 0.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMGhVMkxv
Connected?true
Directly Connected?true
Co-rupture Count80
Co-rupture Rate8.57626E-5

North Canterbury Shelf 11, 1.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMGhVMkxv
Connected?true
Directly Connected?true
Co-rupture Count66
Co-rupture Rate5.0699557E-5

Motunau, 1.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMGhVMkxv
Connected?true
Directly Connected?true
Co-rupture Count193
Co-rupture Rate1.0887462E-4

Point Gibson, 3.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMGhVMkxv
Connected?true
Directly Connected?true
Co-rupture Count319
Co-rupture Rate1.05389874E-4

Waikuku, 4.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMGhVMkxv
Connected?true
Directly Connected?true
Co-rupture Count221
Co-rupture Rate8.4701984E-5

North Canterbury Shelf 4, 4.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMGhVMkxv
Connected?true
Directly Connected?true
Co-rupture Count23
Co-rupture Rate7.637238E-6

AmberBlyth, 5.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMGhVMkxv
Connected?true
Directly Connected?false
Co-rupture Count167
Co-rupture Rate1.3844797E-5

Pegasus Bay, 7.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMGhVMkxv
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate2.0593372E-8

OmihiLwrHuru, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMGhVMkxv
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate2.1088697E-12

Boby Stream, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMGhVMkxv
Connected?true
Directly Connected?false
Co-rupture Count55
Co-rupture Rate9.197508E-6
