Te Whaiti South Details

Property	Value
Rupture Count	7,688
Ruptures Above Sect Min Mag	7,683
Ruptures w/ Nonzero Rates	163
Magnitude Range	[6.95, 8.61]
Length Range	[20, 854] km
Total Rate	3.3736433E-4 /yr
Multi-Fault Rate	2.8824323E-4 /yr (85.44%)
Directly-Connected Faults	7
All Co-Rupturing Faults	102

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

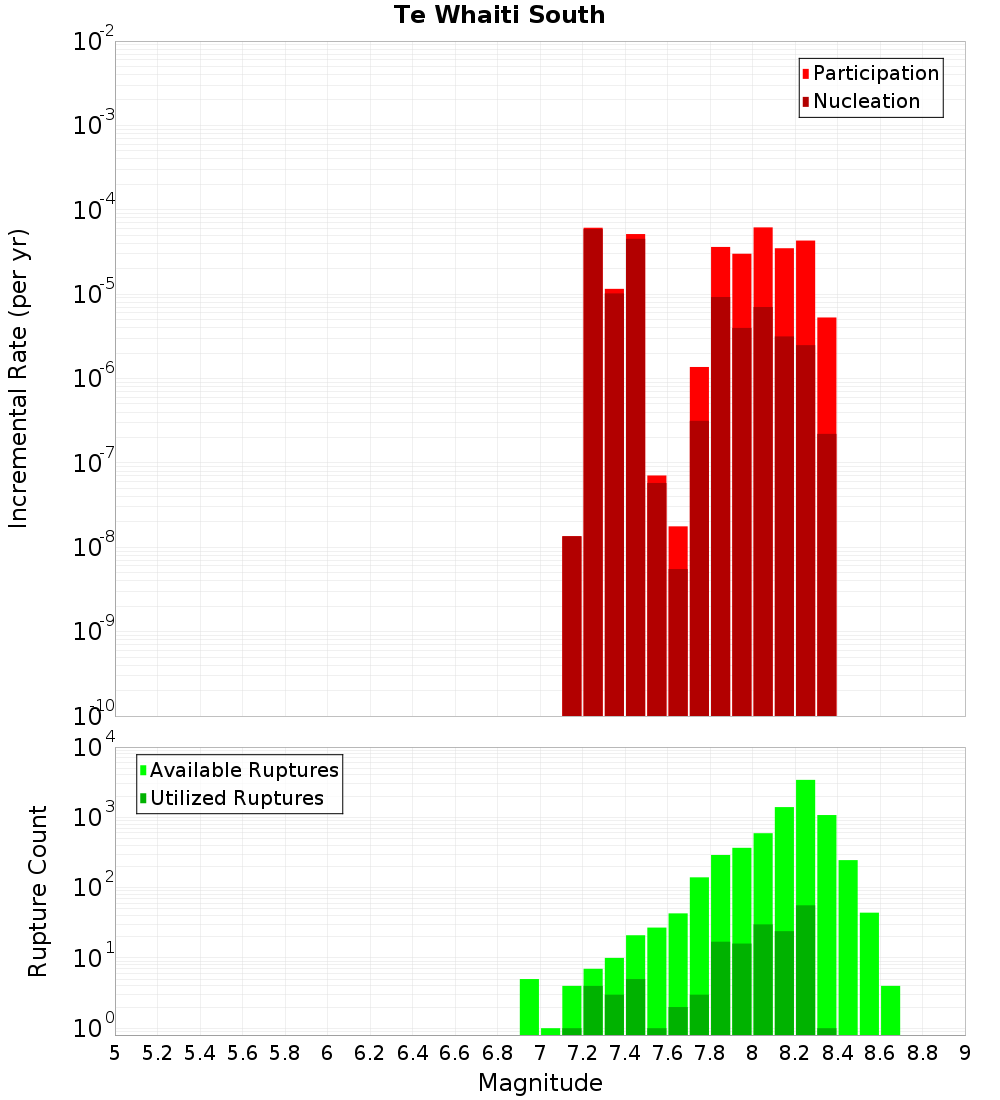

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

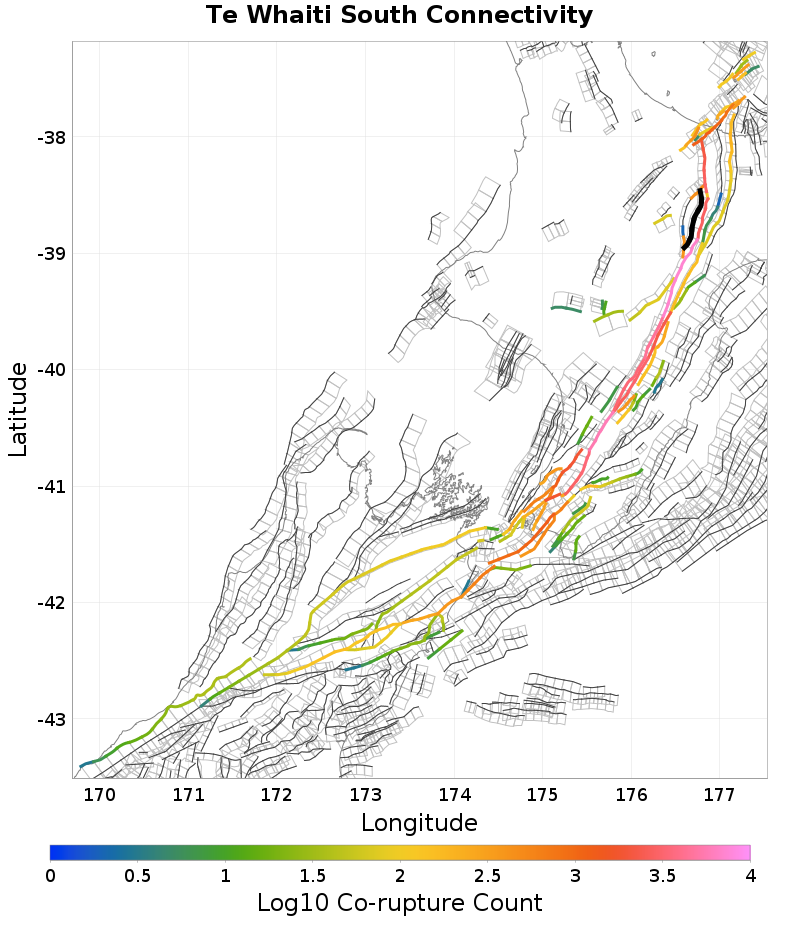

Connectivity

Nearby Sections

Fault Section
Te Whaiti North, 0 km away
Wheao: North, 0 km away
Wheao: South, 0.47 km away
Waiohau: South, 0.75 km away
Waiohau: North, 1.85 km away
Ruahine: North, 9.12 km away
Whakatane: South, 11.9 km away
Kaingaroa 1, 13.72 km away
Waimana: South, 14.59 km away

Te Whaiti North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMGhVMkxv
Connected?	true
Directly Connected?	true
Co-rupture Count	555
Co-rupture Rate	1.3079042E-4

Wheao: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMGhVMkxv
Connected?	true
Directly Connected?	true
Co-rupture Count	465
Co-rupture Rate	1.4877219E-15

Wheao: South, 0.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMGhVMkxv
Connected?	true
Directly Connected?	true
Co-rupture Count	413
Co-rupture Rate	1.8972592E-10

Waiohau: South, 0.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMGhVMkxv
Connected?	true
Directly Connected?	true
Co-rupture Count	6,780
Co-rupture Rate	1.8171797E-4

Waiohau: North, 1.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMGhVMkxv
Connected?	true
Directly Connected?	true
Co-rupture Count	2,927
Co-rupture Rate	7.725071E-5

Ruahine: North, 9.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMGhVMkxv
Connected?	true
Directly Connected?	false
Co-rupture Count	7,167
Co-rupture Rate	1.8171799E-4

Whakatane: South, 11.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMGhVMkxv
Connected?	true
Directly Connected?	true
Co-rupture Count	92
Co-rupture Rate	4.78357E-13

Kaingaroa 1, 13.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMGhVMkxv
Connected?	true
Directly Connected?	true
Co-rupture Count	68
Co-rupture Rate	7.753819E-5

Waimana: South, 14.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMjguMGhVMkxv
Connected?	true
Directly Connected?	false
Co-rupture Count	74
Co-rupture Rate	0.0
