Whakaari 4 Details

PropertyValue
Rupture Count5,803
Ruptures Above Sect Min Mag5,802
Ruptures w/ Nonzero Rates115
Magnitude Range[6.80, 8.45]
Length Range[18, 789] km
Total Rate1.6662215E-4 /yr
Multi-Fault Rate1.6662215E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults77

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

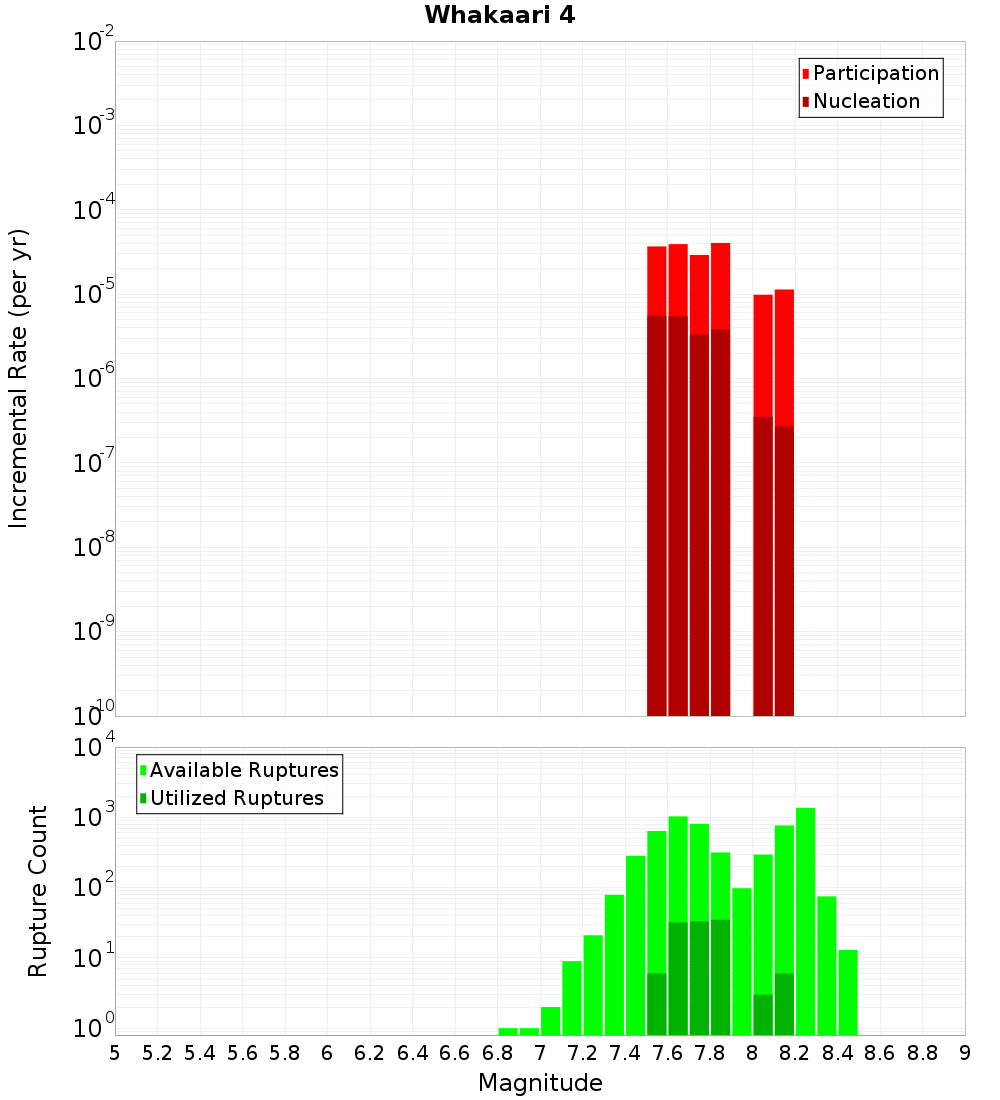

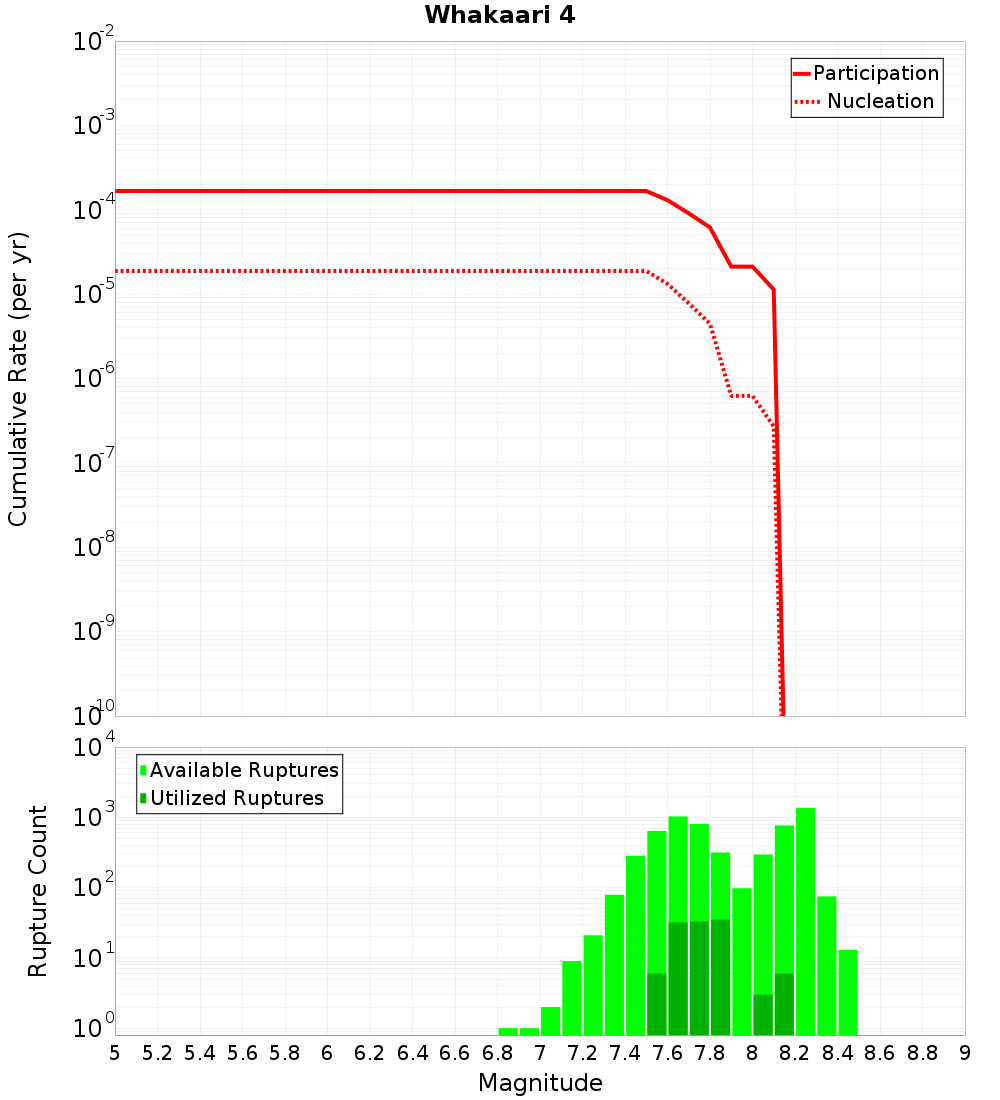

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

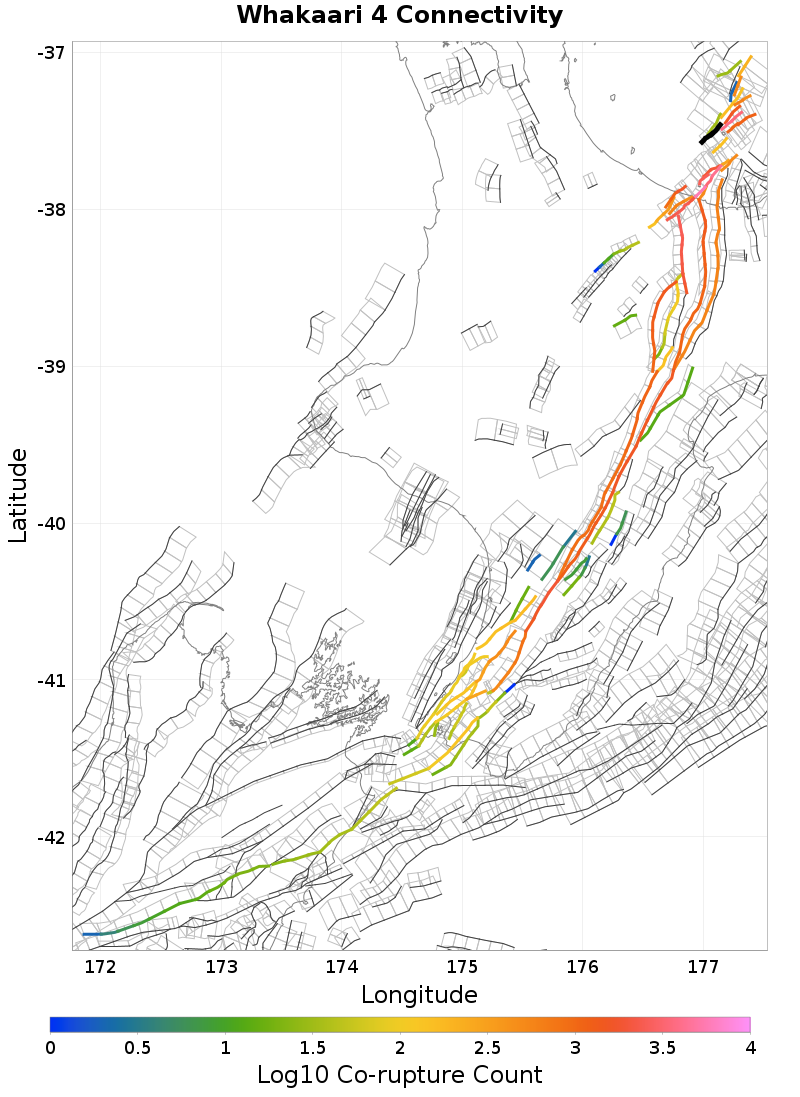

MapMap

Nearby Sections

(top)

Fault Section
Ohiwa 1, 0.14 km away
Calypso 2, 0.2 km away
Rangitaiki 2, 0.45 km away
White Island 2, 0.45 km away
White Island 1, 1.47 km away
Volkner 3, 1.58 km away
Te Arawa 1, 2.25 km away
Te Arawa 2, 3.86 km away
Volkner 4, 5.31 km away
Tuatoru 1, 5.84 km away
Waimanawa - Waikaremoana, 6.93 km away
Opotiki 3, 8.03 km away
Rangitaiki 1, 10.86 km away
Tuatoru 2, 11.04 km away
Te Arawa 3, 14.7 km away

Ohiwa 1, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMzguMDRCRnUz
Connected?true
Directly Connected?false
Co-rupture Count279
Co-rupture Rate7.733795E-7

Calypso 2, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMzguMDRCRnUz
Connected?true
Directly Connected?false
Co-rupture Count147
Co-rupture Rate5.9300473E-5

Rangitaiki 2, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMzguMDRCRnUz
Connected?true
Directly Connected?true
Co-rupture Count1,965
Co-rupture Rate1.00802936E-4

White Island 2, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMzguMDRCRnUz
Connected?true
Directly Connected?false
Co-rupture Count500
Co-rupture Rate2.809012E-5

White Island 1, 1.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMzguMDRCRnUz
Connected?true
Directly Connected?true
Co-rupture Count6,652
Co-rupture Rate2.1185348E-4

Volkner 3, 1.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMzguMDRCRnUz
Connected?true
Directly Connected?false
Co-rupture Count33
Co-rupture Rate0.0

Te Arawa 1, 2.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMzguMDRCRnUz
Connected?true
Directly Connected?true
Co-rupture Count3,842
Co-rupture Rate9.884838E-5

Te Arawa 2, 3.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMzguMDRCRnUz
Connected?true
Directly Connected?true
Co-rupture Count1,574
Co-rupture Rate7.1111186E-5

Volkner 4, 5.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMzguMDRCRnUz
Connected?true
Directly Connected?true
Co-rupture Count163
Co-rupture Rate8.937531E-6

Tuatoru 1, 5.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMzguMDRCRnUz
Connected?true
Directly Connected?true
Co-rupture Count1,081
Co-rupture Rate2.963378E-6

Waimanawa - Waikaremoana, 6.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMzguMDRCRnUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 8.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMzguMDRCRnUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 1, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMzguMDRCRnUz
Connected?true
Directly Connected?false
Co-rupture Count2,561
Co-rupture Rate7.930436E-5

Tuatoru 2, 11.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMzguMDRCRnUz
Connected?true
Directly Connected?false
Co-rupture Count1,160
Co-rupture Rate9.442764E-6

Te Arawa 3, 14.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMzguMDRCRnUz
Connected?true
Directly Connected?false
Co-rupture Count629
Co-rupture Rate3.112358E-6
