Alpine: Caswell Details

Property	Value
Rupture Count	66,977
Ruptures Above Sect Min Mag	66,974
Ruptures w/ Nonzero Rates	510
Magnitude Range	[6.81, 8.48]
Length Range	[22, 1,083] km
Total Rate	0.004736099 /yr
Multi-Fault Rate	0.004736099 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	193

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

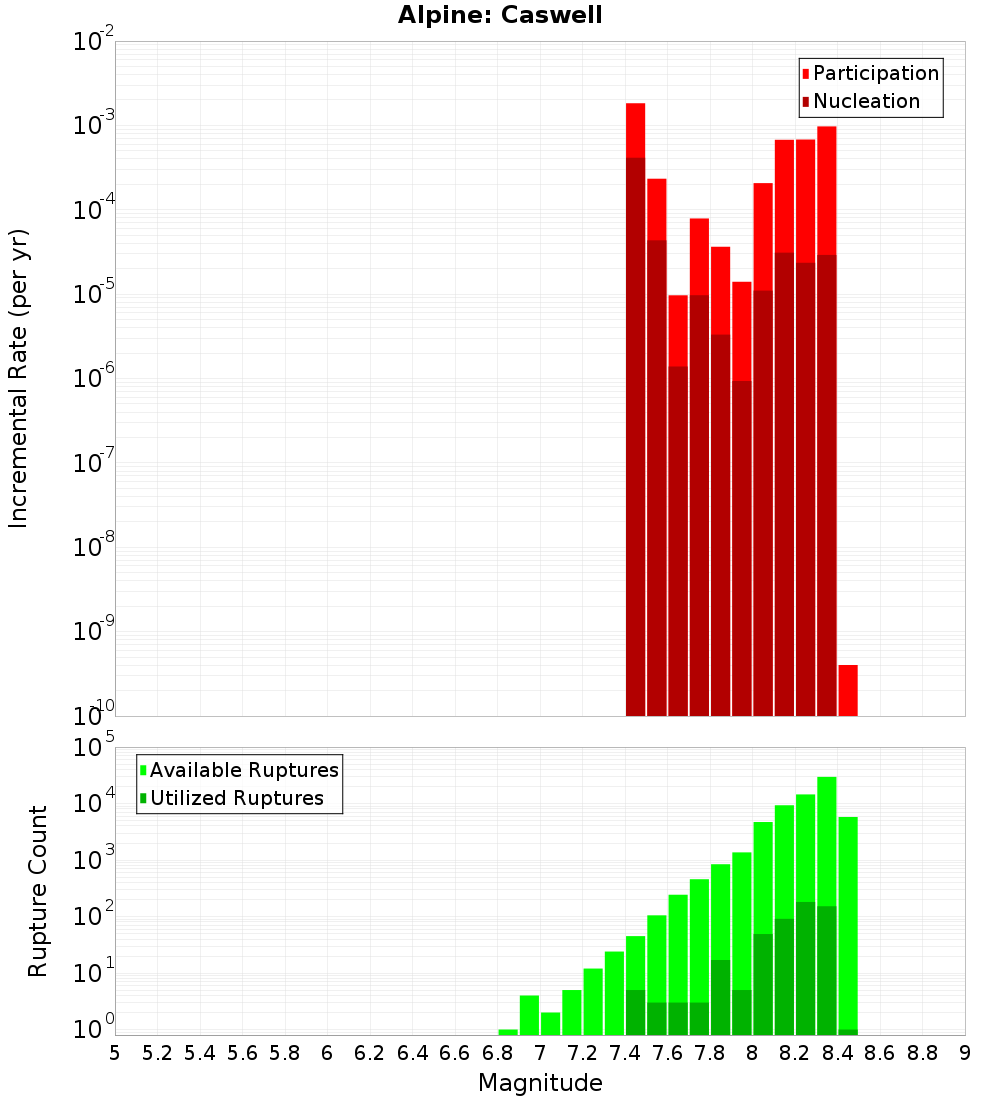

Magnitude-Frequency Distribution

Incremental	Cumulative

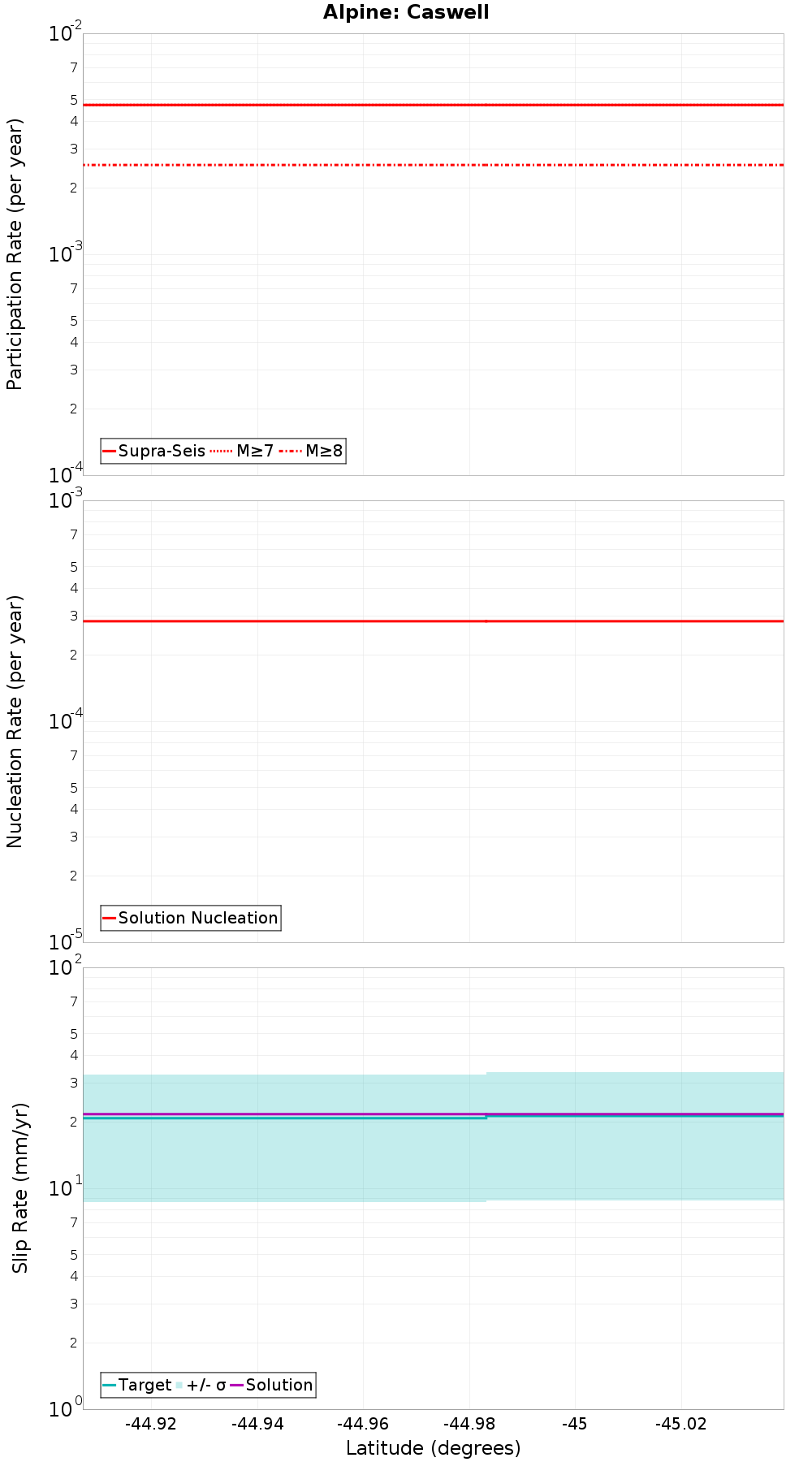

Along-Strike Values

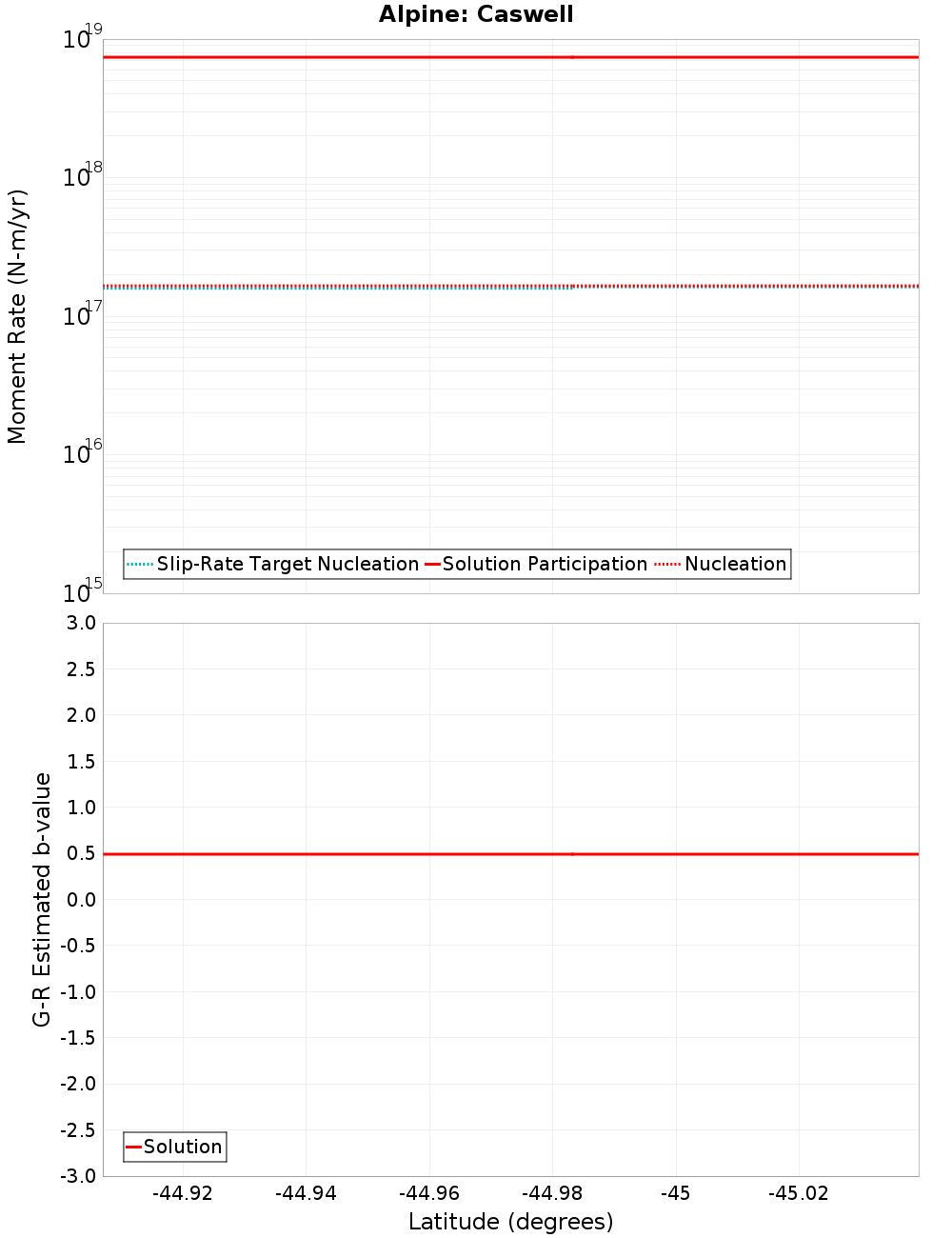

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alpine: Nancy, 0 km away
Alpine: Caswell - South George, 0 km away
Central Wedge 1 & 2 & 3, 0.12 km away
South Wedge 2, 0.26 km away
Central Wedge 4 - South Wedge 411, 0.32 km away
Alpine: Resolution - Charles, 3.33 km away
Alpine: Resolution - Dagg, 11.17 km away

Alpine: Nancy, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMzguMG9FV1BD
Connected?	true
Directly Connected?	true
Co-rupture Count	37,899
Co-rupture Rate	0.0043739863

Alpine: Caswell - South George, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMzguMG9FV1BD
Connected?	true
Directly Connected?	true
Co-rupture Count	66,772
Co-rupture Rate	0.004425714

Central Wedge 1 & 2 & 3, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMzguMG9FV1BD
Connected?	true
Directly Connected?	true
Co-rupture Count	215
Co-rupture Rate	3.1070053E-4

South Wedge 2, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMzguMG9FV1BD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Central Wedge 4 - South Wedge 411, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMzguMG9FV1BD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: Resolution - Charles, 3.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMzguMG9FV1BD
Connected?	true
Directly Connected?	true
Co-rupture Count	25,236
Co-rupture Rate	1.3915364E-4

Alpine: Resolution - Dagg, 11.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzMzguMG9FV1BD
Connected?	true
Directly Connected?	false
Co-rupture Count	56,313
Co-rupture Rate	9.8596225E-5
