Ngatoro West 1 Details

Property	Value
Rupture Count	171
Ruptures Above Sect Min Mag	160
Ruptures w/ Nonzero Rates	21
Magnitude Range	[6.74, 7.83]
Length Range	[18, 184] km
Total Rate	1.325688E-5 /yr
Multi-Fault Rate	1.2334365E-5 /yr (93.04%)
Directly-Connected Faults	3
All Co-Rupturing Faults	9

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

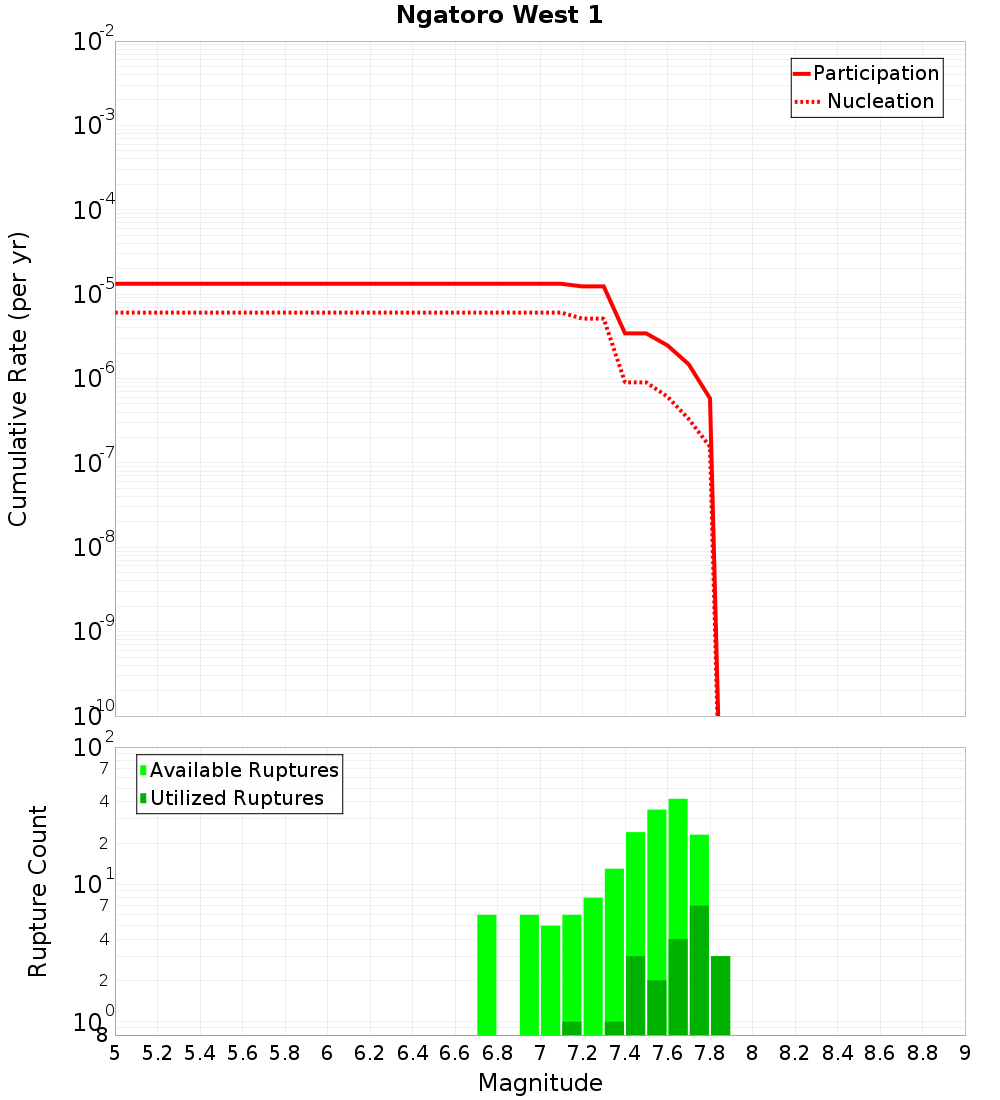

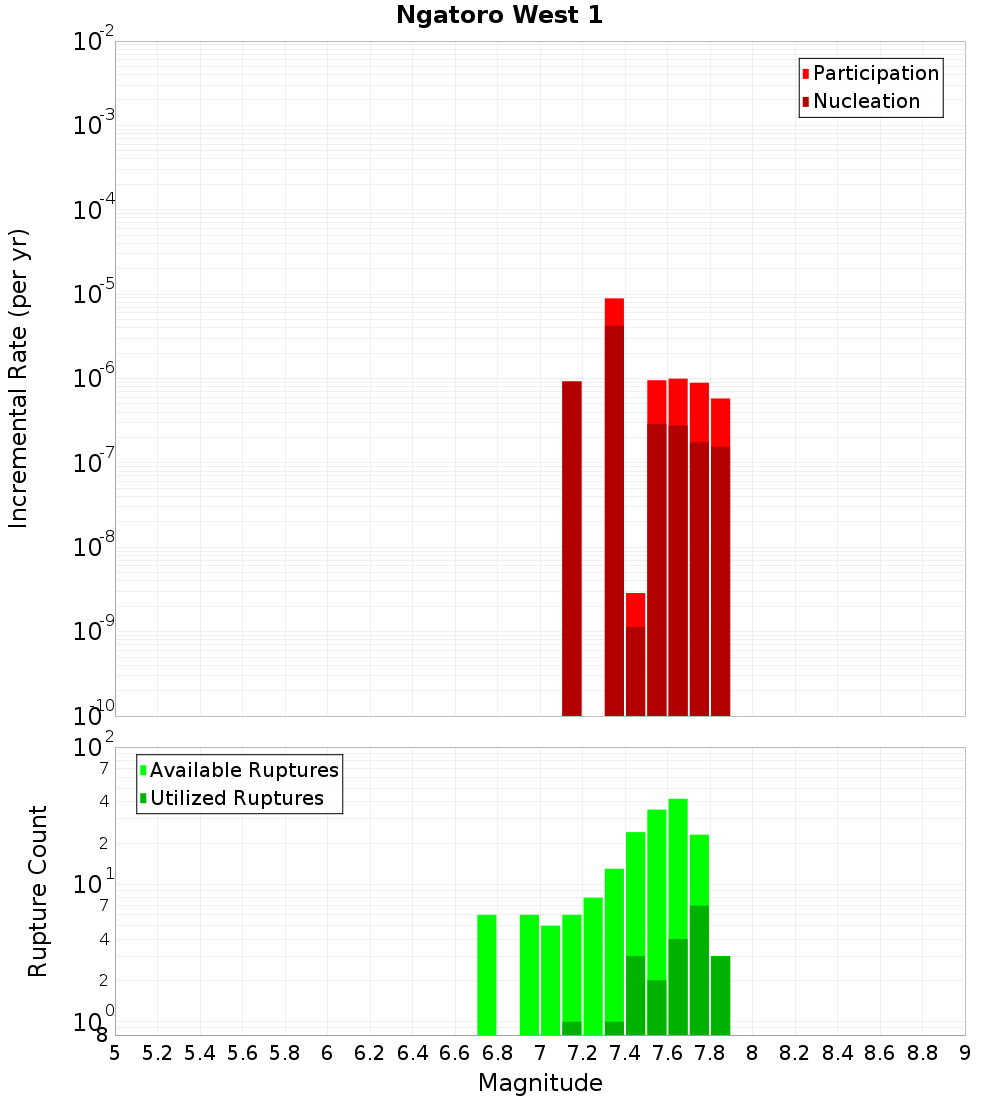

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

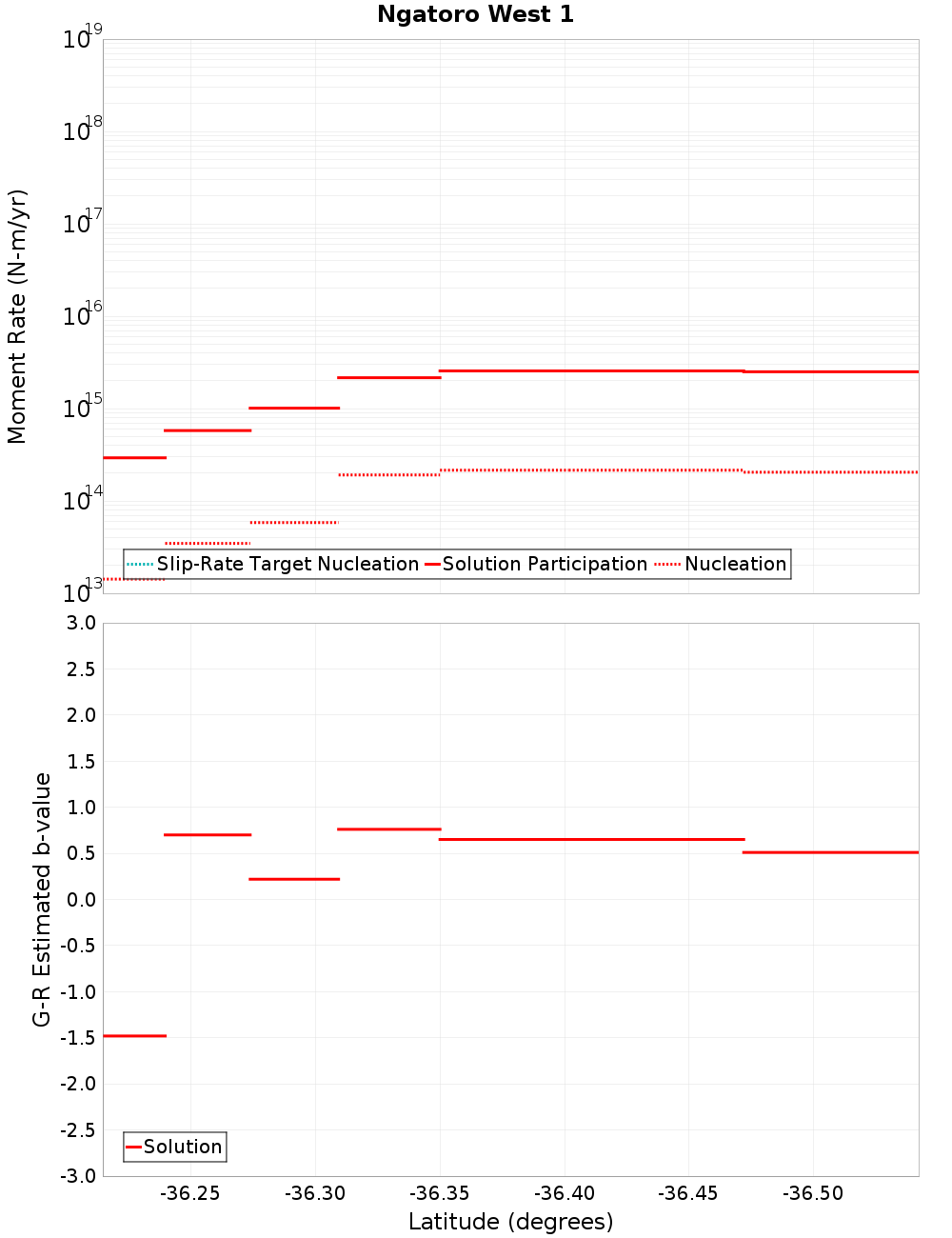

Moment-Rates and b-Values

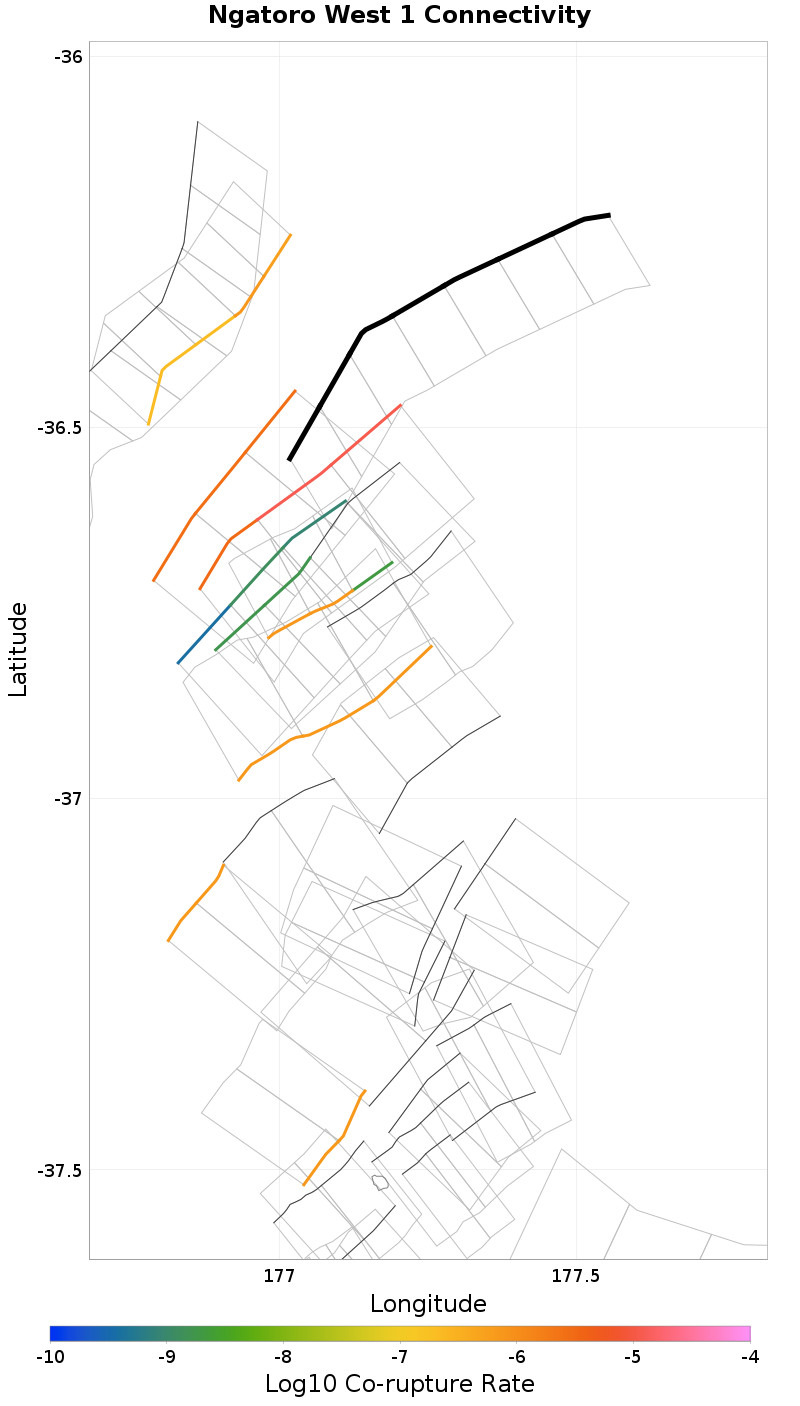

Connectivity

Nearby Sections

Fault Section
Ngatoro South 5, 0.33 km away
Ohena 5, 2.38 km away
Ohena 4, 3.51 km away
Ohena 3, 7.61 km away
Tauranga Trough West 2, 8.65 km away
Ohena 2, 8.71 km away

Ngatoro South 5, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDEuMHlKenQ5
Connected?	true
Directly Connected?	true
Co-rupture Count	66
Co-rupture Rate	7.4957507E-7

Ohena 5, 2.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDEuMHlKenQ5
Connected?	true
Directly Connected?	true
Co-rupture Count	78
Co-rupture Rate	2.6977739E-6

Ohena 4, 3.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDEuMHlKenQ5
Connected?	true
Directly Connected?	true
Co-rupture Count	90
Co-rupture Rate	1.2069152E-5

Ohena 3, 7.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDEuMHlKenQ5
Connected?	true
Directly Connected?	false
Co-rupture Count	24
Co-rupture Rate	1.2484095E-9

Tauranga Trough West 2, 8.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDEuMHlKenQ5
Connected?	true
Directly Connected?	false
Co-rupture Count	24
Co-rupture Rate	7.234009E-7

Ohena 2, 8.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDEuMHlKenQ5
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	1.6571515E-9
