Wakamarama Details

Property	Value
Rupture Count	7,031
Ruptures Above Sect Min Mag	7,022
Ruptures w/ Nonzero Rates	218
Magnitude Range	[6.76, 8.54]
Length Range	[18, 970] km
Total Rate	1.4877155E-4 /yr
Multi-Fault Rate	1.4877155E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	74

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

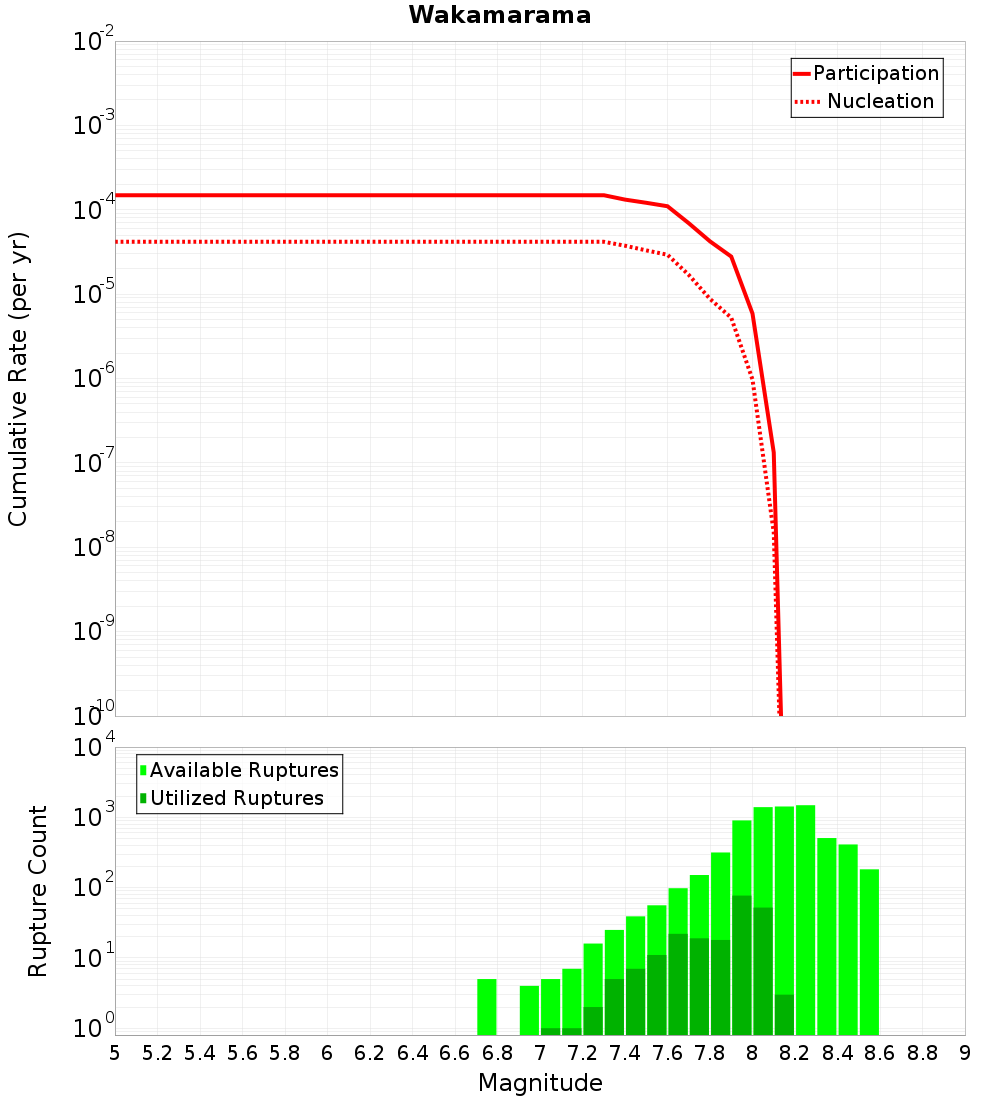

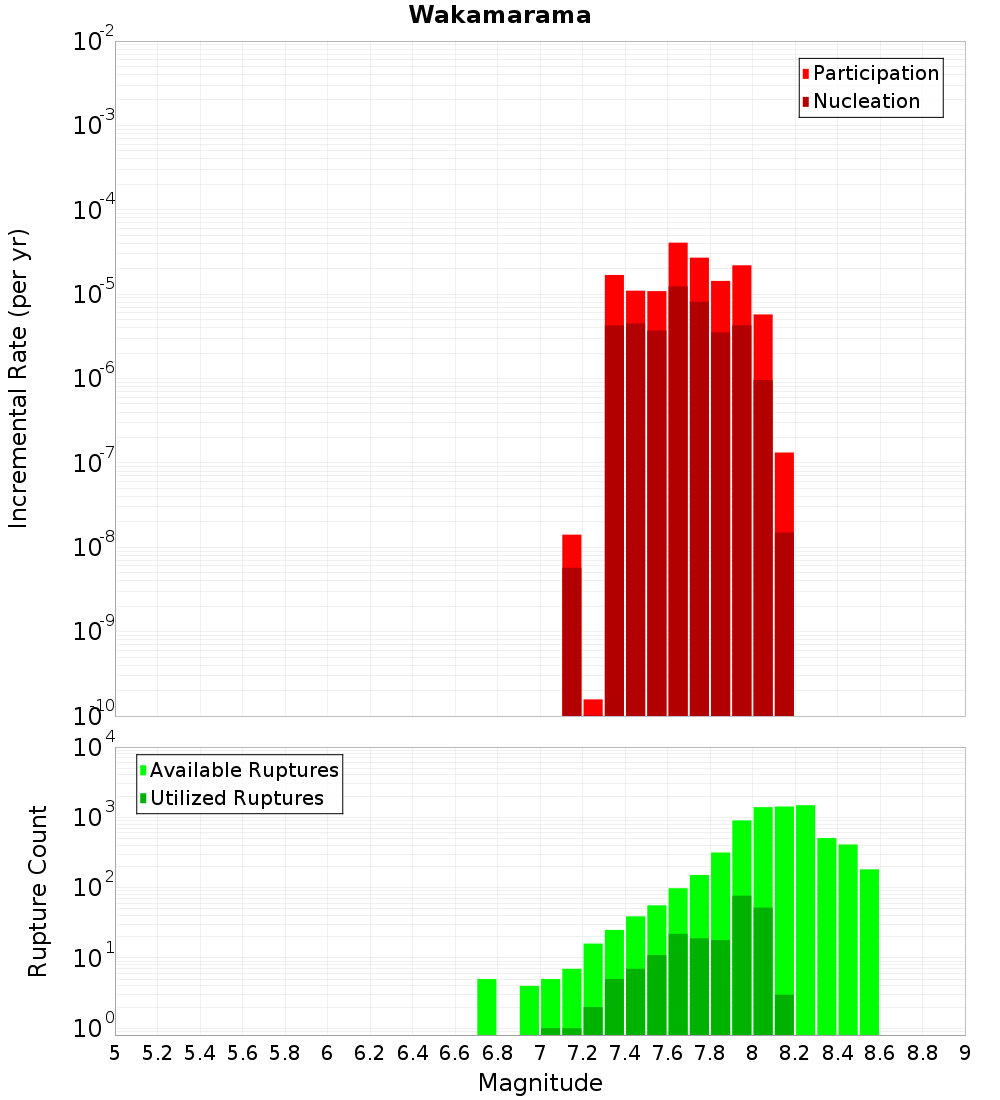

Magnitude-Frequency Distribution

Incremental	Cumulative

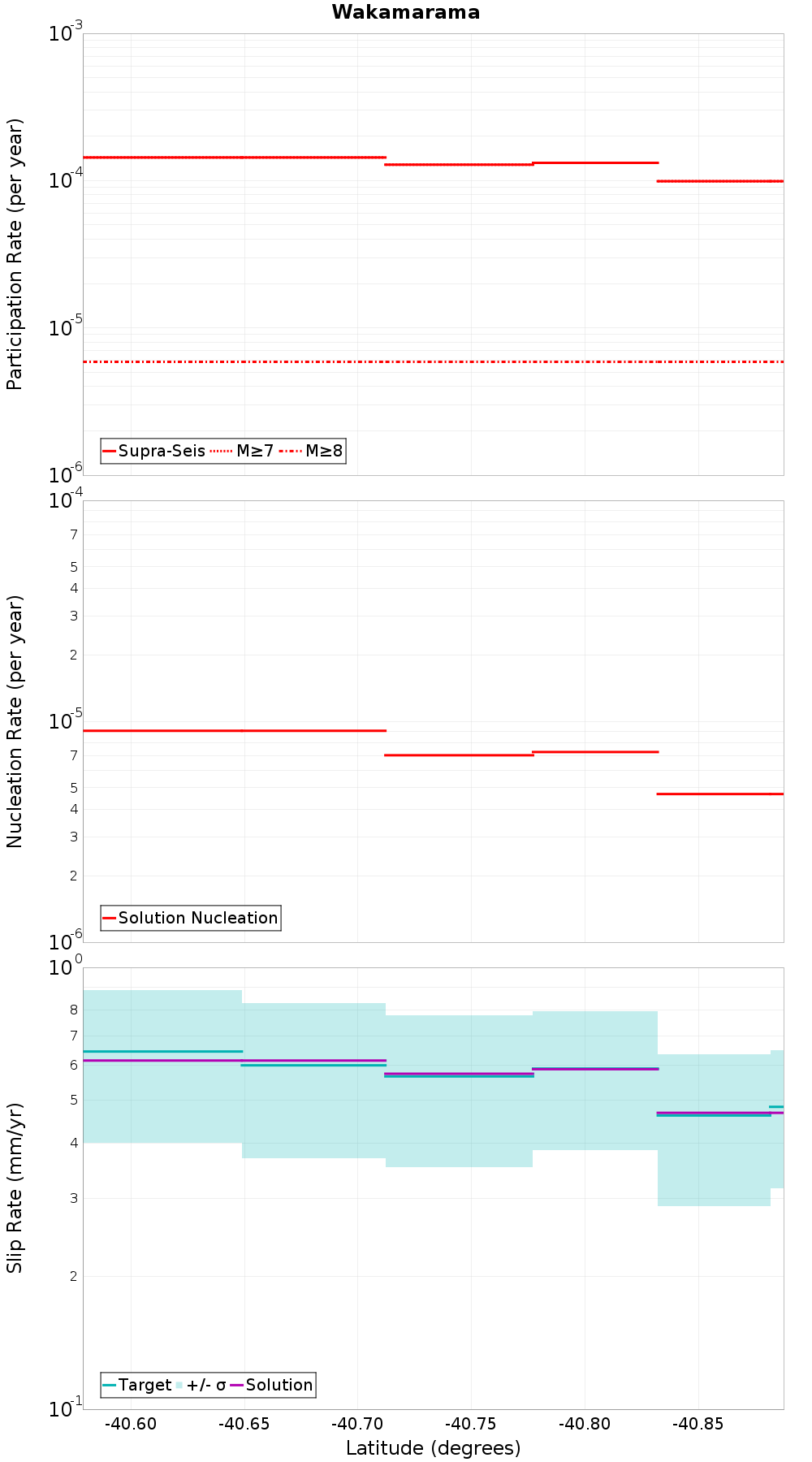

Along-Strike Values

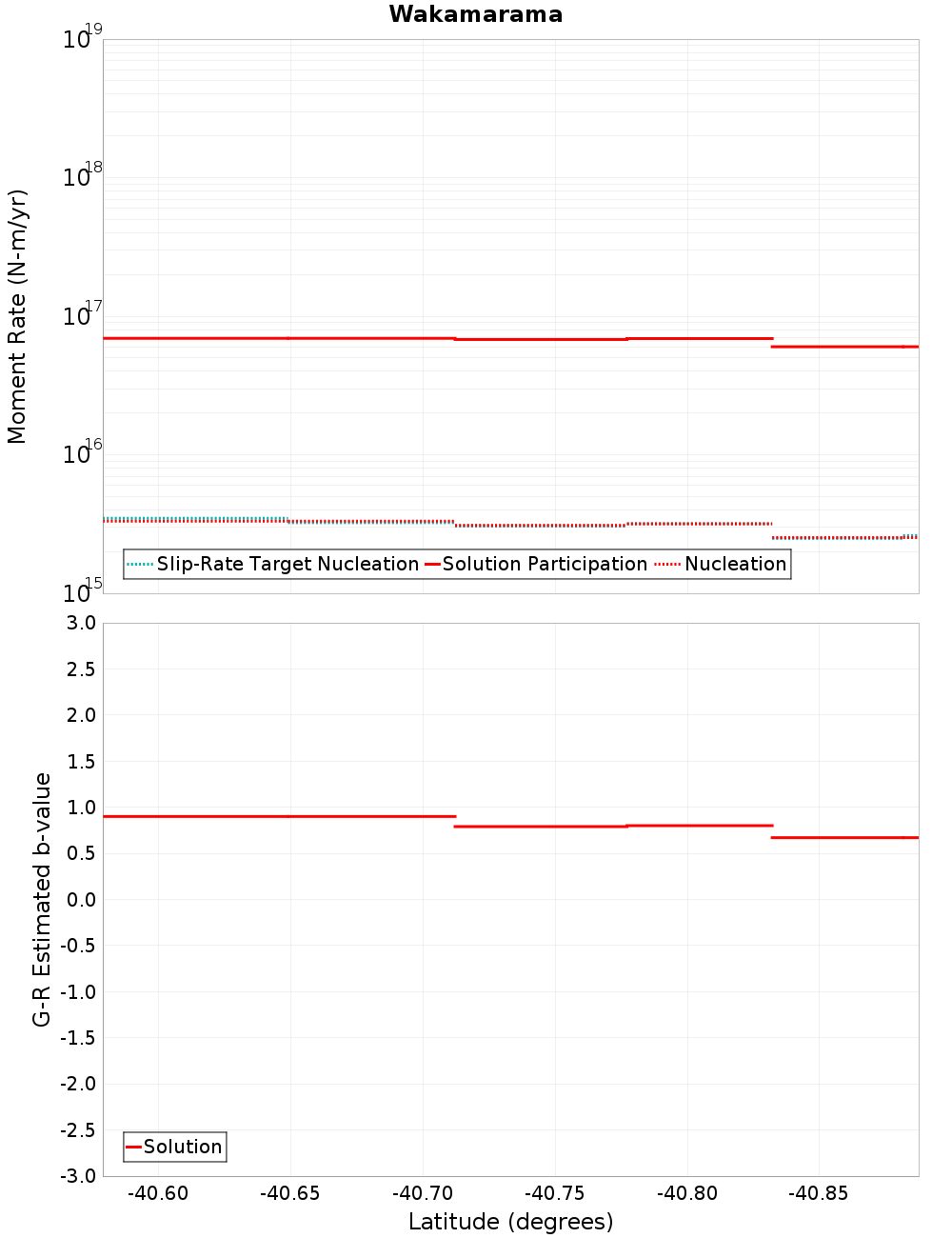

Moment-Rates and b-Values

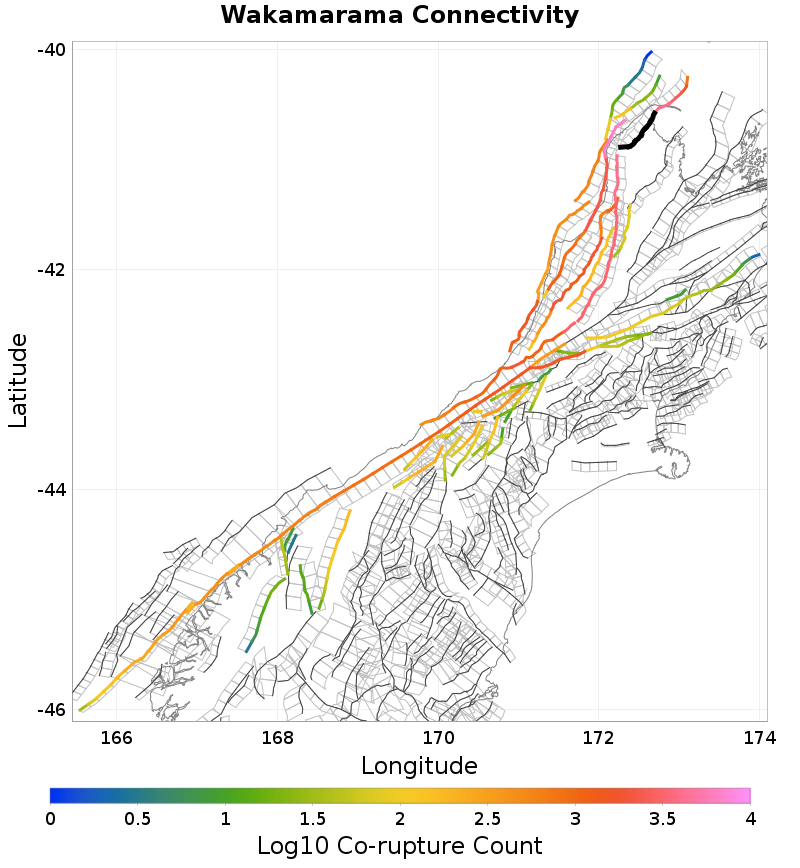

Connectivity

Nearby Sections

Fault Section
Kahurangi, 0.36 km away
Farewell, 0.36 km away
Kongahau, 0.4 km away
Wakamarama Offshore, 1.32 km away
Cape Foulwind 4, 1.76 km away
Kohaihai, 9.36 km away

Kahurangi, 0.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDQuMDJVTWlW
Connected?	true
Directly Connected?	true
Co-rupture Count	86
Co-rupture Rate	2.4487974E-5

Farewell, 0.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDQuMDJVTWlW
Connected?	true
Directly Connected?	true
Co-rupture Count	143
Co-rupture Rate	1.2214319E-5

Kongahau, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDQuMDJVTWlW
Connected?	true
Directly Connected?	true
Co-rupture Count	6,375
Co-rupture Rate	3.8138376E-5

Wakamarama Offshore, 1.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDQuMDJVTWlW
Connected?	true
Directly Connected?	true
Co-rupture Count	3,918
Co-rupture Rate	1.1468617E-4

Cape Foulwind 4, 1.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDQuMDJVTWlW
Connected?	true
Directly Connected?	true
Co-rupture Count	626
Co-rupture Rate	6.9150134E-5

Kohaihai, 9.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDQuMDJVTWlW
Connected?	true
Directly Connected?	false
Co-rupture Count	4,083
Co-rupture Rate	1.7874938E-5
