Mohaka: South Details

Property	Value
Rupture Count	70,707
Ruptures Above Sect Min Mag	70,701
Ruptures w/ Nonzero Rates	1,321
Magnitude Range	[7.08, 8.71]
Length Range	[25, 1,132] km
Total Rate	9.709448E-4 /yr
Multi-Fault Rate	9.7059895E-4 /yr (99.96%)
Directly-Connected Faults	11
All Co-Rupturing Faults	130

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

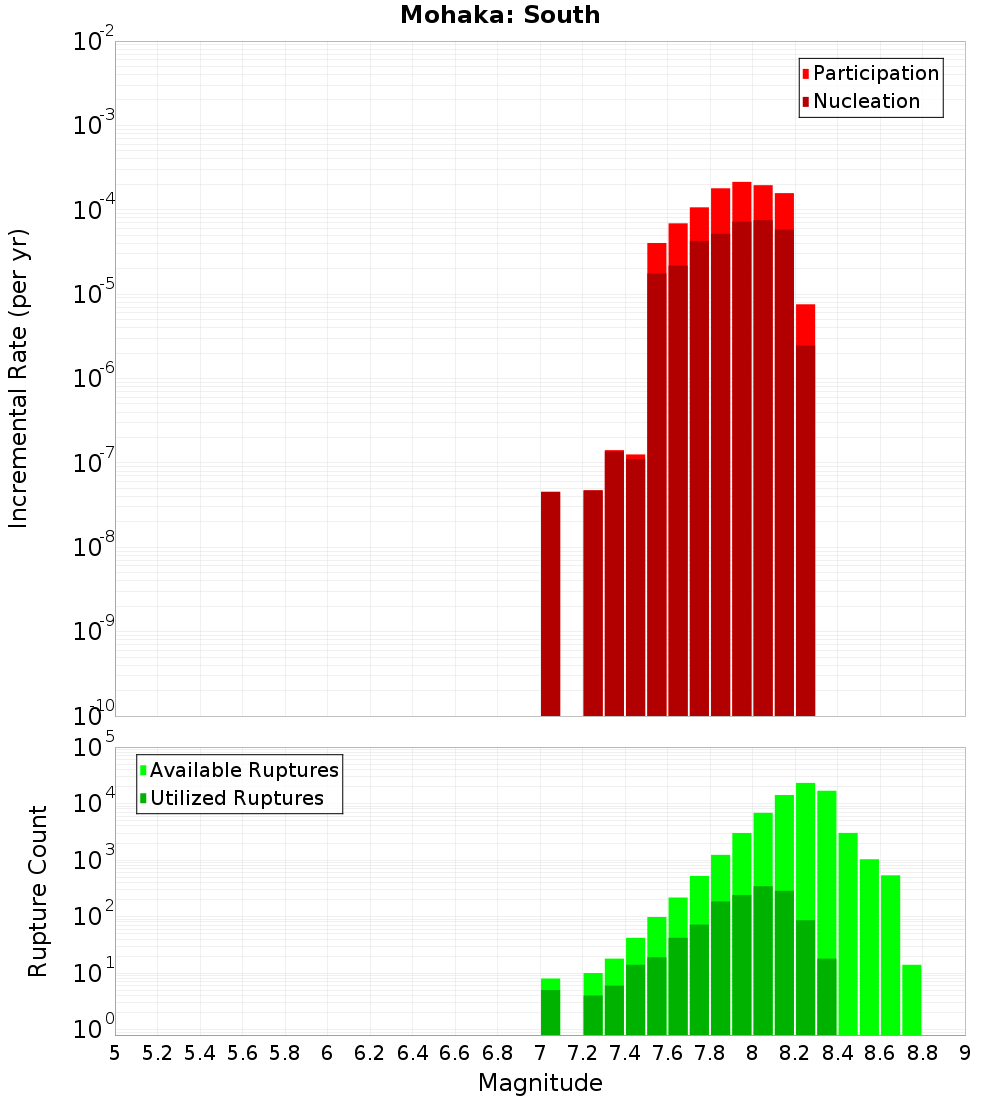

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

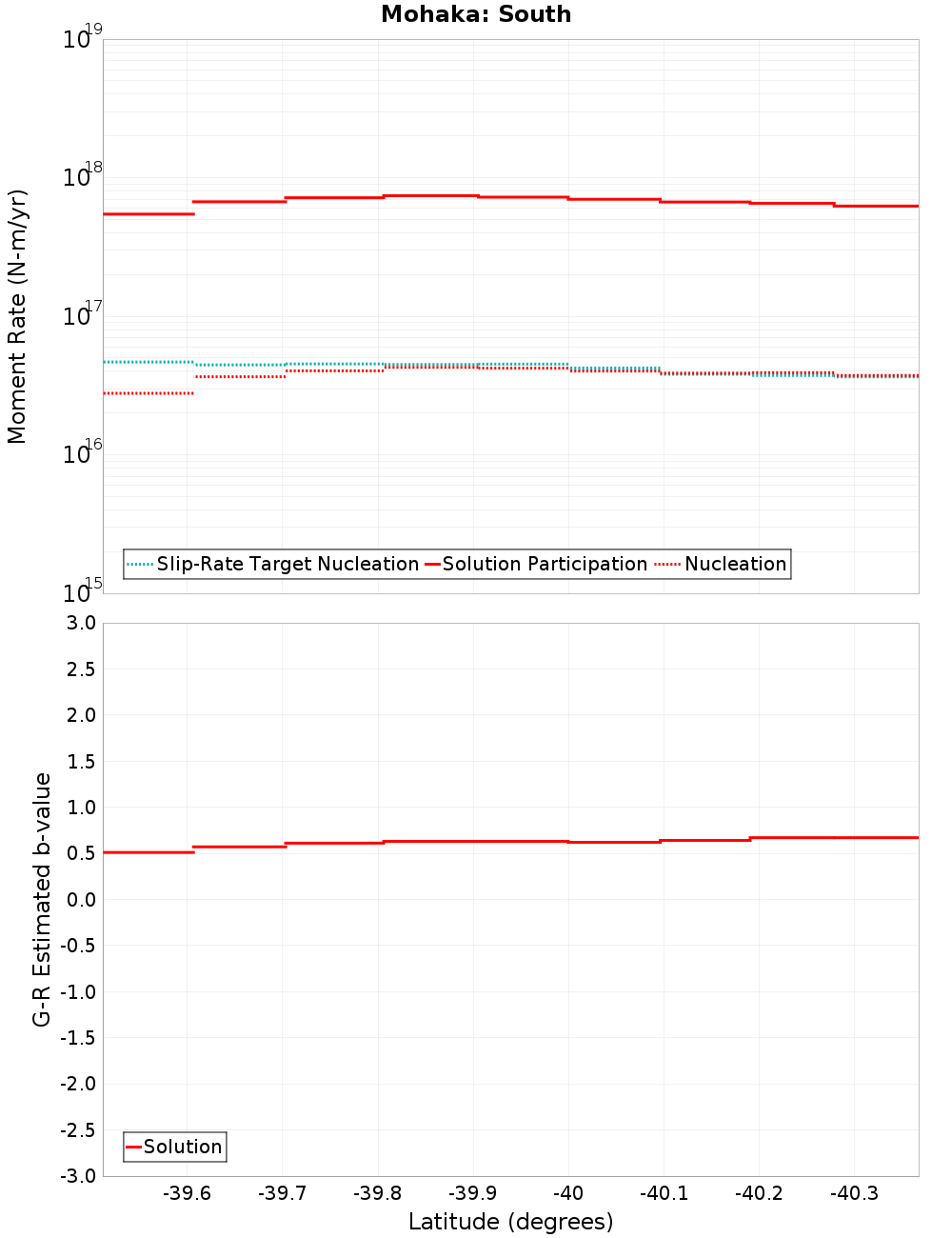

Moment-Rates and b-Values

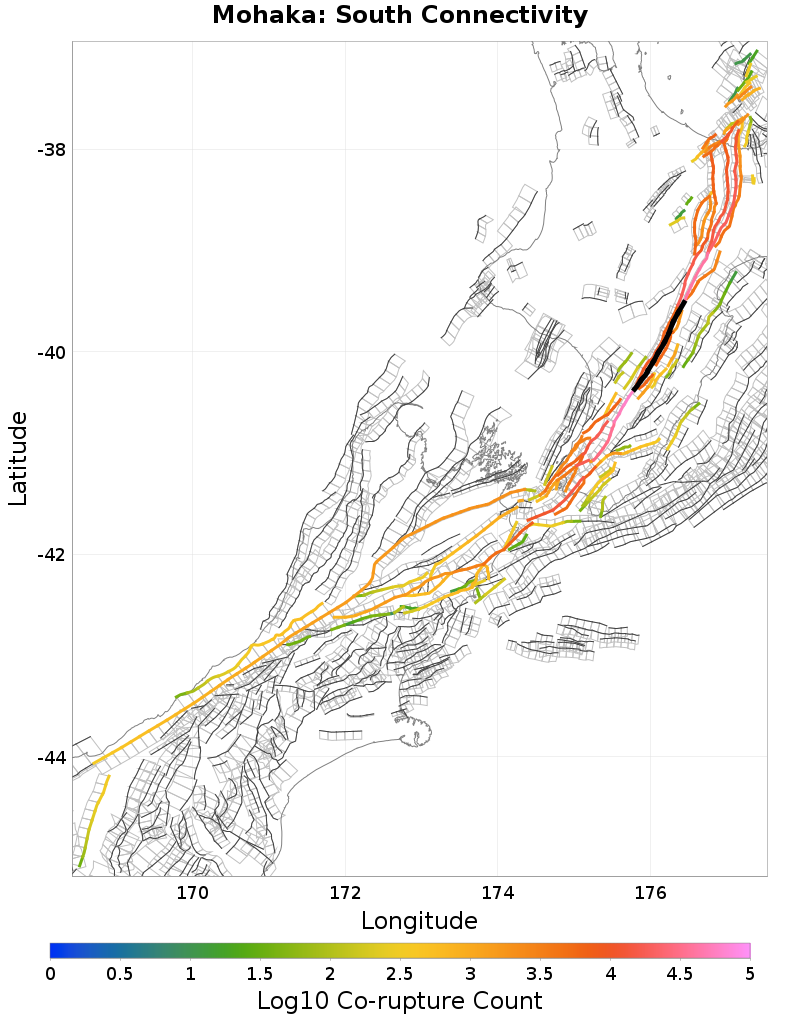

Connectivity

Nearby Sections

Fault Section	Fault Section
Wellington: Pahiatua, 0 km away	Ruahine: North, 4.35 km away
Ruahine: South, 0 km away	Patoka - Rangiora, 5.52 km away
Mohaka: North, 0 km away	Ruataniwha, 6.61 km away
Wakarara, 0.06 km away	Maunga, 9.06 km away
Rangefront, 0.18 km away	Pohangina, 9.44 km away
Woodville, 0.4 km away	Awanui, 12.72 km away
Ruahine: Central, 2.68 km away	Tokomaru, 14.29 km away
Pahiatua, 4.27 km away	Te Heka, 14.96 km away

Wellington: Pahiatua, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	true
Co-rupture Count	60,952
Co-rupture Rate	6.632733E-4

Ruahine: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	true
Co-rupture Count	9,685
Co-rupture Rate	9.812622E-5

Mohaka: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	true
Co-rupture Count	43,100
Co-rupture Rate	1.7461914E-4

Wakarara, 0.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	true
Co-rupture Count	1,925
Co-rupture Rate	6.2828134E-5

Rangefront, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	true
Co-rupture Count	6,520
Co-rupture Rate	9.554442E-5

Woodville, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	true
Co-rupture Count	6,344
Co-rupture Rate	4.3063428E-5

Ruahine: Central, 2.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	true
Co-rupture Count	6,819
Co-rupture Rate	1.3040194E-4

Pahiatua, 4.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	true
Co-rupture Count	1,399
Co-rupture Rate	1.627802E-5

Ruahine: North, 4.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	true
Co-rupture Count	18,065
Co-rupture Rate	1.8995765E-4

Patoka - Rangiora, 5.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	true
Co-rupture Count	4,456
Co-rupture Rate	2.4481947E-4

Ruataniwha, 6.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	true
Co-rupture Count	1,203
Co-rupture Rate	2.6621952E-5

Maunga, 9.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	false
Co-rupture Count	591
Co-rupture Rate	2.0736283E-5

Pohangina, 9.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	false
Co-rupture Count	183
Co-rupture Rate	9.280113E-6

Awanui, 12.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	false
Co-rupture Count	129
Co-rupture Rate	1.5770176E-14

Tokomaru, 14.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	false
Co-rupture Count	710
Co-rupture Rate	1.2888944E-4

Te Heka, 14.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
