Northern Ohariu Details

PropertyValue
Rupture Count10,218
Ruptures Above Sect Min Mag10,216
Ruptures w/ Nonzero Rates372
Magnitude Range[7.07, 8.67]
Length Range[22, 1,031] km
Total Rate4.374051E-4 /yr
Multi-Fault Rate4.2192286E-4 /yr (96.46%)
Directly-Connected Faults6
All Co-Rupturing Faults140

Table Of Contents

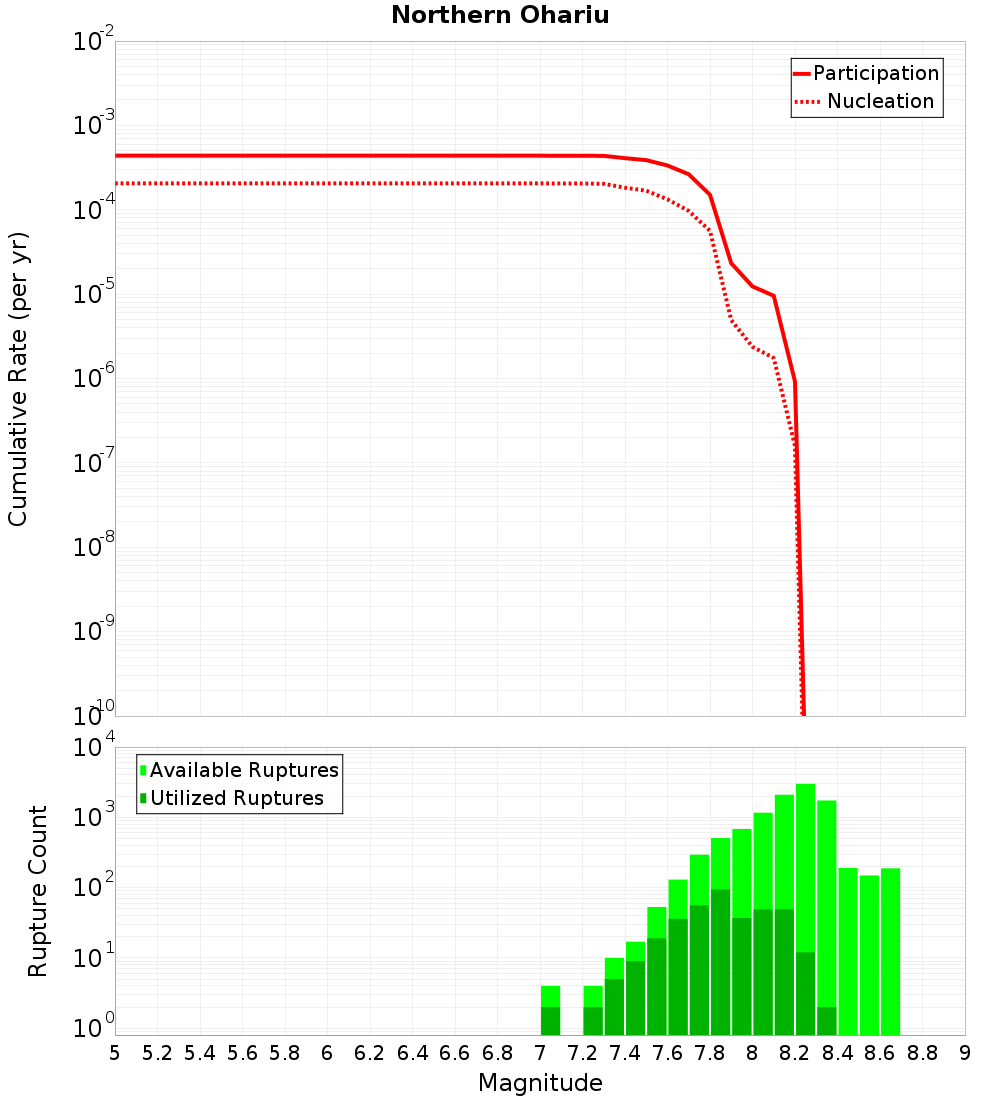

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

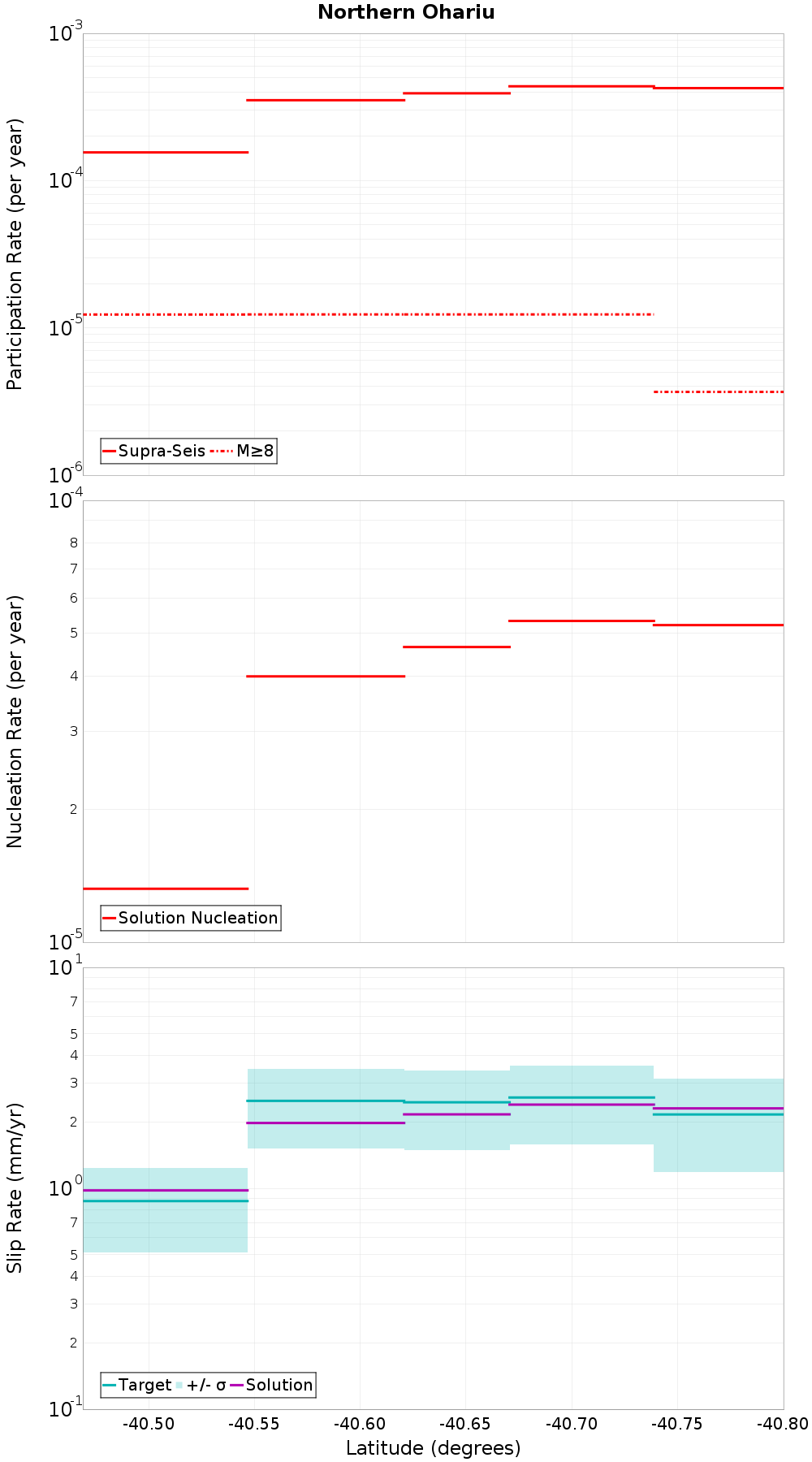

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

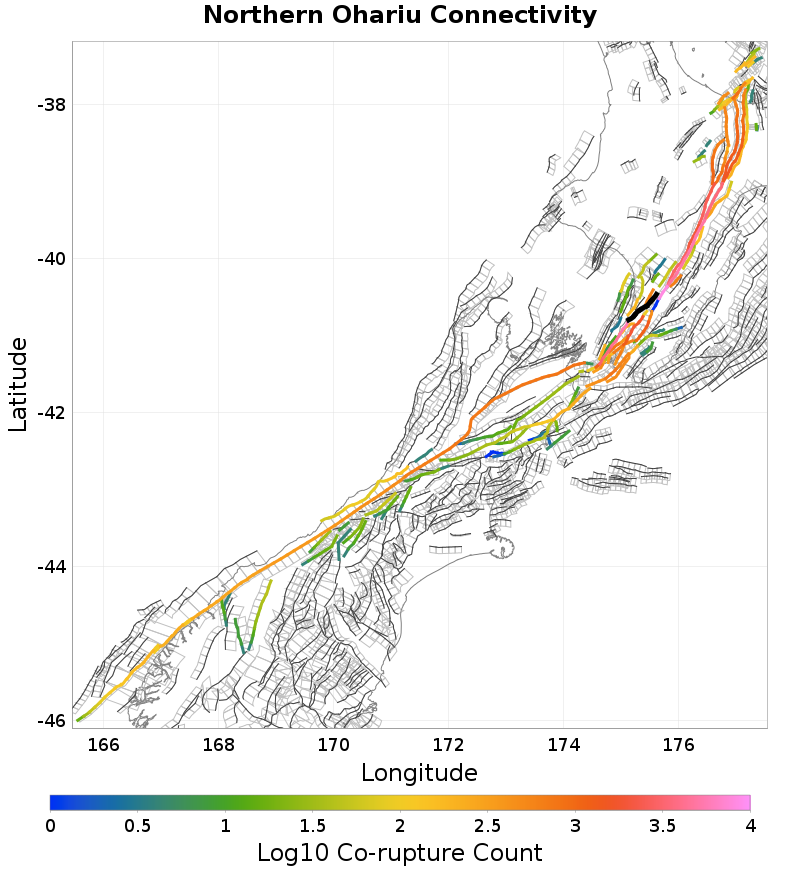

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Tokomaru, 0.33 km away
Wellington: Tararua 3, 1.84 km away
Wellington: Pahiatua, 2.46 km away
Levin Anticline, 4.08 km away
Ohariu, 4.32 km away
Gibbs, 6.81 km away
Poroutawhao, 6.82 km away
Otaki Forks: 2, 7.03 km away
Otaki Forks: 1, 7.28 km away
Otaheke North, 11.55 km away
Otaheke South, 11.86 km away
Rangitikei Offshore 1, 12.12 km away
Pohangina, 13.14 km away

Tokomaru, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?true
Co-rupture Count594
Co-rupture Rate6.460227E-5

Wellington: Tararua 3, 1.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?true
Co-rupture Count1,409
Co-rupture Rate1.6671538E-5

Wellington: Pahiatua, 2.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?true
Co-rupture Count8,204
Co-rupture Rate1.2281317E-4

Levin Anticline, 4.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu, 4.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?true
Co-rupture Count5,917
Co-rupture Rate3.6171454E-4

Gibbs, 6.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?false
Co-rupture Count284
Co-rupture Rate2.0129068E-8

Poroutawhao, 6.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?true
Co-rupture Count191
Co-rupture Rate2.7744405E-5

Otaki Forks: 2, 7.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?true
Co-rupture Count1,667
Co-rupture Rate3.5572357E-5

Otaki Forks: 1, 7.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?false
Co-rupture Count1,868
Co-rupture Rate4.8814207E-5

Otaheke North, 11.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaheke South, 11.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate6.502489E-6

Rangitikei Offshore 1, 12.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pohangina, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?true
Directly Connected?false
Co-rupture Count58
Co-rupture Rate1.591106E-9
