Onepoto Details

Property	Value
Rupture Count	798
Ruptures Above Sect Min Mag	795
Ruptures w/ Nonzero Rates	124
Magnitude Range	[7.18, 8.11]
Length Range	[25, 242] km
Total Rate	1.1104016E-4 /yr
Multi-Fault Rate	8.221924E-5 /yr (74.04%)
Directly-Connected Faults	8
All Co-Rupturing Faults	30

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

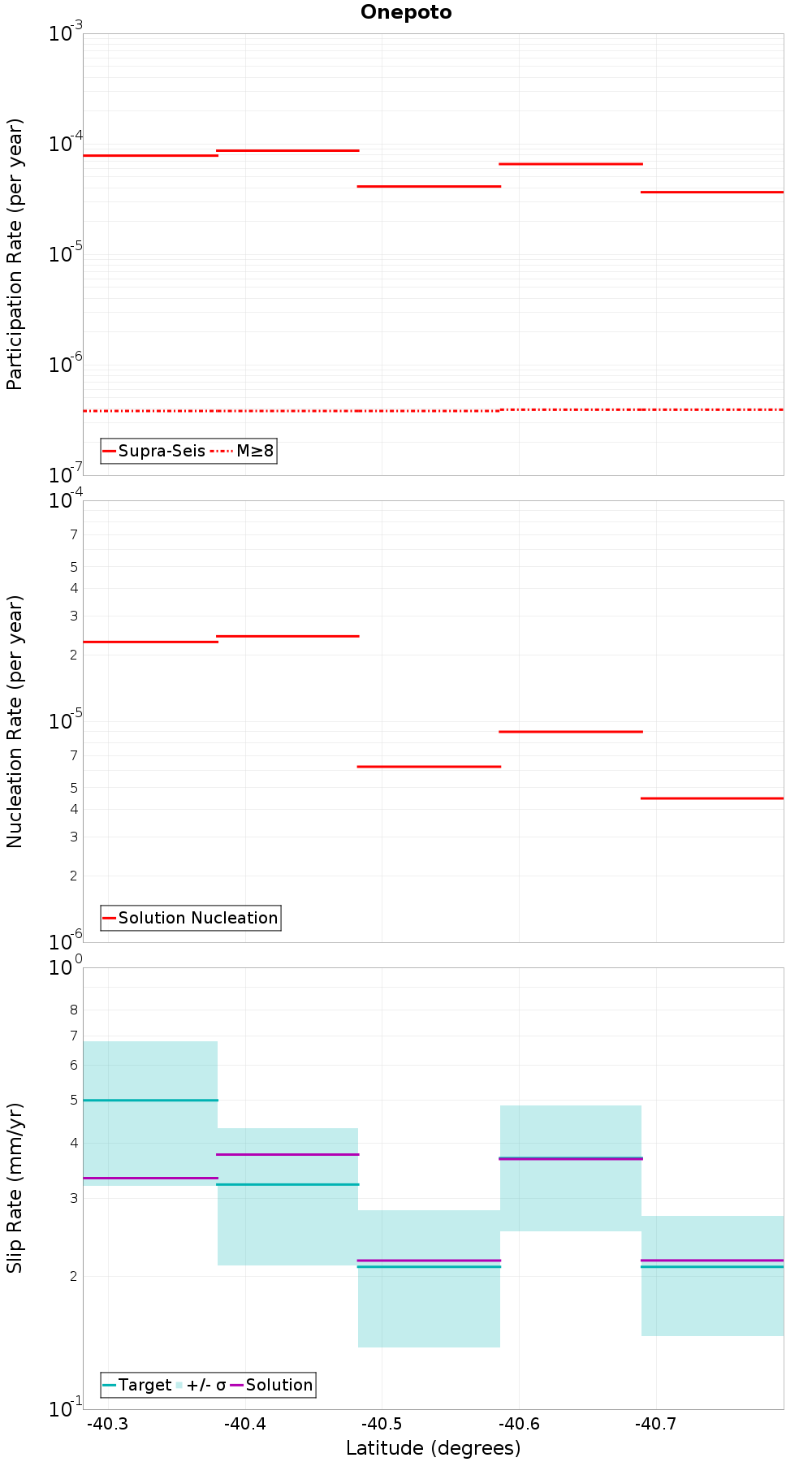

Along-Strike Values

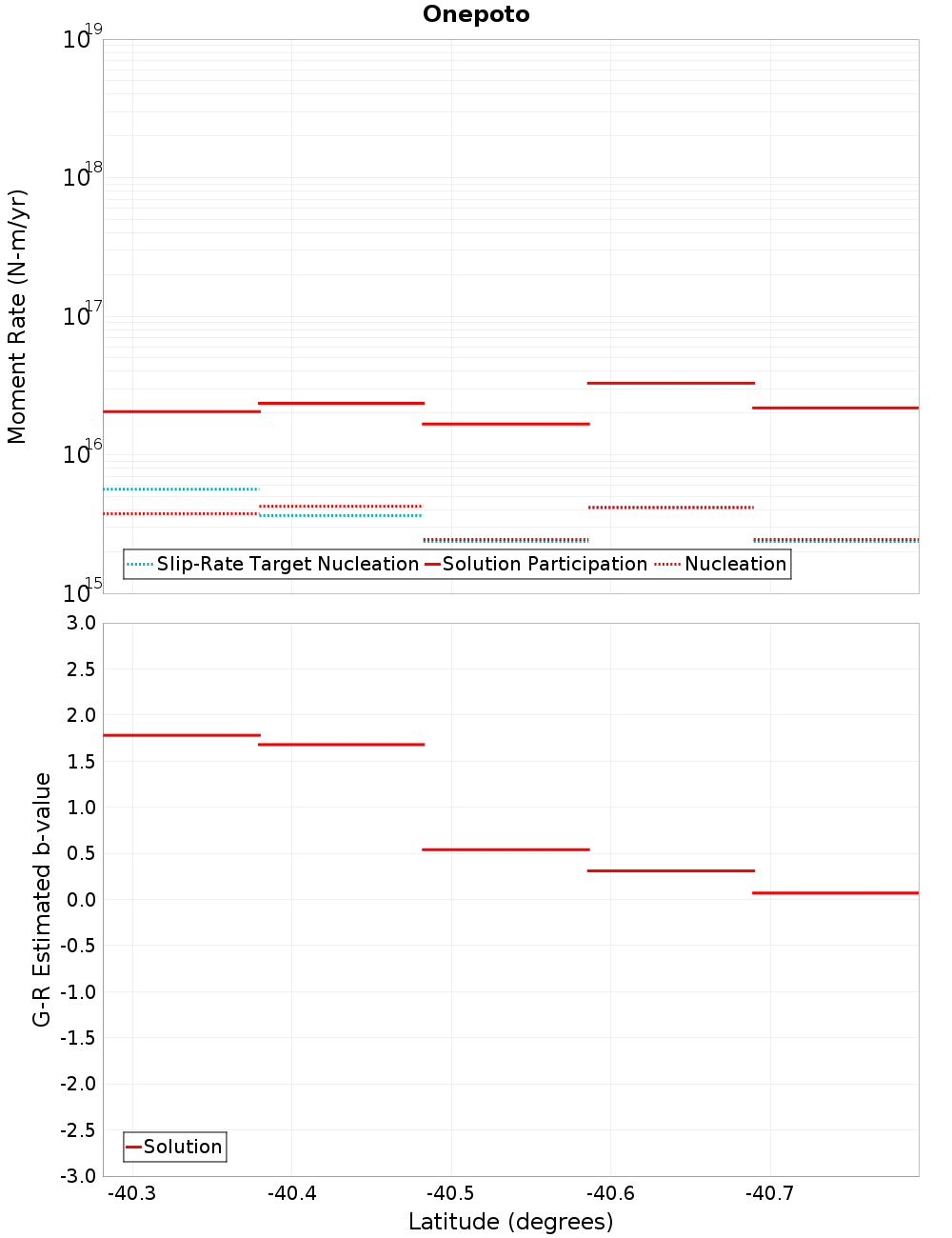

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Mascarin, 0.05 km away
Fisherman 3, 0.22 km away
Otaheke North, 0.42 km away
Rangitikei Offshore 1, 0.76 km away
Fisherman 2, 2.11 km away
Otaheke South, 3.21 km away
Okupe 1, 4.93 km away
Poroutawhao, 5.78 km away
Himatangi, 6.68 km away
Leedstown, 9.03 km away
Mt Stewart, 12.37 km away
Levin Anticline, 13.21 km away
Ohariu, 14.67 km away

Mascarin, 0.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	true
Co-rupture Count	128
Co-rupture Rate	2.4025412E-5

Fisherman 3, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	true
Co-rupture Count	80
Co-rupture Rate	2.585697E-8

Otaheke North, 0.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	true
Co-rupture Count	98
Co-rupture Rate	1.7541994E-5

Rangitikei Offshore 1, 0.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	true
Co-rupture Count	57
Co-rupture Rate	3.1499905E-5

Fisherman 2, 2.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	true
Co-rupture Count	239
Co-rupture Rate	2.2423894E-5

Otaheke South, 3.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	true
Co-rupture Count	339
Co-rupture Rate	1.1076268E-5

Okupe 1, 4.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	true
Co-rupture Count	554
Co-rupture Rate	6.962695E-6

Poroutawhao, 5.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	true
Co-rupture Count	103
Co-rupture Rate	1.6479161E-6

Himatangi, 6.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	false
Co-rupture Count	70
Co-rupture Rate	4.0950823E-7

Leedstown, 9.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	false
Co-rupture Count	116
Co-rupture Rate	1.9481402E-6

Mt Stewart, 12.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Levin Anticline, 13.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	2.9520834E-11

Ohariu, 14.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEzNDYuNWNncFBE
Connected?	true
Directly Connected?	false
Co-rupture Count	213
Co-rupture Rate	9.653093E-7
